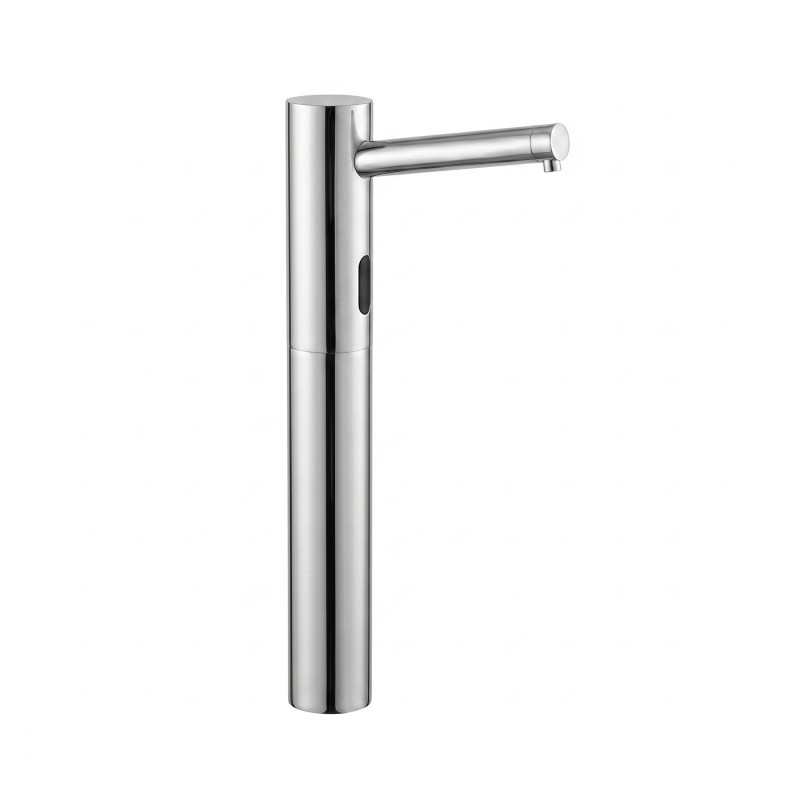

Automatic tall-spout soap dispenser ELITE

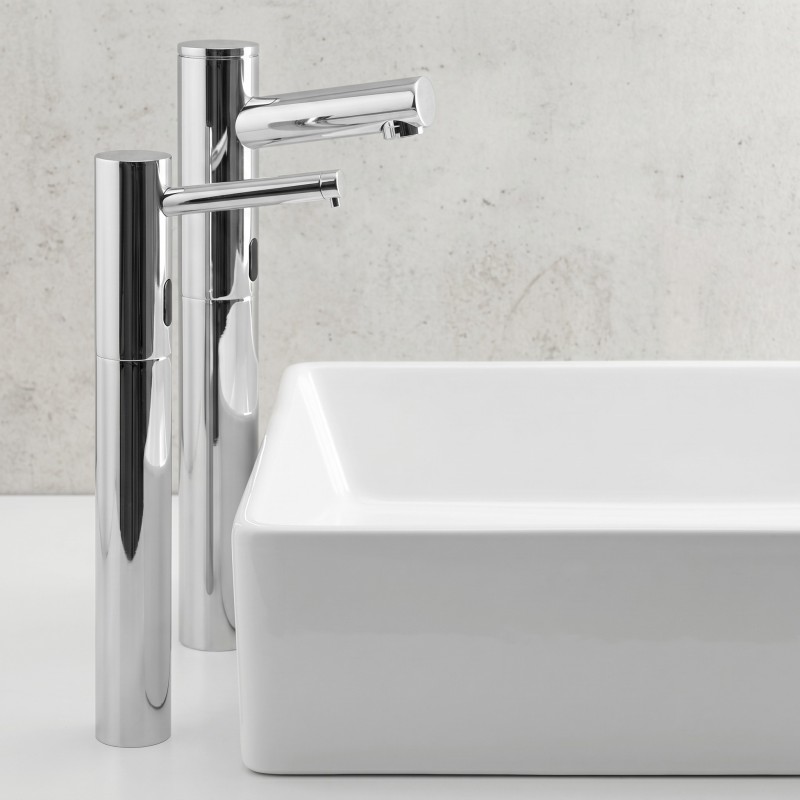

Automatic soap dispenser with ELITE elevated mount for countertop basin

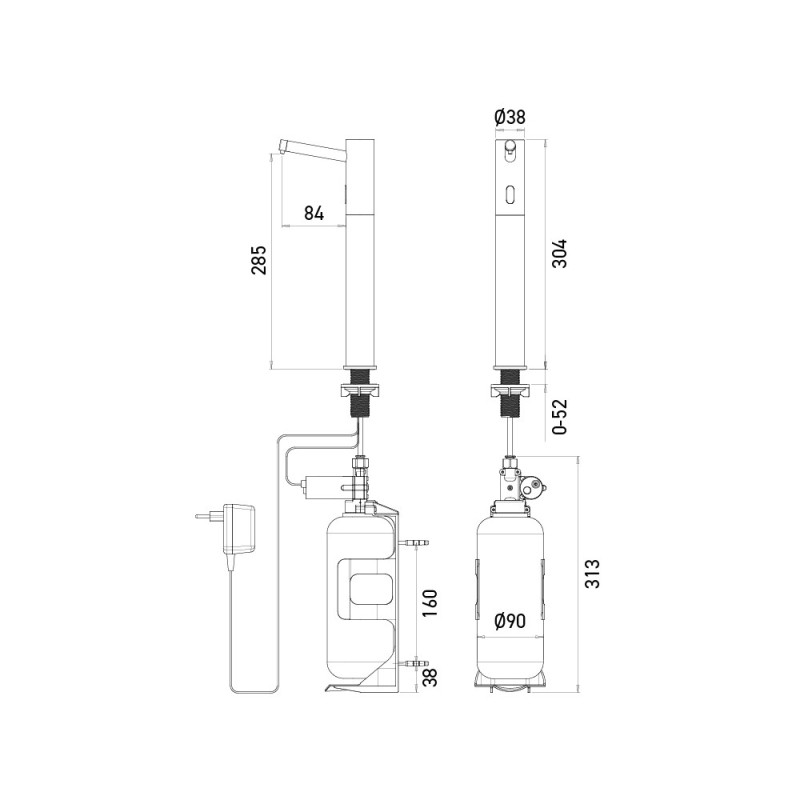

Dimensions of ELITE high-spout hands-free soap dispenser, mains-powered

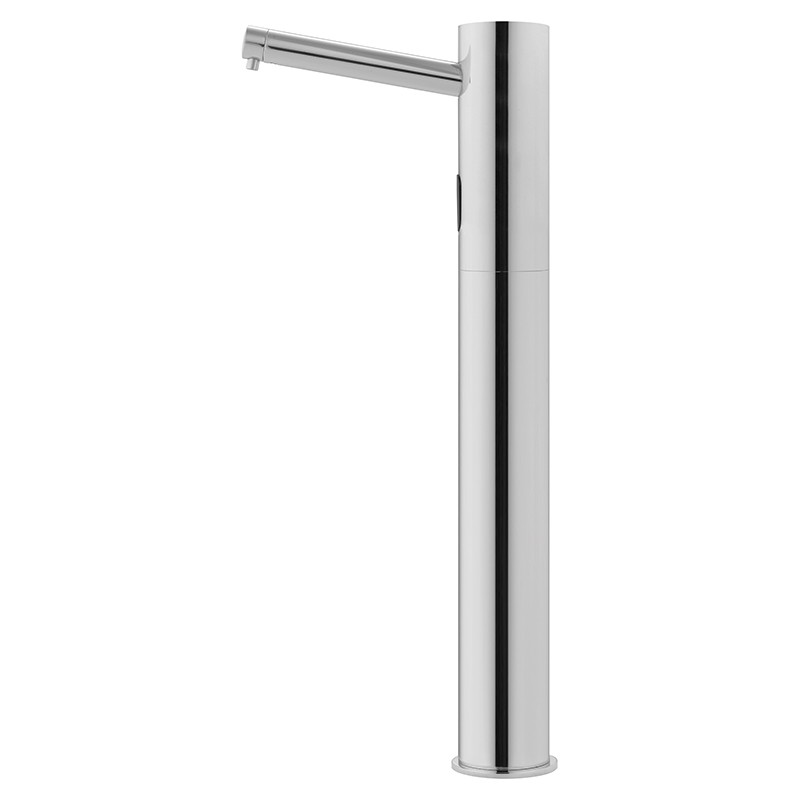

Tall automatic ELITE soap dispenser

extra tall automatic soap dispenser for countertop basins

Reference RES-72-R

Unit price

€305.00 Tax Excl.

→ See Stainless Steel AISI 316 finish

Finish

Chrome
Matt black
Copper PVD
Matte Gold PVD

Power supply

Battery operated (not included)
Mains

Ask a question

High-rise automatic ELITE soap dispenser with infrared detection for vanity bowls and/or countertop washbasins

Thanks to its automatic drip-proof dosing system, our touch-free soap dispenser ensures impeccable quality and hygiene of sanitary facilities.
Easy to refill, it provides an economical solution to ensuring clean and aesthetically pleasing faucets.
The vandal-proof brass construction allows for safe installation in high-risk areas.

Advantages
• Infrared self-adjusting sensor to create a germ-free and automated environment
• Precise soap dosing
• Adjustable soap dosage through remote control (optional)
• Brass body with a 1L refillable plastic bottle
• Operates via peristaltic pump for liquid and foam soap or antibacterial gel (viscosity 100 - 3000 cPs)
• Easy to use refill button
• Cost-effective solution

OPTIONS:

RES-38 remote control
93, 100 or 230 mm height raise.
6L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
5L non-proprietary soap tank adapter cap kit to supply from 1 to 3 soap dispensers (ref. RES-797)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
230/12V junction box to supply from 1 to 10 dispensers (ref. RES-296)
Matching electronic faucet

Sensor: Self-adjusting infrared
Power supply: 230/12V transformer
Battery (6xLR20 not supplied)
Capacity: 1 L tank (6 L option)
Soap: Liquid soap (viscosity 100 -3800 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump
Material: Brass
Operation settings: Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty: 2 years

RES-72-R_Technical-sheet.pdf Soap_Installation-guide.pdf RES-72-R-2D-flt-view.dwg RES-72-R-3D.dwg RES-72-R.ifc RES-72-R.obj
