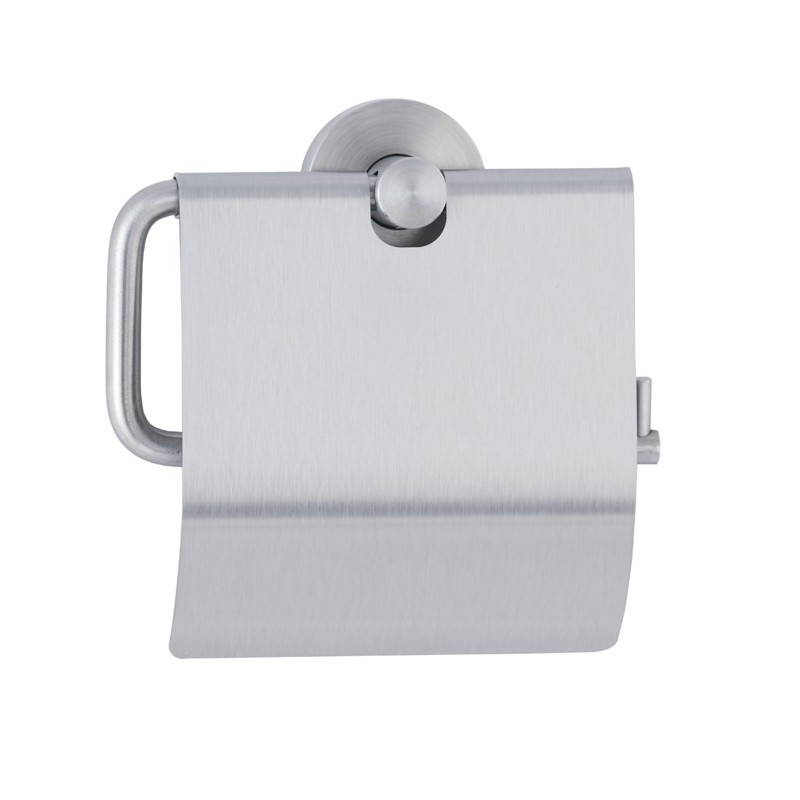

Paper dispenser with cover to protect paper from dust

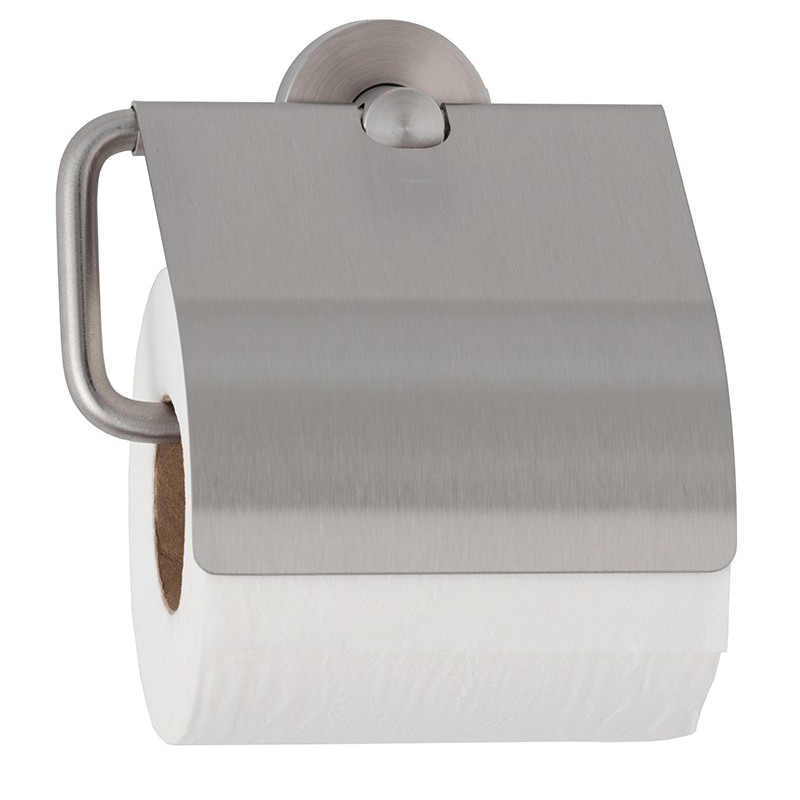

Reversible toilet roll holder for standard toilet rolls

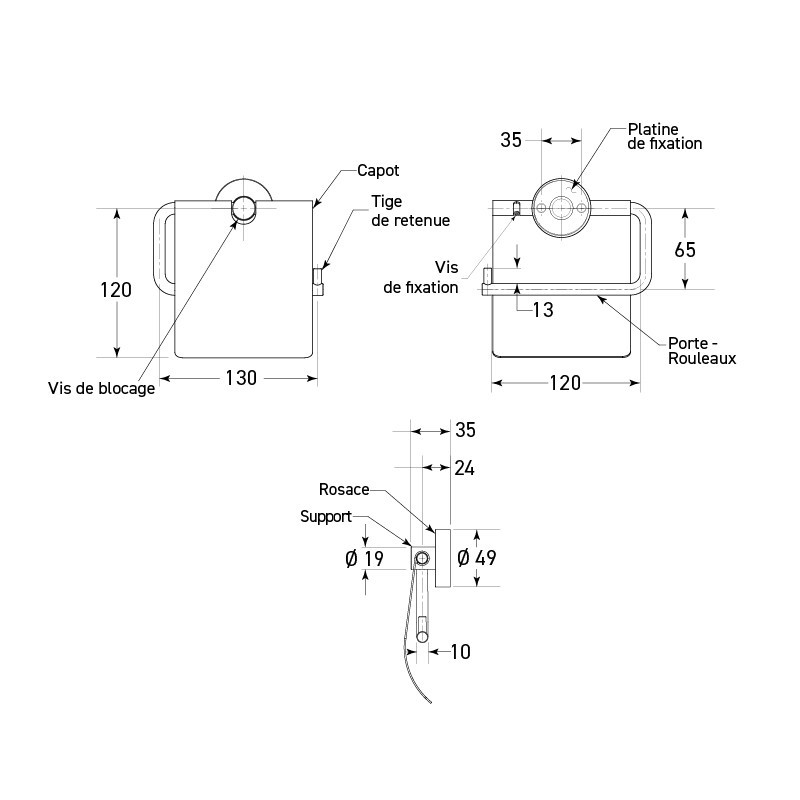

Dimensional drawing of the toilet roll holder with lid, 130 x 120 mm cover and locking screw
Previous
Next
Paper dispenser with cover to protect paper from dust
Reversible toilet roll holder for standard toilet rolls
Dimensional drawing of the toilet roll holder with lid, 130 x 120 mm cover and locking screw

NEOX stainless steel wall-mounted toilet roll holder with cover

with roll protection, quick and easy to set up

Reference BO-546
Unit price
€129.00 Tax Excl.

NEOX stainless steel wall-mounted toilet roll dispenser, reversible for right or left-hand mounting.

Protect roll from dust.
Easy set up and use.
Modern and sleek design.
Invisible fixings.
Robust construction for communal spaces.

AISI 304 stainless steel, brushed finish.
Central stainless steel spindle Ø 19 mm, solidly machined in one piece, with threaded mounting base.
Ø 9.5 mm solid stainless steel spindle bar secured by concealed locking screw.
Stainless steel roll retention pin Ø 6.4 mm.
1.2 mm thick cover, secured by concealed screw.
Mounting plate Ø 46 mm, thickness 5.6 mm, with 2 holes and external thread.

Stainless steel screw-on rosette, 1.4 mm thick, for perfect flush-fitting to the wall and concealed Ø 49 x H13 mm fixings.
Capacity: 1 standard size domestic roll

Dimensions: W140 x D35 x H145 mm
2 year warranty.

Paper format
Roll
Material
AISI 304 stainless steel
Detailed composition
1.4 mm rosette
5.6 mm fixing plate
Stainless steel thickness
1.2 mm
Finish
Brushed
Dimensions
W140 x D35 x H145 mm
Rosette Ø49 x H13 mm
Warranty
2 years

NEOX stainless steel wall-mounted toilet roll dispenser, reversible for right or left-hand mounting.

Protect roll from dust.
Easy set up and use.
Modern and sleek design.
Invisible fixings.
Robust construction for communal spaces.

AISI 304 stainless steel, brushed finish.
Central stainless steel spindle Ø 19 mm, solidly machined in one piece, with threaded mounting base.
Ø 9.5 mm solid stainless steel spindle bar secured by concealed locking screw.
Stainless steel roll retention pin Ø 6.4 mm.
1.2 mm thick cover, secured by concealed screw.
Mounting plate Ø 46 mm, thickness 5.6 mm, with 2 holes and external thread.

Stainless steel screw-on rosette, 1.4 mm thick, for perfect flush-fitting to the wall and concealed Ø 49 x H13 mm fixings.
Capacity: 1 standard size domestic roll

Dimensions: W140 x D35 x H145 mm
2 year warranty.

Paper format
Roll
Material
AISI 304 stainless steel
Detailed composition
1.4 mm rosette
5.6 mm fixing plate
Stainless steel thickness
1.2 mm
Finish
Brushed
Dimensions
W140 x D35 x H145 mm
Rosette Ø49 x H13 mm
Warranty
2 years
