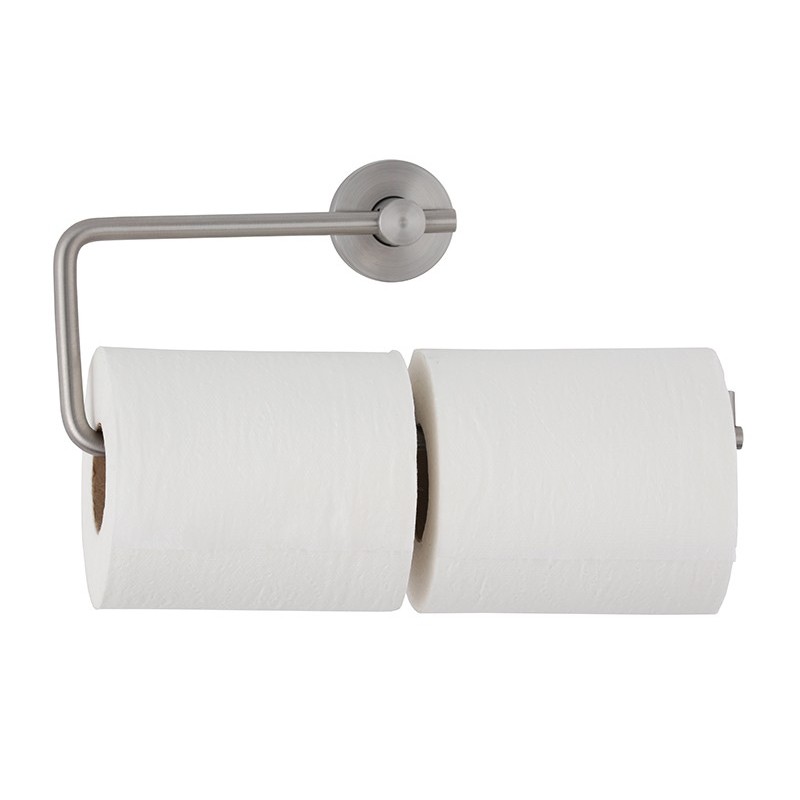

Capacity of 2 classic rolls to ensure continuity

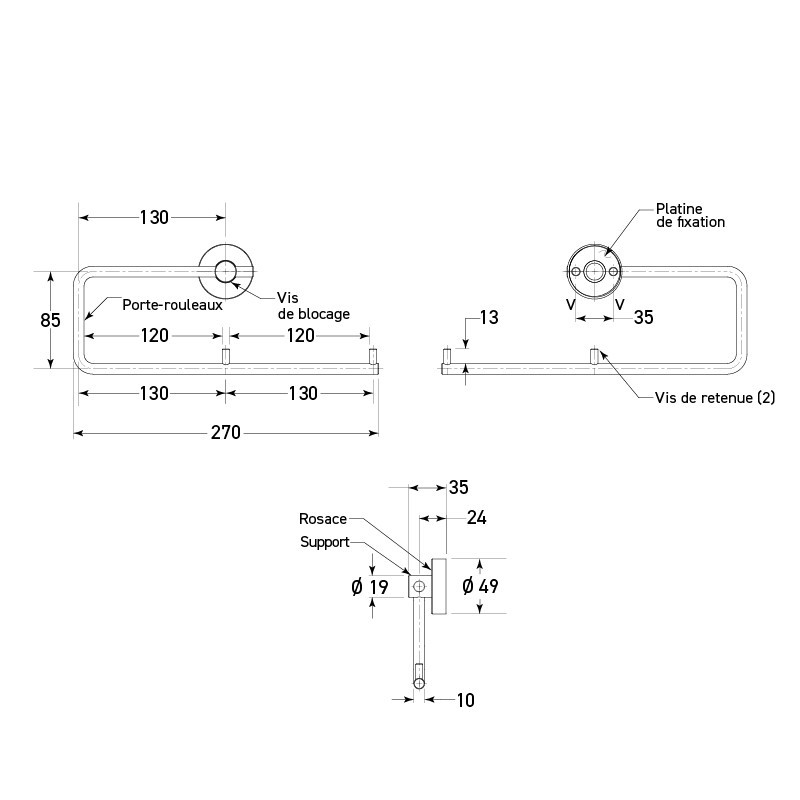

Dimensional drawing of the double toilet roll holder, 270 mm wide and two retaining screws
Previous
Next
Stainless steel dispenser for public facilities, modern and clean design
Capacity of 2 classic rolls to ensure continuity
Dimensional drawing of the double toilet roll holder, 270 mm wide and two retaining screws

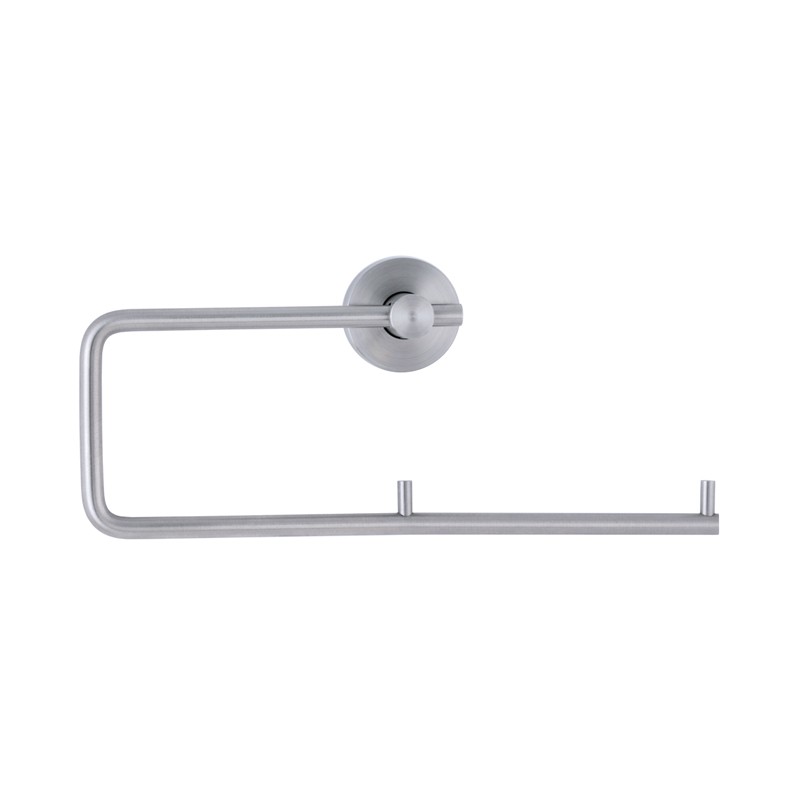

NEOX stainless steel wall-mounted double toilet paper roll holder

Stainless steel wall-mounted double toilet paper roll holder for high-traffic areas

Reference BO-547
Unit price
€119.50 Tax Excl.

Double NEOX stainless steel wall-mounted toilet roll dispenser, reversible for right or left-hand mounting.

2 roll capacity to avoid running out.
Easy to set up and use.
Modern and sleek design.
Invisible fixings.
Robust construction for communal spaces.

AISI 304 stainless steel, brushed finish.
Central stainless steel spindle Ø 19 mm, solidly machined in one piece, with threaded mounting base.
Ø 9.5 mm solid stainless steel spindle bars secured by concealed locking screws.
Stainless steel roll retention pins Ø 6.4 mm.
Mounting plate Ø 46 mm, thickness 5.6 mm, with 2 holes and external thread.
Stainless steel screw-on rosette, 1.4 mm thick, for perfect flush-fitting to the wall and concealed Ø 49 x H13 mm fixings.
Capacity: 2 standard-sized domestic rolls

Dimensions: W270 x D35 x H115 mm

Paper format
Roll
Capacity details
2 rolls
Material
AISI 304 stainless steel
Detailed composition
1.4 mm rosette
5.6 mm fixing plate
Finish
Brushed
Dimensions
W270 x D35 x H115 mm
Screw on rosette Ø 49 x H13 mm
Warranty
2 years
