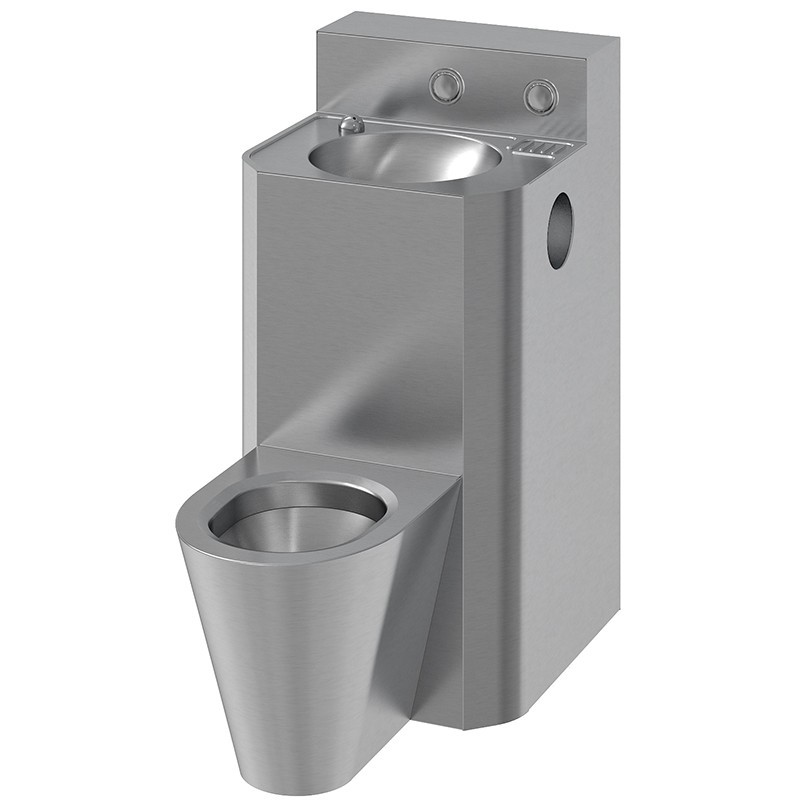

Floor standing WC and sink combination frontal fixations COMPAC

COMBINATION WC WASH BASIN VANDAL PROOF COMPAC
Version WC floor standing, frontal installation with visit trap

Including vanity stamped ø 320 mm, soap held, drip-free adges, pushed temporized faucets recessed with WC flush and anti-block cold or pre-mixed water, stainless steel spout hang-free, recessed WC floor standing and roll dispenser for hygienic paper.

Specially made for penitentiary sites and site development which ask a high degree of security and a maximum utility in a minimum space.

The combination is reinforced with polyurethane foam high density to avoid bumps and dents.
WC floor standing certified EN-997 minimum flush 4 L and CE, welded body of the combination. Rinse edges avoiding concealment of products.
Stamped WC.

Installation:

- Wash basin: water inlet M1/2’’ threaded. Stainless steel tube 1’’ threaded evacuation, welded to the vanity bowl. Includes an overflow system.

- WC: supply M3/4“ threaded, flush tube direct flush to WC pre-mounted. Horizontal or vertical exit ø 100 mm.

- Fixations: wall mounted by 6 threaded rods M10 supplied, installation with technical room.
