Electronic faucet ALLURE DS

Name: Electronic faucet ALLURE DS
SKU: RES-171

Comfort: very reactive short detection, the water pours when hands are near the detection !

Réf. : RES-171

€364.00 Tax Excl.

Choose a model

Poser une question

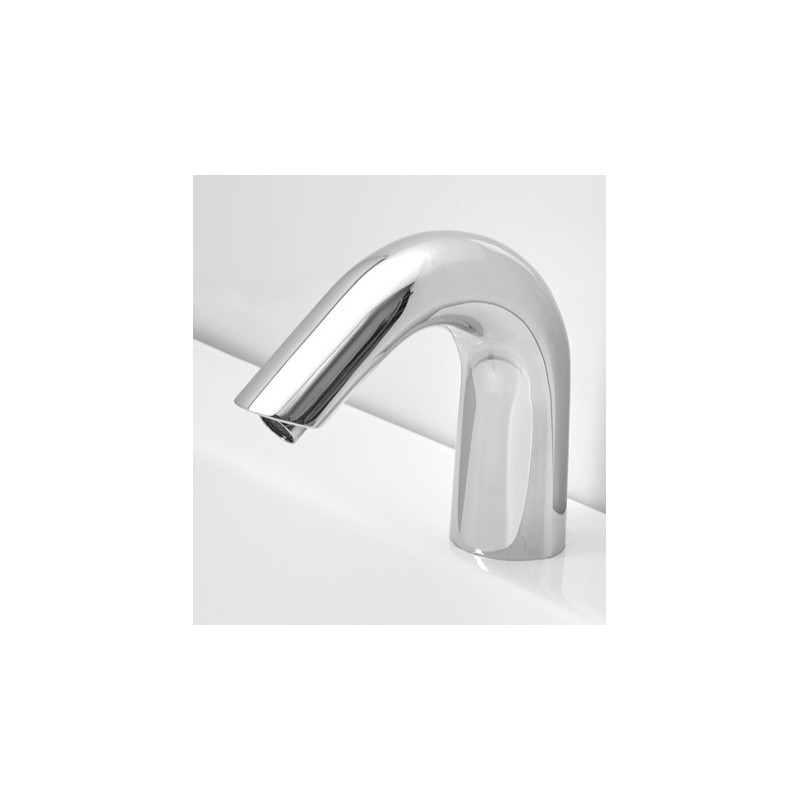

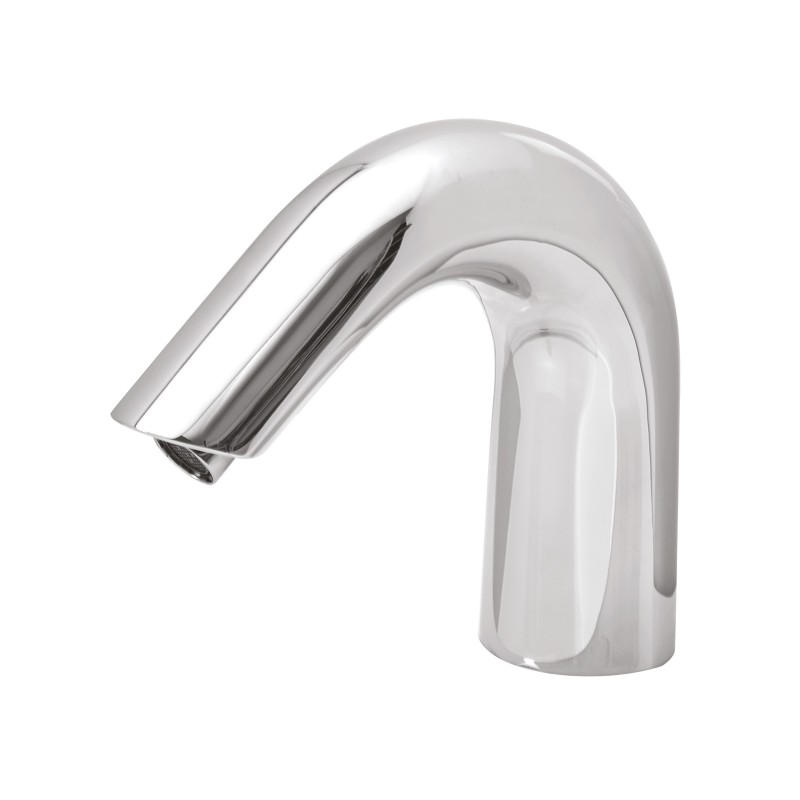

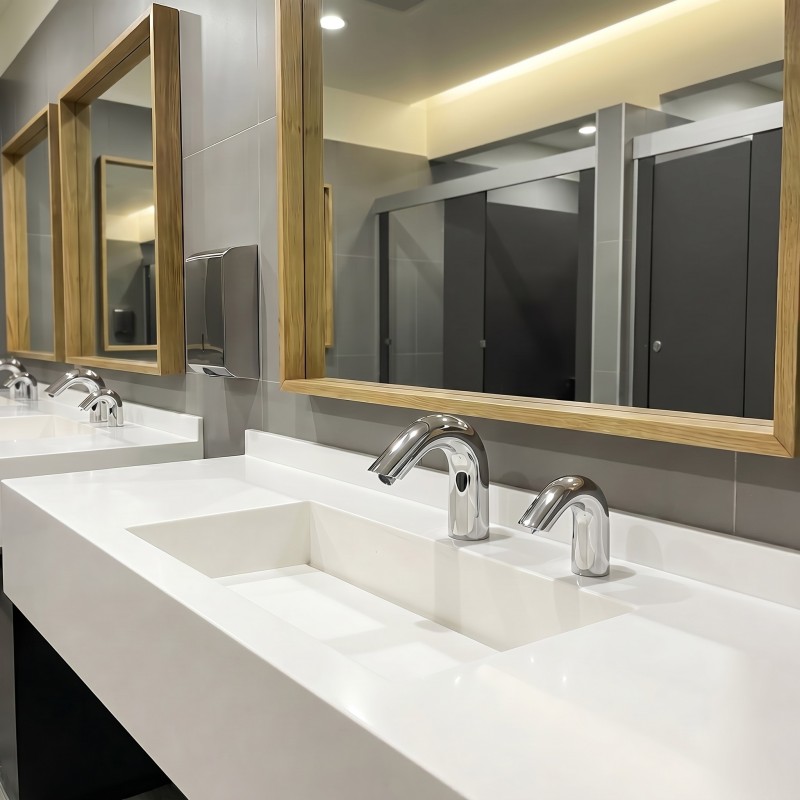

Automatic faucet ALLURE DS with infrared detection embedded in the end of the spout, for a clearer and refined aesthetic.
Other advantage, a quicker and more efficient detection.

robinet-automatique-design-eau-savon-ALLURE-DS

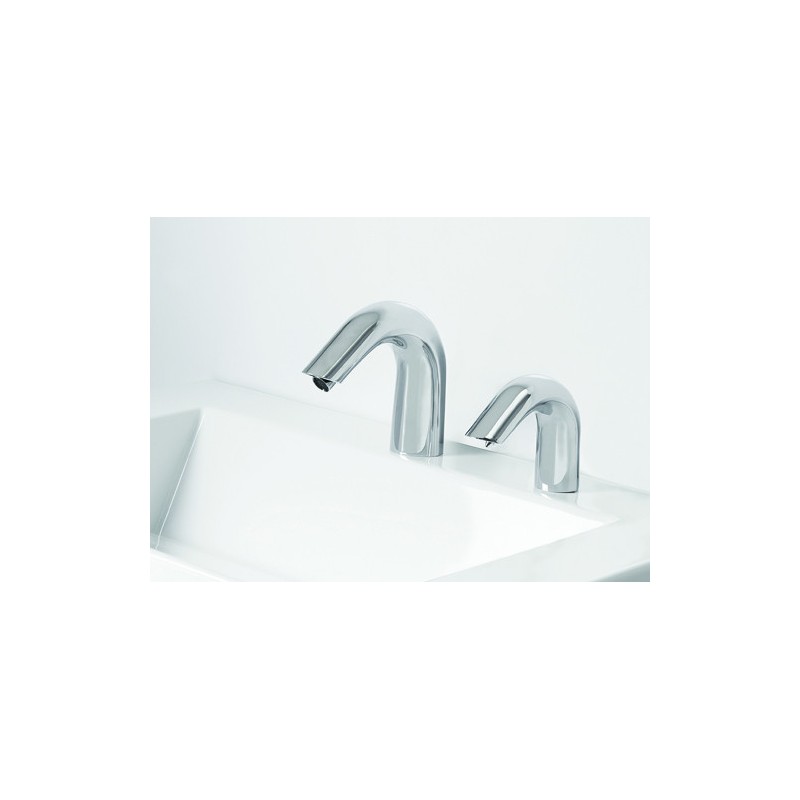

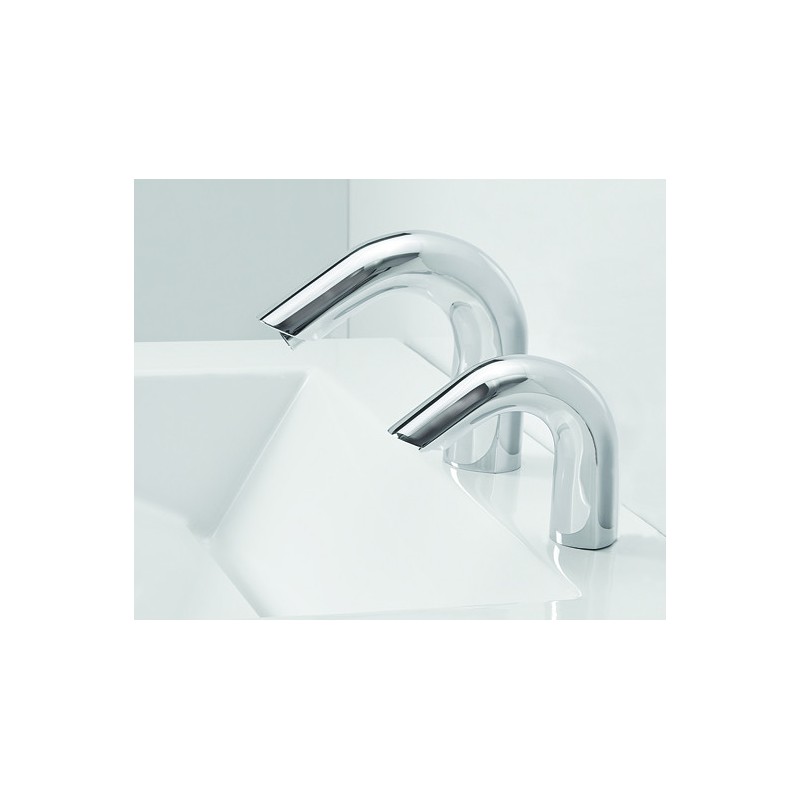

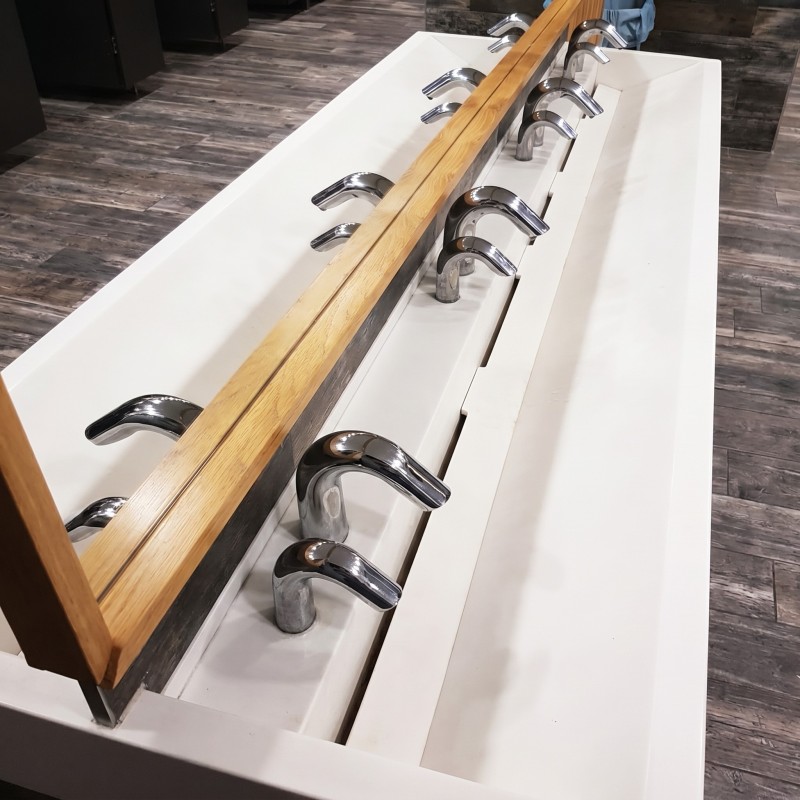

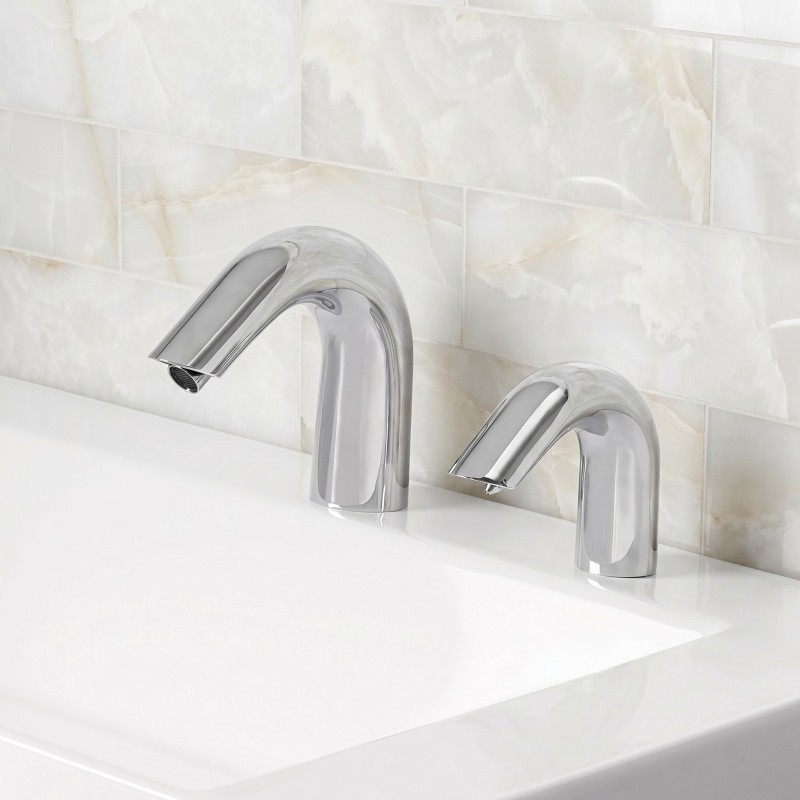

Combines touch free water and soap taps,

for a perfect hygiene

and perfect aesthetic !

Robinet électronique lavabo design ALLURE DS eau et savon

OPTIONS:

Remote control RES-31
Anti-legionella hygienic flush
Limited flow rate 1,9 LPM
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Soap dispenser matching design

Power supply: 230/9V transformer or 9V alkaline battery
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter
Material: Chrome-plated brass
Water supply: For cold or pre-mixed water
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
Sensor: Spout tip with self-adjusting infrared sensor

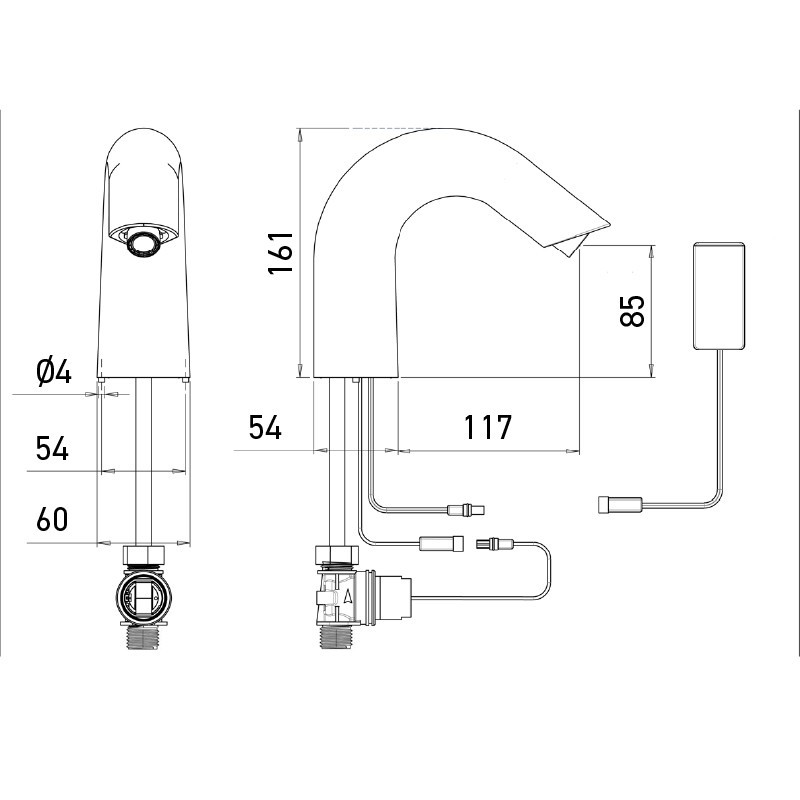

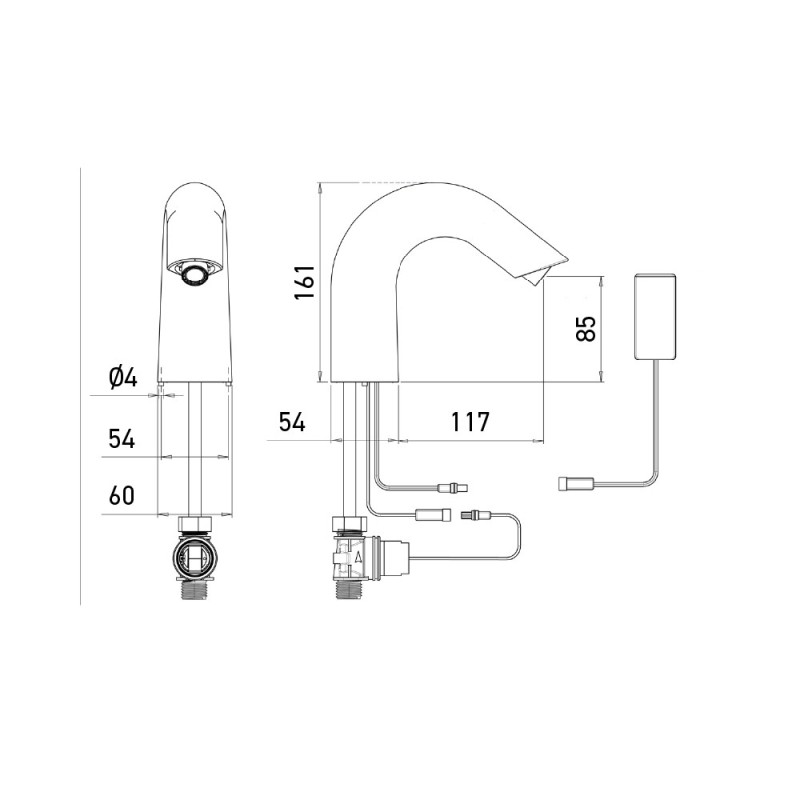

RES-170_Dimensions (pdf)

RES-170-3d (dwg)

RES-170 (ifc)

RES-170 (obj)

RES-170_2d_tlf_view (dwg)

RES-170-171_Technical-sheet (pdf)
