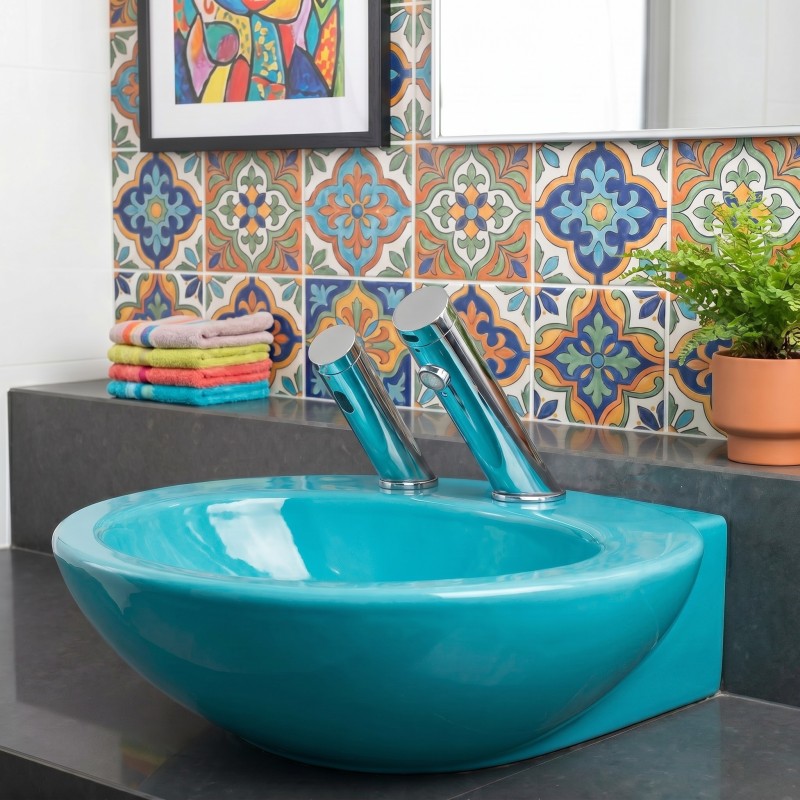

AKWA Electronic Faucet and Soap Dispenser, Combined for Optimal Hygiene and Minimalist Aesthetics

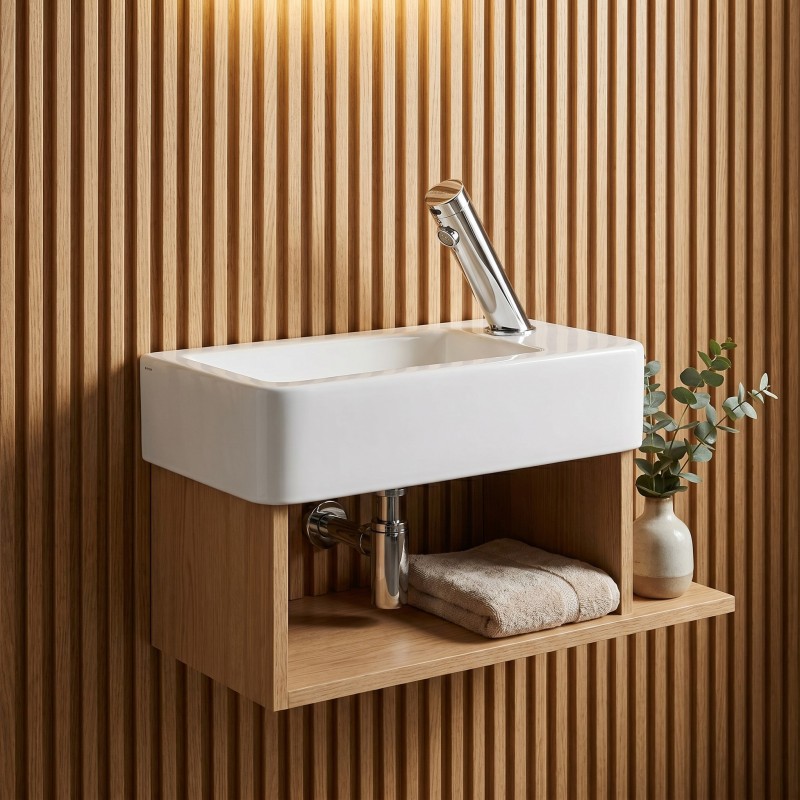

AKWA automatic hands-free faucet Pure line

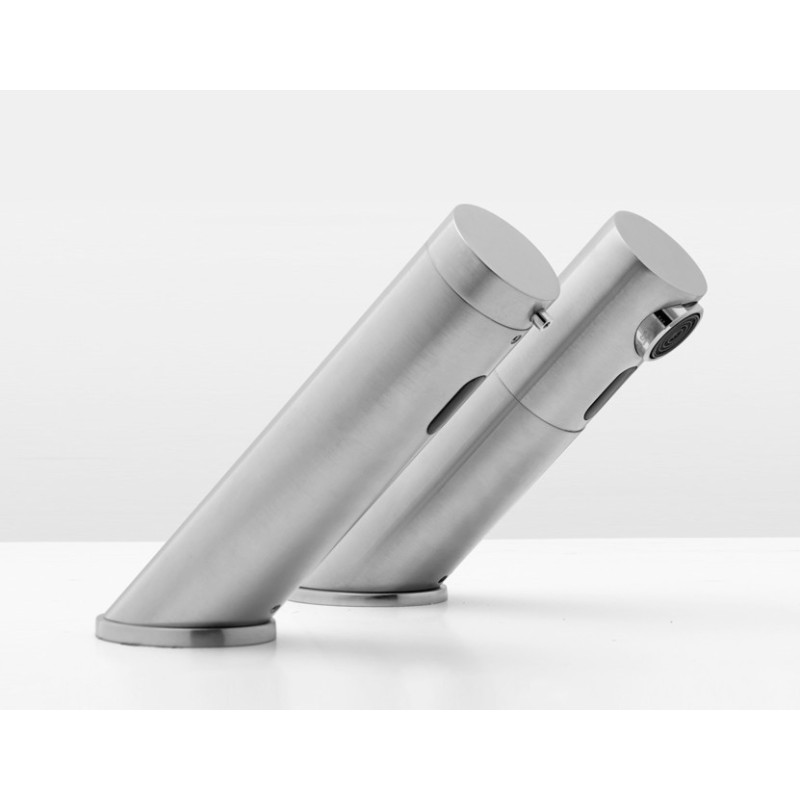

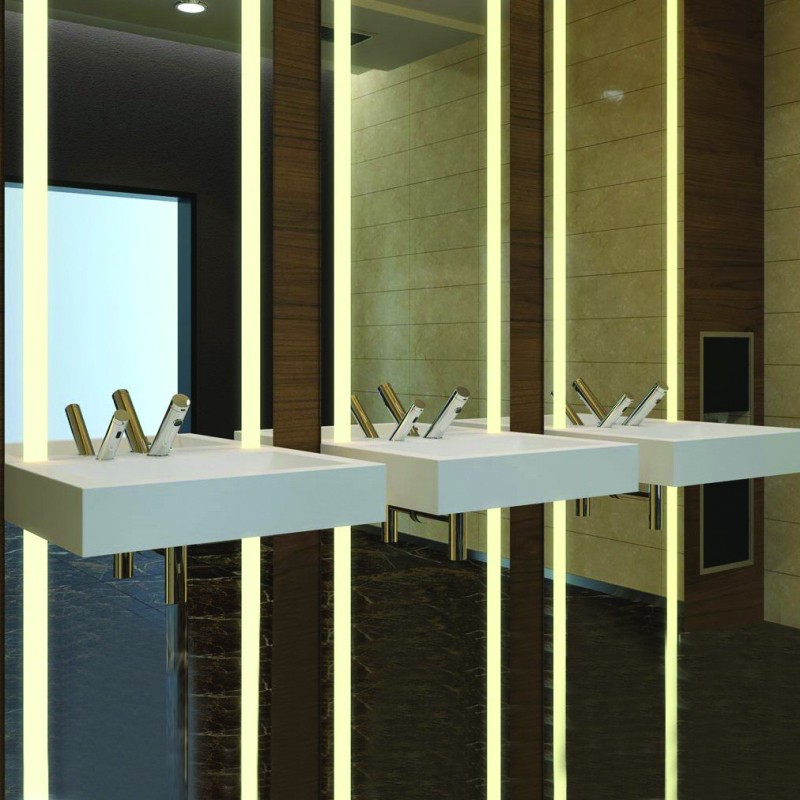

AKWA Electronic Faucet and Matching Designer Soap Dispenser in Elegant, Minimalist Style

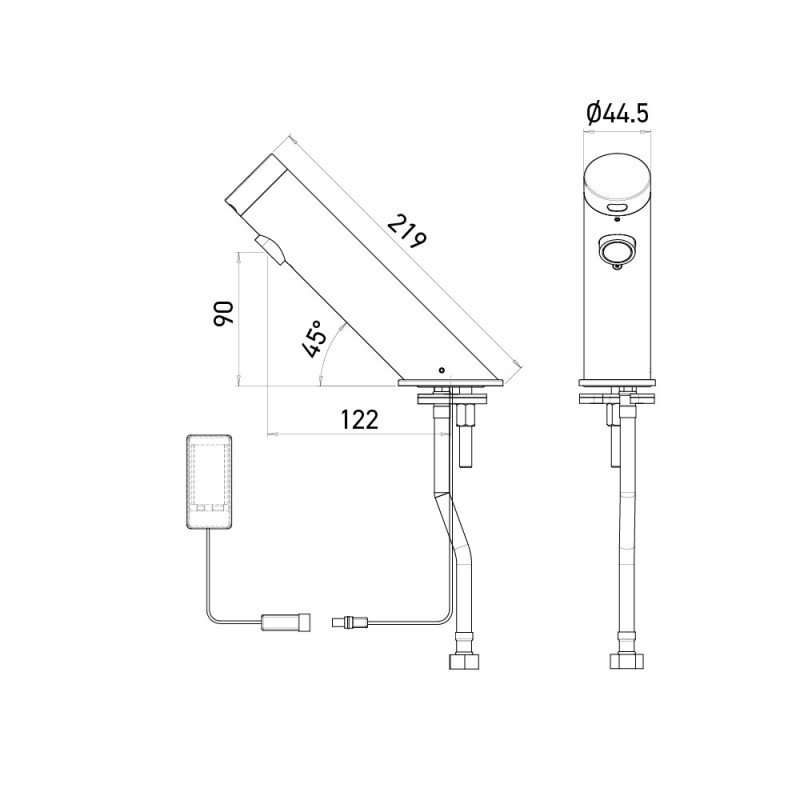

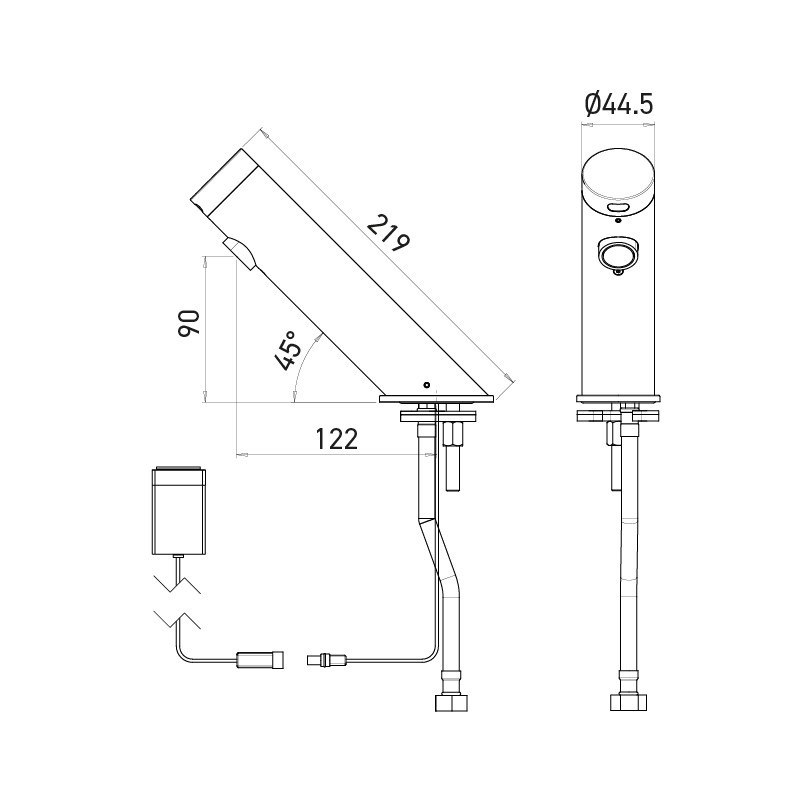

Dimensions of the AKWA automatic faucet with external battery

keyboard_arrow_left

keyboard_arrow_right

zoom_in

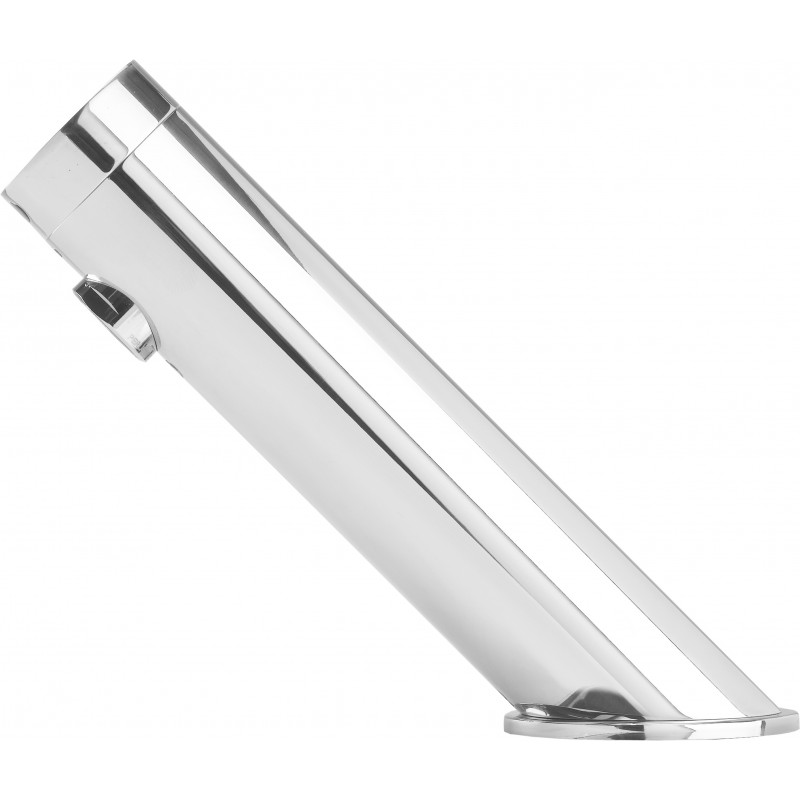

Electronic faucets AKWA

Elementary shape for a timeless design

Reference RES-103

Unit price

€276.00 Tax Excl.

→ See Stainless Steel AISI 316 finish

Finish

Chrome
Matt black
Copper PVD
Matte Gold PVD

Power supply

Mains
Integrated battery
External battery

Ask a question

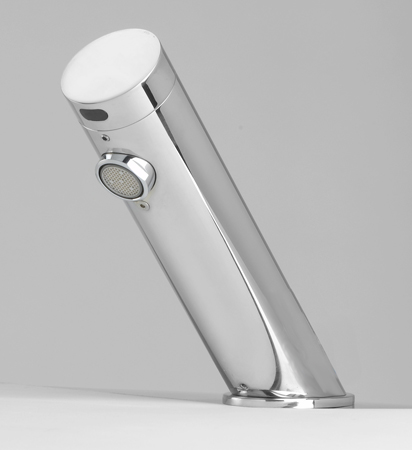

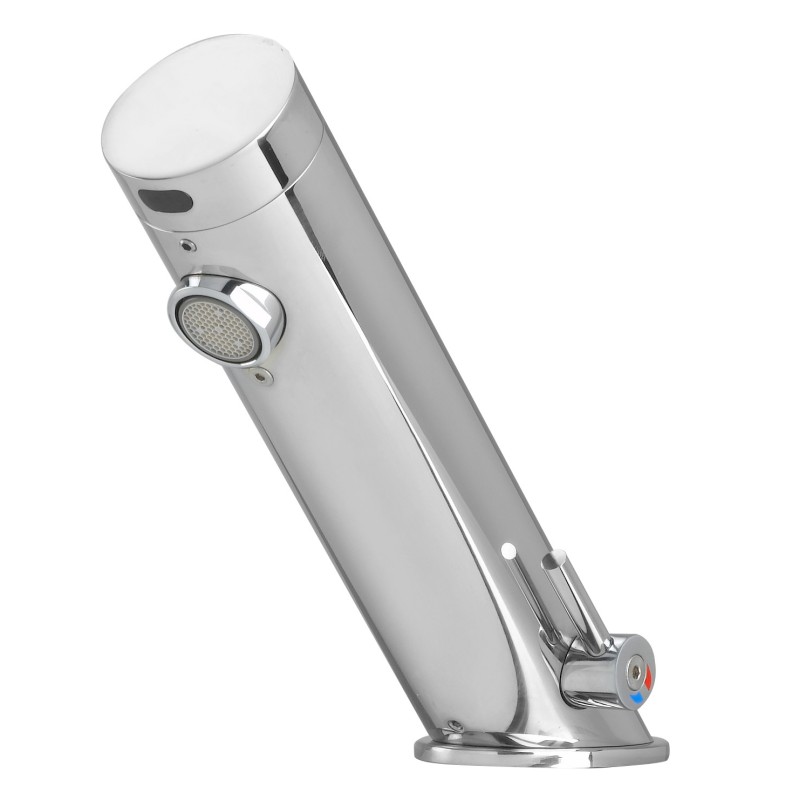

Electronic tap AKWA with infrared sensor

- Nano technology with infrared auto-adjustable detection
- Powered by 9V battery (external or integrated) or 230/9V transformer (indicator light when batteries need changing)
- Settings adjustable by remote control (flow time, detection range, temporary off)
- Brass body with integrated solenoid valve. Also available in a version with integrated battery (to prevent theft).
- Lead-free to contribute to a pure water supply

- 6 LPM flow limiter aerator, can be rotated to optimize the jet direction (1,9 LPM. or 3 LPM. on request)
- SPEX hoses (resistant to chlorinated disinfection and temperature increase) with non return valve integrated

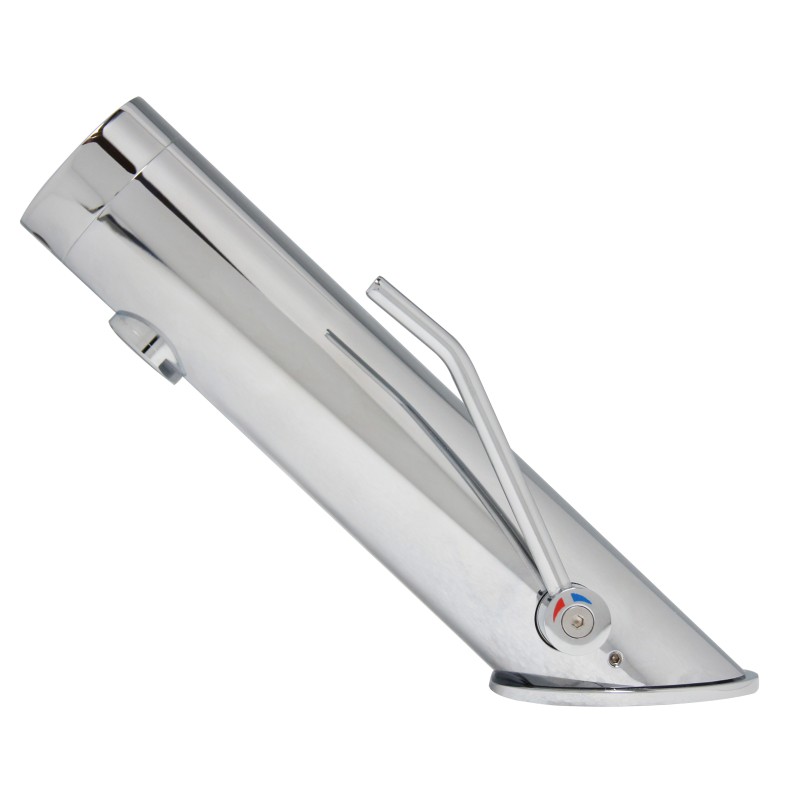

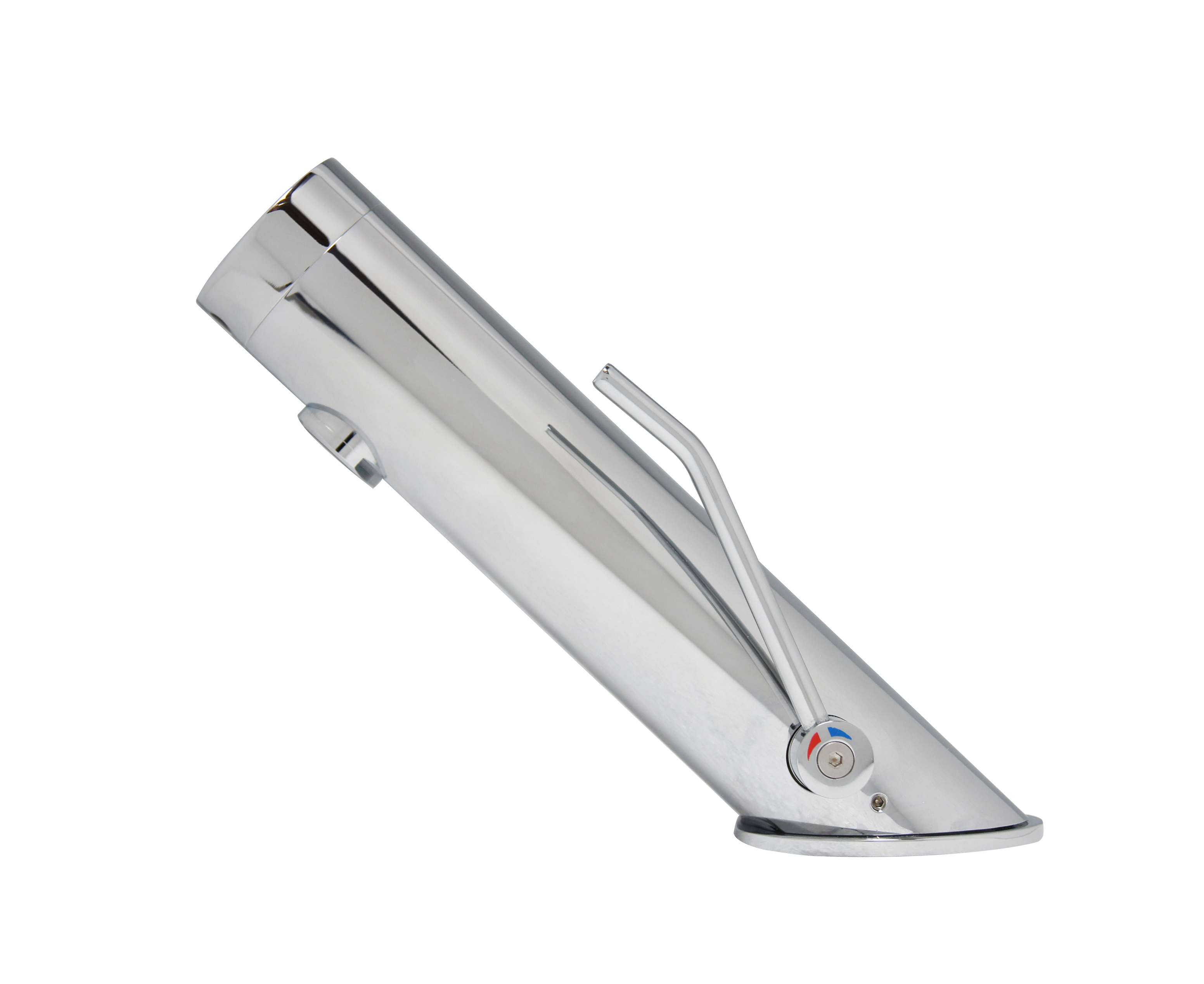

AKWA automatic tap with optional extended lever for disabled access

Optional extended lever for disabled access
Ref. ...-MH

OPTIONS:

Remote control RES-31
Limited flow rate 1,9 LPM or 3 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

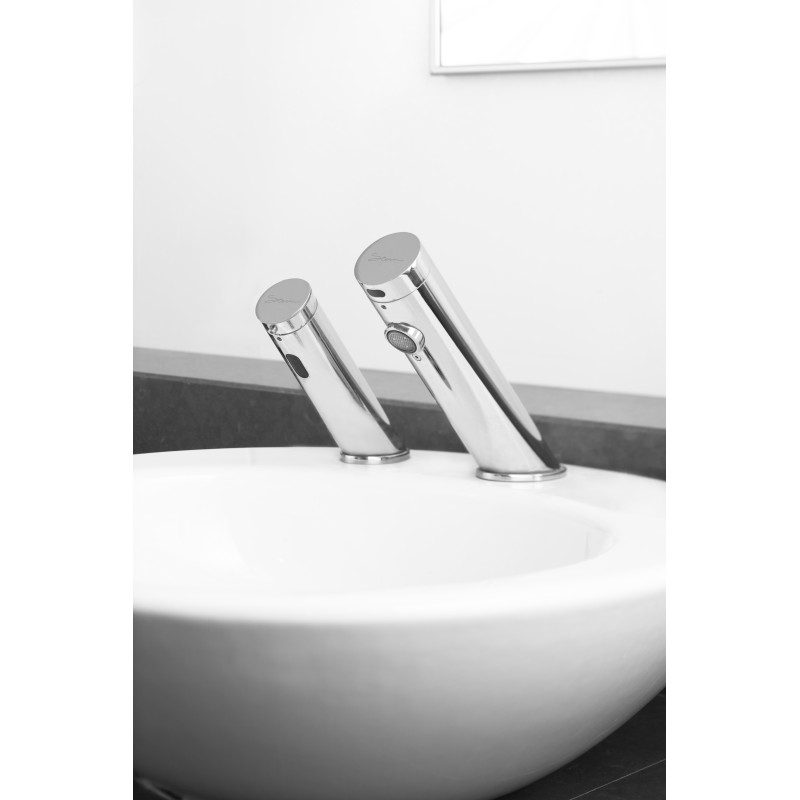

Soap dispenser matching design.

Sensor: Self-adjusting infrared nano detection
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Brass
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Water inlet: HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Fixing: Deck-mounted – vanity top, recessed washbasin
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-100-105-S1_Technical-sheet.pdf RES-103-104-105_Technical-sheet.pdf RES-105_Dimensions.pdf RES-104-2D-ftl-view.dwg RES-104-3D.dwg RES-104.ifc RES-104.obj
