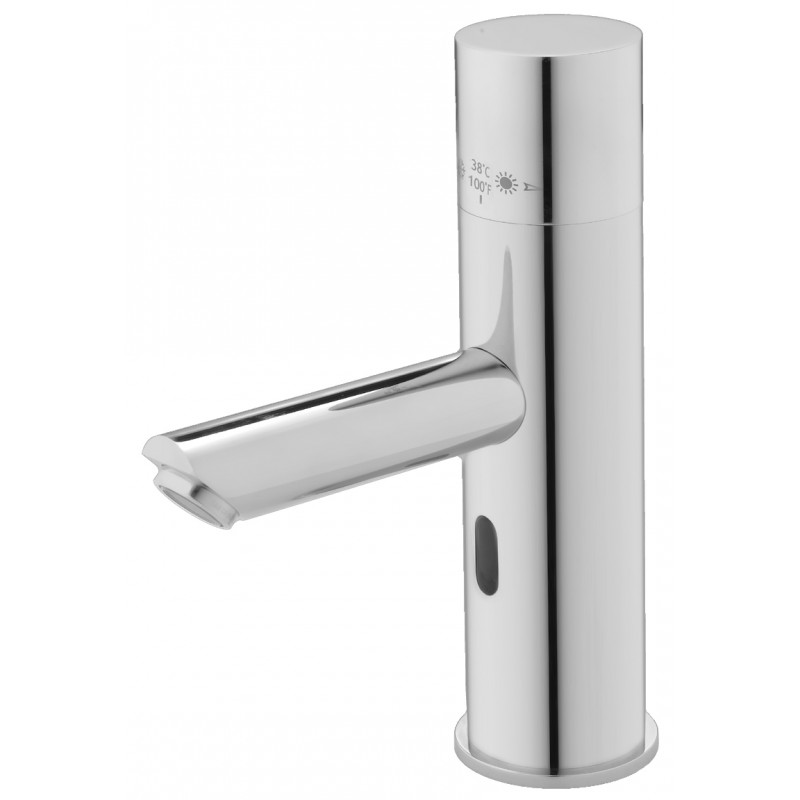

Photo AKWATHERMO thermostatic mixing valve, mains version RES-220
  • Miniature-0 AKWATHERMO thermostatic mixing valve, mains version RES-220

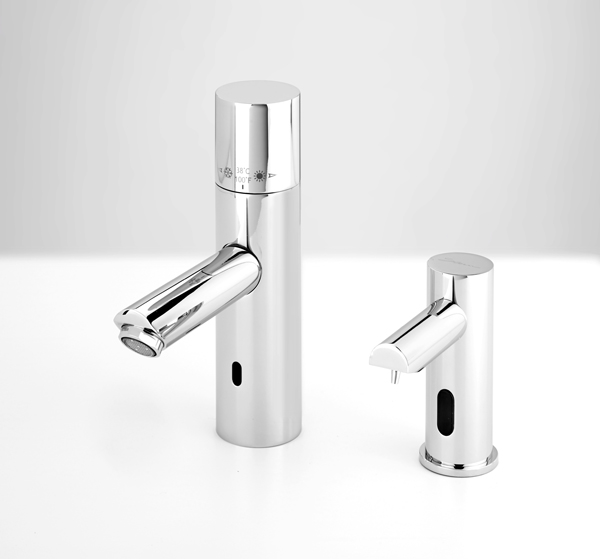

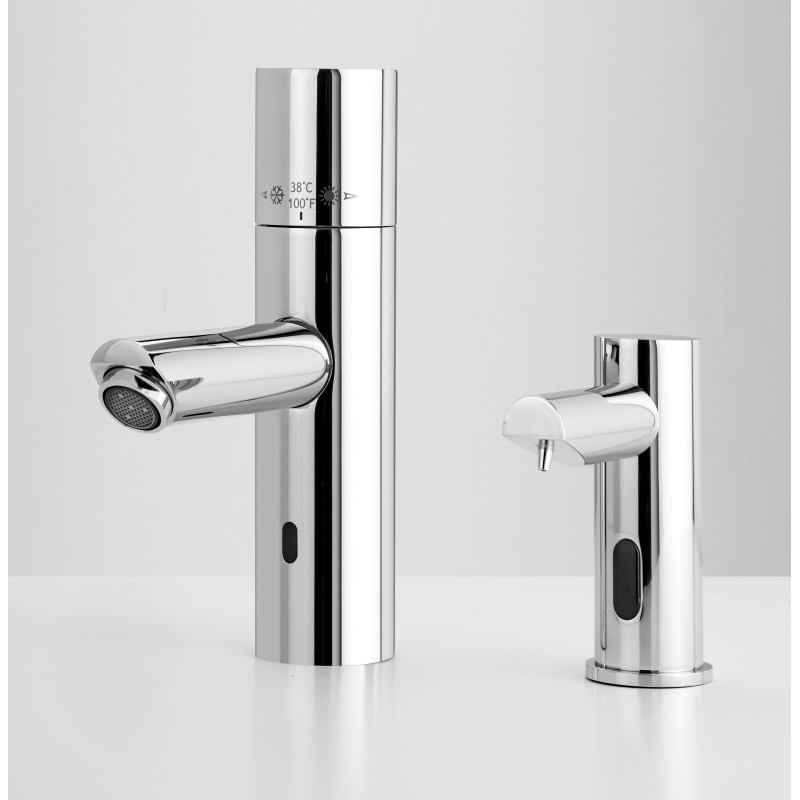

  • Miniature-1 AKWATHERMO thermostatic washbasin faucet with infrared detection and matching soap dispenser RES-220
  • Miniature-2  RES-220

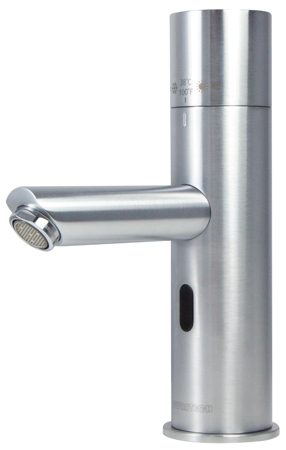

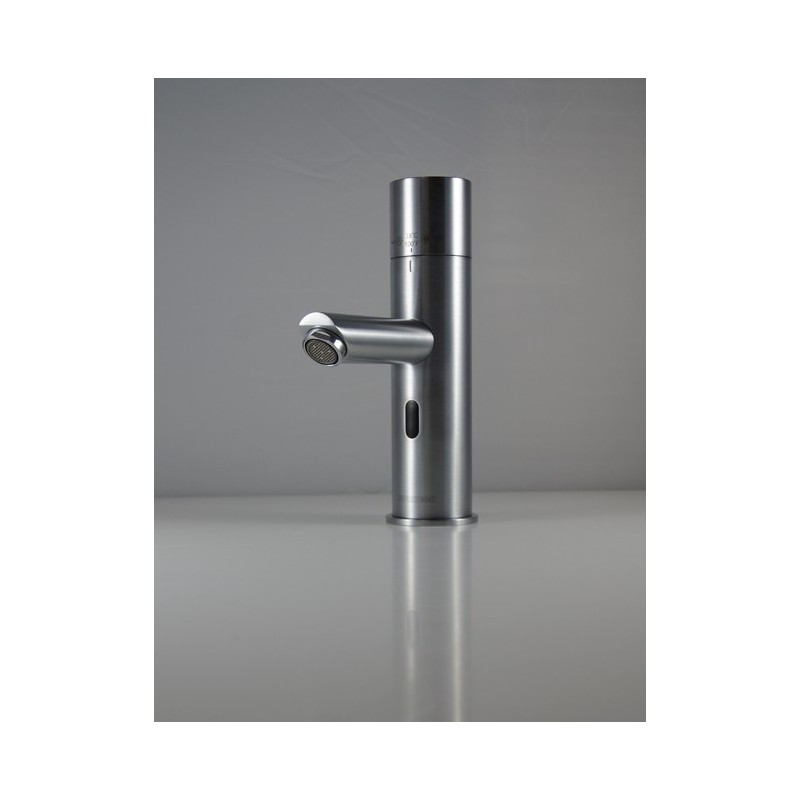

  • Miniature-3 AKWATHERMO electronic tap with brushed finish RES-220

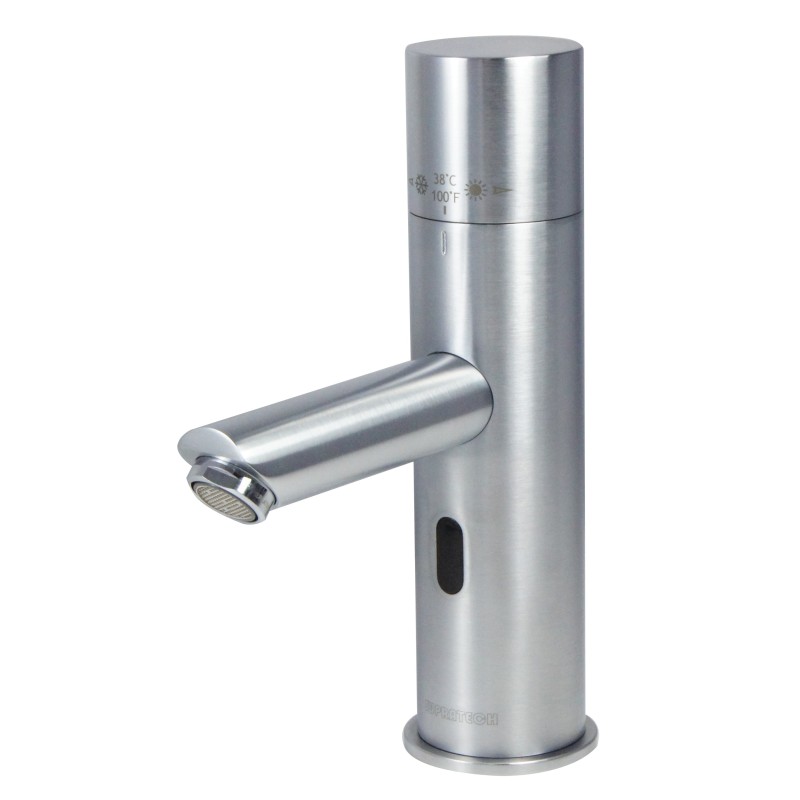

Thermostatic electronic mixer tap AKWATHERMO

Security anti-scald and temperature control


€455.00 Net Price

Tax excluded
Choose a model

Electronic thermostatic faucet for a constant temperature mixed water supply, depending to the desired temperature (whatever the temperature changes, flow or pressure).
Comfortable to use and anti-scald security system in case of cold water failure. Lockable temperature.

- Lead-free to contribute to a pure water supply

- The thermostatic control delivers a precise selected temperature.
    Maximum temperature 48.9 °C factory settings.
    The comfort limiter allows the user to adjust the maximum temperature from 38°C to 48.9°C.
- Fixed temperature : possibility to block the thermostatic button to the desired temperature.



ANTI-LEGIONELLA SOLUTION to maintain the hot water at a temperature superior to 50°C the closest possible to the drawing point



  • Remote control RES-31
  • Brushed finish (minimum quantity).
  • Anti-legionella hygienic flush.
  • Limited flow rate 1,3 LPM, 1,9 LPM or 3 LPM.
  • IP68 transformer (ref. RES-292)
  • 230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
  • Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Infrared with optimized presets
Electrical supply
230/9V transformer or 9V alkaline battery
Solenoid valve
Chrome brass
Security off
After 90 seconds without interruption (adjustable)
Water supply
Cold and hot water
Water inlet
Flexible HOSE with check valves embedded F1/2''. Filters included.
1 - 5 bar
Max. temperature eligible
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
3 years. CE. ACS.

3d_rotation 3D_RES-220 (dwg)

3d_rotation RES-220 (ifc)

3d_rotation RES-220 (obj)
