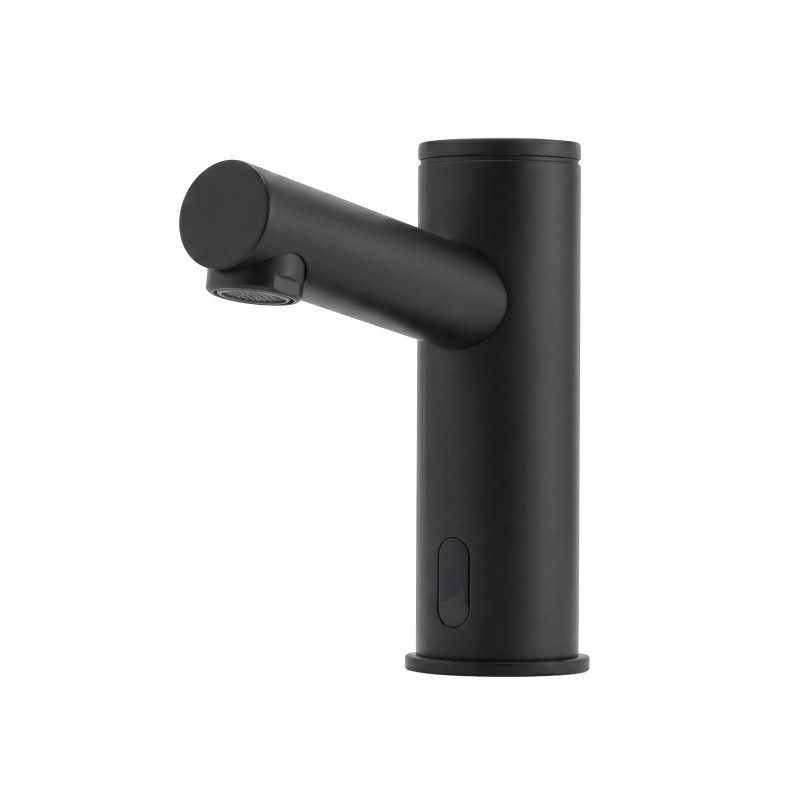

Electronic tap ELITE

hygienic hands and to save on water. The faucet isn't touched, it stays clean.

Reference RES-77-N

Unit price

€395.00 Tax Excl.

→ See Stainless Steel AISI 316 finish

Finish

Chrome
Matt black
Copper PVD
Matte Gold PVD

Power supply

Mains
Battery

Spout length

Standard
138 mm

Ask a question

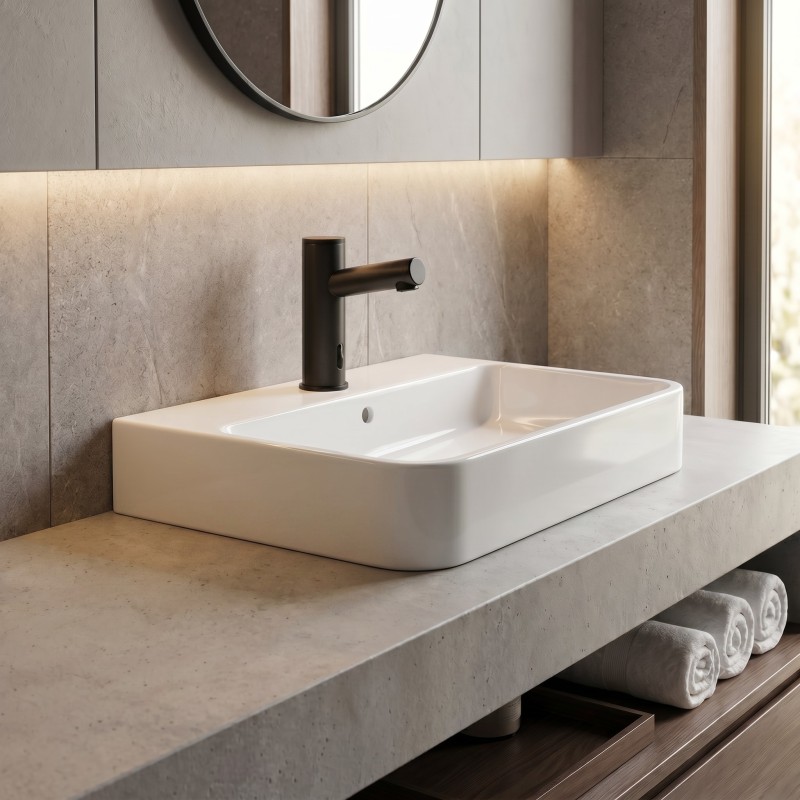

Electronic ELITE automatic deck mounted tap
Specially designed for an installation on exposed locations.
Minimalist design bringing an refined style to your sanitary spaces.
Specially designed for an easy installation and maintenance, with all the components integrated in the faucet body.
Battery box accessible under the washbasin

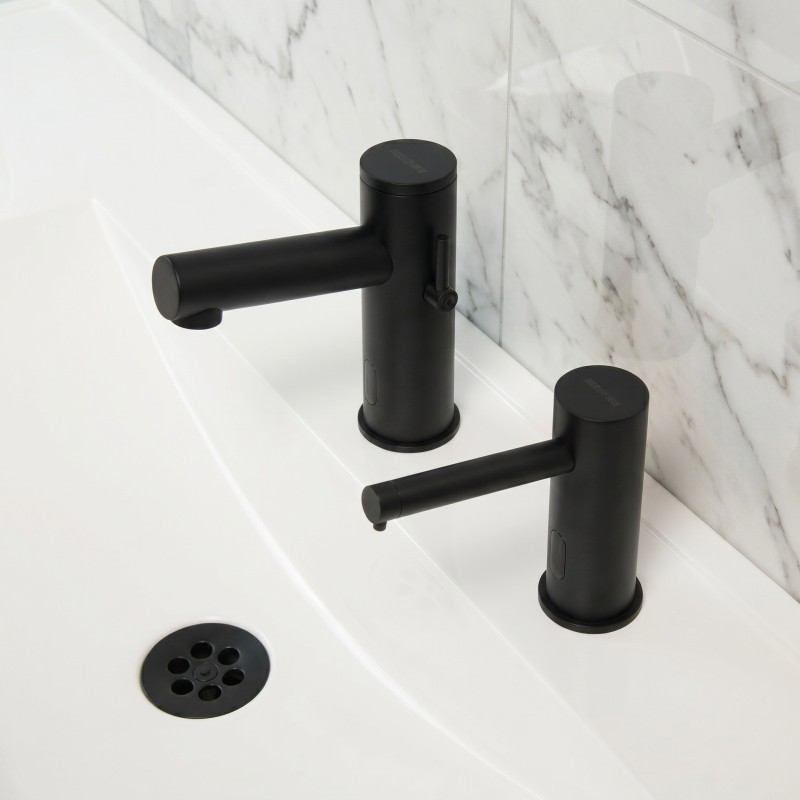

ELITE tap with 138 mm long spout and matching soap dispenser

Long spout option

OPTIONS:

Remote control RES-31
Limited flow rate 1,3 LPM, 1,9 LPM or 3 LPM.
Extended version (ref. RES-75-R)
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

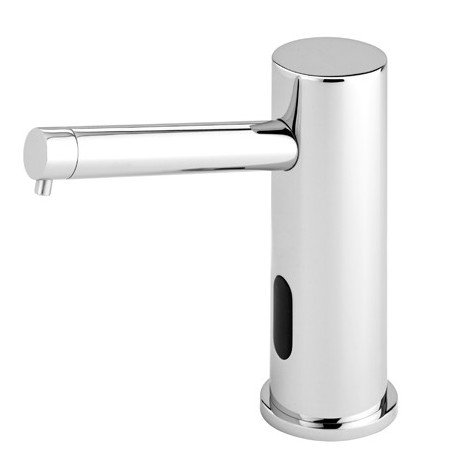

Soap dispenser matching design

Sensor: Infrared with optimized presets
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Brass
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Water inlet: HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Fixing: Deck-mounted – vanity top, recessed washbasin
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-75-77_Technical-sheet.pdf RES-75_Dimensions.pdf RES-77_Dimensions.pdf 2D_RES-75_bec-long.dwg 2D_RES-75_mitigeur.dwg 2D_RES-75_rehausseur.dwg 3D_RES-75_bec-long.dwg 3D_RES-75_mitigeur.dwg 3D_RES-75_rehausseur.dwg RES-75-2D-ftl-view.dwg RES-75-3D.dwg RES-75-L-R-2D-ftl-view.dwg RES-75-L-R-3D.dwg RES-75-L-R.ifc RES-75-L-R.obj RES-75.ifc RES-75.obj RES-75_rehausseur.ifc RES-75_rehausseur.obj
