Automatic hand sanitizer station HANDISAFE
accessible PRM
Technical sheet & documents
No technical sheet available for this reference. Request the sheet

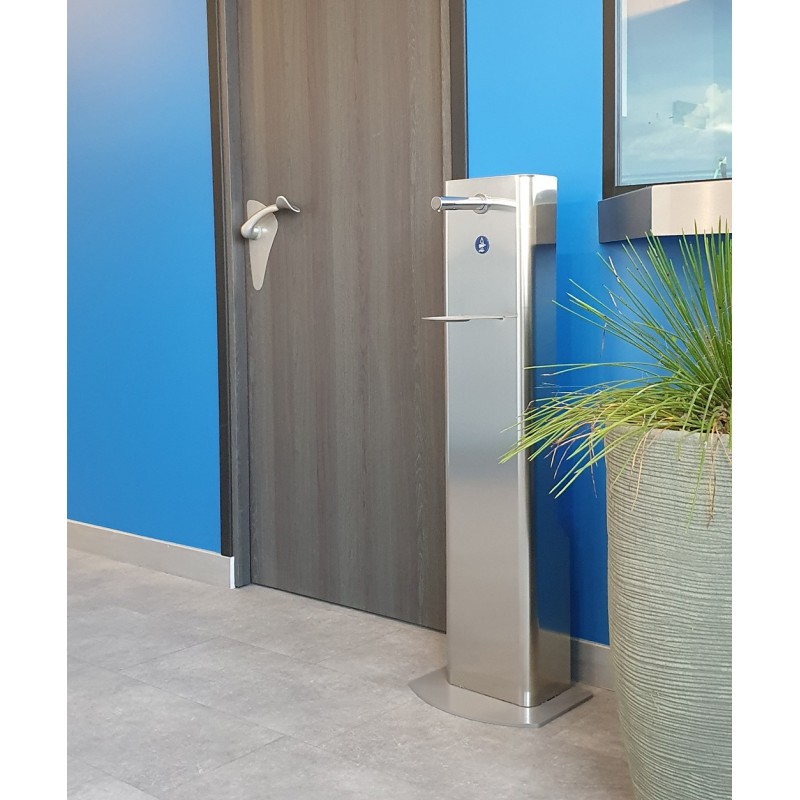

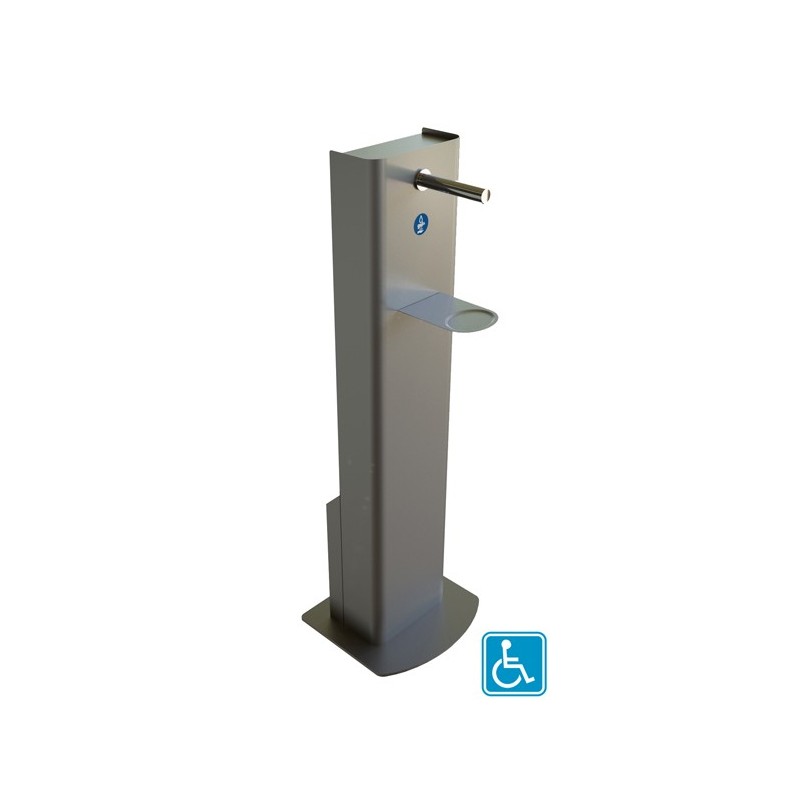

Automatic hand disinfection station touch free

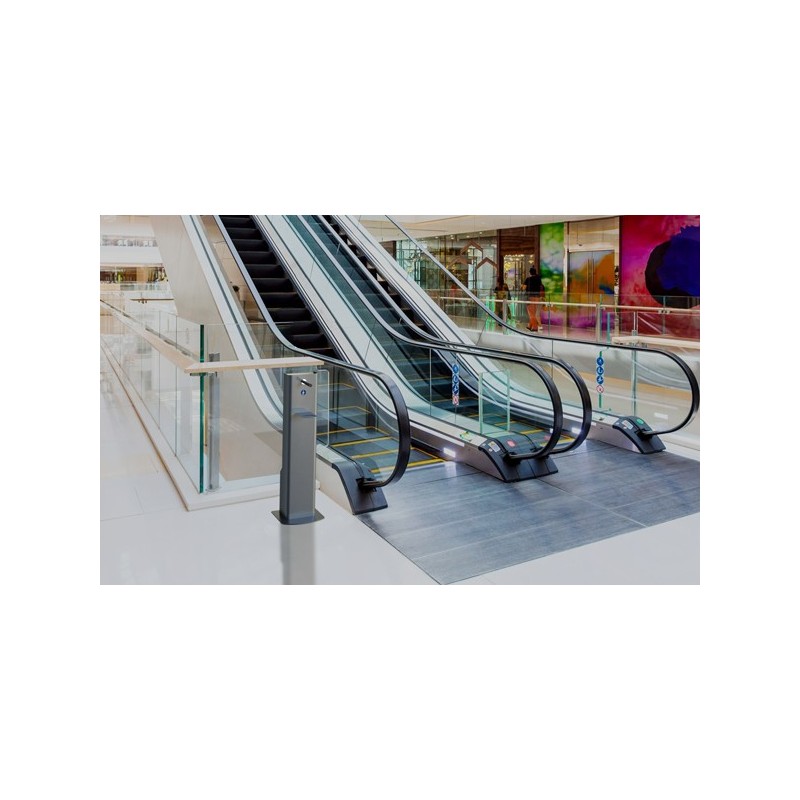

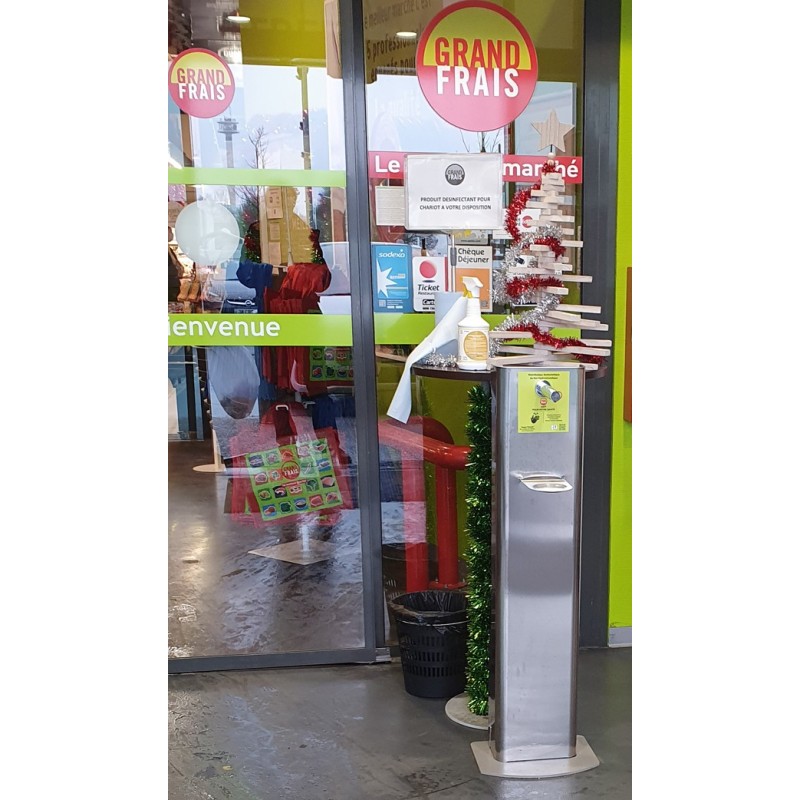

Disinfection station with electronic touch-free dispenser of hand sanitizer gel for hands, to be placed in collective places, like supermarkets, banks, companies, airports...
Can be used with all hand disinfectants with correct viscosity.
Compatible with ethanol, isopropyl alcohol IPA (up to 80%) and hand sanitizer gel
∙ The dispenser automatically dispenses a predefined quantity of disinfectant when the users place their hands in the infrared detection
∙ 9V battery supply (6xLR20 not included) or 230/12V transformer
∙ Back cabinet easily accessible pour 5L tanks from shops (optional 6L tank to be filled)
∙ Peristaltic pump for all disinfectant with a viscosity of 100-3800 cPs.
. No drips.
∙ Easy initiation of disinfectant when refilling by remote control or manual button
∙ Remote control in option to select the dosage of disinfectant to be supplied
∙ Stainless steel station quality AISI 304 (dimensions W245 x D120 x H1140mm)
∙ Entirely closed. Possibility to fix to the floor.
∙ 2 year warranty. CE. Responds to the HACCP approach.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 5L commercial tank (optional 6L filling tank)
- Consumables
- Hand sanitizer gel (viscosity 2000-5000 cps)
- Dosage
- 0.7 to 0.9 cm³ depending on gel viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- AISI 304 stainless steel
Brass - Detailed composition
- Finish
- Brushed
Chromed - Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Dimensions
- Column W245 x D120 x H1140 mm
- Warranty
- 2 years
- Tank capacity
- More than 1.5 L
Automatic hand disinfection station touch free
Disinfection station with electronic touch-free dispenser of hand sanitizer gel for hands, to be placed in collective places, like supermarkets, banks, companies, airports...
Can be used with all hand disinfectants with correct viscosity.
Compatible with ethanol, isopropyl alcohol IPA (up to 80%) and hand sanitizer gel
∙ The dispenser automatically dispenses a predefined quantity of disinfectant when the users place their hands in the infrared detection
∙ 9V battery supply (6xLR20 not included) or 230/12V transformer
∙ Back cabinet easily accessible pour 5L tanks from shops (optional 6L tank to be filled)
∙ Peristaltic pump for all disinfectant with a viscosity of 100-3800 cPs.
. No drips.
∙ Easy initiation of disinfectant when refilling by remote control or manual button
∙ Remote control in option to select the dosage of disinfectant to be supplied
∙ Stainless steel station quality AISI 304 (dimensions W245 x D120 x H1140mm)
∙ Entirely closed. Possibility to fix to the floor.
∙ 2 year warranty. CE. Responds to the HACCP approach.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 5L commercial tank (optional 6L filling tank)
- Consumables
- Hand sanitizer gel (viscosity 2000-5000 cps)
- Dosage
- 0.7 to 0.9 cm³ depending on gel viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- AISI 304 stainless steel
Brass - Detailed composition
- Finish
- Brushed
Chromed - Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Dimensions
- Column W245 x D120 x H1140 mm
- Warranty
- 2 years
- Tank capacity
- More than 1.5 L
