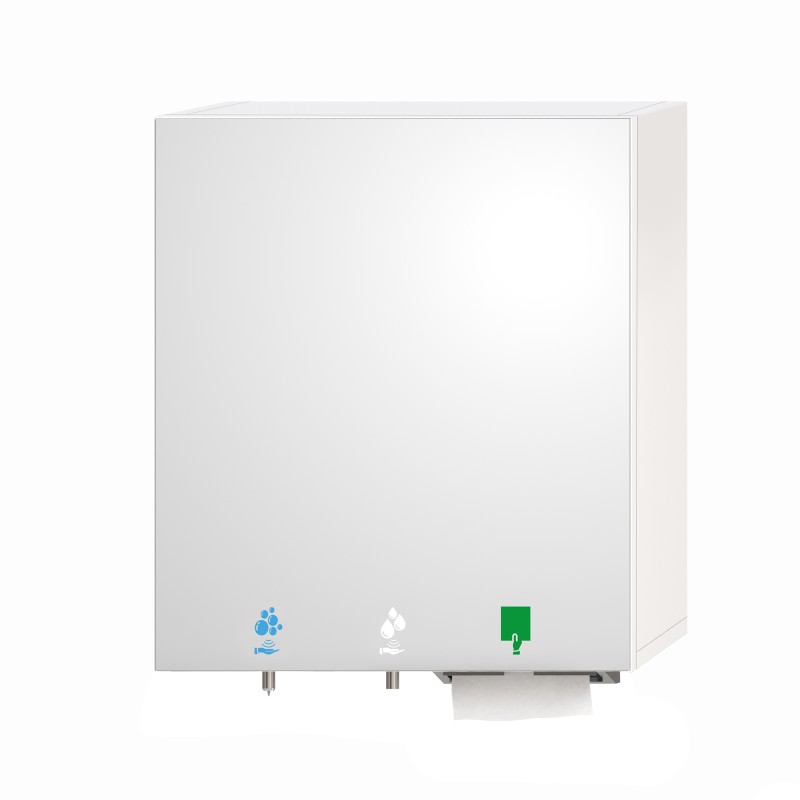

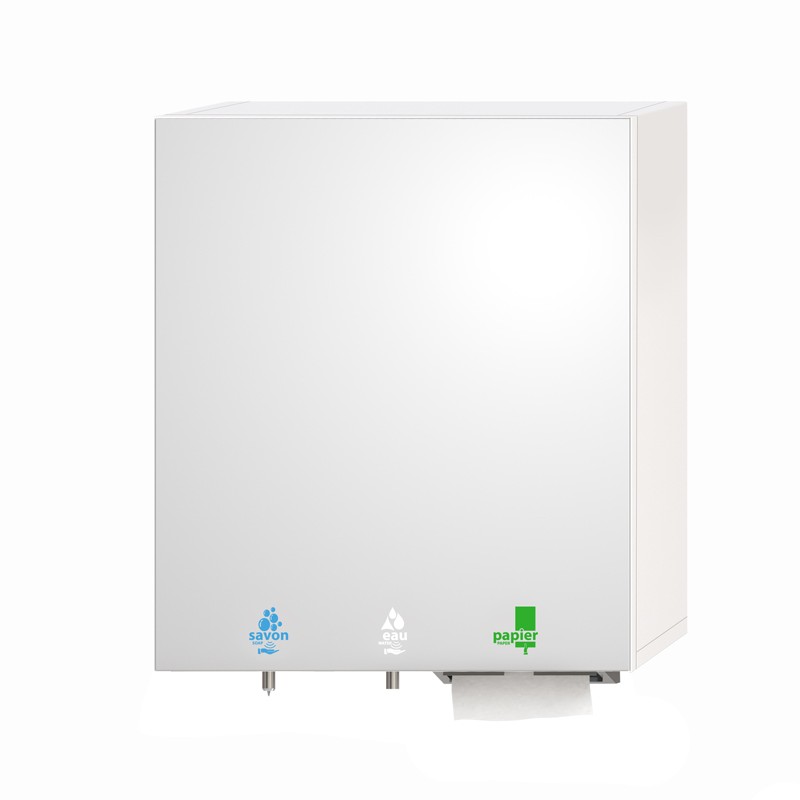

HYFLO 4in1 "mirror-soap-water-paper" cabinet
All in one and ready to install HYFLO mirror cabinet, width 600 mm, with integrated soap dispenser, automatic tap and paper towel dispenser
RES-850P
€2,040.00
Tax Excl.
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer, and a touch-free high-speed hand dryer for a complete hand wash and dry, all in silence !
Its concealed equipment brings a modern and functionnal aspect to be adapted perfectly to you sanitary spaces.

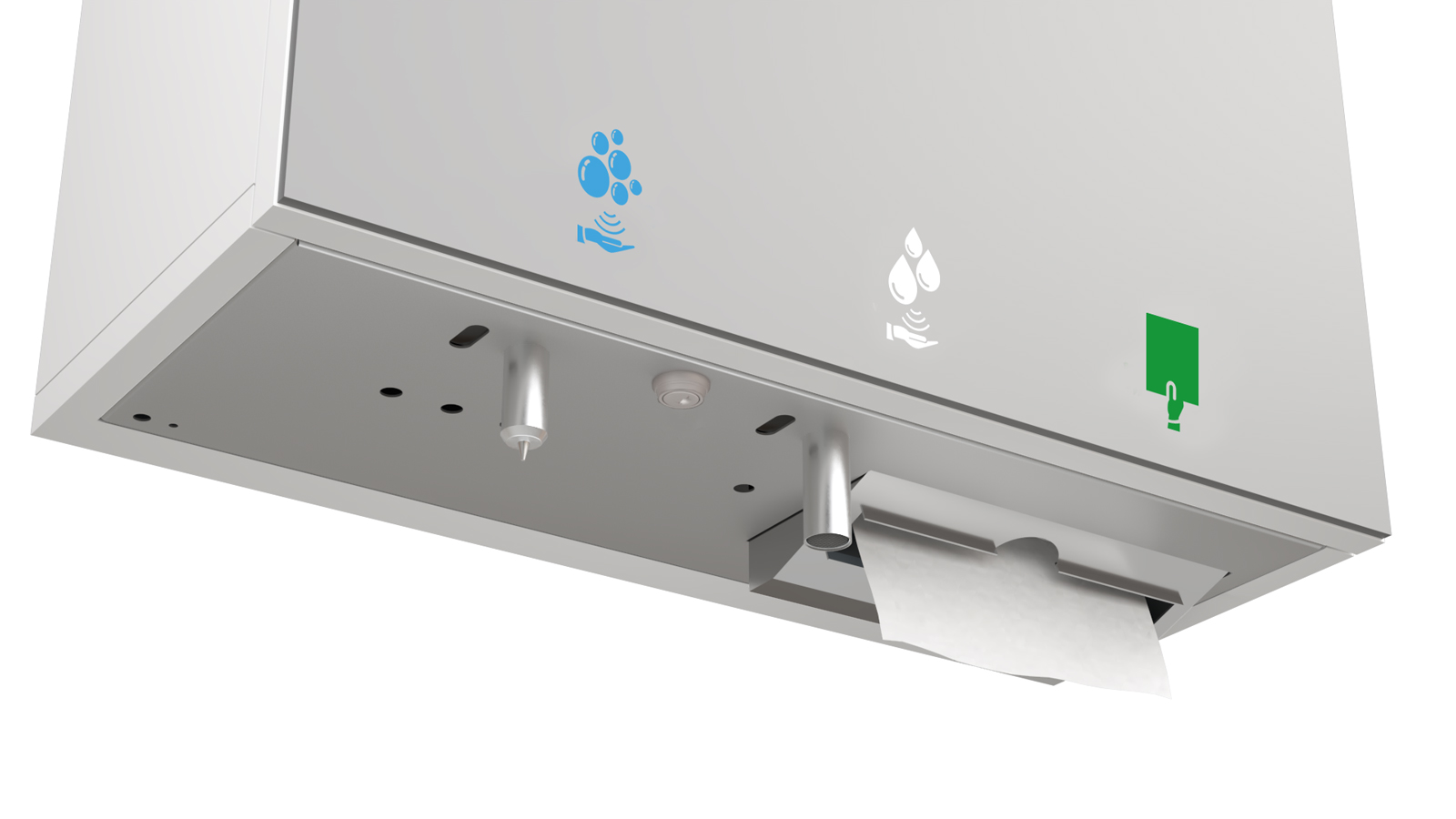

The hand paper towel offers quickness and is easy to use, avoids cross contamination and quickly dries the users hands.
Bacteria and viruses prosper on humid hands, drying is an important step for hygienic hands.
Hygiene: the functions are automatically activated by placing your hands in the detection area and stops once the hands are removed.
Complete hand washing cycle without walking around with wet hands (avoids dirty taps, soap marks, water dripping on the floor...).
Simplified installation: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
Components assembled on a rugged stainless steel plate 1.2 mm thickness.

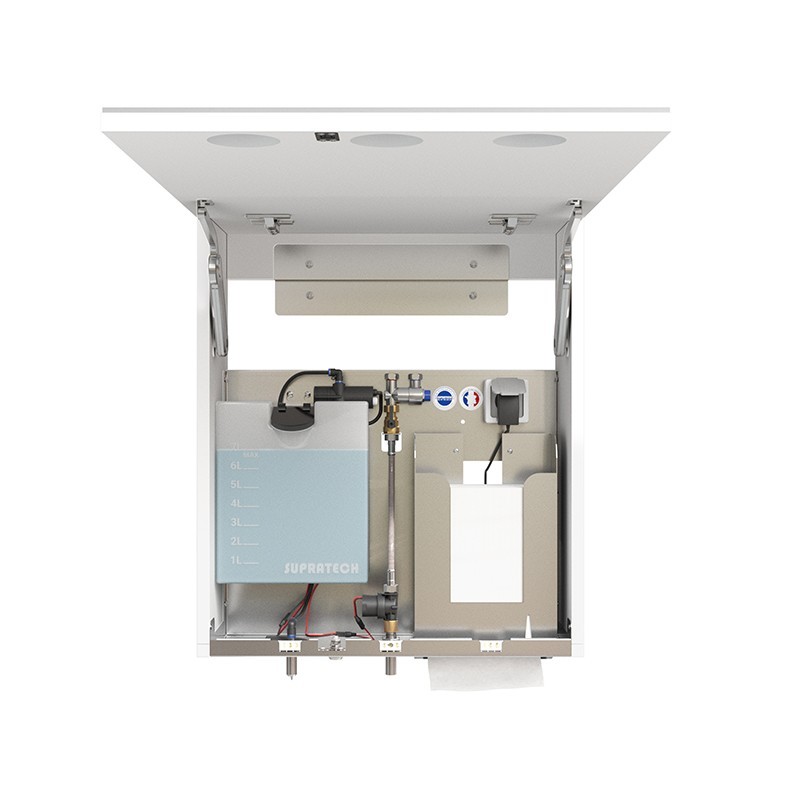

STAINLESS STEEL TECHNICAL PLATE
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Illuminated pictograms on the mirror (color selection: blue, white, red, or green), and stainless steel visible vertical spouts and nozzle to indicate hand placement in public spaces and to facilitate use.
Lock with automatic closing.
FEATURES:
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate.. Key lock andautomatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below,vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tankeasily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
- Dimensions: W600 x D256 x H700 mm.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Limited 1,9LPM flow rate
- Water and soap RES-30 remote control
- Visual low soap level indicator
- Magnetic lock (keyless)
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or decor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- Module components of your choice

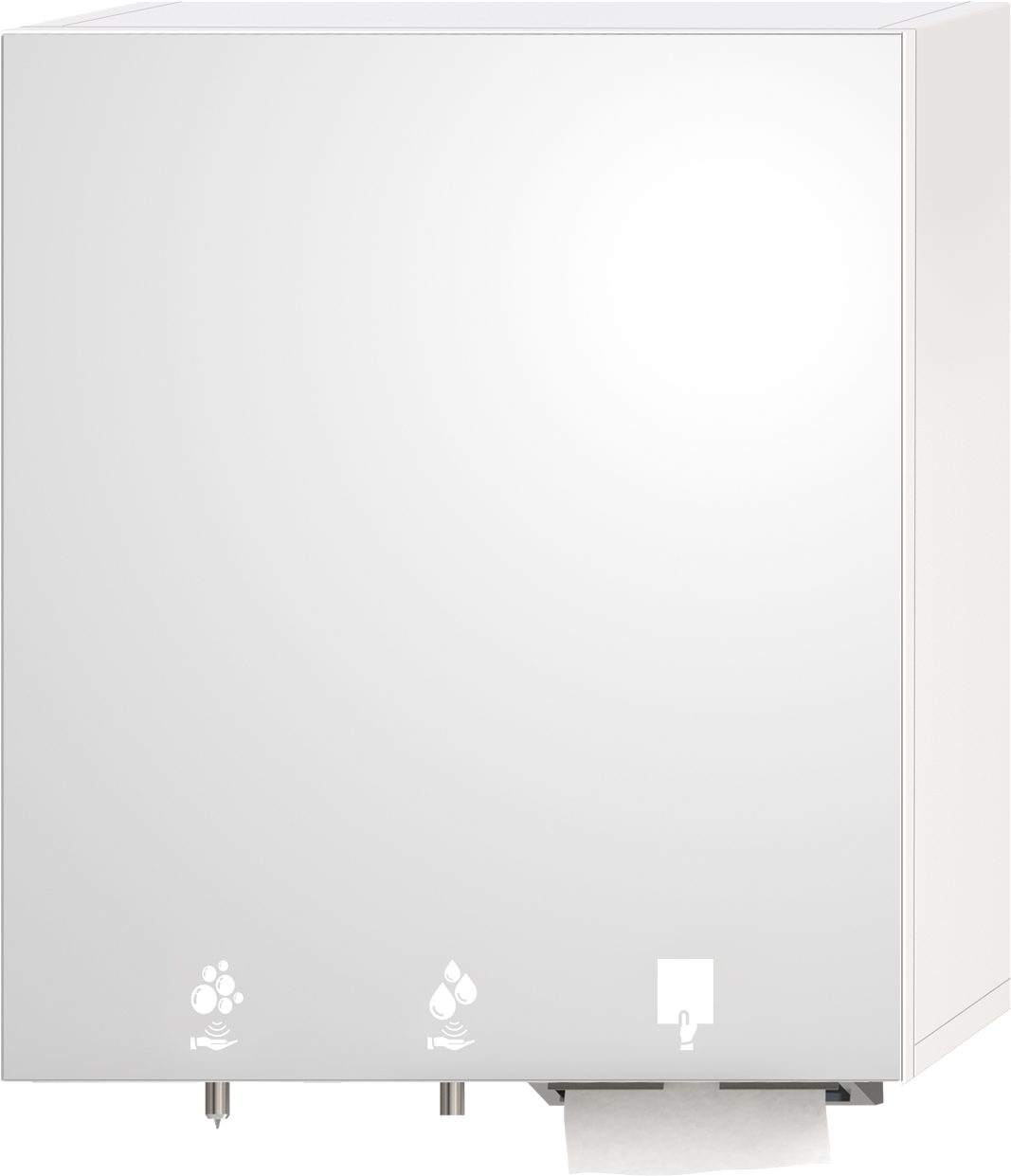

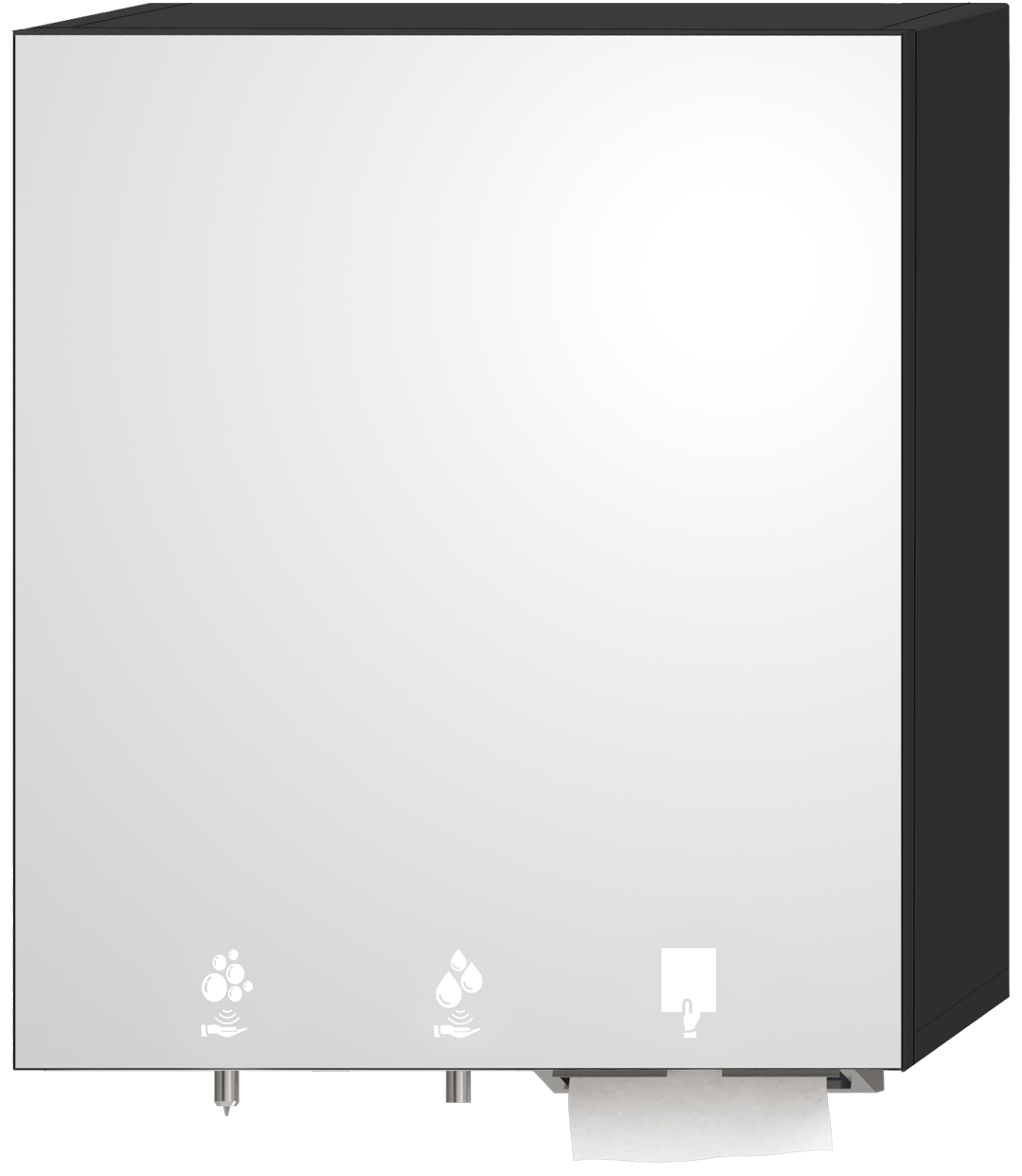

- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H800 x D255 mm
- Warranty
- 3 years (soap dispenser 2 years)
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer, and a touch-free high-speed hand dryer for a complete hand wash and dry, all in silence !
Its concealed equipment brings a modern and functionnal aspect to be adapted perfectly to you sanitary spaces.
The hand paper towel offers quickness and is easy to use, avoids cross contamination and quickly dries the users hands.
Bacteria and viruses prosper on humid hands, drying is an important step for hygienic hands.
Hygiene: the functions are automatically activated by placing your hands in the detection area and stops once the hands are removed.
Complete hand washing cycle without walking around with wet hands (avoids dirty taps, soap marks, water dripping on the floor...).
Simplified installation: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
Components assembled on a rugged stainless steel plate 1.2 mm thickness.
STAINLESS STEEL TECHNICAL PLATE
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Illuminated pictograms on the mirror (color selection: blue, white, red, or green), and stainless steel visible vertical spouts and nozzle to indicate hand placement in public spaces and to facilitate use.
Lock with automatic closing.
FEATURES:
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate.. Key lock andautomatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below,vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tankeasily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
- Dimensions: W600 x D256 x H700 mm.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Limited 1,9LPM flow rate
- Water and soap RES-30 remote control
- Visual low soap level indicator
- Magnetic lock (keyless)
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or decor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- Module components of your choice
- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H800 x D255 mm
- Warranty
- 3 years (soap dispenser 2 years)
