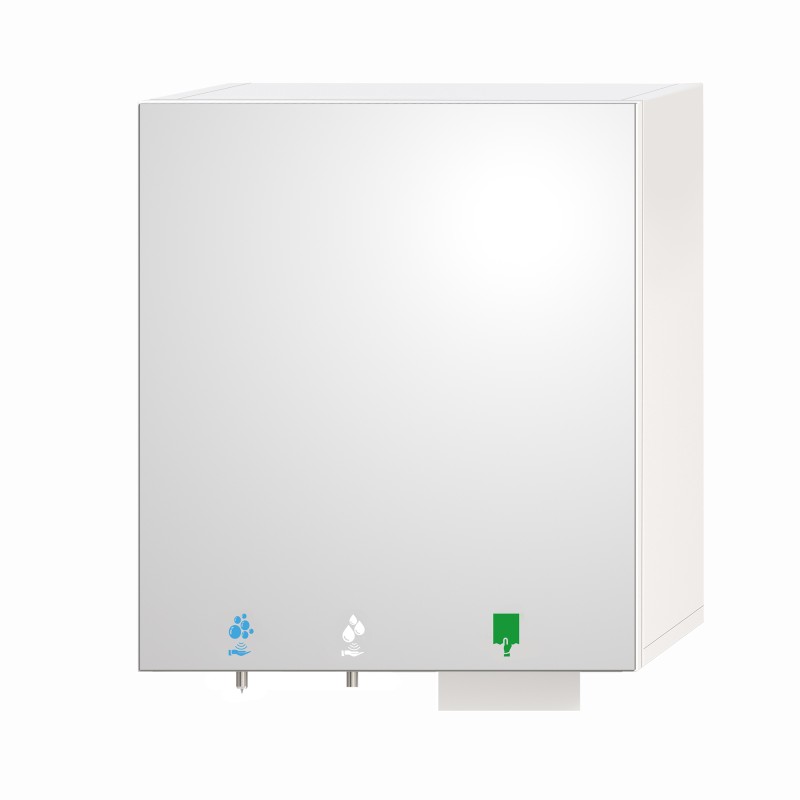

4 in 1 "mirror-soap-water-Peakserve large capacity paper" unit
All in one and ready to install mirror unit, width 700 mm, with touch-free soap dispenser and faucet, and Peakserve paper towel dispenser to integrate behind the mirror
RES-865
€2,190.00
Tax Excl.
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer, and the PEAKSERVE TOTK large capacity paper dispenser.
To better hygiene level, a new mirror unit with a continuous large capacity hand paper towel dispenser instead of a hand dryer = does not spread germs in the air, safe to use and works without any noise.

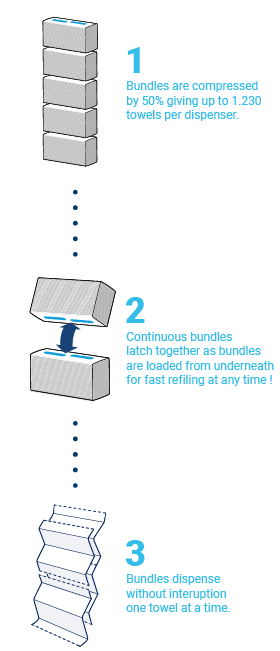

The mirror unite integrates the continuous paper towel dispenser system PEAKSERVE (TORK) :
- This system uses compresses packetsoffering a large capacity avoiding running out of paper tows in high traffic places.
- The packets are linked together by a scratch system, which allows a hand paper towel distribution without interruption. A paper towel is therefore always available and easy to grab.
- Saves on time thanks to a dispense less than 3 seconds per user = quicker than the pulsed air hand dryer
- The paper towels have numerous usages: wiping your mouth, to clean door handles, lift buttons,avoiding contact with other surfaces in public toilets...
Allows to transport 2 times more hand towels, because they are compressed at 50 % and to divide in half the time dedicated to refill!
Low consumption thanks to a sheet by sheet distribution.
Eco-Label paper and FSC, made from recycled paper and then recycled again.
The hand paper towels are compressed at 50%,
allowing to insert 2 times more paper towels in a small space.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands leave the area.
A complete hand washing cycle that allows you to leave the premises in perfect condition (avoids dirty taps, soap marks, wet floors...).
Quick installation: unit to be hung on a wall on a stainless steel support rail, only 1 electrical supply to be plugged in, water to be connected to a mixing tap and the unit is therefore operational !
7L soap tank with an easy access for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions

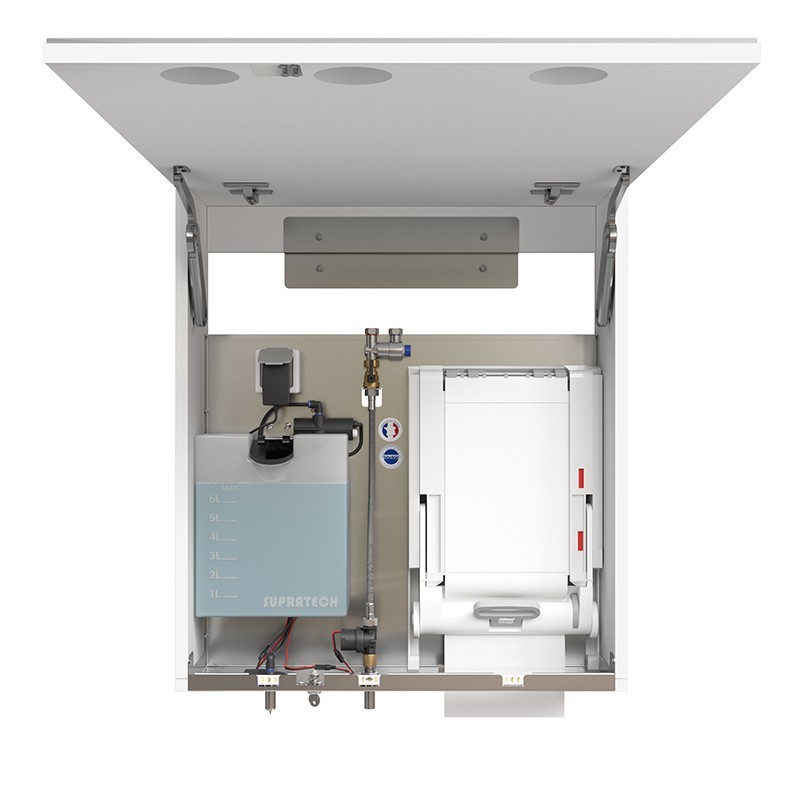

Components assembles on a rugged stainless steel plate 1,2 mm thickness, vandal proof.
STAINLESS STEEL TECHNICAL PLATE

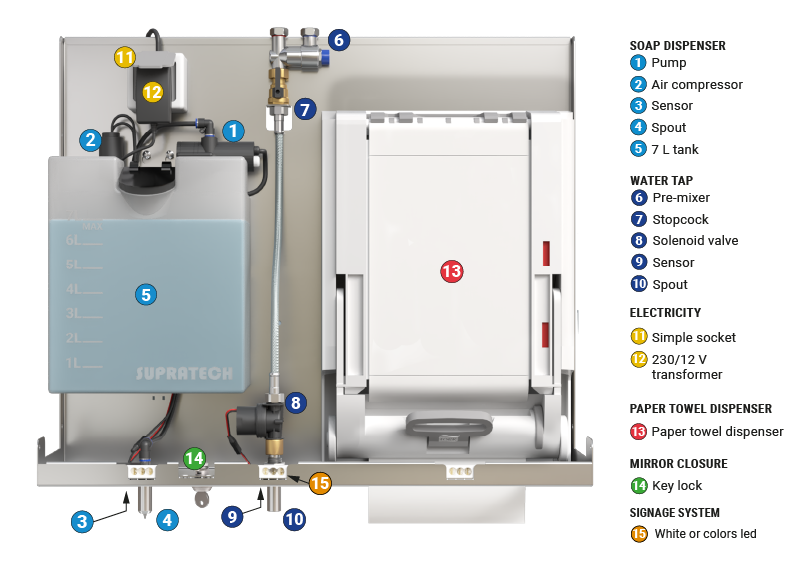

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Light-up pictogram (colours of choice between blue, white, red or green), vertical spouts and stainless steel nozzle on show to indicate where to place your hands.
Lock and key (automatic locking).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, visible vertical spouts to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Peakserve top-fill continuous paper towel dispenser. Capacity: 1230 towels.
- Dimensions: W700 x D256 x H800 mm.
- Mirror unit adaptable in dimensions and in the number of added parts, contact us.
OPTIONS:
- Water flow limited 1,9 L/min.
- Remote control RES-30 for water tap and soap dispenser settings
- Visual low soap level indicator
- Magnetic lock (keyless)
- Choice of mirror cabinet components
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Upper mirrored cabinet H200 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or décor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230/12 V - 2,5 A
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W700 x D256 x H800 mm
- Warranty
- 3 years
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer, and the PEAKSERVE TOTK large capacity paper dispenser.
To better hygiene level, a new mirror unit with a continuous large capacity hand paper towel dispenser instead of a hand dryer = does not spread germs in the air, safe to use and works without any noise.
The mirror unite integrates the continuous paper towel dispenser system PEAKSERVE (TORK) :
- This system uses compresses packetsoffering a large capacity avoiding running out of paper tows in high traffic places.
- The packets are linked together by a scratch system, which allows a hand paper towel distribution without interruption. A paper towel is therefore always available and easy to grab.
- Saves on time thanks to a dispense less than 3 seconds per user = quicker than the pulsed air hand dryer
- The paper towels have numerous usages: wiping your mouth, to clean door handles, lift buttons,avoiding contact with other surfaces in public toilets...
Allows to transport 2 times more hand towels, because they are compressed at 50 % and to divide in half the time dedicated to refill!
Low consumption thanks to a sheet by sheet distribution.
Eco-Label paper and FSC, made from recycled paper and then recycled again.
The hand paper towels are compressed at 50%,
allowing to insert 2 times more paper towels in a small space.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands leave the area.
A complete hand washing cycle that allows you to leave the premises in perfect condition (avoids dirty taps, soap marks, wet floors...).
Quick installation: unit to be hung on a wall on a stainless steel support rail, only 1 electrical supply to be plugged in, water to be connected to a mixing tap and the unit is therefore operational !
7L soap tank with an easy access for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
Components assembles on a rugged stainless steel plate 1,2 mm thickness, vandal proof.
STAINLESS STEEL TECHNICAL PLATE
Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Light-up pictogram (colours of choice between blue, white, red or green), vertical spouts and stainless steel nozzle on show to indicate where to place your hands.
Lock and key (automatic locking).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, visible vertical spouts to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Peakserve top-fill continuous paper towel dispenser. Capacity: 1230 towels.
- Dimensions: W700 x D256 x H800 mm.
- Mirror unit adaptable in dimensions and in the number of added parts, contact us.
OPTIONS:
- Water flow limited 1,9 L/min.
- Remote control RES-30 for water tap and soap dispenser settings
- Visual low soap level indicator
- Magnetic lock (keyless)
- Choice of mirror cabinet components
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Upper mirrored cabinet H200 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or décor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230/12 V - 2,5 A
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W700 x D256 x H800 mm
- Warranty
- 3 years
