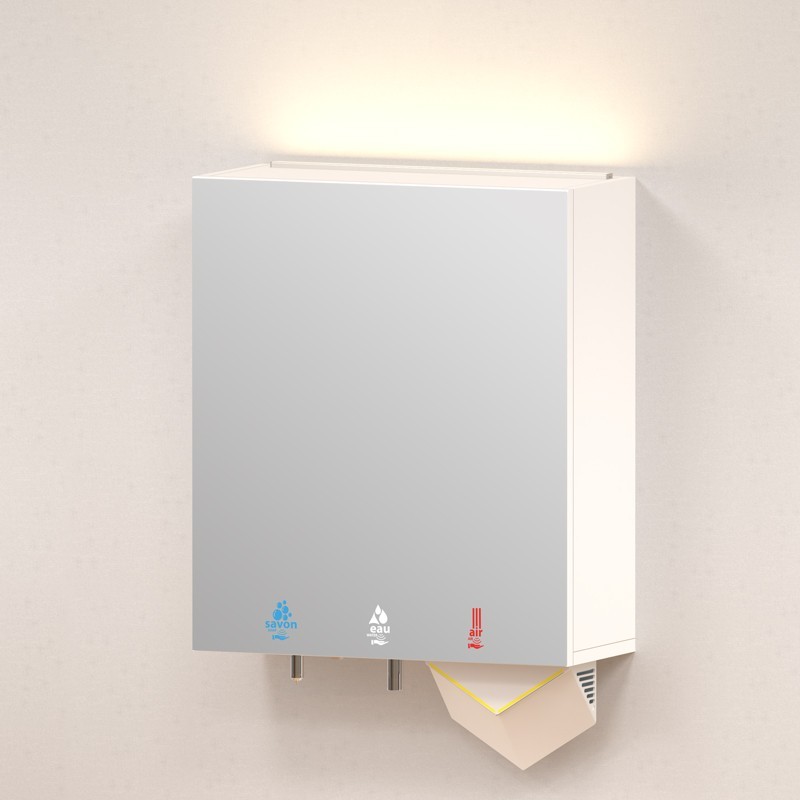

HYFLO 4 in 1 "mirror-soap-water-air Dyson" cabinet
All in one and ready to install mirror cabinet, width 600 mm, with integrated soap dispenser, automatic tap and DYSON Airblade hand dryer
HYFLO mirror cabinet combining the Dyson AIRBLADE V hand dryer with an automatic soap dispenser, liquid or foam, and an electronic water tap with a thermostatic mixing tap.
For a perfect hygienic and ergonomic space, components are concealed behind a mirror with no surface to touch.
The mirror cabinet saves on space with pure lines and visually, everything is perfectly organized with LED icons to guide the users.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands leave the area.
A complete hand washing cycle that allows you to leave the premises in perfect condition (avoids dirty taps, soap marks, wet floors...).
The hand drying Airblade™ technology
- Two air blades, one for each hand : the Dyson Airblade V hand dryer generates two air blades, each one the size of a hand, which removes the water like wipers.
- Up to 35 litres of air is ejected each second by openings which go up to 0,8 mm.
Result : air curtains propelled at 690 km/h which brushes the water from your hands, for a quick dry in 10 seconds and hygienic. - Acoustic rethought to reduce the noise.
- The Dyson Airblade™ hand dryers are equipped with HEPA filters. 99,9 % of bacteria and viruses present in the air is captured.
Hands are therefore dried by a cleaner air, and not by exhaust air. - Operation costs reduced = Dries 17 pairs of hands for the price of one paper towel dispenser.
- Low carbon footprint. The CO2 emissions of the Dyson Airblade™ hand dryers are up to 72% inferior to these and other hand dryers and up to 68% inferior to hand paper towels.
- Low impact on the environment. The Dyson Airblade™ hand dryers have an inferior impact on the environment if we take under consideration divers measures such as carbon emissions and energy consumption.
- Touch free operation, captive sensors activate the air arrival.
- Anti-bacterial coating. Eliminates up to 99,9 % of bacteria on the surface.
- Low maintenance. Power down in high security.
- NSF certified.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Components gathered on a heavy duty stainless steel rugged plate, 1.2 mm thickness.
STAINLESS STEEL TECHNICAL PLATE
Cabinet to be hung on a wall on a stainless steel support rail, only 1 electrical supply to be plugged in, water to be connected to a mixing tap and the cabinet becomes operational !
Lock and key (automatic locking).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, visible vertical spouts and Dyson V blade to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Dyson Airblade V hand dryer 1600W nominal ouput with HEPA filter.
- Dimensions: W600 x D256 x H700 mm. To be installed in series for collective washbasins.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Limited flow rate 1,9 L/min.
- Remote control RES-30 settings for water tap and soap dispenser
- Visual low soap level indicator
- Magnetic lock (without key turn)
- Mirror with vertical white LED strips on both sides (Make Up) with or without motion sensor
- Antifog mirror (shower exit installation)
- Choice of mirror cabinet components
- Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
- Cabinet color finish
- LED strip on top and/or bottom of the cabinet, with or without motion sensor
- White LEDs only
- Power supply
- 230 V 50/60Hz. 0.92 KW
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H700 x D256 mm
- Warranty
- 3 years
HYFLO mirror cabinet combining the Dyson AIRBLADE V hand dryer with an automatic soap dispenser, liquid or foam, and an electronic water tap with a thermostatic mixing tap.
For a perfect hygienic and ergonomic space, components are concealed behind a mirror with no surface to touch.
The mirror cabinet saves on space with pure lines and visually, everything is perfectly organized with LED icons to guide the users.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands leave the area.
A complete hand washing cycle that allows you to leave the premises in perfect condition (avoids dirty taps, soap marks, wet floors...).
The hand drying Airblade™ technology
- Two air blades, one for each hand : the Dyson Airblade V hand dryer generates two air blades, each one the size of a hand, which removes the water like wipers.
- Up to 35 litres of air is ejected each second by openings which go up to 0,8 mm.
Result : air curtains propelled at 690 km/h which brushes the water from your hands, for a quick dry in 10 seconds and hygienic. - Acoustic rethought to reduce the noise.
- The Dyson Airblade™ hand dryers are equipped with HEPA filters. 99,9 % of bacteria and viruses present in the air is captured.
Hands are therefore dried by a cleaner air, and not by exhaust air. - Operation costs reduced = Dries 17 pairs of hands for the price of one paper towel dispenser.
- Low carbon footprint. The CO2 emissions of the Dyson Airblade™ hand dryers are up to 72% inferior to these and other hand dryers and up to 68% inferior to hand paper towels.
- Low impact on the environment. The Dyson Airblade™ hand dryers have an inferior impact on the environment if we take under consideration divers measures such as carbon emissions and energy consumption.
- Touch free operation, captive sensors activate the air arrival.
- Anti-bacterial coating. Eliminates up to 99,9 % of bacteria on the surface.
- Low maintenance. Power down in high security.
- NSF certified.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
Components gathered on a heavy duty stainless steel rugged plate, 1.2 mm thickness.
STAINLESS STEEL TECHNICAL PLATE
Cabinet to be hung on a wall on a stainless steel support rail, only 1 electrical supply to be plugged in, water to be connected to a mixing tap and the cabinet becomes operational !
Lock and key (automatic locking).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, visible vertical spouts and Dyson V blade to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - Dyson Airblade V hand dryer 1600W nominal ouput with HEPA filter.
- Dimensions: W600 x D256 x H700 mm. To be installed in series for collective washbasins.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Limited flow rate 1,9 L/min.
- Remote control RES-30 settings for water tap and soap dispenser
- Visual low soap level indicator
- Magnetic lock (without key turn)
- Mirror with vertical white LED strips on both sides (Make Up) with or without motion sensor
- Antifog mirror (shower exit installation)
- Choice of mirror cabinet components
- Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
- Cabinet color finish
- LED strip on top and/or bottom of the cabinet, with or without motion sensor
- White LEDs only
- Power supply
- 230 V 50/60Hz. 0.92 KW
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H700 x D256 mm
- Warranty
- 3 years
