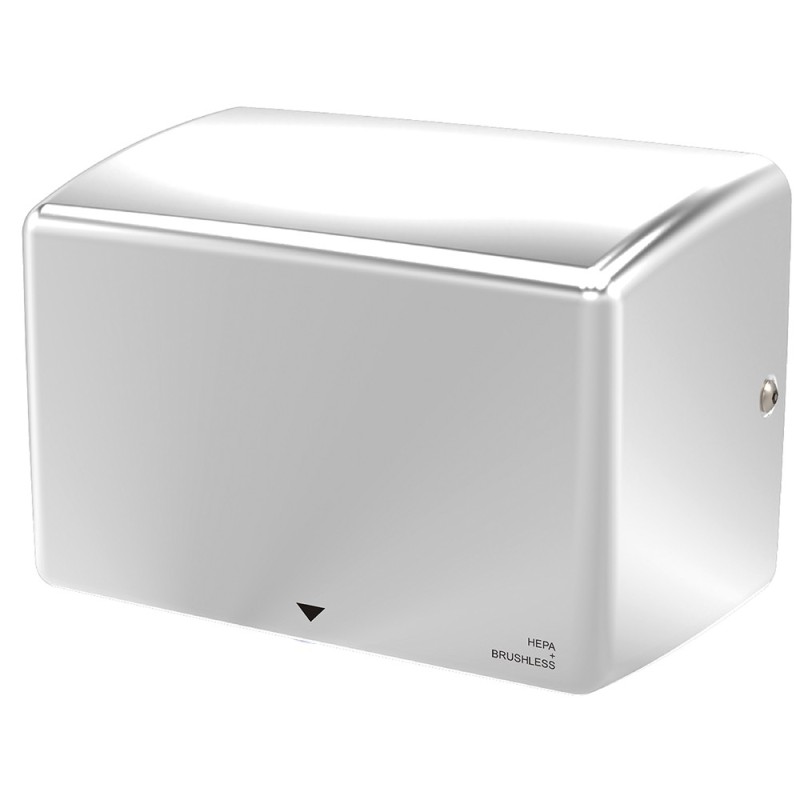

COMPACT Brushless Hand Dryer with HEPA Filter
Automatic touchless stainless steel hand dryer with HEPA filter and brushless motor for optimal hygiene.
Disponible en finition Brushed, Bright, Epoxy white steel et Epoxy black steel.
COMPACT HIGH-SPEED STAINLESS STEEL HAND DRYER
Automatic – Brushless motor – Integrated HEPA filter
The compact stainless steel hand dryer is equipped with a brushless motor, ensuring long service life, minimal maintenance, and reliable performance in all types of restrooms, including high-traffic areas.
-
High performance with energy savings: power consumption reduced to just 840 W for ultra-fast drying.
-
Ultra-compact design: only 14 cm deep and 17 cm high, ideal for limited space.
-
Automatic operation via infrared sensor.
-
Fast drying in 10 seconds.
-
Vandal-resistant: robust stainless steel construction.
-
Adjustable airflow and sound level.
-
Red indicator light during operation.
-
Integrated HEPA filter: purifies air for enhanced hygiene.
Optimized power consumption based on settings:
Heater can be switched off via button: ideal for summer or to reduce energy use.
Blower speed adjustable via built-in potentiometer.
| Settings | Motor | Heater | Total consumption |
|---|---|---|---|
| Max speed + heater on | 420 W | 420 W | 840 W |
| Max speed + ambient air (heater off) | 420 W | 0 W | 420 W |
| Min speed + heater on | ~230 W | 420 W | 650 W (recommended) |
| Min speed + ambient air | ~200 W | 0 W | ~200 W (>50% saving) |
Available finishes:
Brushed stainless steel, polished, white, or black.
Other finishes available on request: PVD matte gold, copper, gunmetal, etc.
- Sensor
- Self-adjusting infrared
- Sensor range
- 170 mm ± 20 mm, adjustable
- Voltage supply
- 220/240 V, 50/60 Hz, 0.84 / 1 kW. Ampérage : 3.8 / 4.2 A.
- Electrical insulation
- Class I
- Protection rating
- IP 11 (option IP13)
- Standby consumption
- Less than 0.5 W ( Directive Compliant Erp 1275/2008)
- Security
- Automatic shut-off after 60 seconds of uninterrupted use or in case of overheating
Motor with safety thermostat at 85°C. - Material
- Bacteriostatic AISI 304 stainless steel
- Stainless steel thickness
- 1,2 mm
- Finish
- Brushed, bright, white epoxy steel or black epoxi steel
- Power
- 840 W
- Air speed
- 57 à 82 m/s.
- Sound level
- 75 dB @ 1M
- Filter
- H13 HEPA filter with 99.9% bacteria filtration
- Weight
- Dimensions
- Warranty
- 3 years
- Standards
