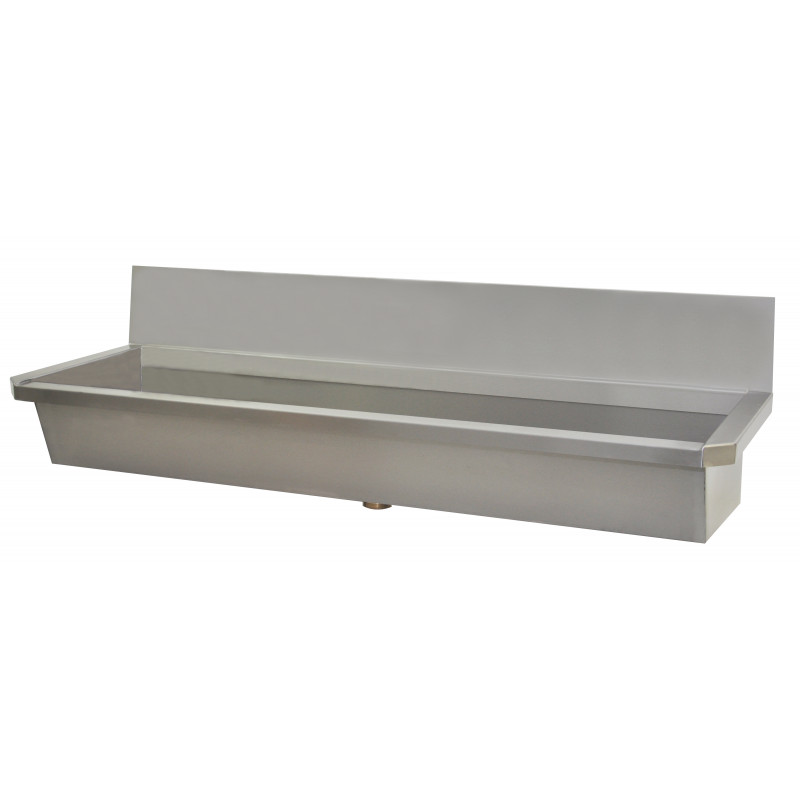

Stainless steel wash trough for public facilities with splashback INTER-8-D for wall-mounted tapware

Multi-user stainless steel washbasin with splashback INTER-8-D for wall-mounted tapware

wall-mounted

Reference INTER-8-60-D
Unit price
€836.00 Tax Excl.

Technical sheet & documents

No technical sheet available for this reference. Request the sheet

Faucet hole: Without
Dimension
Ask a question

Free shipping from €1,000 excl. VAT in mainland France. Delivery terms

Wash trough with splashback for wall-mounted tapware, made from AISI 304 stainless steel

- No rear deck. H120 mm splashback, glued or screwed, protects the wall from water splashes and dirt.
- Robotic welding with no grooves in the corners, preventing bacterial growth.
- Inner corners along the length of the basin > 90° for easier cleaning.
- Flat bottom to stand a 15 l bucket.
- No dust-trapping ledge under the basin, for hygiene.
- Bowl depth 142 mm. Central perforated 1 1/2" waste grid.
- Quick and easy installation with 4 fixing points.
- Complies with EN 14296 on the load resistance of sanitary appliances.

Rounded corner Pressed waste with no water retention Robotic weld washbasin with bucket Optional lift-up stainless steel grid, as a support or drainer SOFT TOUCH with wide folded-under lower edges
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inner corners greater than 90° Enough room for a bucket Optional lift-up stainless steel grid, as a support or drainer "SOFT TOUCH" with wide folded-under lower edges

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fine fireclay wash troughs.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Environmentally friendly. 100% recyclable, helping to meet the requirements of the French HQE standard.

OPTIONS:

  • Made to measure (to the nearest centimetre, up to 3 m max.).
  • Pair of stainless steel legs (Ref. INTER-P2)
  • 250 mm high splashback, glued or screwed.
  • Lift-up stainless steel support grid.
  • Chrome-plated brass bottle trap for 1 1/2'' waste, removable base (40x49 outlet with nut). Ref. BS-12.
  • Stainless steel trap cover.
Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W600 x P400 x D316 mm
W1000 x P400 x D316 mm
W1200 x P400 x D316 mm
W1400 x P400 x D316 mm
W1500 x P400 x D316 mm
W1800 x P400 x D316 mm
W2000 x P400 x D316 mm
W2100 x P400 x D316 mm
W2400 x P400 x D316 mm
W2800 x P400 x D316 mm
W3000 x P400 x D316 mm

Wash trough with splashback for wall-mounted tapware, made from AISI 304 stainless steel

- No rear deck. H120 mm splashback, glued or screwed, protects the wall from water splashes and dirt.
- Robotic welding with no grooves in the corners, preventing bacterial growth.
- Inner corners along the length of the basin > 90° for easier cleaning.
- Flat bottom to stand a 15 l bucket.
- No dust-trapping ledge under the basin, for hygiene.
- Bowl depth 142 mm. Central perforated 1 1/2" waste grid.
- Quick and easy installation with 4 fixing points.
- Complies with EN 14296 on the load resistance of sanitary appliances.

Rounded corner Pressed waste with no water retention Robotic weld washbasin with bucket Optional lift-up stainless steel grid, as a support or drainer SOFT TOUCH with wide folded-under lower edges
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inner corners greater than 90° Enough room for a bucket Optional lift-up stainless steel grid, as a support or drainer "SOFT TOUCH" with wide folded-under lower edges

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fine fireclay wash troughs.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Environmentally friendly. 100% recyclable, helping to meet the requirements of the French HQE standard.

OPTIONS:

  • Made to measure (to the nearest centimetre, up to 3 m max.).
  • Pair of stainless steel legs (Ref. INTER-P2)
  • 250 mm high splashback, glued or screwed.
  • Lift-up stainless steel support grid.
  • Chrome-plated brass bottle trap for 1 1/2'' waste, removable base (40x49 outlet with nut). Ref. BS-12.
  • Stainless steel trap cover.

Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W600 x P400 x D316 mm
W1000 x P400 x D316 mm
W1200 x P400 x D316 mm
W1400 x P400 x D316 mm
W1500 x P400 x D316 mm
W1800 x P400 x D316 mm
W2000 x P400 x D316 mm
W2100 x P400 x D316 mm
W2400 x P400 x D316 mm
W2800 x P400 x D316 mm
W3000 x P400 x D316 mm
