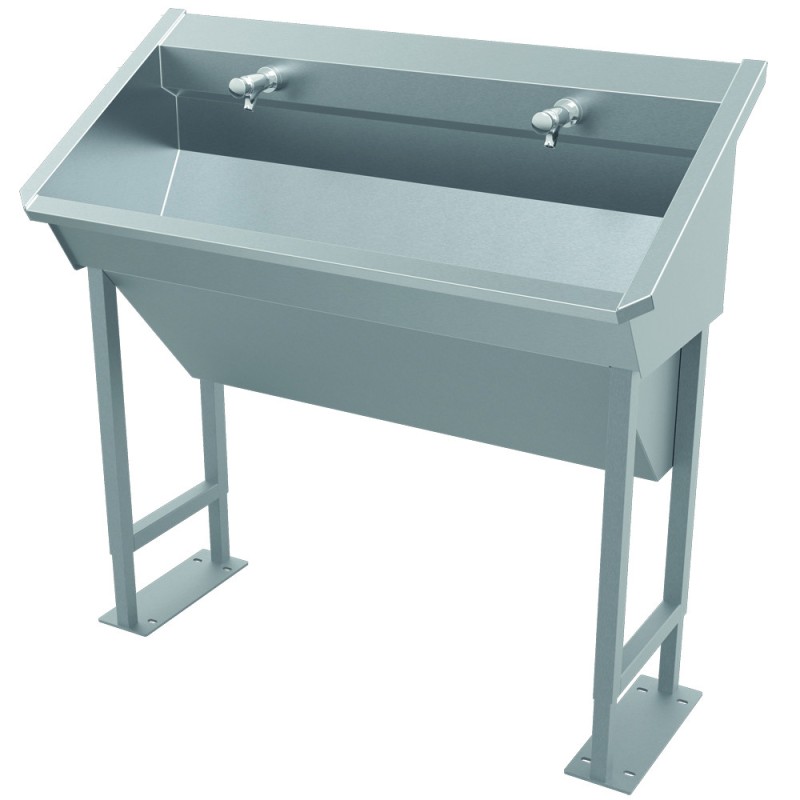

Freestanding stainless steel wash trough on legs
Two-station stainless steel wash trough on legs with optional trap cover skirt
Previous
Next
Freestanding stainless steel wash trough on legs
Two-station stainless steel wash trough on legs with optional trap cover skirt

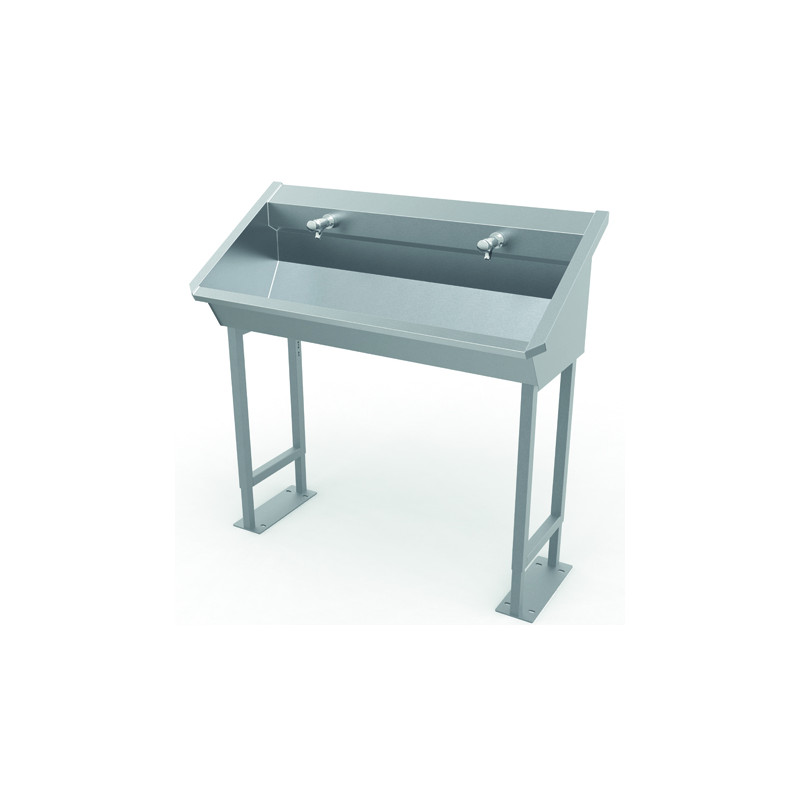

Freestanding multi-user stainless steel washbasin on legs INTER-1P

The solution when basins cannot be fixed to the wall

Reference INTER-1P-100
Unit price
€1,869.00 Tax Excl.
Integrated tapware
Dimension

Free shipping from €1,000 excl. VAT in mainland France. Delivery terms

Freestanding multi-user stainless steel washbasin on legs, with splashback for tapware, INTER-1P

- Basin height adjustable from 765 to 1155 mm.
- Splashback specially designed to house the pipework and tapware, so no work in the wall is needed.
   Without taps = includes F 1/2'' stainless steel connectors for wall-mounted taps and a single F1/2'' water inlet connector on pre-connected pipes.
- Innovative design for perfect hygiene.
- Robot-welded with no grooves in the corners, preventing the growth of bacteria.
- Inside angles along the length of the basin > 90° for easier cleaning.
- The flat bottom takes a 15 l bucket.
- No dust ledge under the basin, for hygiene.
- Bowl depth 151 mm. Perforated central 1 1/2" waste grid.
- Complies with EN 14296 on the load resistance of sanitary appliances.

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fireclay wash troughs.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Environmentally friendly. 100% recyclable, contributing to HQE standard requirements.

Rounded corner Pressed stainless steel waste with no seal Weld for perfect hygiene Flat bottom for a bucket Spout fixing for easy maintenance Stainless steel lift-up drainer
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inside angles greater than 90° Enough room for a bucket F1/2’’ stainless steel ring for fitting and removing the self-closing spout from the front = easy maintenance  Optional stainless steel lift-up grid, as a support or drainer

OPTIONS:

  • Tap holes Ø 22 mm.
  • Taps pre-fitted and pre-connected in the factory (sensor, push-button or manual).
  • Made to measure (to the nearest centimetre, up to 3 m max.).
  • Stainless steel lift-up support grid.
  • Chrome-plated brass trap for 1 1/2'' waste Ref. BS-12.
  • Stainless steel trap cover.
  • Stainless steel leg covers.
  • AISI 316 stainless steel.



Leg cover option         Trap cover option
Leg cover option Trap cover option

Built-in tapware available on request:

Self-closing tap Soft-touch self-closing tap Single 1/2-turn tap Elbow lever tap Two-handle mixer tap Single-lever mixer tap Sensor tap
Push-button tap, removable
from the front M3P
Soft-touch push-button tap M3DS Single ceramic 1/2-turn tap M2 Single tap with extended lever M4 Two-handle mixer tap M5 Single-lever mixer tap M6 Touch-free sensor tap M9

Reduced installation costs Plug&play system to keep installation costs under control

Available with pre-fitted pipework and tapware = time saved and exact installation cost known in advance

Left or right water supply, with the option of connecting basins in series.
PE-Xc/aluminium/PE-Xc multilayer pipe, ATG and Kiwa certified.
Connection to this pipework with the ½’’ flexible hoses supplied.
Connections pressure-tested with water to ensure there are no leaks.

Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W1000 x D490 x H1035 to 1425 mm
W1200 x D490 x H1035 to 1425 mm
W1400 x D490 x H1035 to 1425 mm
W1500 x D490 x H1035 to 1425 mm
W1800 x D490 x H1035 to 1425 mm
W2000 x D490 x H1035 to 1425 mm
W2100 x D490 x H1035 to 1425 mm
W2400 x D490 x H1035 to 1425 mm
W2800 x D490 x H1035 to 1425 mm
W3000 x D490 x H1035 to 1425 mm

Freestanding multi-user stainless steel washbasin on legs, with splashback for tapware, INTER-1P

- Basin height adjustable from 765 to 1155 mm.
- Splashback specially designed to house the pipework and tapware, so no work in the wall is needed.
   Without taps = includes F 1/2'' stainless steel connectors for wall-mounted taps and a single F1/2'' water inlet connector on pre-connected pipes.
- Innovative design for perfect hygiene.
- Robot-welded with no grooves in the corners, preventing the growth of bacteria.
- Inside angles along the length of the basin > 90° for easier cleaning.
- The flat bottom takes a 15 l bucket.
- No dust ledge under the basin, for hygiene.
- Bowl depth 151 mm. Perforated central 1 1/2" waste grid.
- Complies with EN 14296 on the load resistance of sanitary appliances.

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fireclay wash troughs.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Environmentally friendly. 100% recyclable, contributing to HQE standard requirements.

Rounded corner Pressed stainless steel waste with no seal Weld for perfect hygiene Flat bottom for a bucket Spout fixing for easy maintenance Stainless steel lift-up drainer
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inside angles greater than 90° Enough room for a bucket F1/2’’ stainless steel ring for fitting and removing the self-closing spout from the front = easy maintenance  Optional stainless steel lift-up grid, as a support or drainer

OPTIONS:

  • Tap holes Ø 22 mm.
  • Taps pre-fitted and pre-connected in the factory (sensor, push-button or manual).
  • Made to measure (to the nearest centimetre, up to 3 m max.).
  • Stainless steel lift-up support grid.
  • Chrome-plated brass trap for 1 1/2'' waste Ref. BS-12.
  • Stainless steel trap cover.
  • Stainless steel leg covers.
  • AISI 316 stainless steel.



Leg cover option         Trap cover option
Leg cover option Trap cover option

Built-in tapware available on request:

Self-closing tap Soft-touch self-closing tap Single 1/2-turn tap Elbow lever tap Two-handle mixer tap Single-lever mixer tap Sensor tap
Push-button tap, removable
from the front M3P
Soft-touch push-button tap M3DS Single ceramic 1/2-turn tap M2 Single tap with extended lever M4 Two-handle mixer tap M5 Single-lever mixer tap M6 Touch-free sensor tap M9

Reduced installation costs Plug&play system to keep installation costs under control

Available with pre-fitted pipework and tapware = time saved and exact installation cost known in advance

Left or right water supply, with the option of connecting basins in series.
PE-Xc/aluminium/PE-Xc multilayer pipe, ATG and Kiwa certified.
Connection to this pipework with the ½’’ flexible hoses supplied.
Connections pressure-tested with water to ensure there are no leaks.

Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W1000 x D490 x H1035 to 1425 mm
W1200 x D490 x H1035 to 1425 mm
W1400 x D490 x H1035 to 1425 mm
W1500 x D490 x H1035 to 1425 mm
W1800 x D490 x H1035 to 1425 mm
W2000 x D490 x H1035 to 1425 mm
W2100 x D490 x H1035 to 1425 mm
W2400 x D490 x H1035 to 1425 mm
W2800 x D490 x H1035 to 1425 mm
W3000 x D490 x H1035 to 1425 mm
