135° angled lateral grab bar PRM in stainless steel

2 fixation points

IB-011-S
€55.00 Tax Excl.

Finish

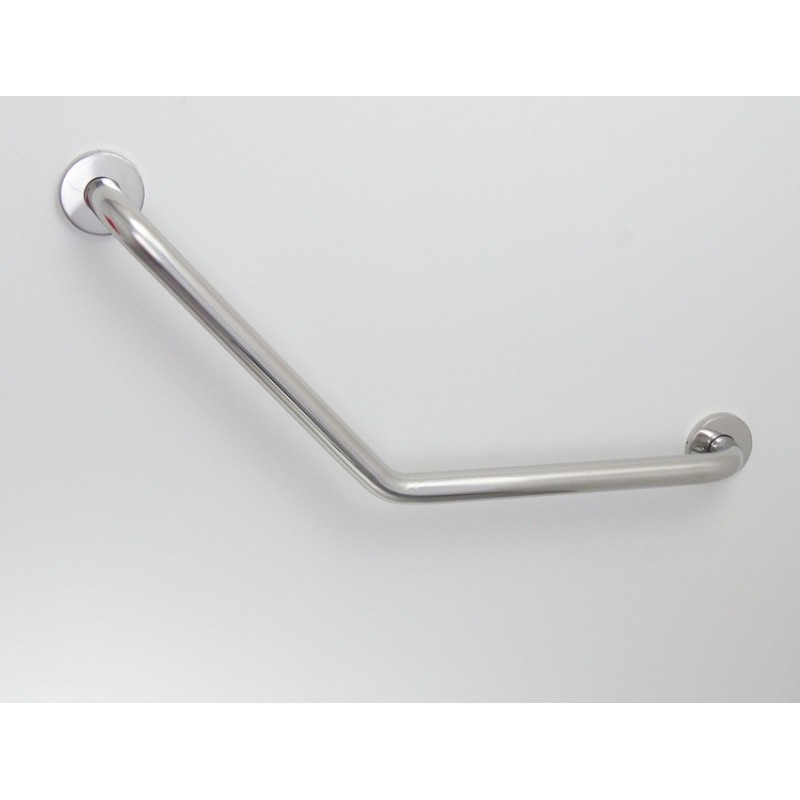

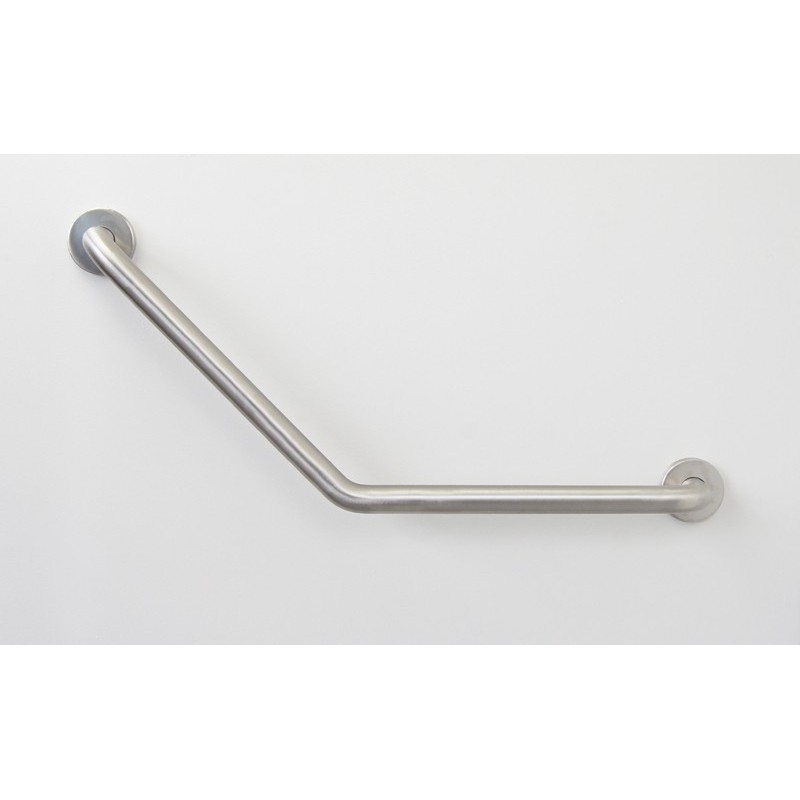

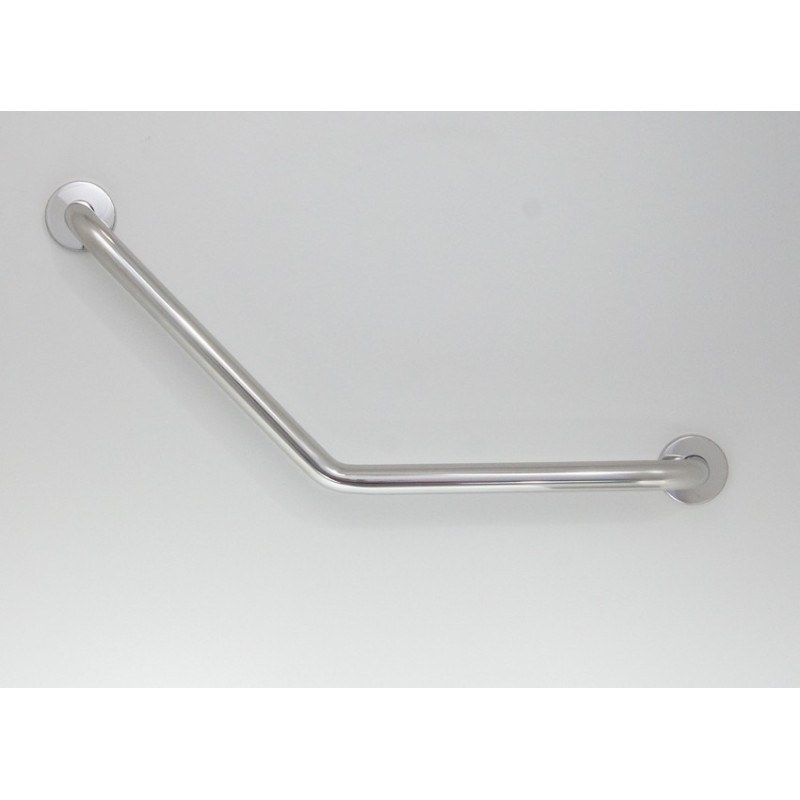

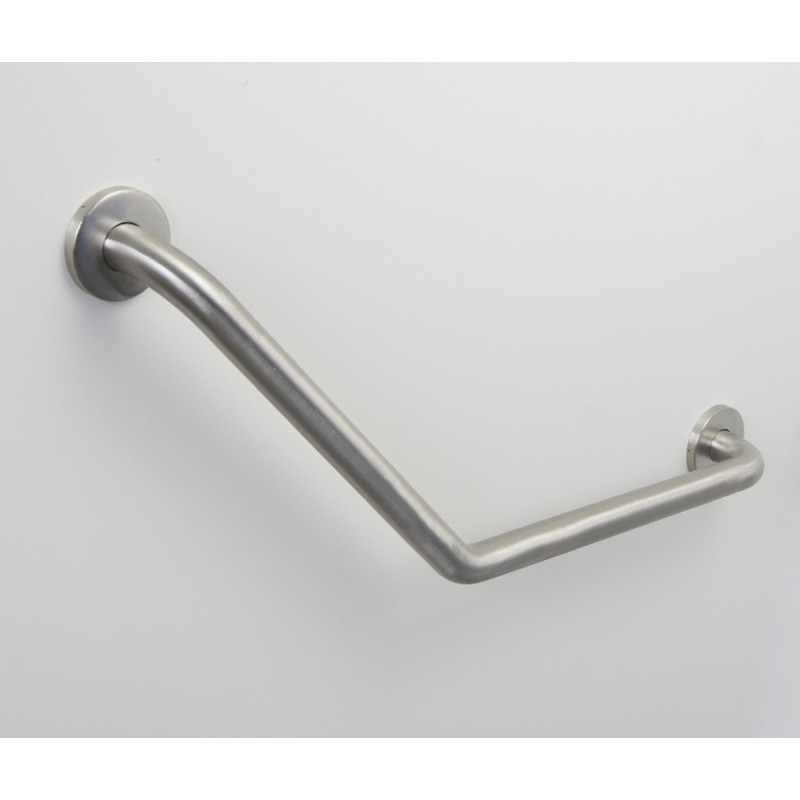

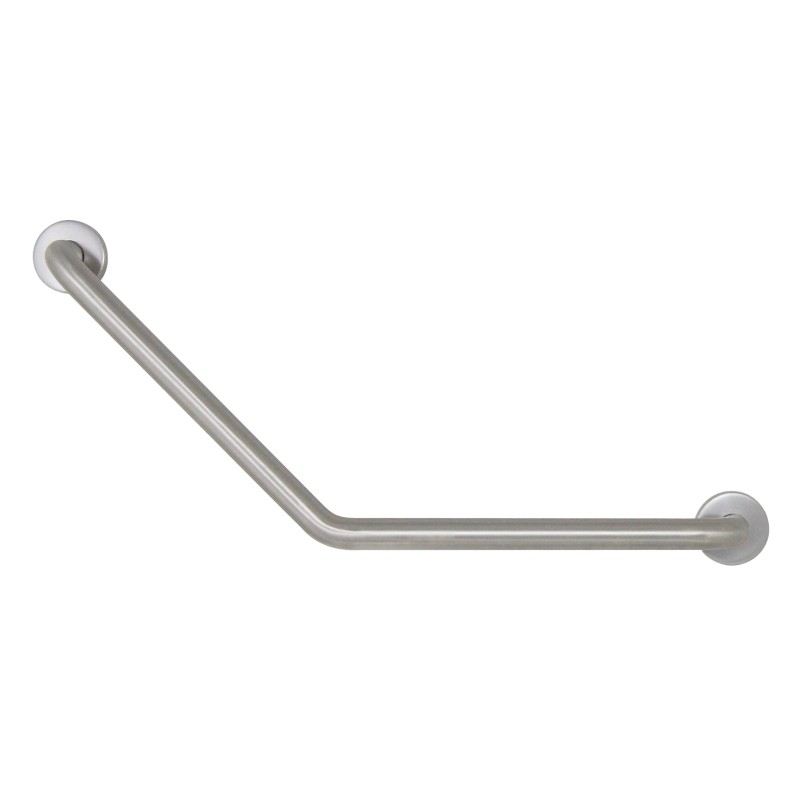

Grab and hinged bar angled at 135° in stainless steel for P.R.M.

In all toilets adapted for handicap people, an angled grab bar needs to be planned near the toilet bowl (horizontal part) allowing the transfer of a person in a wheel-chair to give them a hand to lift up (part at 135°).
The bar must be placed at a height between 70 and 80 cm, with an angle at least 20 cm in regards to the toilet bowl.
To insert firmly to allow an adult to rest all his weight.

Can be used on the left or right side.

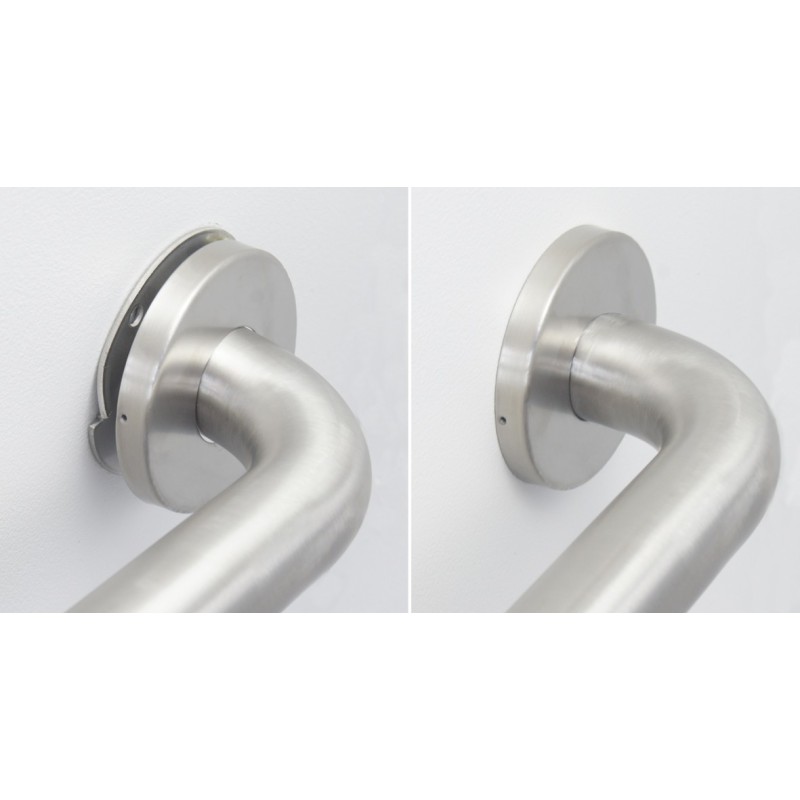

Fixations concealed by clipsable escutcheons.

Fixations supplied.

CE compliant

barre-appui-45-inox

Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Diameter
Ø 32 mm
Finish
Brushed or bright
Free space with the wall
40 mm
Dimensions
400 x 400 mm
Warranty
10 years. CE.

Grab and hinged bar angled at 135° in stainless steel for P.R.M.

In all toilets adapted for handicap people, an angled grab bar needs to be planned near the toilet bowl (horizontal part) allowing the transfer of a person in a wheel-chair to give them a hand to lift up (part at 135°).
The bar must be placed at a height between 70 and 80 cm, with an angle at least 20 cm in regards to the toilet bowl.
To insert firmly to allow an adult to rest all his weight.

Can be used on the left or right side.

Fixations concealed by clipsable escutcheons.

Fixations supplied.

CE compliant

barre-appui-45-inox

Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Diameter
Ø 32 mm
Finish
Brushed or bright
Free space with the wall
40 mm
Dimensions
400 x 400 mm
Warranty
10 years. CE.
