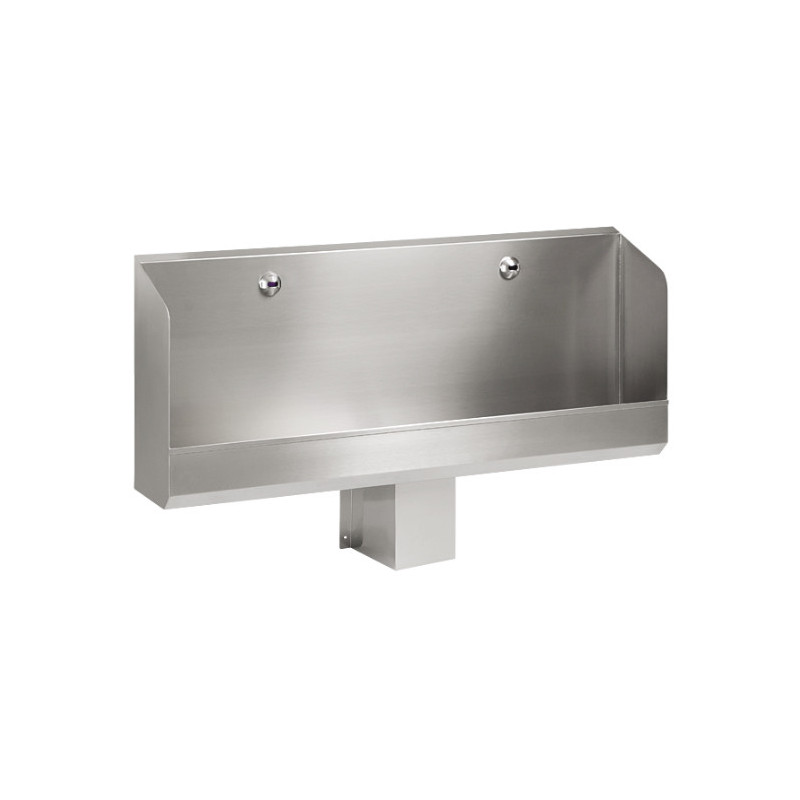

Wall mounted urinal automatic individual rinse stainless steel

saves on water, only the used part is rinsed !

SPN-2
€1,610.00 Tax Excl.

Power supply

Dimension

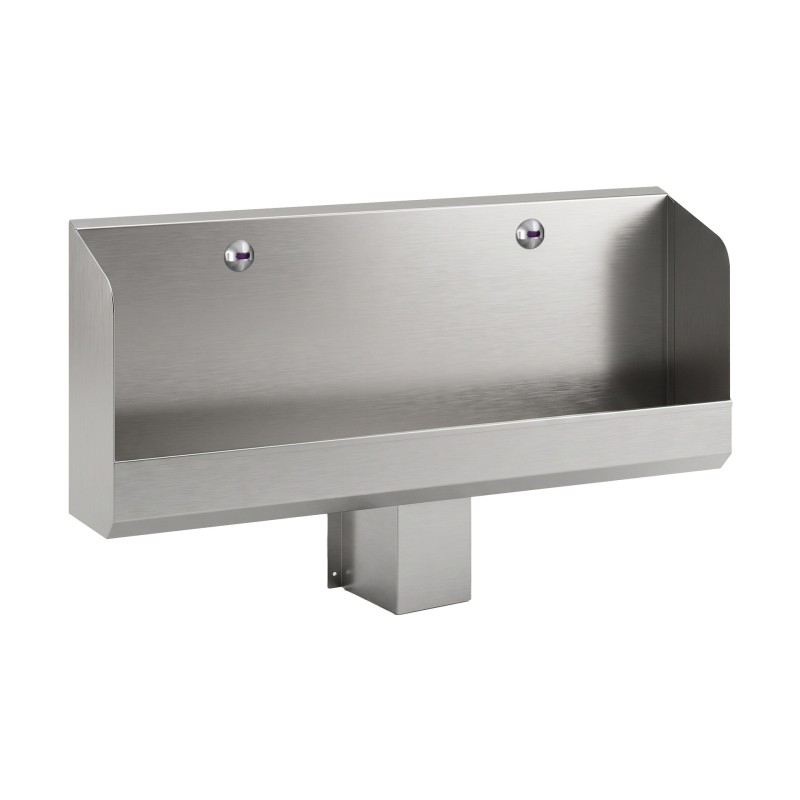

Wall mounted collective urinal stainless steel automatic and vandal proof, made for public areas.

- Saves on water: each flush works independently from others after a minimum presence of 7,5 seconds.

- Easy and quick to mount. Apart from the water inlet, no work needed in the wall, all is integrated in the urinal backsplash and stainless concealed s-trap.

- S-trap protector in stainless steel, stopcock with filter, fixations.

robinet-electronique-urinoir-integre

OPTION

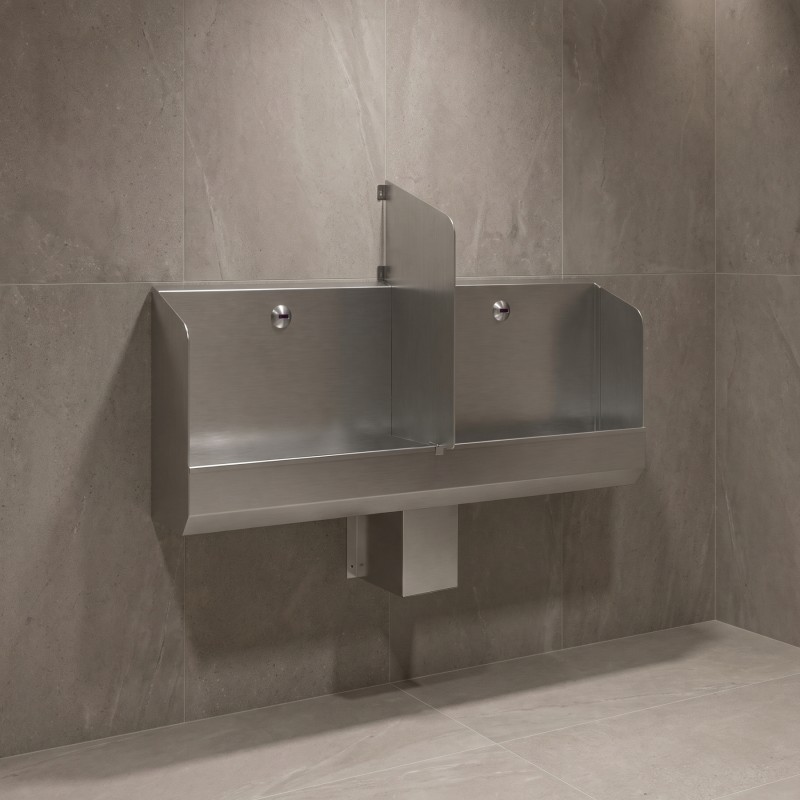

Stainless steel urinal separator SPN-SEP

Sensor
Embedded infrared sensor
Sensor range
600 to 750 mm
Power supply
230/24V transformer
Consumption
14 W (2 places)
21 W (3 places)
28 W (4 places)
Hygienic rinse anti-legionella
After 24 H of non-use (adjustable)
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Finish
Brushed
Stopcock
Bracket with filter
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flush time
0.,5 to 15,5 sec. adjustable
Flow rate
12 LPM.
Fixing
Wall mounted
Operation settings
Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...

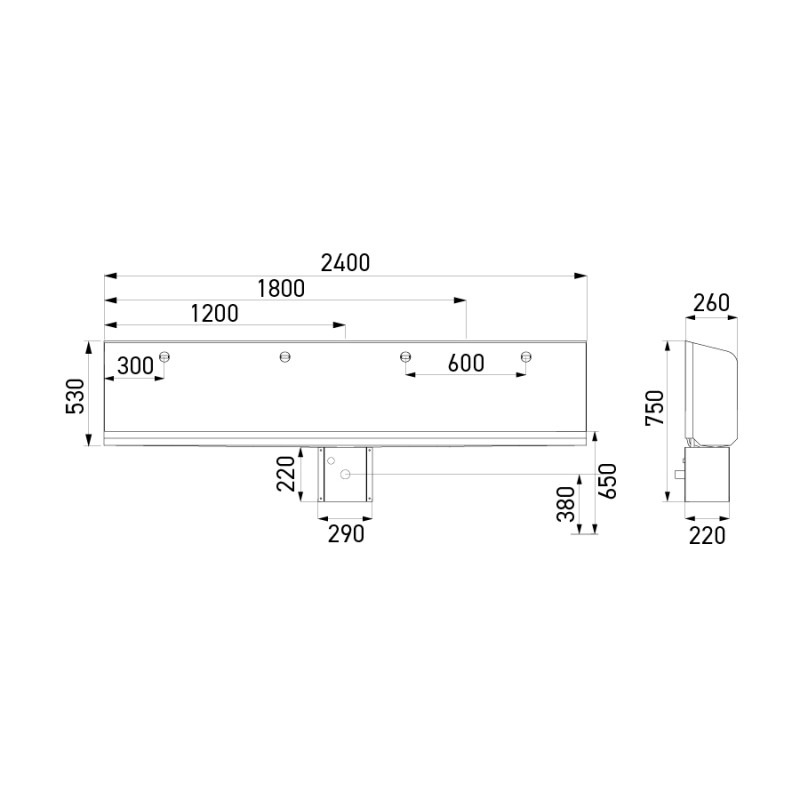

Dimensions
W1200 x D220 x H520 mm - 2 users
W1800 x D220 x H520 mm - 3 users
W2400 x D220 x H520 mm - 4 users
Warranty
Electronics 5 years

Wall mounted collective urinal stainless steel automatic and vandal proof, made for public areas.

- Saves on water: each flush works independently from others after a minimum presence of 7,5 seconds.

- Easy and quick to mount. Apart from the water inlet, no work needed in the wall, all is integrated in the urinal backsplash and stainless concealed s-trap.

- S-trap protector in stainless steel, stopcock with filter, fixations.

robinet-electronique-urinoir-integre

OPTION

Stainless steel urinal separator SPN-SEP

Sensor
Embedded infrared sensor
Sensor range
600 to 750 mm
Power supply
230/24V transformer
Consumption
14 W (2 places)
21 W (3 places)
28 W (4 places)
Hygienic rinse anti-legionella
After 24 H of non-use (adjustable)
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Finish
Brushed
Stopcock
Bracket with filter
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flush time
0.,5 to 15,5 sec. adjustable
Flow rate
12 LPM.
Fixing
Wall mounted
Operation settings
Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
W1200 x D220 x H520 mm - 2 users
W1800 x D220 x H520 mm - 3 users
W2400 x D220 x H520 mm - 4 users
Warranty
Electronics 5 years
