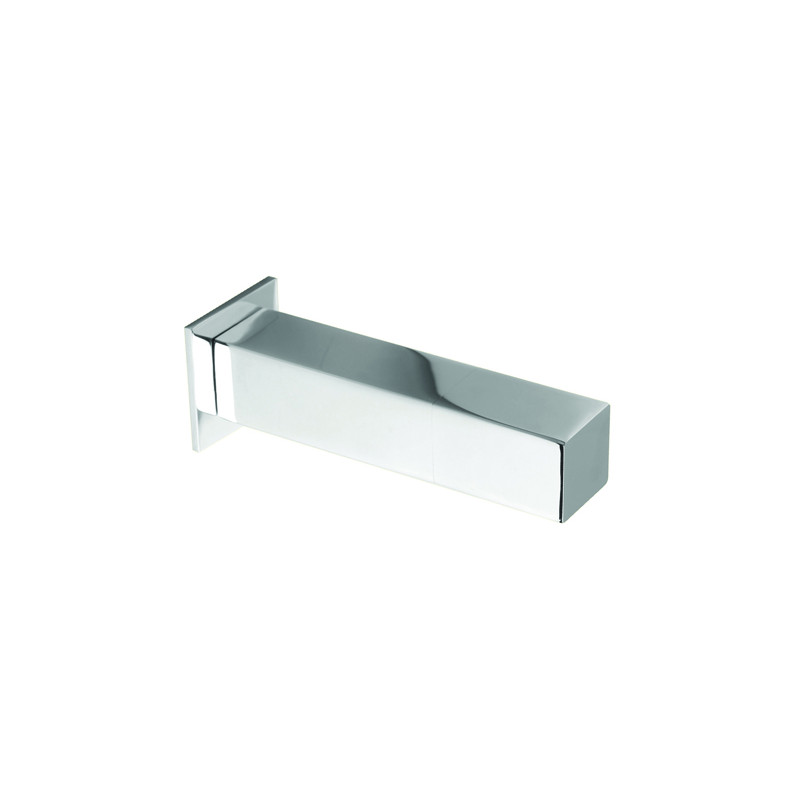

Photo Automatic and modern faucet CARREO square rectangle shape RES-40

Electronic wall mounted faucet CARREO

modern design square spout

Ref. : RES-40

€380.00 Net Price

Tax excluded

Choose a model

Option spout length

Quantity

Ask a question

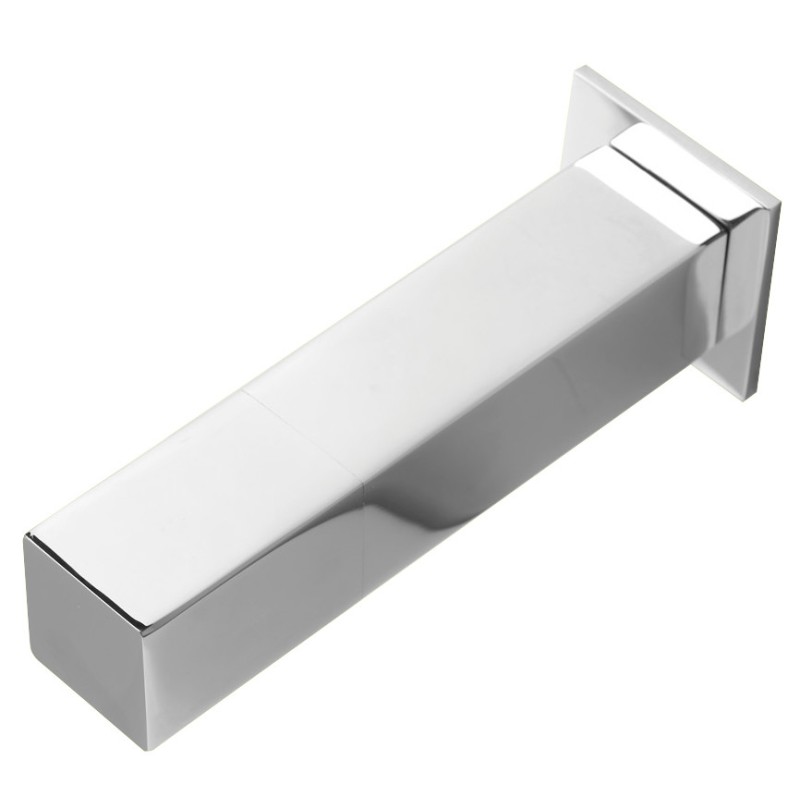

Wall mounted electronic faucet design CARREO with infrared detection for cold or premixed water

bec-mural-design-carre-lavabo-infrarouge-carreo

Wall mounted installation by technical duct from 1 to 35 mm (wall mounted fixations up to 200 mm as additional option)
or recessed installation with solenoid valve box recommended under the sink.

bec-mural-design-carre-electronique-carreo

OPTIONS:

Remote control RES-31
Brushed, matt black, matt gold finish (minimum quantity)
Extended spout version W 220 mm
Anti-legionella hygienic flush.
Limited flow rate 1,3, 1,9 or 3 LPM
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

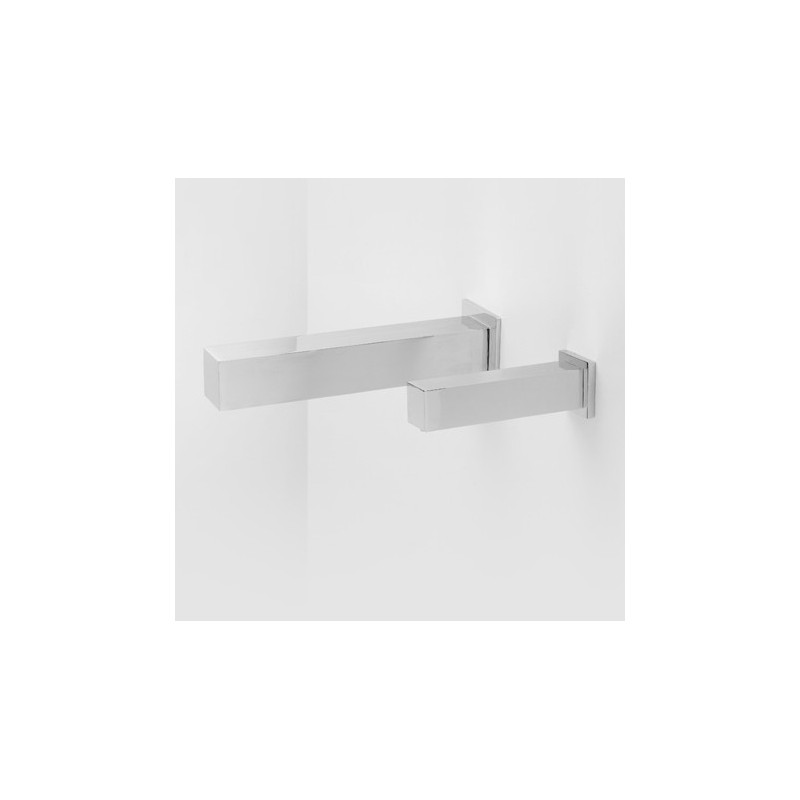

Soap dispenser matching design
Integrated on wash basin support frame

Sensor: Self-adjusting infrared
Spout length: Standard 170 mm (long version 220 mm)
Electrical supply: 230/9V transformer or 9V alkaline battery
Security off: Shut-off after 90 seconds of uninterrupted use
Solenoid valve: External M1/2'' with filter in wall-mounted version
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
Material: Chrome brass
Water supply: For cold or pre-mixed water
Pressure: 0.5 - 8 bars
Max. temperature eligible: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
