Wall mounted electronic mixing tap RONDEO

Name: Wall mounted electronic mixing tap RONDEO
SKU: RES-35

refined design and comfortable to use

Réf. : RES-35

€384.00 Tax Excl.

Long spout option

Choose a model

Poser une question

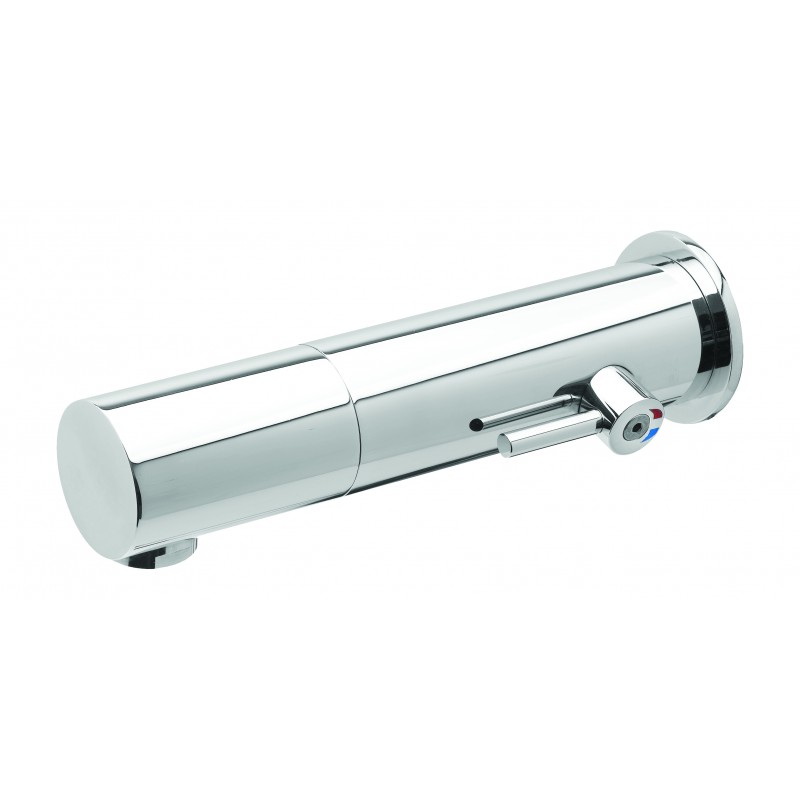

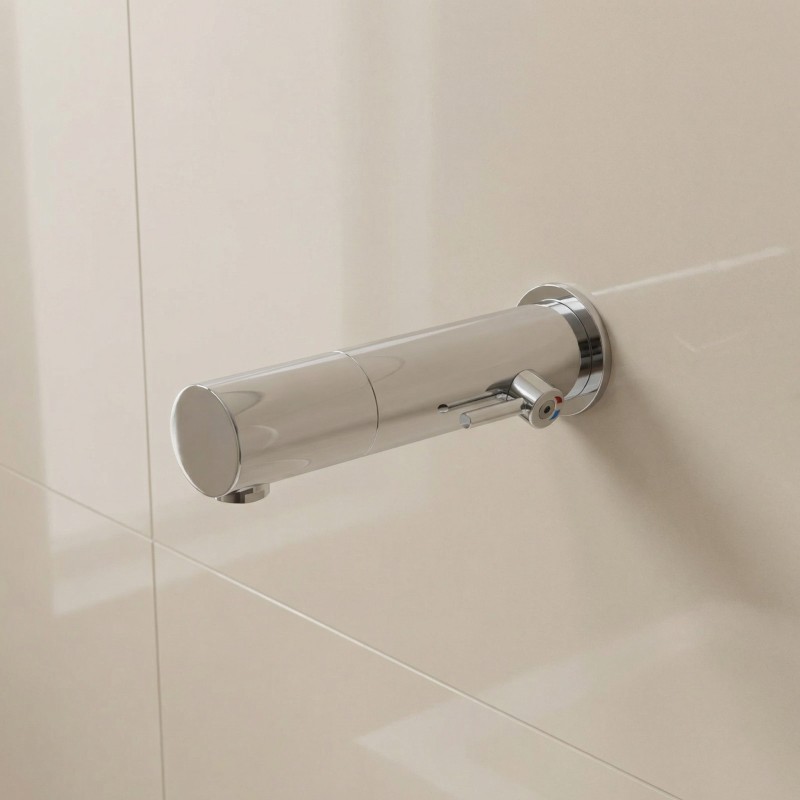

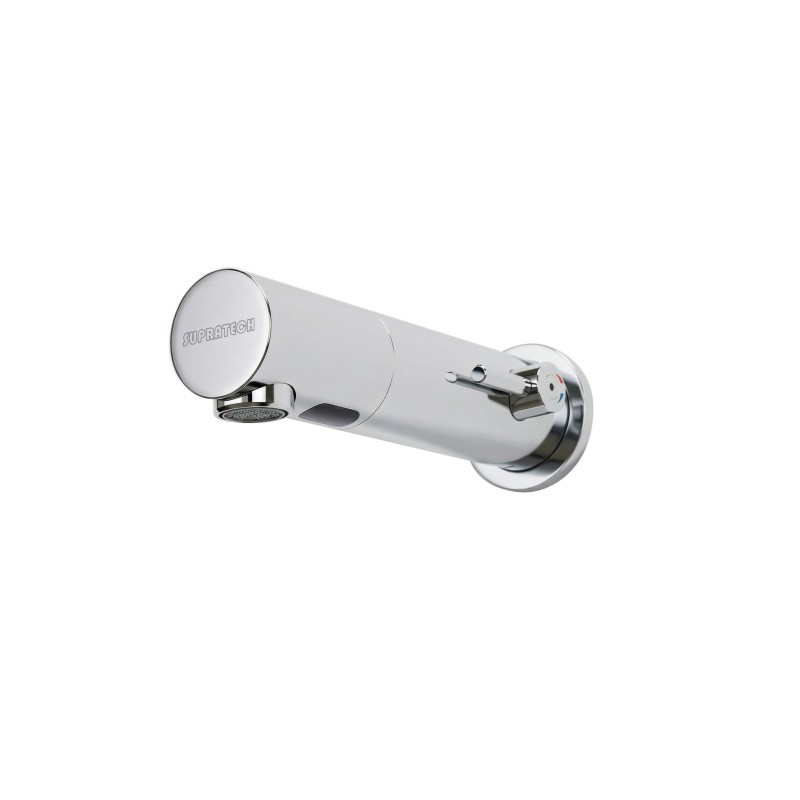

Wall mounted mixing tap faucet RONDEO with infrared detection.
Perfect integration in the sanitary facilities thanks to its minimalist design.

Wall mounted installation and technical room on panel from 1 to 35 mm (wall mounted fixation up to 200 mm as an option)
or recessed installation with solenoid valve box recommended under the wash basin.

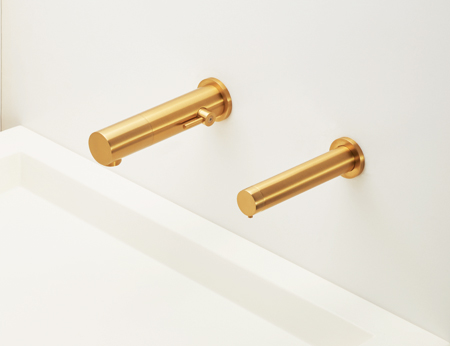

Electronic faucet RONDEO gold matt finish

OPTIONS:

Remote control RES-31
Version L long spout 220 mm.
Brushed finish, matt black, gold matt (minimum quantity)
Periodical rinse anti-legionella
Limited flow 1,3 LPM., 1,9 LPM. ou 3 LPM
Transformer IP68 (ref. RES-292)
Transformer 230/12V IP 68 to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Soap dispenser matching design
Wall support frame wash basin integrated faucet

Sensor: Self-adjusting infrared
Spout length: Standard 170 mm (long version 220 mm)
Power supply: 230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter in wall-mounted version
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Pressure: 0.5 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-24-25_Installation-guide (pdf)

RES-34-35_Installation-Guide (pdf)

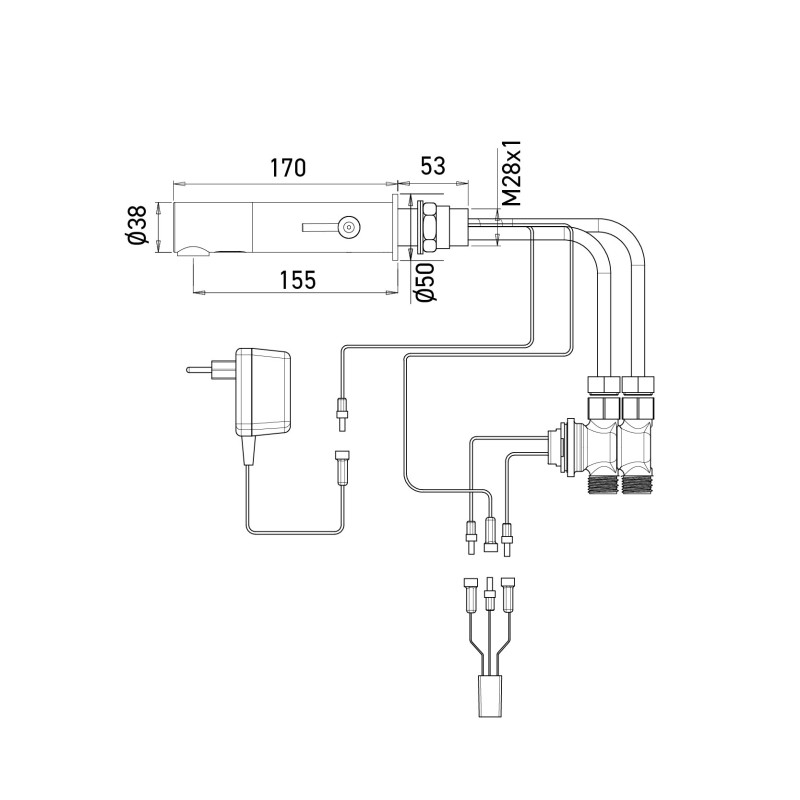

RES-25_Dim (pdf)

RES-35L_Dim (pdf)

RES-25-2D-ftl-view (dwg)

RES-25-3D (dwg)

RES-25-L-2D-ftl-view (dwg)

RES-24-25-34-35_Technical-sheet (pdf)
