Direct WC flush kit by sensor sensibility

touch free WC direct flush sensor...

Ref. : RES-121P2

€265.00 excl. VAT

Tax excluded

Choose a model

Option thick wall

Quantity

Ask a question

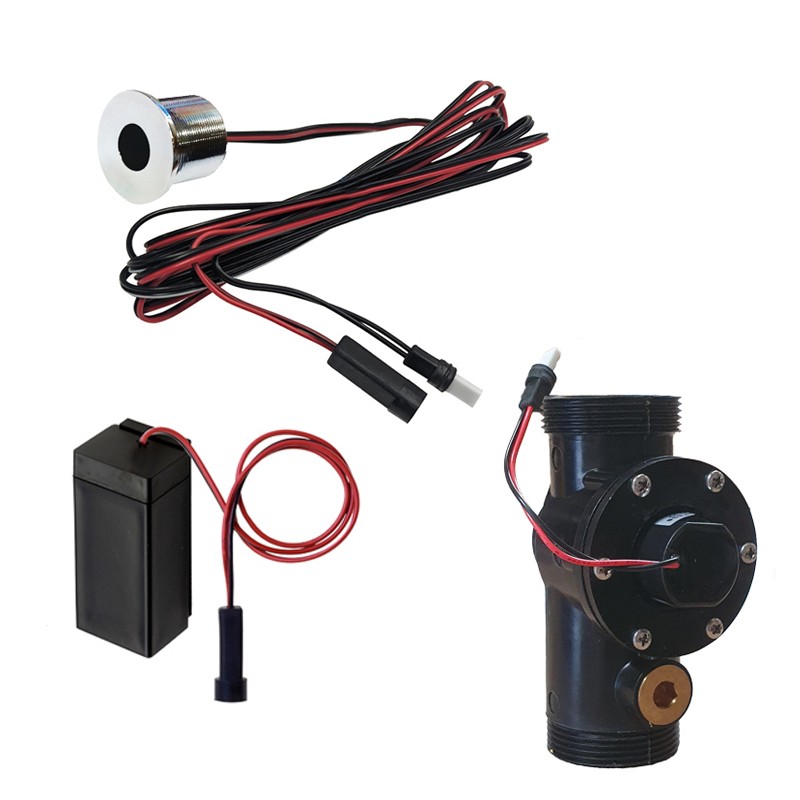

Wall mounted electronic WC flush trigger kit, for a direct flush

Flush is triggered once the user leaves, after the sensor detects users presence or voluntarily approaching hands near the sensor.

Vandal-proof

DOUBLE FLUSH VOLUME: the sensor determines if the direct flush needs to be compete or reduced depending on the distance and the presence period. = half-flush for less than one minute and complete flush for more that one minute.

OPTIONS:

Remote control RES-31
Anti-legionella hygienic flush 24 H.
Angled flush pipe ref. S07291037
Stopcock ref. S09010014-1
250 mm recessed threaded extension for thick walls ref. ...-TS

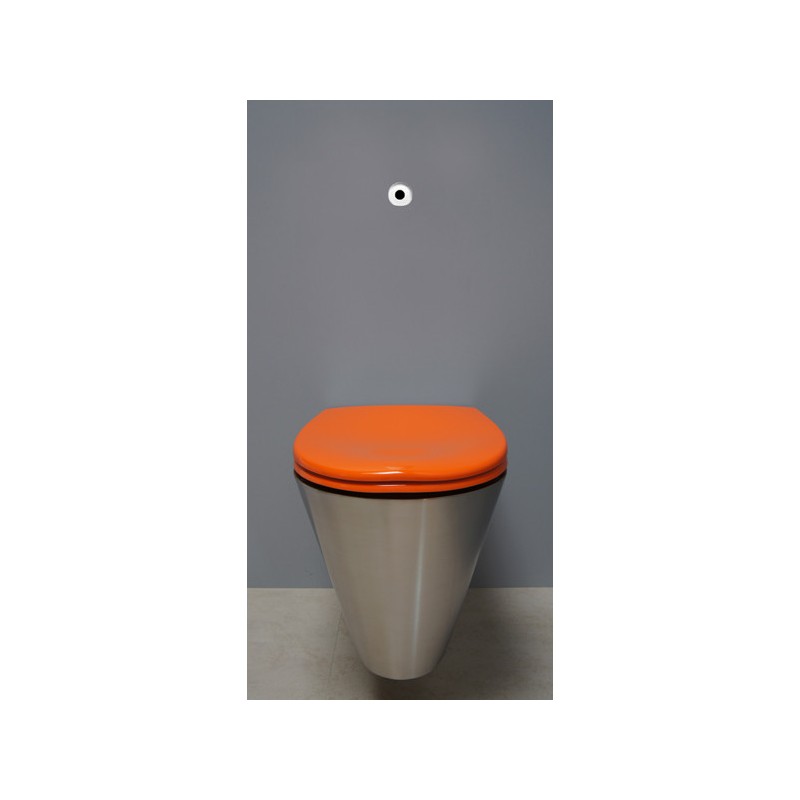

Removable detection from the front, recessed installation
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

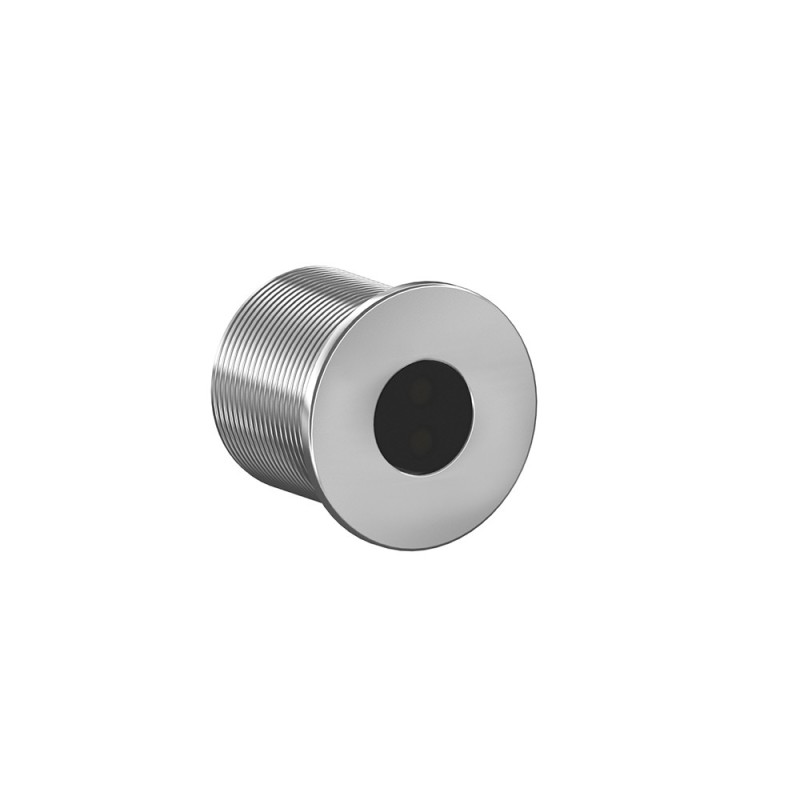

Sensor: Infrared with optimized presets
Sensor range: 700 mm (adjustable from 300 to 800 mm)
Electrical supply: 230/9V transformer or 9V alkaline battery
Solenoid valve: External M1 1/2''
Material: Chrome brass
Pressure: 0.3 - 8 bars
Flush time: 1 seconds. (adjustable)
Flush volume: Double flush 3-6 L (adjustable)
Operation settings: Adjustable by remote control RES-31 : Detection sensitivity, activation delay, delay after user leaves, flush scale, temporary off, interval rinse 24 H.
Warranty: 3 years. CE.
