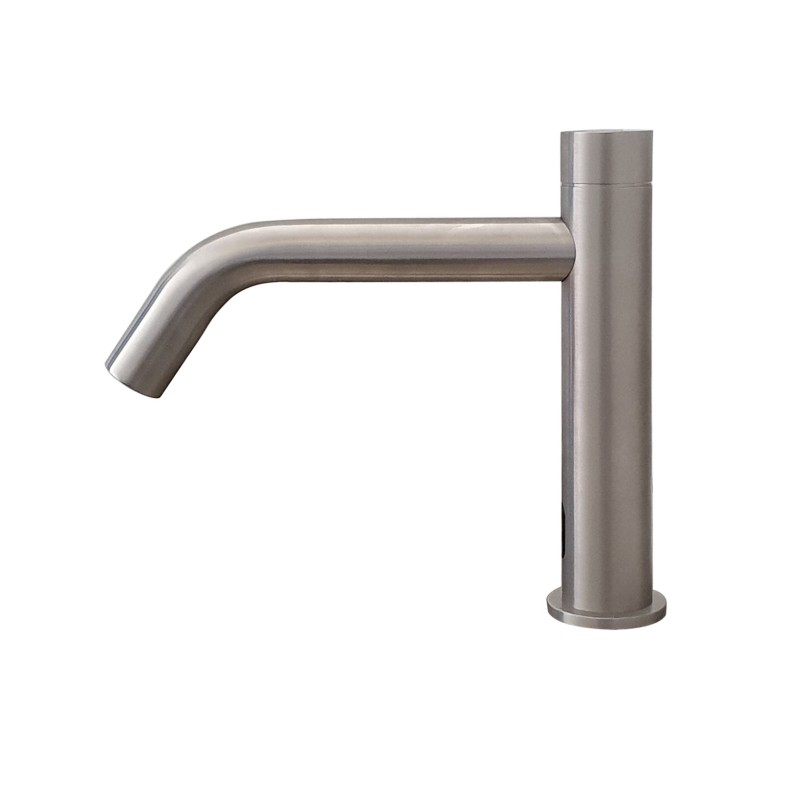

Electronic stainless steel long spout tap EXTREME L

Name: Electronic stainless steel long spout tap EXTREME L
SKU: RES-106-S1

slim design with extended spout

Réf. : RES-106-S1

€419.00 Tax Excl.

Choose a model

Poser une question

Electronic brushed 316 stainless steel tap EXTREME with infrared detection for cold or premixed water.

- Infrared detection with optimized presetting or adjustable by remote control (flow time, security time, detection range).
- 177 mm spout
- Double IP67 battery supply and transformer.
The mains version includes a backup battery for normal usage in the case of a power cut.
- Indication light when batteries need changing.

Robinet automatique inox design bec long EXTREME L

OPTIONS:

Remote control RES-31
Brushed, matt black (minimum quantity)
Limited flow rate 1,9 LPM or 3 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 taps (ref. RES-294)
Junction box 230/12V to supply up to 10 taps (ref. RES-295)

Sensor: Infrared with optimized presets
Power supply: 230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: AISI 316 brushed stainless steel finish
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-106-2d-tlf-view (dwg)

RES-106-3d (dwg)

RES-106 (ifc)

RES-106 (obj)

RES-106-107-S1_Technical-sheet (pdf)
