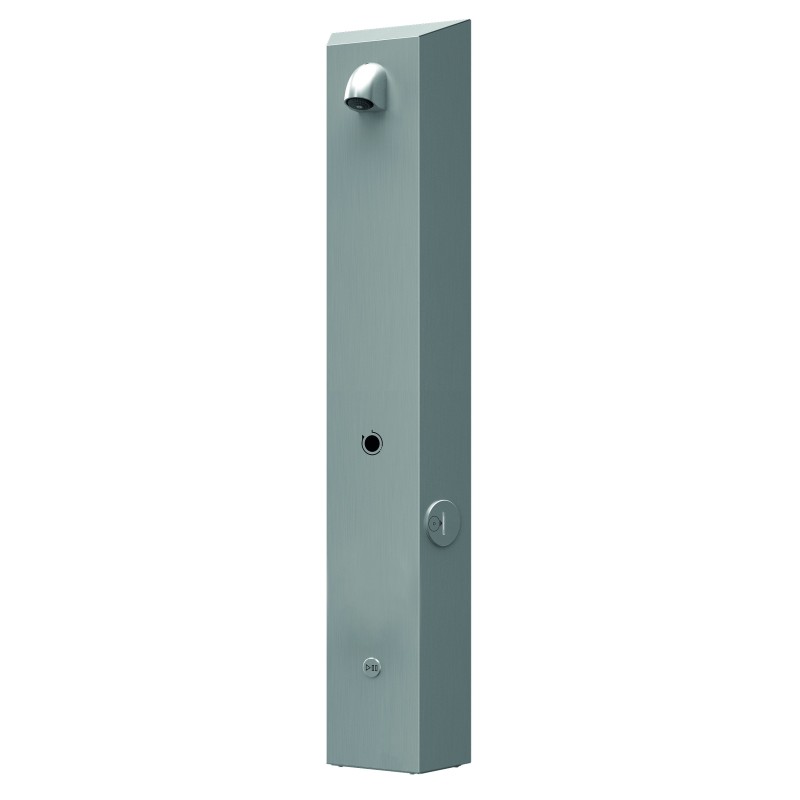

Stainless steel shower panel with built-in token timer
For cold or pre-mixed water
Wall-mounted stainless steel shower panel with token timer, for cold or pre-mixed water, 24 V
• Once an SA-52 token has been inserted in the panel, the shower starts as soon as the piezo touch button is pressed.
• Water flows when the button is pressed: the LED indicator starts with 10 red lights on, which then go out one by one as the shower time counts down.
• The user can start and stop the water from inside the shower.
• 30 s before the water supply ends, the user is warned by a brief interruption of the flow.
• Built-in token box with lock, emptied from below.
Optional rechargeable RFID credit tokens - Power supply
- 230/24V transformer
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
- Finish
- Brushed
- Water supply
- Single supply
- Water supply details
- For pre-mixed water
- Water inlet
- 1/2"
- Water inlet thread
- Male
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time

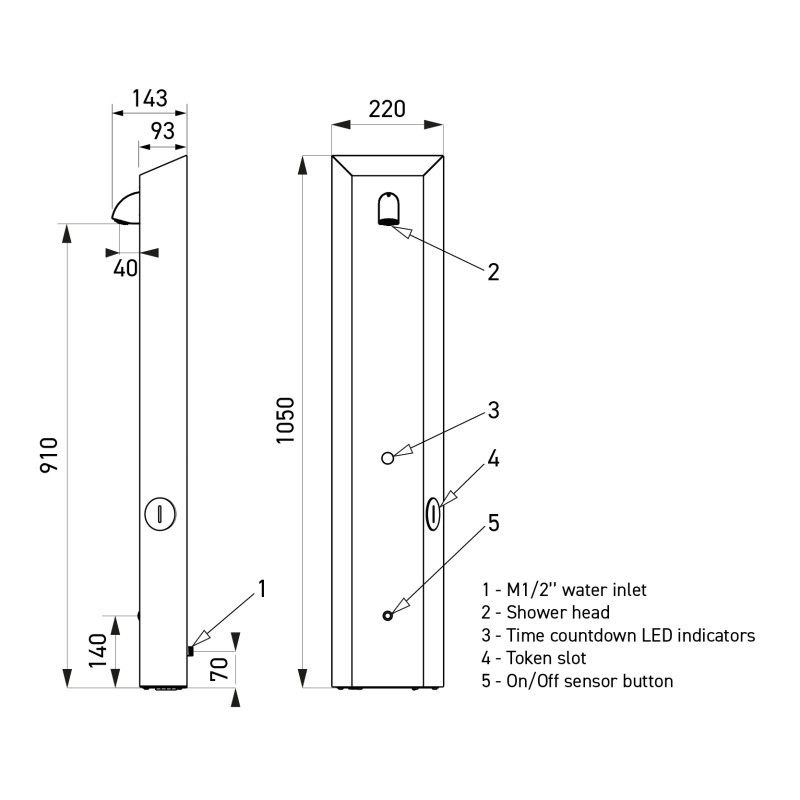

- Dimensions
- W220 x D93 (143 with shower head) x H1050 mm
- Warranty
- Electronics 5 years
Wall-mounted stainless steel shower panel with token timer, for cold or pre-mixed water, 24 V
• Once an SA-52 token has been inserted in the panel, the shower starts as soon as the piezo touch button is pressed.
• Water flows when the button is pressed: the LED indicator starts with 10 red lights on, which then go out one by one as the shower time counts down.
• The user can start and stop the water from inside the shower.
• 30 s before the water supply ends, the user is warned by a brief interruption of the flow.
• Built-in token box with lock, emptied from below.
Optional rechargeable RFID credit tokens - Power supply
- 230/24V transformer
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
- Finish
- Brushed
- Water supply
- Single supply
- Water supply details
- For pre-mixed water
- Water inlet
- 1/2"
- Water inlet thread
- Male
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time
- Dimensions
- W220 x D93 (143 with shower head) x H1050 mm
- Warranty
- Electronics 5 years
