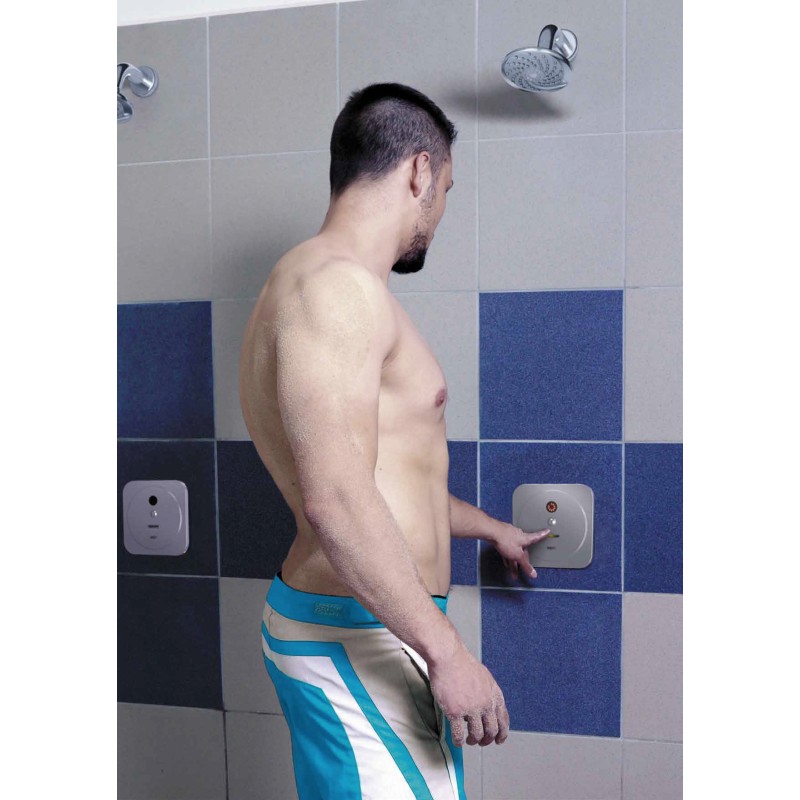

Recessed shower timer valve with rechargeable RFID token
Rechargeable shower credit for members, staff...
Technical sheet & documents
No technical sheet available for this reference. Request the sheet

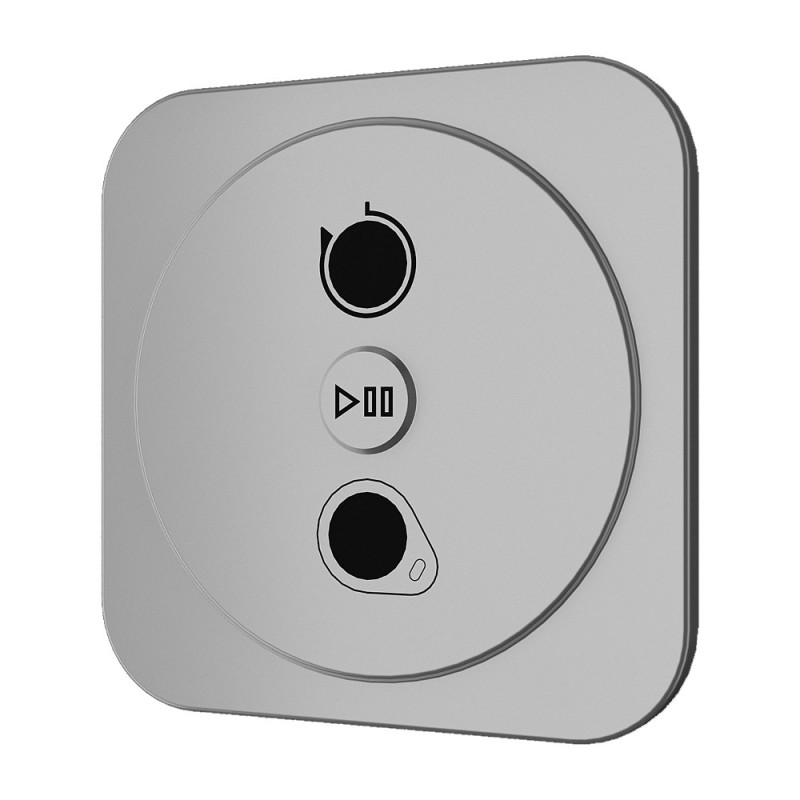

Recessed stainless steel shower control operated by RFID token, for cold or pre-mixed water
When a charged RFID token is held against the marked area on the stainless steel front plate, the red LED flashes.
When the button is pressed, water flows at once and the ten red LEDs light up, counting down the shower time on a graduated scale.
The user can start and stop the water from inside the shower until the credit on the RFID token runs out.
When 30% of the time remains before the water supply ends, the user is warned by a brief interruption of the flow.
Settings are adjusted with a settings token (token paired on the programming station).
Legionella prevention: periodic flush that can be enabled by remote control. Activation delay adjustable to 6, 8, 12, 24, 72 or 168 hours after the last use.
Flush cycle time adjustable from 5 seconds to 20 minutes.
CONFIGURATION AND OPTIONS: PLEASE CONTACT US
- Operation
- Piezo sensor, with a simple touch
- Power supply
- External 230/24V transformer
- Consumption
- 7 W
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 304 stainless steel
- Finish
- Brushed
- Water inlet
- 3/4"
- Water inlet thread
- Male
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Fixing
- Wall recessed
- Dimensions
- Recessed box 140 x 140 x 75 mm
Front 170 x 170 x 10 mm - Warranty
- Electronics 5 years
Recessed stainless steel shower control operated by RFID token, for cold or pre-mixed water
When a charged RFID token is held against the marked area on the stainless steel front plate, the red LED flashes.
When the button is pressed, water flows at once and the ten red LEDs light up, counting down the shower time on a graduated scale.
The user can start and stop the water from inside the shower until the credit on the RFID token runs out.
When 30% of the time remains before the water supply ends, the user is warned by a brief interruption of the flow.
Settings are adjusted with a settings token (token paired on the programming station).
Legionella prevention: periodic flush that can be enabled by remote control. Activation delay adjustable to 6, 8, 12, 24, 72 or 168 hours after the last use.
Flush cycle time adjustable from 5 seconds to 20 minutes.
CONFIGURATION AND OPTIONS: PLEASE CONTACT US
- Operation
- Piezo sensor, with a simple touch
- Power supply
- External 230/24V transformer
- Consumption
- 7 W
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 304 stainless steel
- Finish
- Brushed
- Water inlet
- 3/4"
- Water inlet thread
- Male
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Fixing
- Wall recessed
- Dimensions
- Recessed box 140 x 140 x 75 mm
Front 170 x 170 x 10 mm - Warranty
- Electronics 5 years
