Coin-operated door lock controller for tokens or euro coins
For controlling the door to a washroom, with token or paid access

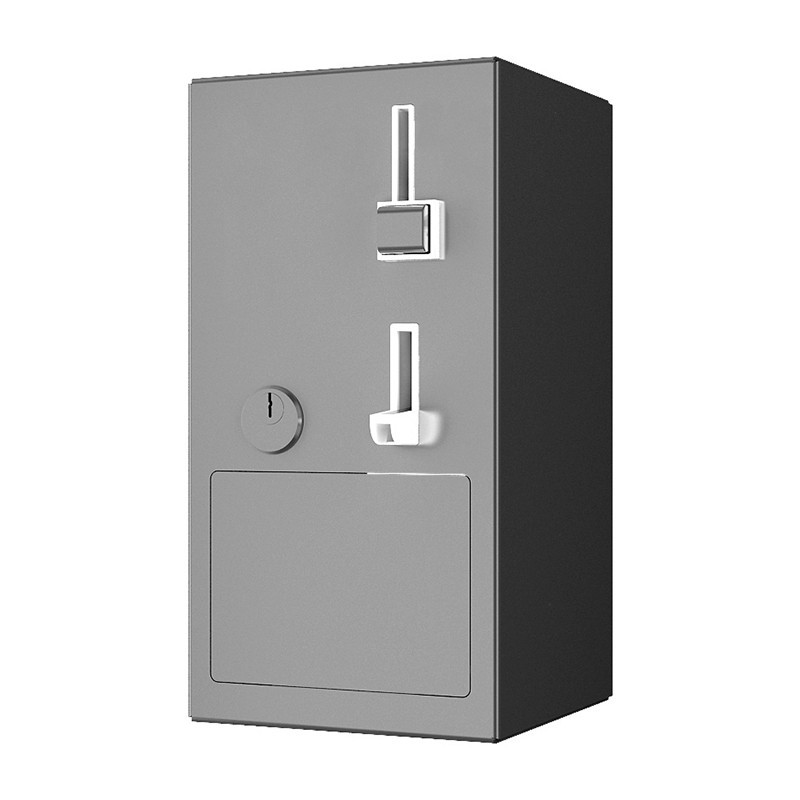

Stainless steel coin-operated door lock controller for €1 or €2 coins, or tokens (accepts all 3) for use with electromagnetic locks, for surface wall mounting.
• Vandal-resistant
• Once the minimum credit required (coin or token) has been inserted, the door lock opens for a set time
• The unit adds up coins but does not give change
• Opening time adjustable from 1 to 310 seconds, factory-set to 10 seconds
• Runs on 24 V (total consumption with a 24 V lock: 10 W)
• Settings adjusted on a screen inside the unit with the SLD 05 remote control (unlocking time of the door lock, unlocking value, choice of control mode with or without door contact)
• Key lock
• Indoor use, temperature from 5 to 40 °C
• AISI 304 stainless steel, brushed finish, 1.5 mm thick.
- Power supply
- 230/24V transformer
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD05 remote control: door lock unlocking interval, unlocking value, choice of control mode with or without door contact
- Weight
- 2.9 kg
- Dimensions
- W120 x D135 x H230 mm
- Warranty
- Electronics 5 years
Stainless steel coin-operated door lock controller for €1 or €2 coins, or tokens (accepts all 3) for use with electromagnetic locks, for surface wall mounting.
• Vandal-resistant
• Once the minimum credit required (coin or token) has been inserted, the door lock opens for a set time
• The unit adds up coins but does not give change
• Opening time adjustable from 1 to 310 seconds, factory-set to 10 seconds
• Runs on 24 V (total consumption with a 24 V lock: 10 W)
• Settings adjusted on a screen inside the unit with the SLD 05 remote control (unlocking time of the door lock, unlocking value, choice of control mode with or without door contact)
• Key lock
• Indoor use, temperature from 5 to 40 °C
• AISI 304 stainless steel, brushed finish, 1.5 mm thick.
- Power supply
- 230/24V transformer
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD05 remote control: door lock unlocking interval, unlocking value, choice of control mode with or without door contact
- Weight
- 2.9 kg
- Dimensions
- W120 x D135 x H230 mm
- Warranty
- Electronics 5 years
