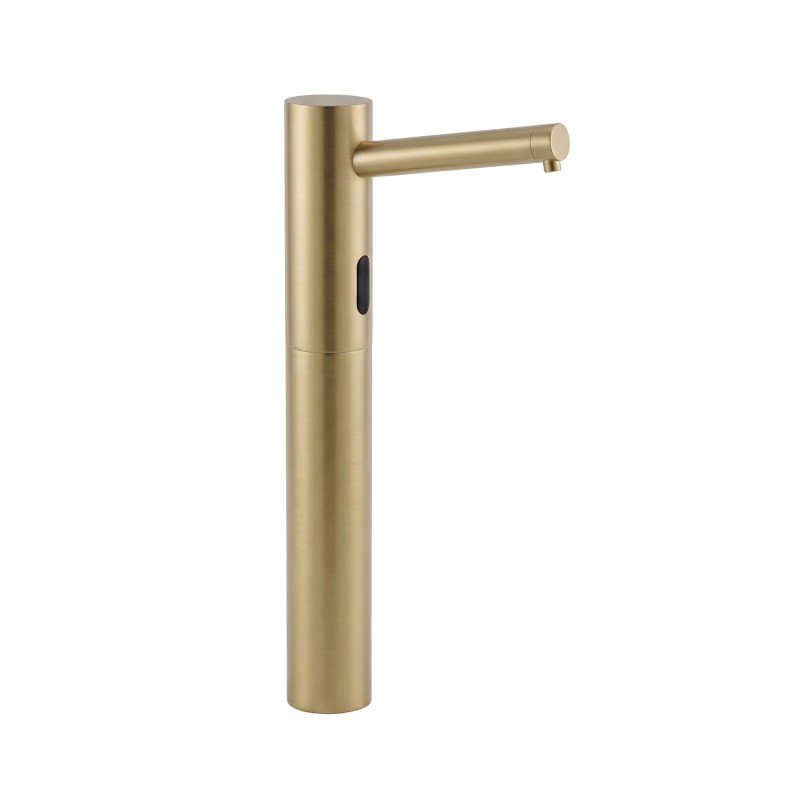

Automatic soap dispenser tall version for countertop basin, brushed gold PVD finish

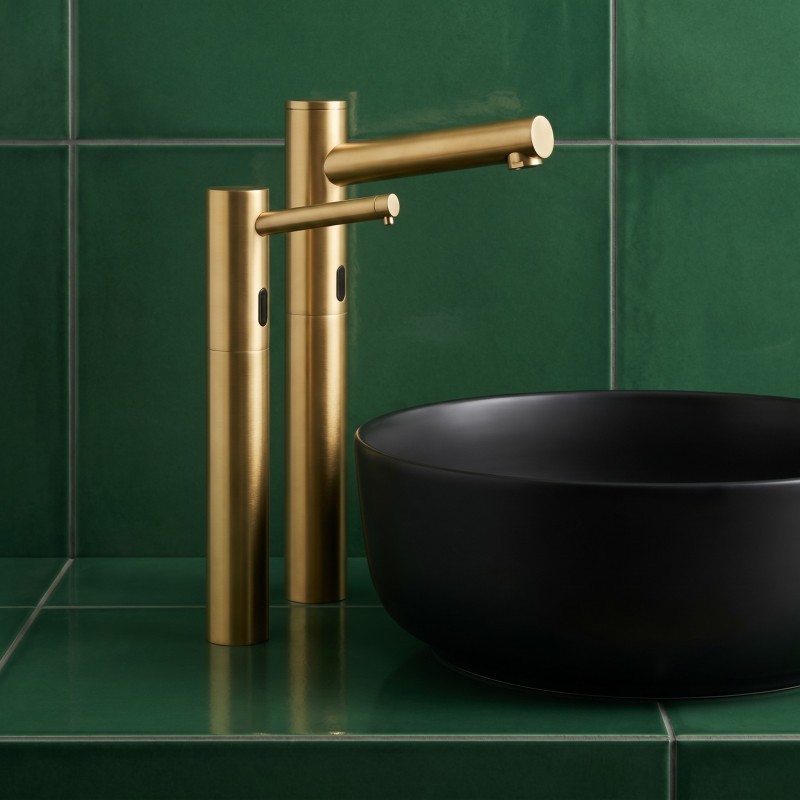

ELITE contactless water and soap faucetry with matte gold PVD finish, high spouts for countertop basins

Dimensions of ELITE high-spout hands-free soap dispenser, mains-powered

Tall automatic ELITE soap dispenser

extra tall automatic soap dispenser for countertop basins

Reference RES-72-R-AB

Unit price

€440.00 Tax Excl.

→ See Stainless Steel AISI 316 finish

Finish

Chrome
Matt black
Matte Gold PVD
Copper PVD

Power supply

Mains
Battery

Ask a question

High-rise automatic ELITE soap dispenser with infrared detection for vanity bowls and/or countertop washbasins

Thanks to its automatic drip-proof dosing system, our touch-free soap dispenser ensures impeccable quality and hygiene of sanitary facilities.
Easy to refill, it provides an economical solution to ensuring clean and aesthetically pleasing faucets.
The vandal-proof brass construction allows for safe installation in high-risk areas.

Advantages
• Infrared self-adjusting sensor to create a germ-free and automated environment
• Precise soap dosing
• Adjustable soap dosage through remote control (optional)
• Brass body with a 1L refillable plastic bottle
• Operates via peristaltic pump for liquid and foam soap or antibacterial gel (viscosity 100 - 3000 cPs)
• Easy to use refill button
• Cost-effective solution

OPTIONS:

RES-38 remote control
93, 100 or 230 mm height raise.
6L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
5L non-proprietary soap tank adapter cap kit to supply from 1 to 3 soap dispensers (ref. RES-797)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
230/12V junction box to supply from 1 to 10 dispensers (ref. RES-296)
Matching electronic faucet

Sensor: Self-adjusting infrared
Power supply: 230/12V transformer
Battery (6xLR20 not supplied)
Capacity: 1 L tank (6 L option)
Soap: Liquid soap (viscosity 100 -3800 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump
Material: Brass
Operation settings: Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty: 2 years

RES-72-R_Technical-sheet.pdf Soap_Installation-guide.pdf RES-72-R-2D-flt-view.dwg RES-72-R-3D.dwg RES-72-R.ifc RES-72-R.obj
