Non-proprietary soap tank adapter cap kit
Flexible cap kit to increase soap capacity or to use captive tanks
RES-797
€24.00 Net Price
Tax excluded
Flexible cap kit to supply the soap dispenser directly from the soap tank of your choice, e.g. a 5 litre captive soap tank, requiring no refill and with a larger capacity.
Also allows the use of captive soap tanks, should there be a commitment to the soap supplier, to take advantage of the simplicity, convenience and durability of SUPRATECH touch-free soap dispensers.
Find the suitable size according to the soap tank (of the right viscosity) and place the elastic cap on the bottleneck.
Insert the rigid pipe into the central hole of the soap tank's cap and, using the quick connector, connect it to the soap tube that supplie the soap dispenser pump.

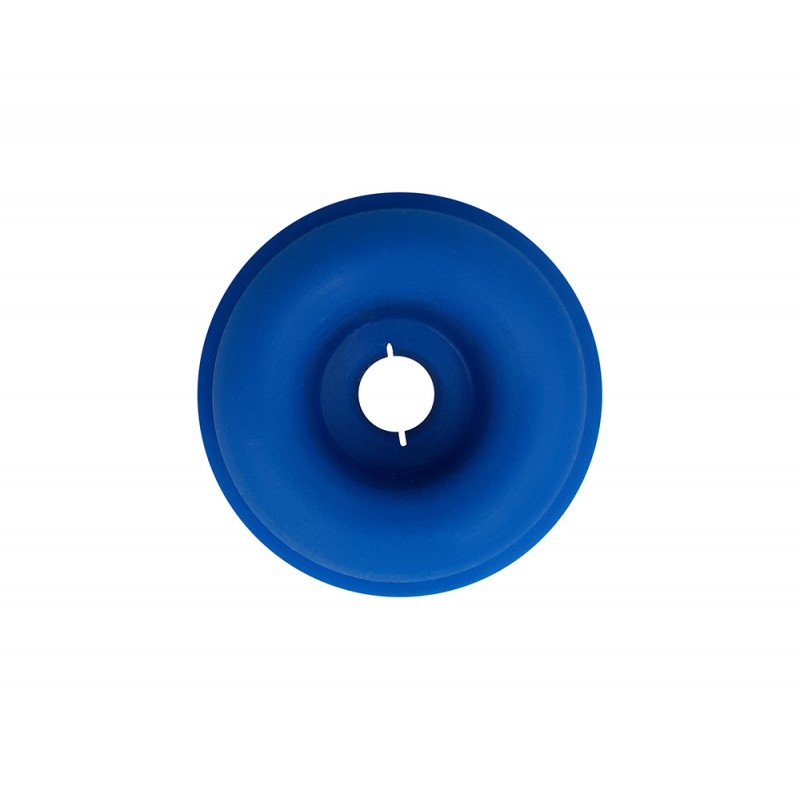

- Small ø 30-38 mm flexible cap or large ø 45-59 mm.
- Rigid pipe with slanted end for suction at the bottom of the tank.
- Quick connector (simply push the pipe in, and press the blue ring to remove it).
- Pipe cutter to cut the soap tube to the minimum length.

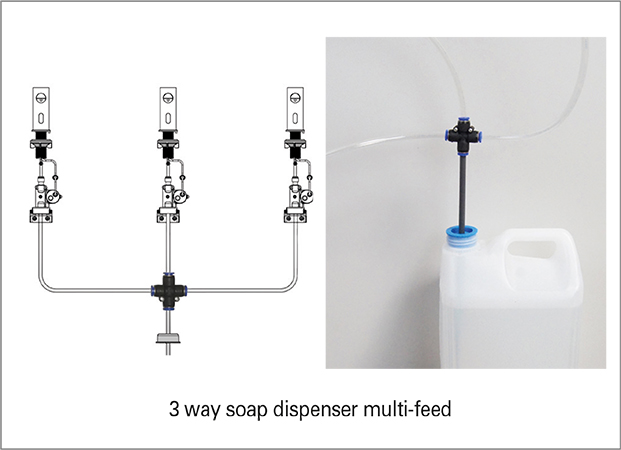

Multi-quick connector allows 2 or 3 dispensers to be supplied from the same tank (maximum distance 3 m for transformer operated dispensers) = simplified service.
- Material
- Flexible rubber
- Dimensions
- ø 30-38 mm
ø 45-59 mm
