Surface-mounted stainless steel hand towel dispenser and large capacity waste bin unit
Dimensional drawing of the dispenser and waste bin combo with accessible fitting heights

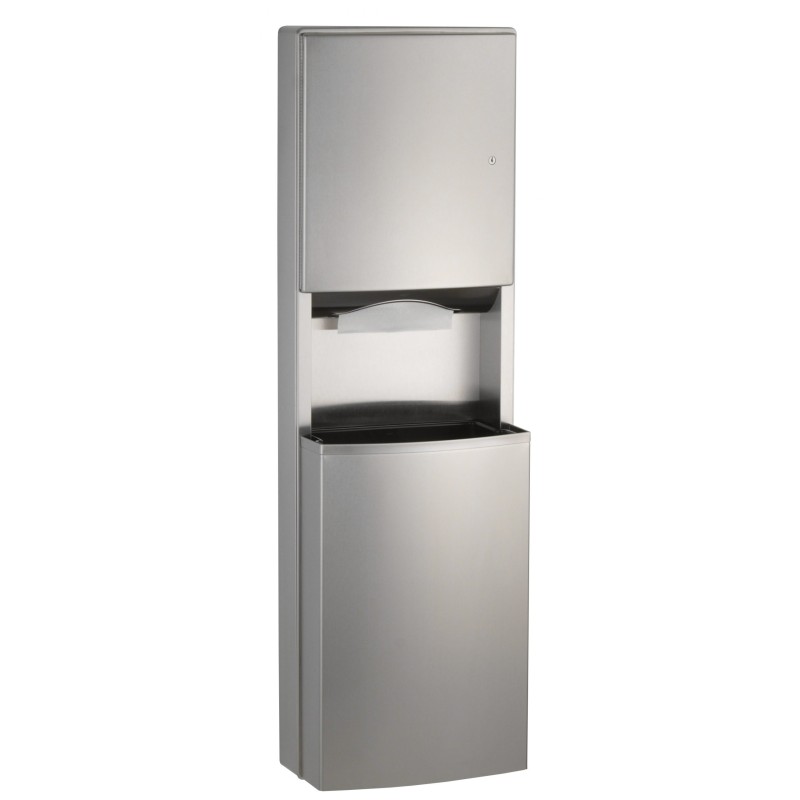

NOVA stainless steel wall-mounted combination paper dispenser and 57L waste bin

design and large-capacity

Reference BO-43949
Unit price
€1,690.50 Tax Excl.

The NOVA large-capacity stainless steel wall-mounted combination of hand towel dispenser and waste bin optimises hygiene and waste management and simplifies the layout of washroom areas.

Premium design with a curved stainless steel façade and flush lock.
High durability for high-traffic areas.
The dispenser features a rounded and hemmed opening to dispense paper towels without tearing them.

Included DISTRITOP accessory: continuous single-sheet dispensing, reducing paper consumption by at least 20% while preventing jams and the dispensing of multiple sheets at once. A guide with a return prevents the paper towels from falling when the door is opened.
Distritop distributeur feuille à feuille

Integrated bin for discreet and efficient waste management, contributing to a clean and orderly environment.
Removable front with a hemmed top edge for safe handling.

Included RAPIDCOLLECT bag support: enhances the appearance of restrooms by eliminating overflowing bags from waste bins. Allows for quick and easy bag changes.

RAPIDCOLLECT pour faciliter l'installation et le retrait des sacs poubelles

AISI 304 stainless steel brushed finish, 0.8 mm thickness.
Rounded edge frame, pressed from a single piece, with no visible joints.
Door pressed from a single piece, secured by a full-height stainless steel piano hinge, equipped with a flush key lock.
Fully welded flush-mounting box.

Capacity:
- 600 to 800 paper towels, depending on format
- 57 L waste bin

Dimensions: W445 x D225 x H1430 mm (including 100 mm recess)
Wall recess: W405 x D102 x H1390 mm
CE. 2 year warranty.

Paper format
Folded sheets
Capacity details
600 to 800 paper towels
57 L waste receptacle
Material
AISI 304 stainless steel
Detailed composition
1.2 mm front panel, one piece stamped in a curve shape
Stainless steel thickness
1.2 mm
Finish
Brushed
Fixing
Wall mounted
Rough wall opening
W405 x D102 x H1390 mm
Dimensions
W445 x D225 x H1430 mm
Warranty
2 years
Certification
CE
Bin capacity
More than 50 L
Sheet capacity
More than 500 sheets

The NOVA large-capacity stainless steel wall-mounted combination of hand towel dispenser and waste bin optimises hygiene and waste management and simplifies the layout of washroom areas.

Premium design with a curved stainless steel façade and flush lock.
High durability for high-traffic areas.
The dispenser features a rounded and hemmed opening to dispense paper towels without tearing them.

Included DISTRITOP accessory: continuous single-sheet dispensing, reducing paper consumption by at least 20% while preventing jams and the dispensing of multiple sheets at once. A guide with a return prevents the paper towels from falling when the door is opened.
Distritop distributeur feuille à feuille

Integrated bin for discreet and efficient waste management, contributing to a clean and orderly environment.
Removable front with a hemmed top edge for safe handling.

Included RAPIDCOLLECT bag support: enhances the appearance of restrooms by eliminating overflowing bags from waste bins. Allows for quick and easy bag changes.

RAPIDCOLLECT pour faciliter l'installation et le retrait des sacs poubelles

AISI 304 stainless steel brushed finish, 0.8 mm thickness.
Rounded edge frame, pressed from a single piece, with no visible joints.
Door pressed from a single piece, secured by a full-height stainless steel piano hinge, equipped with a flush key lock.
Fully welded flush-mounting box.

Capacity:
- 600 to 800 paper towels, depending on format
- 57 L waste bin

Dimensions: W445 x D225 x H1430 mm (including 100 mm recess)
Wall recess: W405 x D102 x H1390 mm
CE. 2 year warranty.

Paper format
Folded sheets
Capacity details
600 to 800 paper towels
57 L waste receptacle
Material
AISI 304 stainless steel
Detailed composition
1.2 mm front panel, one piece stamped in a curve shape
Stainless steel thickness
1.2 mm
Finish
Brushed
Fixing
Wall mounted
Rough wall opening
W405 x D102 x H1390 mm
Dimensions
W445 x D225 x H1430 mm
Warranty
2 years
Certification
CE
Bin capacity
More than 50 L
Sheet capacity
More than 500 sheets
