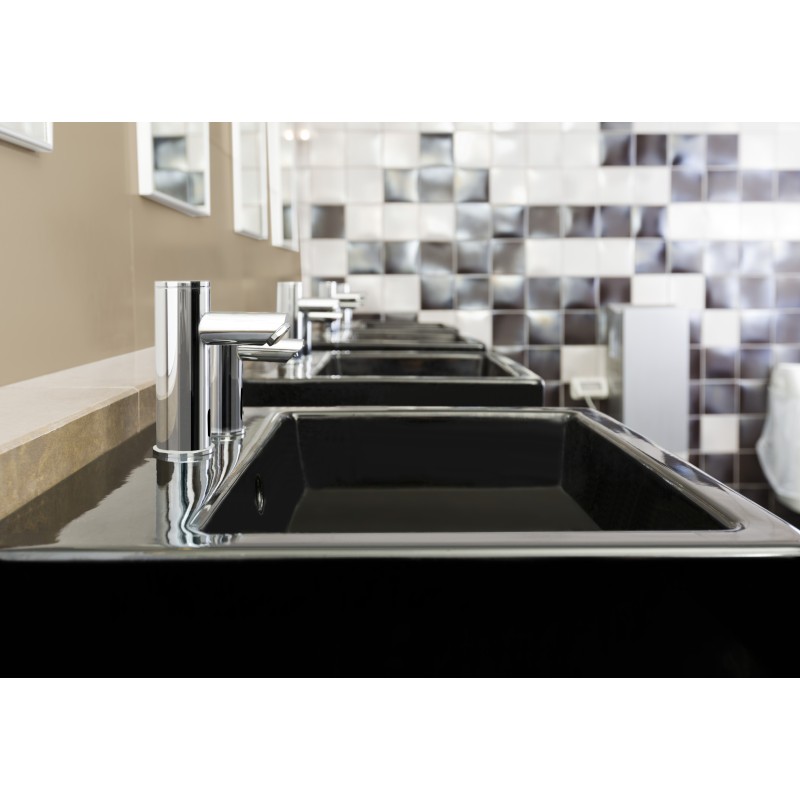

SMART automatic infrared mixer
Touchfree SMART tap, matching set for soap, water and air

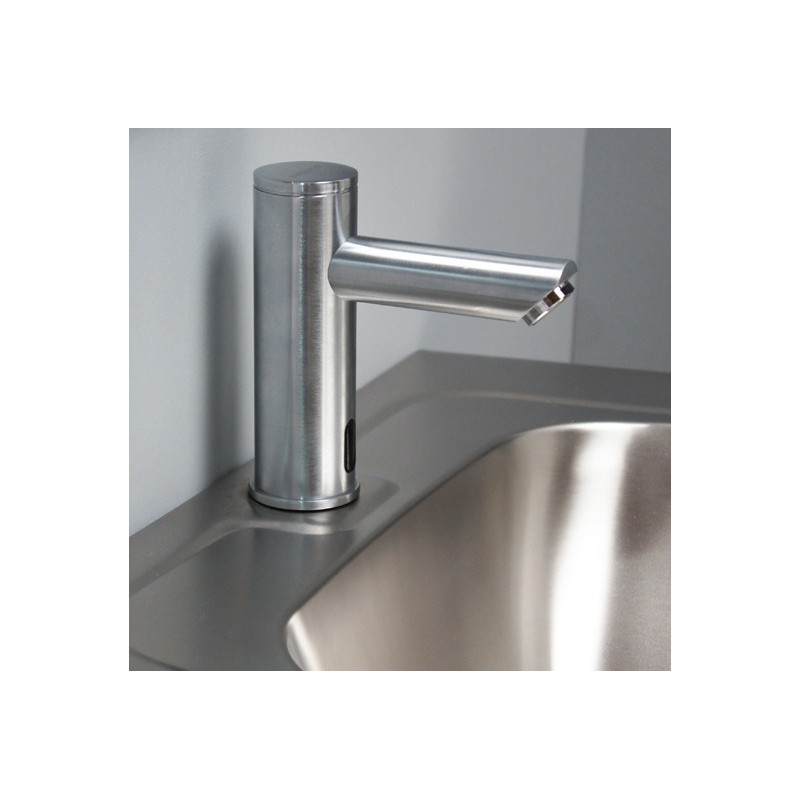

Faucet SMART with infrared detection, brushed finish, extended spout

Electronic faucet SMART

optimal hygiene and grand comfort...

RES-15
€327.00 Tax Excl.

Choose a model

Option long spout

Electronic SMART automatic tap

Fully brassed robust manufacturing to install in exposed locations.
Minimalist design bringing an refined style to your sanitary spaces.
Specially designed for an easy installation and maintenance.
Battery box access from under the washbasin.

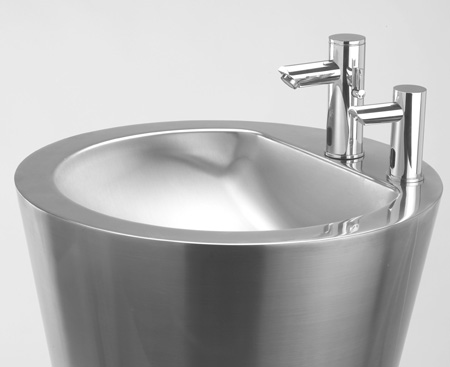

         automatic faucet SMART water soap     Soap dispenser matching design

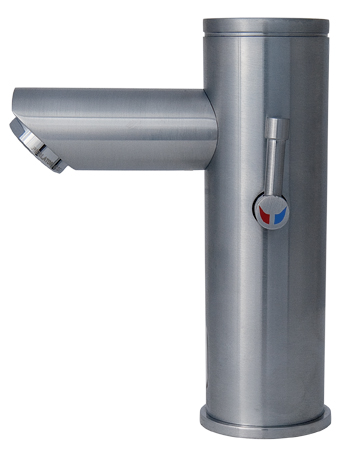

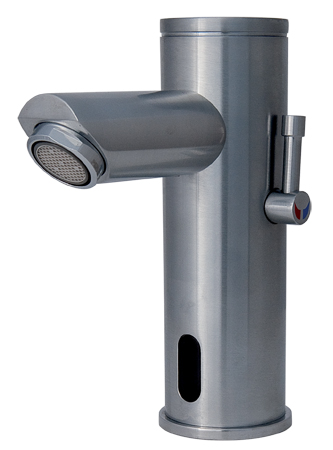

electonic faucet SMART brushed       automatic faucet SMART brushed finish

Brushed finish option

OPTIONS:

Sensor
Infrared with optimized presets
Power supply
230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
Embedded
Material
Chrome-plated brass
Water supply
For cold or pre-mixed water / Cold and hot water
Water inlet
HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure
0.5 - 8 bars
Max. eligible temperature
70°C
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years. CE. ACS.

picture_as_pdf RES-14L_Dim (pdf)

picture_as_pdf RES-14_Dim (pdf)

picture_as_pdf RES-17_Dim (pdf)

3d_rotation RES-16 (ifc)

3d_rotation RES-16 (obj)

3d_rotation RES-16_2D (dwg)

Electronic SMART automatic tap

Fully brassed robust manufacturing to install in exposed locations.
Minimalist design bringing an refined style to your sanitary spaces.
Specially designed for an easy installation and maintenance.
Battery box access from under the washbasin.



         automatic faucet SMART water soap     Soap dispenser matching design

electonic faucet SMART brushed       automatic faucet SMART brushed finish

Brushed finish option

OPTIONS:

Sensor
Infrared with optimized presets
Power supply
230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
Embedded
Material
Chrome-plated brass
Water supply
For cold or pre-mixed water / Cold and hot water
Water inlet
HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure
0.5 - 8 bars
Max. eligible temperature
70°C
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years. CE. ACS.

picture_as_pdf RES-14L_Dim (pdf)

picture_as_pdf RES-14_Dim (pdf)

picture_as_pdf RES-17_Dim (pdf)

3d_rotation RES-16 (ifc)

3d_rotation RES-16 (obj)

3d_rotation RES-16_2D (dwg)
