Electronic tap ELITE
hygienic hands and to save on water. The faucet isn't touched, it stays clean.
Available in finish Chrome, Matt black, Matte Gold PVD and Copper PVD.

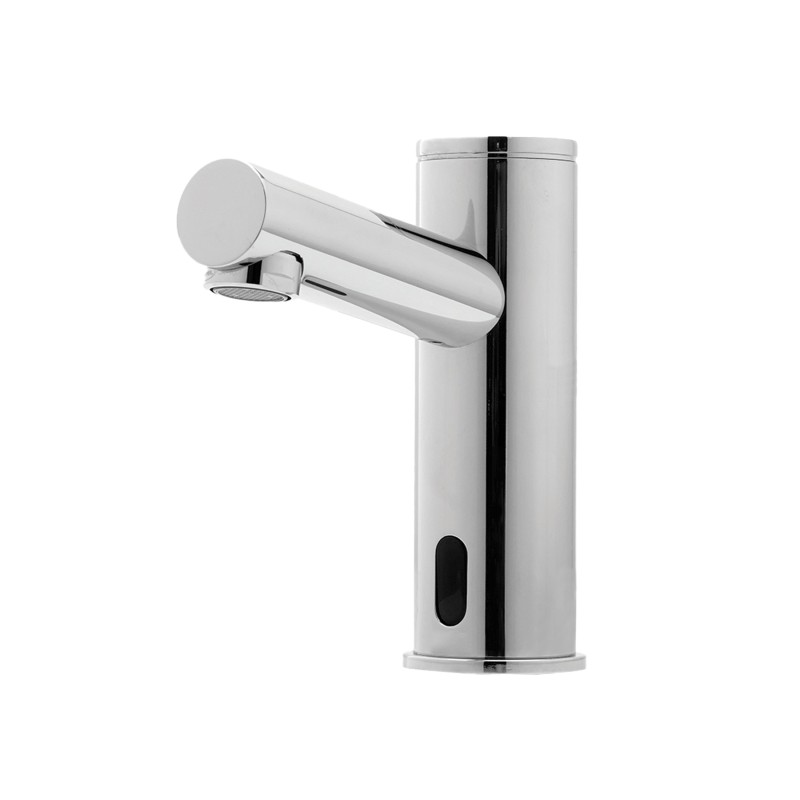

Electronic ELITE automatic deck mounted tap
Specially designed for an installation on exposed locations.
Minimalist design bringing an refined style to your sanitary spaces.
Specially designed for an easy installation and maintenance, with all the components integrated in the faucet body.
Battery box accessible under the washbasin
Long spout option
- Sensor
- Infrared
- Detection adjustment
- Factory preset
- Spout length
- 88 mm
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Safety shut-off
- Shut-off after 90 seconds of uninterrupted use (adjustable)
- Solenoid valve
- Embedded
- Material
- Brass
- Water supply
- Single supply
- Water inlet
- 1/2"
- Pressure
- 0.3 - 8 bars
- Max. eligible temperature
- 70°C
- Flow rate
- NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
- Fixing
- Deck mounted
- Mounting details
- Vanity top, recessed washbasin
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Warranty
- 3 years
- Certification
- CE
ACS - Connection gender
- Female
- Water inlet details
- HOSE flexibles with embedded check valves F1/2''. Filters included.
- Water supply details
- Single supply: cold water or pre-mixed water (mixed upstream)
RES-75-77_Technical-sheet.pdf
RES-75_Dimensions.pdf
RES-77_Dimensions.pdf
2D_RES-75_bec-long.dwg
2D_RES-75_mitigeur.dwg
2D_RES-75_rehausseur.dwg
3D_RES-75_bec-long.dwg
3D_RES-75_mitigeur.dwg
3D_RES-75_rehausseur.dwg
RES-75-2D-ftl-view.dwg
RES-75-3D.dwg
RES-75-L-R-2D-ftl-view.dwg
RES-75-L-R-3D.dwg
RES-75-L-R.ifc
RES-75-L-R.obj
RES-75.ifc
RES-75.obj
RES-75_rehausseur.ifc
RES-75_rehausseur.obj
Electronic ELITE automatic deck mounted tap
Specially designed for an installation on exposed locations.
Minimalist design bringing an refined style to your sanitary spaces.
Specially designed for an easy installation and maintenance, with all the components integrated in the faucet body.
Battery box accessible under the washbasin
Long spout option
- Sensor
- Infrared
- Detection adjustment
- Factory preset
- Spout length
- 88 mm
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Safety shut-off
- Shut-off after 90 seconds of uninterrupted use (adjustable)
- Solenoid valve
- Embedded
- Material
- Brass
- Water supply
- Single supply
- Water inlet
- 1/2"
- Pressure
- 0.3 - 8 bars
- Max. eligible temperature
- 70°C
- Flow rate
- NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
- Fixing
- Deck mounted
- Mounting details
- Vanity top, recessed washbasin
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Warranty
- 3 years
- Certification
- CE
ACS - Connection gender
- Female
- Water inlet details
- HOSE flexibles with embedded check valves F1/2''. Filters included.
- Water supply details
- Single supply: cold water or pre-mixed water (mixed upstream)
RES-75-77_Technical-sheet.pdf
RES-75_Dimensions.pdf
RES-77_Dimensions.pdf
2D_RES-75_bec-long.dwg
2D_RES-75_mitigeur.dwg
2D_RES-75_rehausseur.dwg
3D_RES-75_bec-long.dwg
3D_RES-75_mitigeur.dwg
3D_RES-75_rehausseur.dwg
RES-75-2D-ftl-view.dwg
RES-75-3D.dwg
RES-75-L-R-2D-ftl-view.dwg
RES-75-L-R-3D.dwg
RES-75-L-R.ifc
RES-75-L-R.obj
RES-75.ifc
RES-75.obj
RES-75_rehausseur.ifc
RES-75_rehausseur.obj
