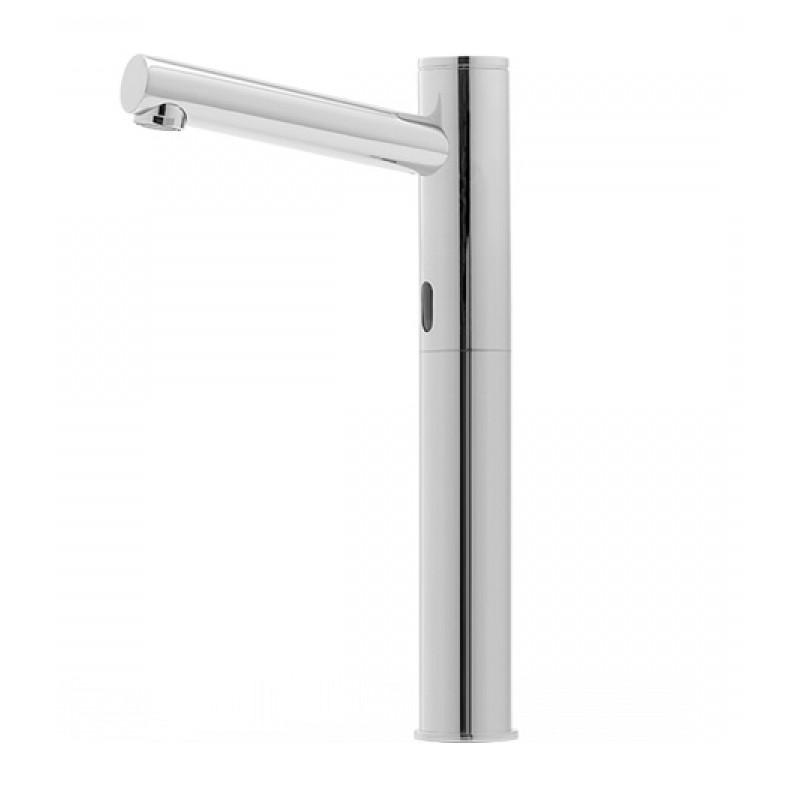

ELITE tall electronic faucet

Name: ELITE tall electronic faucet
SKU: RES-75-R

deck mounted high tap for vanity bowl or washbasin

Réf. : RES-75L-R

€465.00 Tax Excl.

Choose a model

Option long spout

Poser une question

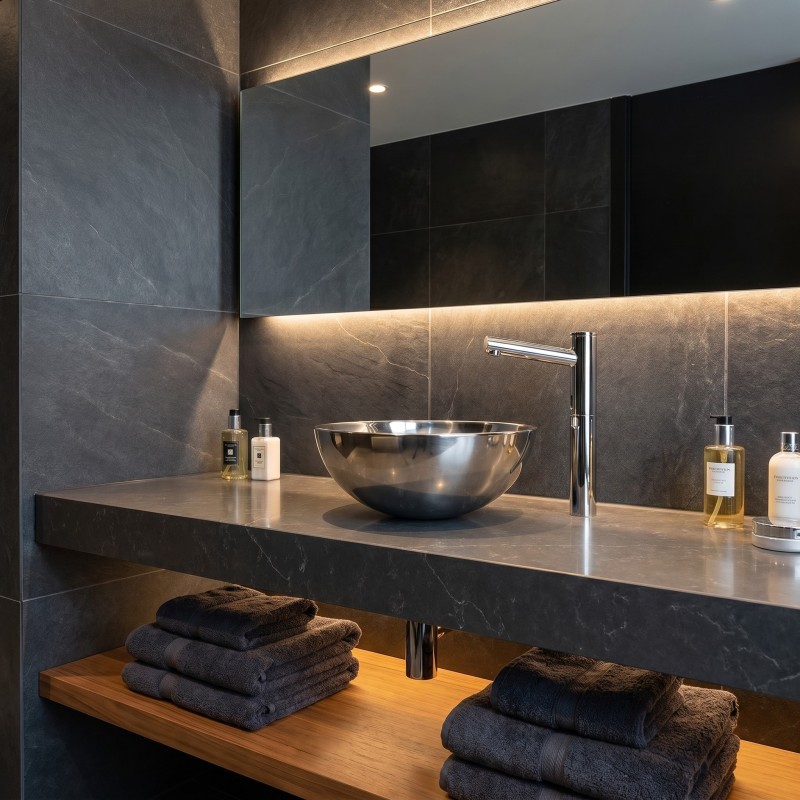

ELITE electronic tall tap, for vanity bowl, countertop washbasin or vessel sink
Its elegant design brings a modern and refined look to your sanitary spaces.
The faucet is designed for an easy installation and maintenance, with all its components integrated into the body.
Easy battery access under the washbasin.

automatic-faucet-tall-version-ELITE-water-and-soap

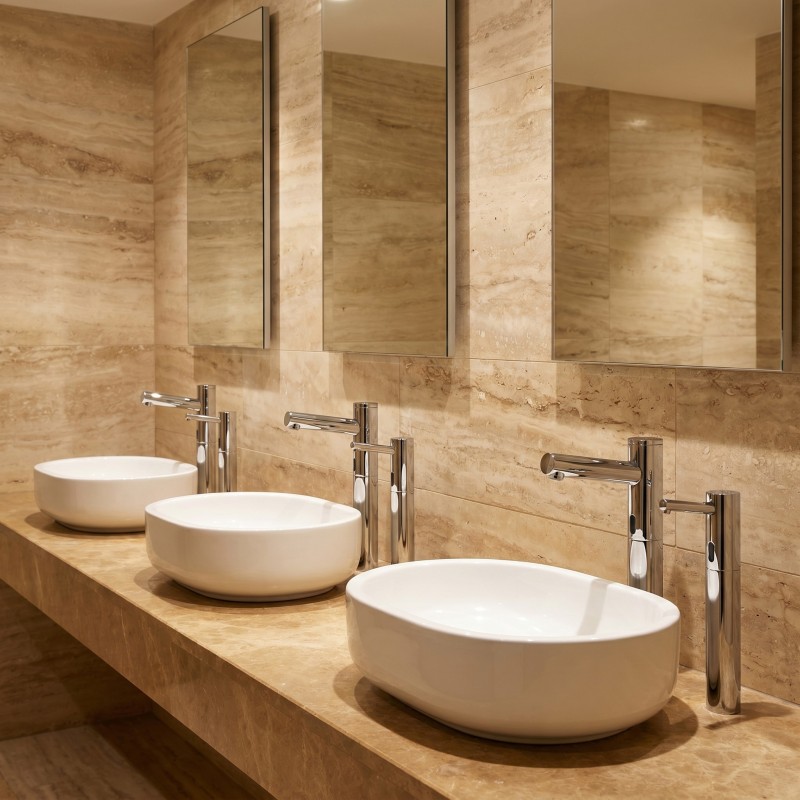

Water faucet and soap dispenser combination

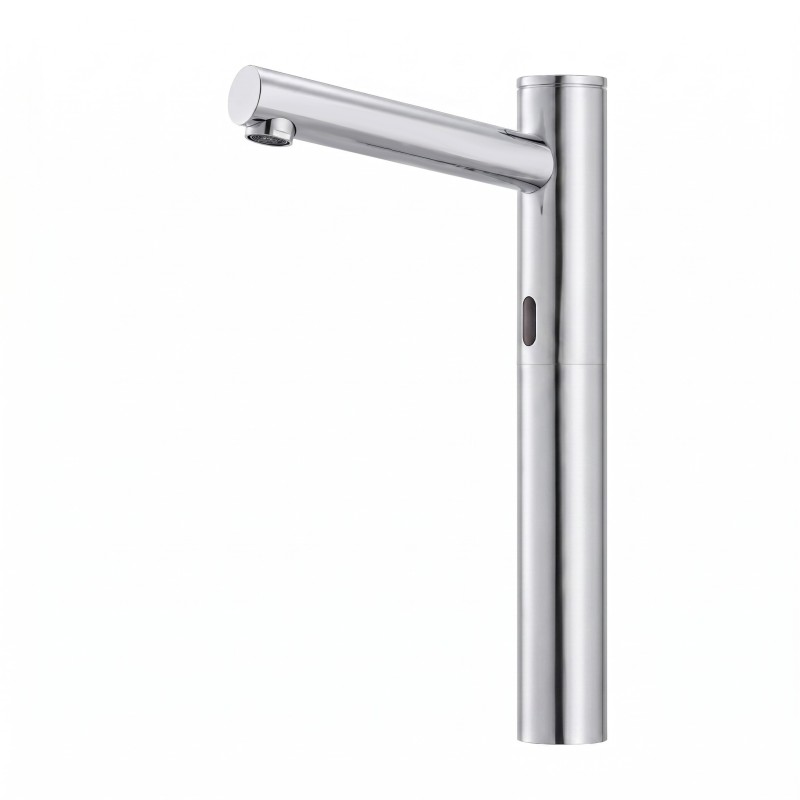

ELITE tall version brushed finish and long spout

Electronic mixing tap ELITE tall version Automatic faucet long spout ELITE

OPTIONS

45, 110, 163 or 230 mm raise according to washbasin height
Extended L spout version of 138 mm (Ref. RES-75L-R)
RES-31 remote control
Matte black, matte gold, or brushed finish (minimum quantity)
Limited 1,3 LPM, 1,9 LPM or 3 LPM flow rate.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
230/12V junction box to supply from 1 to 10 faucets (ref. RES-295)
Matching soap dispenser
Longer lever for People with Reduced Mobility (Ref. ...-MH)

Sensor: Infrared with optimized presets
Power supply: 230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Chrome-plated brass
Water supply: For cold or pre-mixed water / Cold and hot water
Water inlet: HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

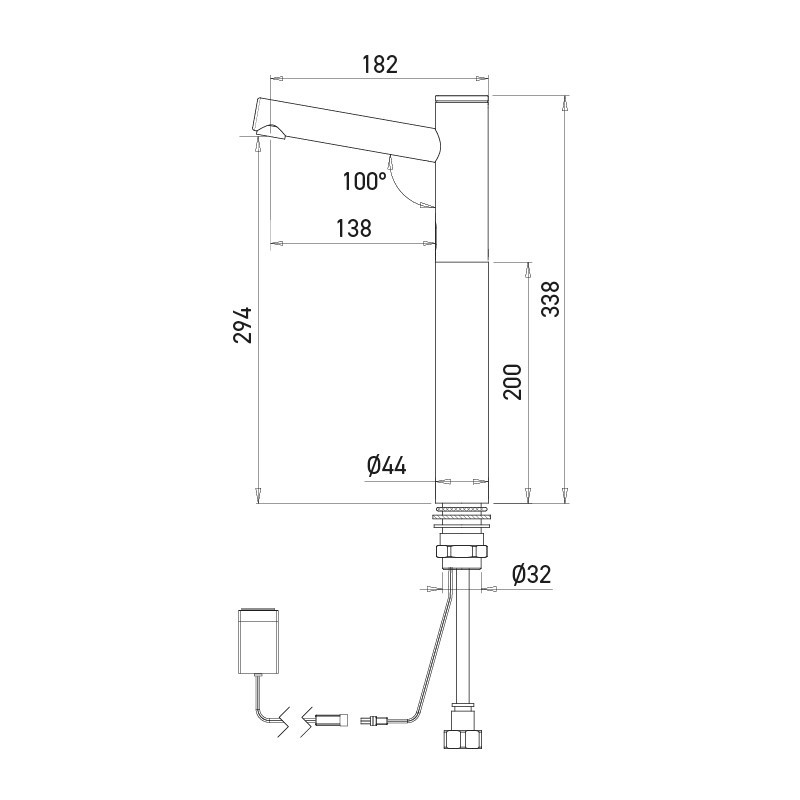

RES-75-R_Dimensions (pdf)

RES-76L-R_Dimensions (pdf)

RES-75-R (ifc)

RES-75-R (obj)

RES-75L-R-2D-ftl-view (dwg)

RES-75L-R-3D (dwg)

RES-75L-R (ifc)

RES-75L-R (obj)

RES-74-77-R_Technical-sheet (pdf)
