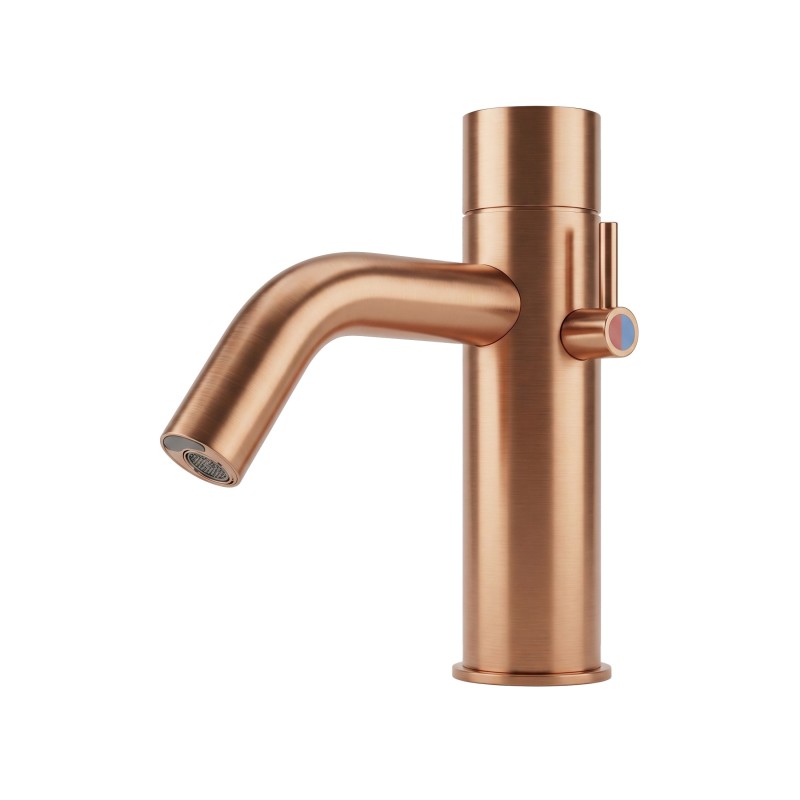

EXTREME DS designer faucet with copper PVD finish and infrared sensor discreetly integrated into the spout tip

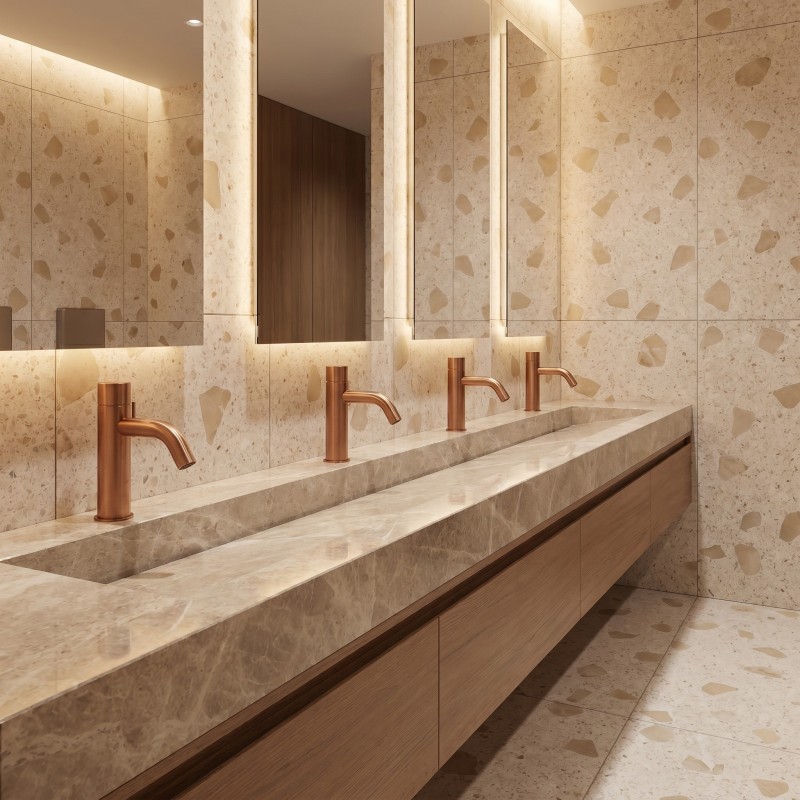

EXTREME DS contactless mixer tap, copper PVD finish for public sanitary facilities

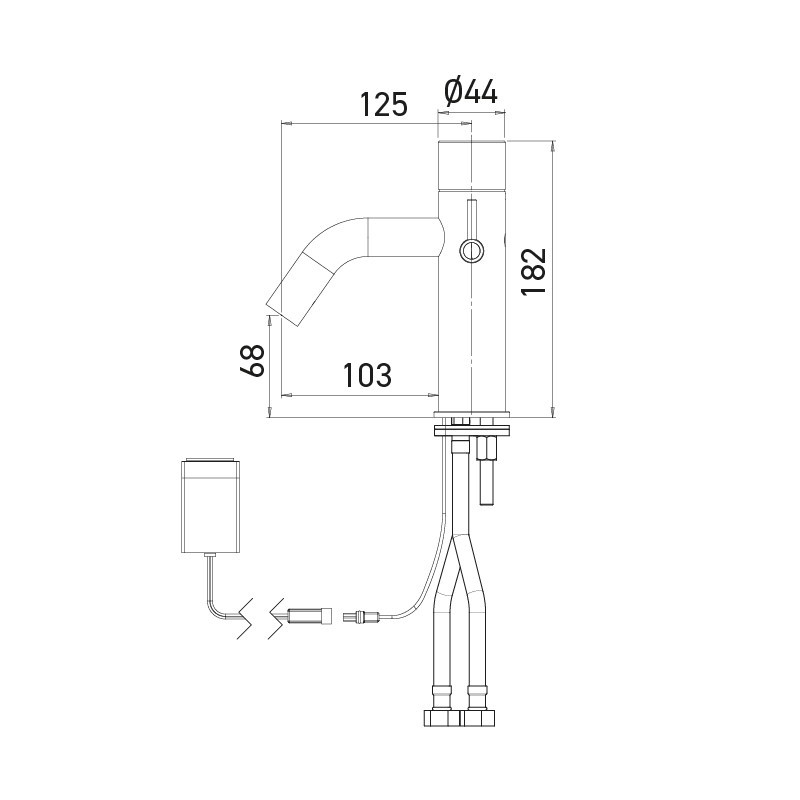

Dimensions of the EXTREME DS automatic mixer, battery-powered

Electronic mixer tap EXTREME DS

Pure design: concealed detection directly in the end of the spout

Reference RES-8-CO

Unit price

€555.00 Tax Excl.

→ See Stainless Steel AISI 316 finish

Finish

Chrome
Matt black
Matte Gold PVD
Copper PVD

Power supply

Mains
Battery

Ask a question

Electronic mixer tap EXTREME DS with infrared detection integrated in the end of the spout, for a neater and refined aesthetic.
Activated by infrared detection, it assures a touch free hand wash.

Auto-adjustable detection. If necessary, settings adjustable by remote control RES-31 (detection length, flow time, periodical rinse, temporary off…).

Chromed brass robust body.

Moderne electronic, matt black, mixing tap EXTREME DS

High trend, matt black is modern, refined, chic.
It reveals subtlety this deep tint by associating reflects of stainless steel,
grey anthracite or by coordinating with light colours...

OPTIONS :

Remote control RES-31
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 taps (ref. RES-294)
Junction box 230/12V to supply up to 10 taps (ref. RES-295)
Soap dispenser matching design

Sensor: Spout tip with self-adjusting infrared sensor
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Brass
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-7-8-N_Technical-sheet.pdf RES-7-8_Technical-sheet.pdf RES-7_Dim.pdf RES-7-8.ifc RES-7-8.obj RES-7-8_2d.dwg RES-7-8_3d.dwg

Electronic mixer tap EXTREME DS with infrared detection integrated in the end of the spout, for a neater and refined aesthetic.
Activated by infrared detection, it assures a touch free hand wash.

Auto-adjustable detection. If necessary, settings adjustable by remote control RES-31 (detection length, flow time, periodical rinse, temporary off…).

Chromed brass robust body.

High trend, matt black is modern, refined, chic.
It reveals subtlety this deep tint by associating reflects of stainless steel,
grey anthracite or by coordinating with light colours...

OPTIONS :

Remote control RES-31
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 taps (ref. RES-294)
Junction box 230/12V to supply up to 10 taps (ref. RES-295)
Soap dispenser matching design

Sensor: Spout tip with self-adjusting infrared sensor
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Brass
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
