Automatic soap dispenser EXTREME

Name: Automatic soap dispenser EXTREME
SKU: RES-33

to combine with the automatic faucet EXTREME for an automated environment without spreading germs...

Réf. : RES-33

€228.00 Tax Excl.

Power supply

Poser une question

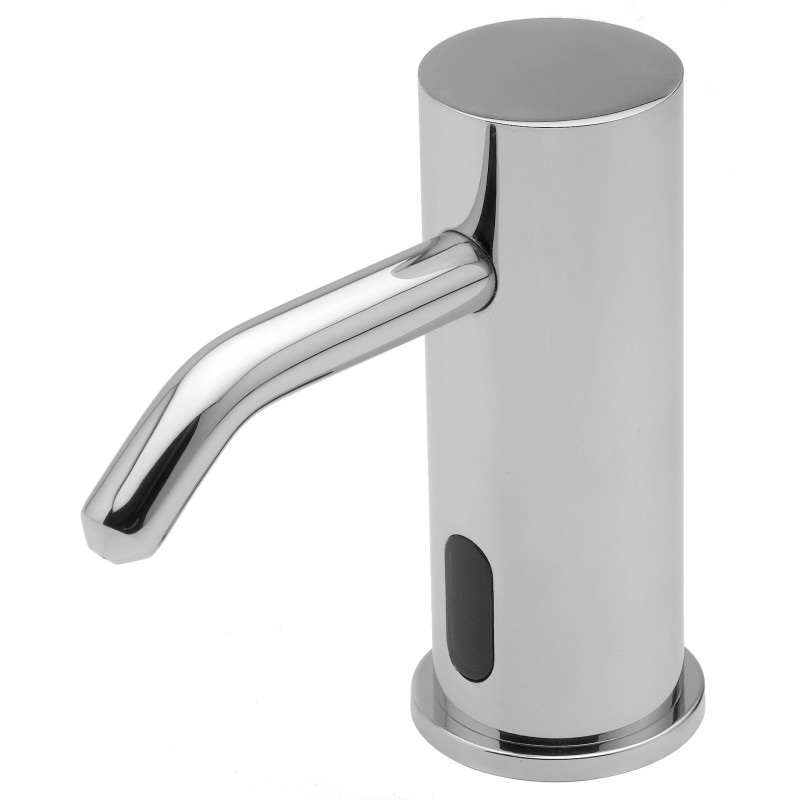

EXTREME electronic soap dispenser for infrared washbasin

Thanks to its automatic closing system without flow, our touch-free soap dispenser ensures a high-quality sanitary hygiene.
Easy to refill, it brings an economical solution to guarantee clean and aesthetic faucets

Automatic fucet for liquid soap EXTREME

The brass vandal resistant manufacturing allows installation on exposed sites.

Advantages
• Infrared self-adjustable detection to create a no-germ and automated environment
• Accurate soap dosage
• Remote control RES-38 (as an option) for soap dose settings
• Brass body with a 1L plastic bottle filling
• Works by peristaltic pump for the use of any kind of liquid soap, detergent, lotion or antibacterial gel Viscosity 100 - 3000 cPs
• Cost-effective solution
• Transformer or battery power source (6 x LR20 not included)

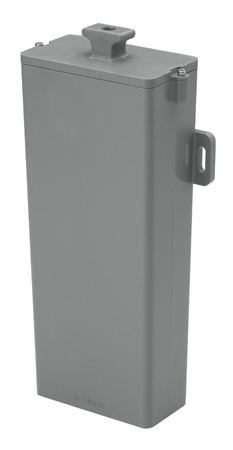

Battery box IP67

OPTIONS:

Remote control RES-38
Brushed finish, matt black or matt gold (contact us, minimum quantity).
6L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
Junction box 230/12V to supply from 1 to 10 dispensers.(ref. RES-296)
Extended version (200 mm) for a counter top wash basin (ref. RES-33-R)
Electronic faucet matching design

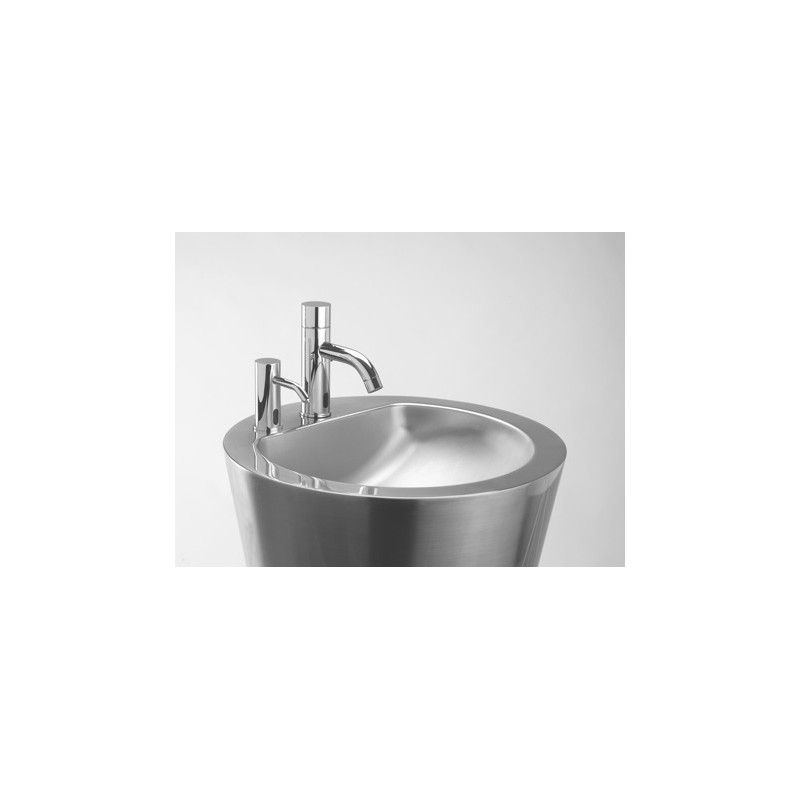

Automatic soap dispenser EXTREME with extension sse
Version R with extension of 200 mm for counter top wash basins
matching design with the electronic faucet EXTREME with extension

Sensor: Self-adjusting infrared
Power supply: 230/12V transformer or battery (6xLR20 not supplied)
Capacity: 1 L tank (6 L option)
Soap: Liquid soap (viscosity 100 -3800 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump
Material: Chrome-plated brass
Operation settings: Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty: 2 years

Soap-dispenser_Installation-Guide (pdf)

RES-33-2D-flt-view (dwg)

RES-33-3D (dwg)

RES-33 (ifc)

RES-33 (obj)

RES-33_Technical-sheet (pdf)

The brass vandal resistant manufacturing allows installation on exposed sites.

OPTIONS:

Remote control RES-38
Brushed finish, matt black or matt gold (contact us, minimum quantity).
6L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
Junction box 230/12V to supply from 1 to 10 dispensers.(ref. RES-296)
Extended version (200 mm) for a counter top wash basin (ref. RES-33-R)
Electronic faucet matching design

Version R with extension of 200 mm for counter top wash basins
matching design with the electronic faucet EXTREME with extension

Sensor: Self-adjusting infrared
Power supply: 230/12V transformer or battery (6xLR20 not supplied)
Capacity: 1 L tank (6 L option)
Soap: Liquid soap (viscosity 100 -3800 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump
Material: Chrome-plated brass
Operation settings: Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty: 2 years
