Electronic touchless tall faucet EXTREME for countertop sink

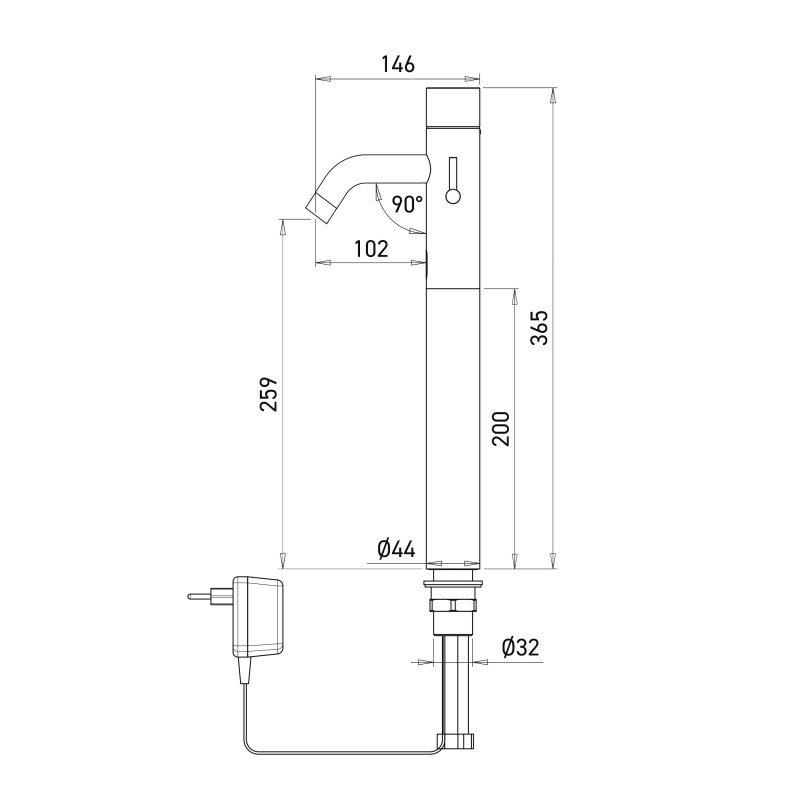

Dimensions for raised EXTREME electronic mixer tap mains powered

EXTREME electronic mixer faucet for counter-top washbasin

with different available heights

Reference RES-3-R

Unit price

€510.00 Tax Excl.

Finish

Chrome

Power supply

Mains
Battery

Spout length

107 mm
176 mm

Ask a question

EXTREME Automatic Electronic Basin Mixer Tap – Raised Version for Countertop Basin (Hot & Cold Water with Temperature Control)

The EXTREME raised version automatic electronic mixer tap is specially designed for countertop basins and vessel sinks. It provides automatic control of hot and cold water with precise temperature adjustment, while ensuring maximum hygiene thanks to its touch-free infrared sensor.

Its intelligent electronic system activates water flow only when hands are detected, reducing water consumption and limiting the risk of cross-contamination.

Made of high-strength brass with a premium finish, it is perfectly suited for demanding environments such as hotels, restaurants, offices, healthcare facilities, and high-traffic public washrooms.

Its raised design offers optimal ergonomics for bowl basins while adding a modern and elegant touch to washroom spaces.

All electronic components are integrated directly into the mixer body to simplify installation and facilitate maintenance.

Key Features
Raised version designed for countertop basins
Hot and cold water with temperature control
Automatic touch-free infrared detection
Improved hygiene and reduced water consumption
Robust vandal-resistant brass body
Easy installation and simplified maintenance
Modern and high-end design
Ideal for public and professional washrooms

OPTIONS:

RES-31 remote control
Matte black, matte gold PVD, copper PVD, brushed nickel PVD finishes (please contact us)
Limited 1,9 LPM or 3 LPM flow rate
45, 110, 163 or 230 mm raise according to washbasin height
Extended L spout version of 138 mm
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
230/12V junction box to supply up to 10 faucets (ref. RES-295)
Matching soap dispenser

Sensor: Infrared with optimized presets
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Brass
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Water inlet: HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Fixing: Deck-mounted – semi-recessed or countertop basin
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-1-3-R_Technical-sheet.pdf RES-3L-R_Dim.pdf RES-1-L-R-2D-ftl-view.dwg RES-1-L-R-3D.dwg RES-1-L-R.ifc RES-1-L-R.obj RES-1-R-2D-ftl-view.dwg RES-1-R-3D.dwg RES-1-R.ifc RES-1-R.obj
