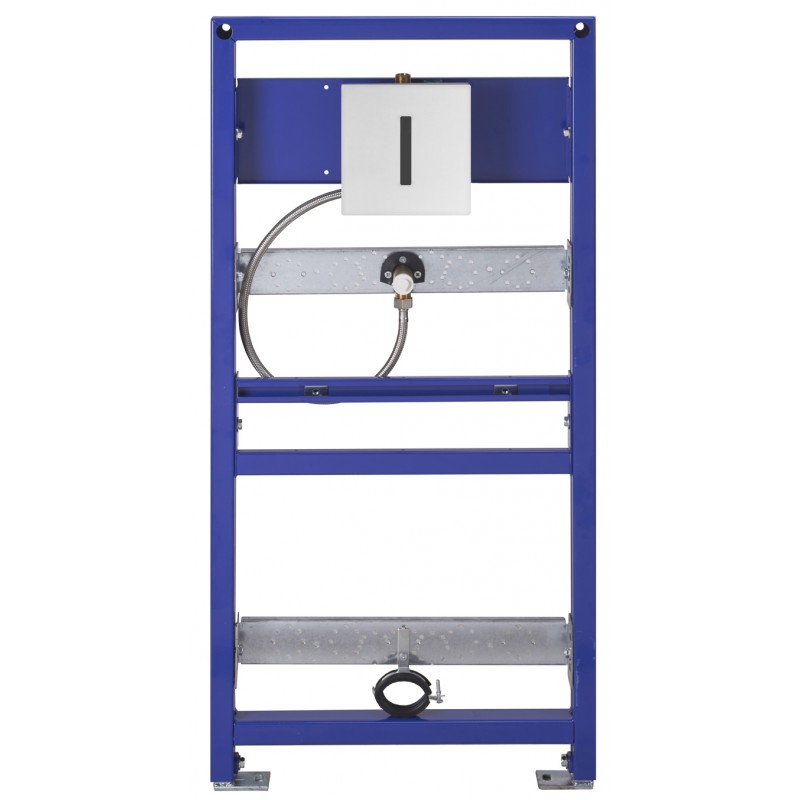

I-CARO electronic urinal support frame

Metallic support frame for urinals, with I-CARO electronic faucet integrated for an automatic flush upon user departure.

Delivered ready for installation with the I-CARO electronic faucet and all necessary accessories included (urinal not included).

Automatic flush after each use:

• Comfort: No manual contact and automatic odor removal.
• Total Hygiene: Prevents germ spread through hand contact.
• Water Efficiency: With an individual sensor and adjustable flow rate, only the used urinal is flushed.

Recessed urinal flush tap I-CARO

- Electronic activation by infrared detection
- 9V power supply or 230/9V transformer
- Stainless steel vandal-proof front type AISI 304 satin 140x140 mm
- Stop valve, solenoid valve and filters in the box
- Cold water inlet 3/4“ or 1/2'’. Pressure 0.5 – 8 bars.
- Anti-legionella 24 H hygienic flush.
  Maintains water in the s-trap, to avoid possible freezing in the waste pipes and eliminates potential stagnant water bacteria.
  Deactivation function by remote control.
- Low battery warning (battery version)
- Adjustment by remote control: detection length, time before activation, flush time, security stop delay, on/off.

Urinal support frame
- To be installed behind a wall, thin or solid
- C profile support frame in 40/40 mm
- Blue epoxy painting
- Support frame height 1140 to 1340 mm depending on the urinal
- Adjustable galvanized feet (rotative floor fixation)
- 2 threaded rods M8 for urinal fixation
- Angled outlet water pipe
  Delivered complete to assembly (except urinal)
