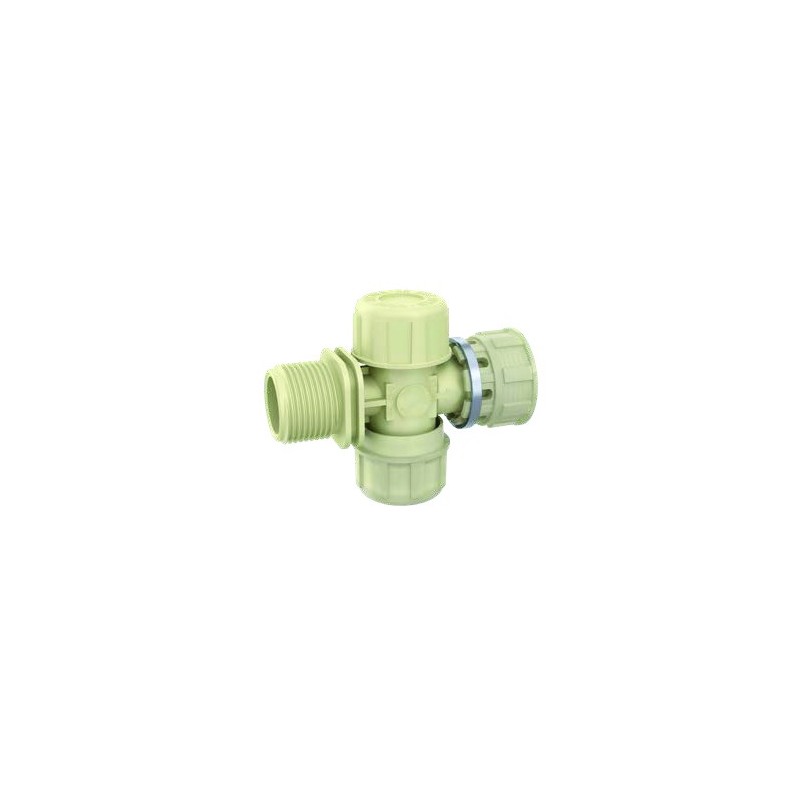

Filter for electronic faucets
Filter to protect the solenoid valve of the automatic faucet and ensure proper closing without dripping
Filter to be installed at the solenoid valve inlet to protect the faucet and other devices from damage or malfunction caused by non-soluble particles.
A shut-off valve is integrated to "stop the water" when removing the screen for cleaning or replacement.
There is no need to install a shut-off faucet before the filter.
The screen can be replaced without disassembling the entire filter and without tools. Installing the filter vertically downward is recommended.
This prevents non-soluble materials that are removed from staying inside the valve body during cleaning or screen replacement.
Easy installation, high flow rate.
The construction and use of the screen filters comply with the DIN EN 13443 standard.
Characteristics:
Mechanical filter, preferably installed with the screen in a vertical downward position.
For hot and cold drinking water as well as fluids that are physically and chemically similar.
Fluid temperature: 5 - max 90°C. DN 10 mm.
Maximum service pressure: 10 bars.
Maximum allowable pressure loss: 6 bars.
Kv value: 17 LPM.
Materials:
Body / internal components: PA 66, PA6/6, stainless steel. Seals: EPDM.
Screen: Stainless steel PA 66.
Mesh width: 0.25 mm / Wire diameter: Ø 0.10 mm.
Certifications: ACS, KTW System 1+, SVGW, WRAS, NSF 169, and others.
Filter to be installed at the solenoid valve inlet to protect the faucet and other devices from damage or malfunction caused by non-soluble particles.
A shut-off valve is integrated to "stop the water" when removing the screen for cleaning or replacement.
There is no need to install a shut-off faucet before the filter.
The screen can be replaced without disassembling the entire filter and without tools. Installing the filter vertically downward is recommended.
This prevents non-soluble materials that are removed from staying inside the valve body during cleaning or screen replacement.
Easy installation, high flow rate.
The construction and use of the screen filters comply with the DIN EN 13443 standard.
Characteristics:
Mechanical filter, preferably installed with the screen in a vertical downward position.
For hot and cold drinking water as well as fluids that are physically and chemically similar.
Fluid temperature: 5 - max 90°C. DN 10 mm.
Maximum service pressure: 10 bars.
Maximum allowable pressure loss: 6 bars.
Kv value: 17 LPM.
Materials:
Body / internal components: PA 66, PA6/6, stainless steel. Seals: EPDM.
Screen: Stainless steel PA 66.
Mesh width: 0.25 mm / Wire diameter: Ø 0.10 mm.
Certifications: ACS, KTW System 1+, SVGW, WRAS, NSF 169, and others.
