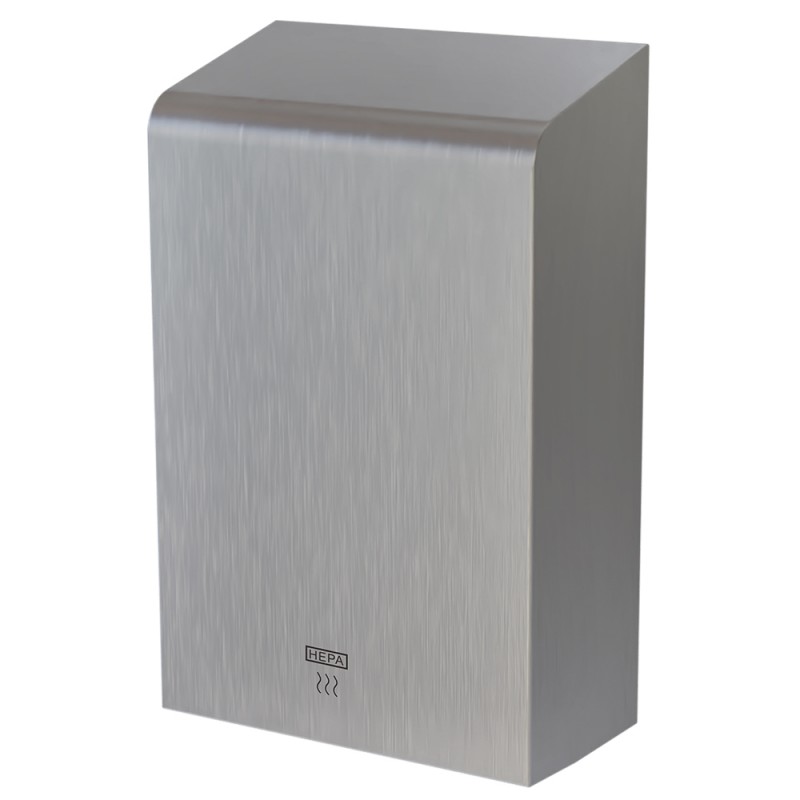

CLEAN-AIR high-speed stainless steel hand dryer with HEPA filter

A high-speed hand dryer that's more hygienic, efficient and energy-saving!

SM-5001

€395.00 Net Price

Tax excluded
Finish
Quantity

 High-speed stainless steel automatic Extra-SLIM hand dryer, with built-in HEPA filter

CLEAN-AIR has been specially developed to be the most hygienic hand dryer available in any public washroom.

The incorporated HEPA filter within the hand dryer enables the filtration of 99.99% of bacteria and PM2.5 fine particles.

Energy-saving features and high-efficiency drying.

•   Incorporated H13 HEPA filter filters 99.99 % of airborne particles.

Hand dryer with HEPA filter

•    10 CM DEEP = Compact and easily integrable in any location, with PRM access made easy.


Space-saving hand dryer with 100mm depth.

•    QUICK AND COMFORTABLE HAND DRYING IN 10 SECONDS

•    ADJUSTABLE AIR FLOW AND NOISE LEVEL

•    HOT/WARM AIR SWITCH

•    The narrow air intake under the hood and the rear panel affect the transmission of sound waves, which significantly reduces the noise level.

Patented air intake for reduced noise level

•    BLUE LIGHT BEAM WHEN OPERATING
•    VANDAL PROOF
•    EASY MAINTENANCE

UL, CE, EMC, LVD, CB, WEEE, ROHS certified.


OPTIONS :

  • UVC-LED: disinfects the inside of the hand dryer to ensure that only fresh, clean air is blown onto the user's hands.
  • "Plug & Play" docking station: during construction work; the plate can be installed by electricians separately from the hand dryer to prevent dust or paint from covering it. After the completion of the construction work, connecting the hand dryer to the plate can be done easily without requiring electricians.
    Easy to service and disassemble.
  • Anti-bacterial coating: Silver ions can be added to a transparent coating on the hand dryer, providing antibacterial and anti-fingerprint properties.
  • Hood colouring: in addition to brushed stainless steel, black or white, the hand dryer can be customised with a choice of PVD coatings to match the design of any bathroom.

Sensor
Self-adjusting infrared
Sensor range
170 mm ± 20 mm, adjustable
Voltage supply
220/240 V, 50/60 Hz, 0.84 / 1 kW. Ampérage : 3.8 / 4.2 A.
Electrical insulation
Class I
Protection rating
IP 24
Standby consumption
0.3 - 0.4 W
Security off
Shut-off after 90 seconds of uninterrupted use or in case of overheating
Security
Engine with security thermostat at 95° C
Resistance with security thermostat at 85° C
Thermal fuse stops heating element at 142°C
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Finish
Stainless steel 304 brushed, stainless steel white or black
Power
1000 W (engine 500W, resistance 500 W)
Air speed
63 - 89 m/s
Air flow
91,3 m³/h
Outlet temperature
55°C or ambient air
Drying time
10 seconds
Sound level
Mini 69 - max 76.6 dB at 1 m
Filter
HEPA H13 filtrant 99.9% des bactéries
Dimensions
W152 x D100 x H268 mm
Warranty
3 years. CE.
