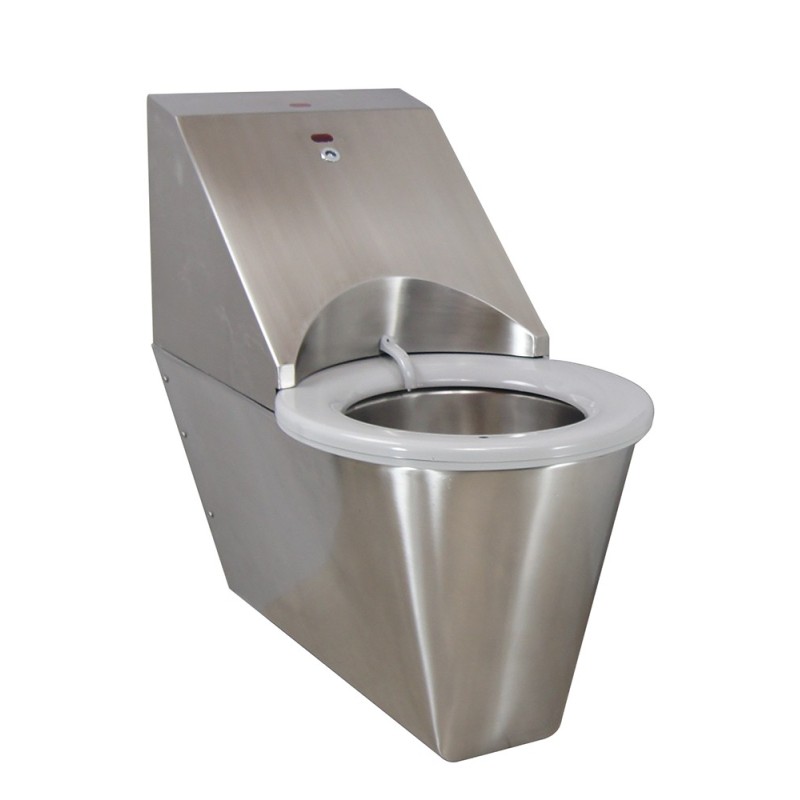

Photo Extended stainless steel HYGISEAT self-cleaning wall-hung toilet for collective use SUP1106
  • Miniature-0 Extended stainless steel HYGISEAT self-cleaning wall-hung toilet for collective use SUP1106

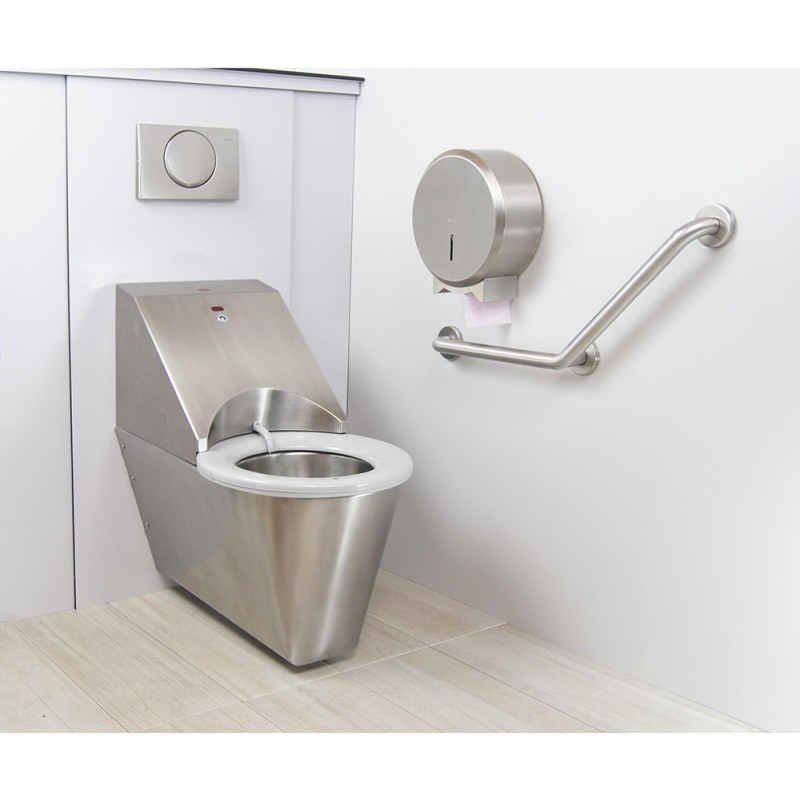

  • Miniature-1 Automatic stainless steel HYGISEAT toilet, wheel chair access SUP1106
  • Miniature-2 Stainless steel hanging and self-cleaning desabled HYGISEAT toilets SUP1106

HYGISEAT extended wall-mounted stainless steel PRM toilet

Length 700 mm for People with Reduced Mobility

SUP1106

€3,320.00 excl. VAT

Tax excluded
Options
Quantity
Ask a question

Self-cleaning HYGISEAT WC wall-hung stainless steel extended, accessible for People with Reduced Mobility, suitable for shared facilities

- Touch-free activation of the wash cycle: disinfects, dries the seat, and flushes automatically after the user leaves

- Seat rotation cycle: cleans with mains-pressure water mixed with GERMIBLOC™ disinfectant, then dries the seat after each use.

- Cycle time: 12 seconds.

http://www.autosanit.com/img/cms/produits/SUP1106/WC-autonettoyant-inox-collectivites-suspendu-PMR-HYGISEAT.jpg


DUAL FLUSH
Water-saving system with automatic flush volume adjustment based on presence time.

- Half flush for presence under 45 seconds.
- Full flush for presence of 45 seconds or more.

Depending on the settings, HYGISEAT delivers 3 liters for liquid waste and 6 liters for solid waste.
An average of 3.8 liters per flush (assuming 3 half flushes for every full flush) reduces water consumption by up to 37% compared to a standard 6-liter flush toilet.

The dual flush system, controlled by the dual detection option ref. SUP1065, is triggered either by hand approach (sensor on top of the lid) or by user departure (front-facing sensor).

► OPTION N°1 - Ref. SUP1065 - DUAL DETECTION

- Dual detection wall-mounted version ceramic or stainless steel.
- Automatic cycle set-off when user leaves, if the manual flush by hand approach isn't used.


► OPTION N°2 - Ref. SUP1070 - ODOUR EXTRACTION

- SaniAir odour extraction system for wall-mounted version.
- Filterless, effective system for the extraction of bad smells and odours directly from the source in the bowl and discharged into the waste pipes.
  System integrated into SUP15055 or SUP15054 support frame not included.
- Helps reduce ambient humidity and counteract the aerosol effect of flushing that spreads bacteria.
Scientific studies have shown that when a toilet flush is activated, it creates an aerosol effect, spreading germs and bacteria throughout the room. Analysis of initially sterile surfaces, including wall tiling, has revealed the presence of contaminated bacteria and viruses from this projection. Furthermore, research indicates that these germs are airborne for 2 hours, settling on random surfaces. A connection between inhaling these particles and respiratory infections - nasopharyngitis, bronchitis, tonsillitis - have been established.
- Ensures bathroom ventilation by preserving the warm air typically lost through wall suction systems.
- OPTION N°1 "DUAL DETECTION" included.

Total security
• 12 volt power supply by 230/12V external transformer.
• Immediate unit shutdown in the event of irregular movement.
• Manual flush control button in the event of a power cut.
• CE. Made in France.

GERMIBLOC™ disinfectant Ref. SUP1090
- Dry product supplied in a 72g plastic container, easy to handle and store.
- Replace the GERMIBLOC™ product when the red indicator light flashes and the device emits 3 bees at the end of the cycle, approximately every 1000 use (may vary).
- Complies with NF EN 1275 (fungicidal) and NF EN 1040 (bactericidal) standards.

Installation on GEBERIT/HYGISEAT mounting support frame and concealed tank Ref. SUP1055

Advantages of the HYGISEAT system:

  • It eliminates all contact with a dirty seat.
  • It eliminates all contact with a toilet flush button.
  • It reduces all odours and ensures sanitary conditions of public toilets.
  • It reduces maintenance time and all cleaning costs.
  • Ergonomic shape, without grabbing points for an easier clean; specially made to avoid splashes outside of the pan
          and to ensure a perfect hygiene throughout, without spreading bacteria.
  • Waterproof detection cell (100 hours submerged at 65° C), IP 67, insensitive to all vibrations and electric interference,
          also insensitive to light interferences.
  • Rugged for an intensive use, easy to clean and maintain upkeep.
Sensor
Infrared
Electrical supply
230/12V external transformer
Material
Bacteriostatic AISI 304 stainless steel
Grey ABS seat
Stainless steel thickness
1,5 mm
Finish
Brushed
Water inlet
Ø 55 mm
Evacuation
Ø 100 mm P-trap
Fixation
Wall mounted
Dimensions
W415x D700 x H690 mm
Warranty
3 years
