Hand paper towel sheet by sheet
Ref: HY-000937C
€71.00
Tax Excl.

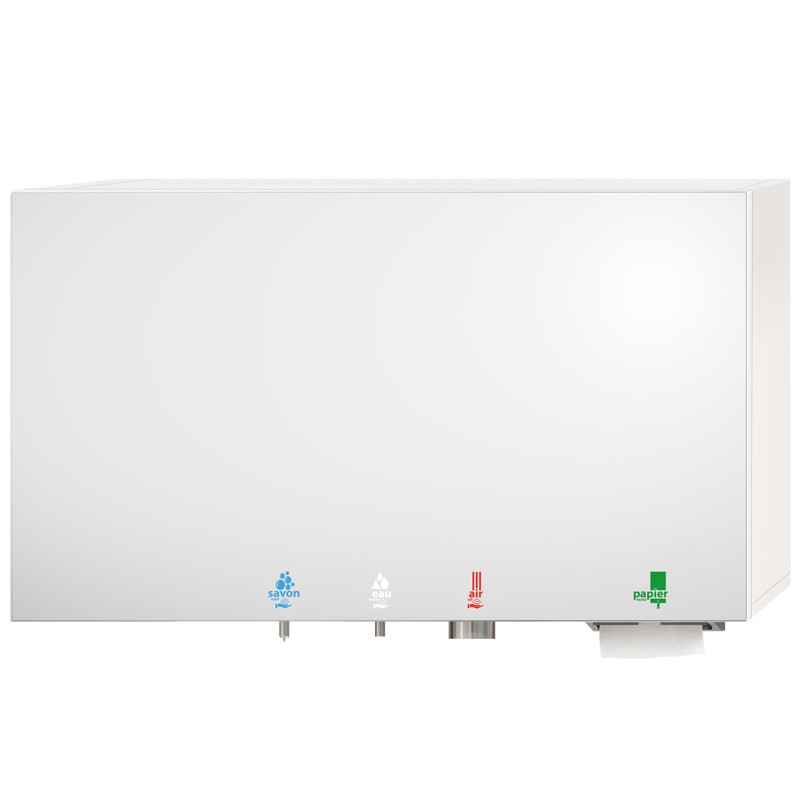

HYFLO 5 in 1 "mirror-soap-water-air-paper" cabinet, width 1200 mm
All in one and ready to install HYFLO mirror cabinet, width 1200 mm, with integrated soap dispenser, automatic tap, hand dryer and hand paper towel dispenser
RES-855
€3,195.00
Tax Excl.
HYFLO munltifunction mirror cabinet to mount above a sink including an automatic soap dispenser, liquid or foam, electronic water tap with a thermostatic pre-mixer, high speed hand dryer, sheet-by-sheet paper towel dispenser, and mirror with illuminated pictograms.
Hand paper towels or hand dryer by pulsed air depending on the users preference or needs, to offer a premium service.
By its simple shape in the current interior design tendency and its concealed equipment behind the mirror, the 5 in 1 cabinet limits space and is integrated perfectly by minimizing visual impact.
Hygiene: the functions are automatically activated when the users hands are placed in the detection area and stop once the hands are removed. Complete hand washing cycle without needing to move, this contributes to clean sanitary spaces (avoids dirty taps; soap marks, wet floors...).
Easy to install: cabinet to be set-up on a heavy duty stainless steel suspension rail, only one electric plug, the water to be connected to the pre-mixer and everything becomes operational!
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
Components assembled on a heavy duty stainless steel rugged plate 1,2 mm thickness.
STAINLESS STEEL TECHNICAL PLATE
STAINLESS STEEL PAPER TOWEL DISPENSER

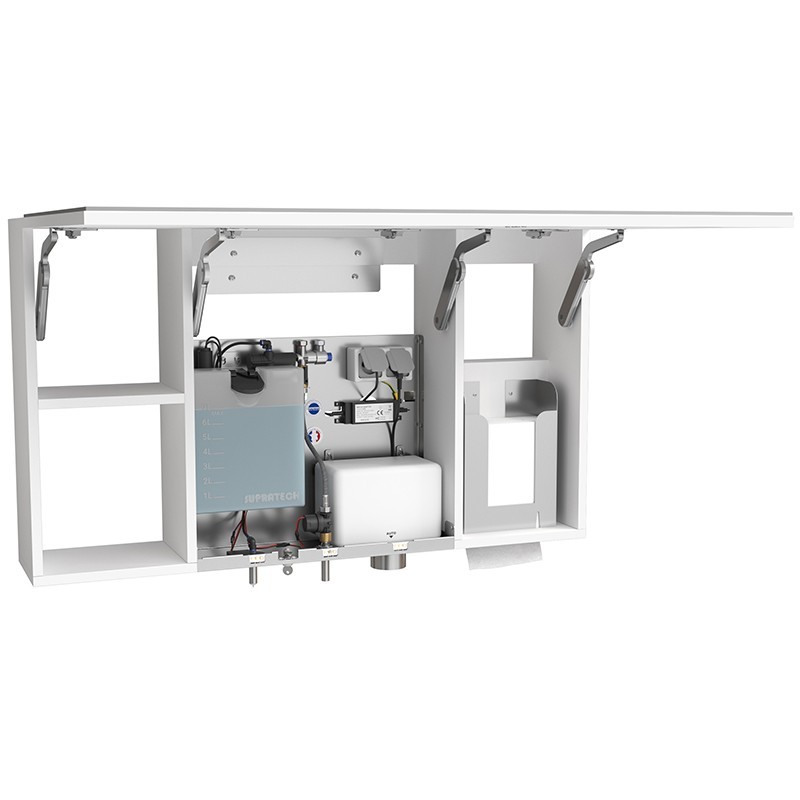

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
LED icons (colours of choice between blue, white, red or green), visible vertical stainless steep spouts and nozzle to indicate hand placement.
Key lock (with automatic closure).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 4 swing-up flap arms with integrated soft-close damping and 4 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - High speed hand dryer 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m). - Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
- Dimensions: W1200 x D256 x H700 mm.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Water flow limited 1,9 L/min.
- Remote control RES-30 settings for water tap and soap dispenser
- Hand dryer with HEPA filter and brushless motor
- Visual low soap level indicator
- Magnetic lock (keyless)
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Anti-fog mirror (for installation near shower exits)
- Paper towel dispenser
- Choice of mirror cabinet components
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or décor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W1200 x D256 x H700 mm
- Warranty
- 3 years
HYFLO munltifunction mirror cabinet to mount above a sink including an automatic soap dispenser, liquid or foam, electronic water tap with a thermostatic pre-mixer, high speed hand dryer, sheet-by-sheet paper towel dispenser, and mirror with illuminated pictograms.
Hand paper towels or hand dryer by pulsed air depending on the users preference or needs, to offer a premium service.
By its simple shape in the current interior design tendency and its concealed equipment behind the mirror, the 5 in 1 cabinet limits space and is integrated perfectly by minimizing visual impact.
Hygiene: the functions are automatically activated when the users hands are placed in the detection area and stop once the hands are removed. Complete hand washing cycle without needing to move, this contributes to clean sanitary spaces (avoids dirty taps; soap marks, wet floors...).
Easy to install: cabinet to be set-up on a heavy duty stainless steel suspension rail, only one electric plug, the water to be connected to the pre-mixer and everything becomes operational!
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
Components assembled on a heavy duty stainless steel rugged plate 1,2 mm thickness.
STAINLESS STEEL TECHNICAL PLATE
STAINLESS STEEL PAPER TOWEL DISPENSER
Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.
LED icons (colours of choice between blue, white, red or green), visible vertical stainless steep spouts and nozzle to indicate hand placement.
Key lock (with automatic closure).
CHARACTERISTICS
- Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges, cabinet base and door in rot-proof 19 mm white komacel.
- 6 mm thick mirror with backing film.
- Lift-up door with 4 swing-up flap arms with integrated soft-close damping and 4 concealed hinges.
- Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
- Illuminated pictograms (color selection: blue, white, red, or green), hand logo with detection from below, vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
- Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - F3/8” thermostatic mixing valve for tempered water (without on demand).
- Vertical faucet with self-adjusting infrared detection, 6 L/min flow rate (1,9 L/min on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease. - High speed hand dryer 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m). - Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
- Dimensions: W1200 x D256 x H700 mm.
- This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.
OPTIONS:
- Water flow limited 1,9 L/min.
- Remote control RES-30 settings for water tap and soap dispenser
- Hand dryer with HEPA filter and brushless motor
- Visual low soap level indicator
- Magnetic lock (keyless)
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Anti-fog mirror (for installation near shower exits)
- Paper towel dispenser
- Choice of mirror cabinet components
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Cabinet finishing with optional color or décor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W1200 x D256 x H700 mm
- Warranty
- 3 years
