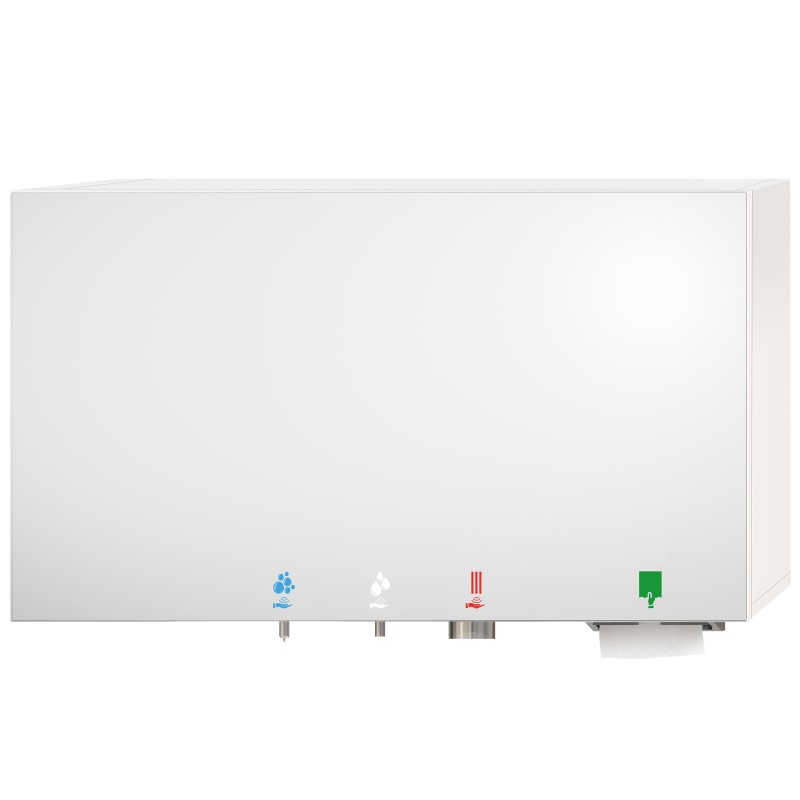

Photo 5-in-1 multifunction module: mirror – soap – water – air – paper RES-855

HYFLO 5 in 1 "mirror-soap-water-air-paper" cabinet, width 1200 mm

Mirror cabinet all in one and ready to install, width 1200 mm, with integrated soap dispenser, automatic tap, hand dryer and paper towel dispenser

Ref. : RES-855

€3,195.00 excl. VAT

Tax excluded

Soap version

Option led strip

Option fixed impost Height 1000 mm

Quantity

Ask a question

HYFLO 5 in 1 unit to install above a sink integrating in a concealed aesthetic way, behind a mirror with illuminated pictograms, the automatic soap dispenser, liquid or foam, the electronic water tap with thermostatic pre-mixer, the high-speed hand dryer and sheet by sheet hand paper towel dispenser.

Hand paper towel or hand dryer allowing both to be efficient in hand drying, users choice.

Refined and chic, its concealed equipment brings a modern and operational design to high traffic sanitary spaces.

Hygiene: ensures a perfect hand hygiene and contributes to clean sanitary spaces ; no visible plumbing and the user no longer needed to walk around with wet hands.

Easy to install: cabinet to be set-up on a stainless steel suspension rail, only one electric plug, the water to be connected to the pre-mixer and everything becomes operational!

7L soap tank: easy to access for refilled (foam or liquid soap).

Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without a funnel
- grand capacity 7L, reduces interventions

Components assembled on a heavy duty stainless steel rugged plate 1,2 mm thickness.

Stainless steel plate with all integrated components

PAPER TOWEL
DISPENSER

Distributeur inox de papier essuie-mains derrière miroir

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, stopcock, mixing valve…) easy to access for a quick and easy service.

LED icons (colours of choice between blue, white, red or green), visible stainless steel vertical spouts and nozzle to indicate hand placement in public spaces.

Lock and key (automatic locking)

CHARACTERISTICS

Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges,
cabinet base and door in rot-proof 19 mm white komacel. 6 mm thick mirror with backing film.
Lift-up door with 4 stay supports and 4 concealed hinges.
Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
Illuminated pictograms (color selection: blue, white, red, or green), french/english inscription, logo for hand detection from below,
vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
Soap dispenser operate with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5.
F3/8” thermostatic mixing valve for tempered water (without on demand).
Vertical faucet with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease.
High speed hand dryer 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m).
Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
CE. 3-year warranty.
Dimensions: W1200 x D256 x H700 mm.
This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.

OPTIONS:

Water flow limited 1,9 LPM.
Remote control RES-30 settings for water tap and soap dispenser
Hand dryer with HEPA filter and brushless motor
Visual low soap level indicator
Choice of mirror cabinet components
Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
Cabinet color finish
LED strip on top and/or bottom of the cabinet, with or without motion sensor
White LEDs only

Module miroir HYFLO 5 en 1 pictogrammes leds blanches sans texte

Module miroir HYFLO 5 en 1 pictogrammes leds blanches

Material: 19mm white hydro melamine board with 1mm black PVC veneer edges
Supporting plate for componants in stainless steel AISI304 thickness 1,2 mm
Underside and door in white 19 mm Komacel
Mirror: 6 mm thick clear mirror with shatterproof film backing, polished edges
Electrical supply: 230 V 50/60Hz. 0.92 KW
Electrical insulation: Class I
Water supply: Cold and hot water
Water inlet: F 3/8''
Fixation: Wall-mounted on stainless steel rails
Dimensions: W1200 x D256 x H700 mm
Warranty: 3 years
