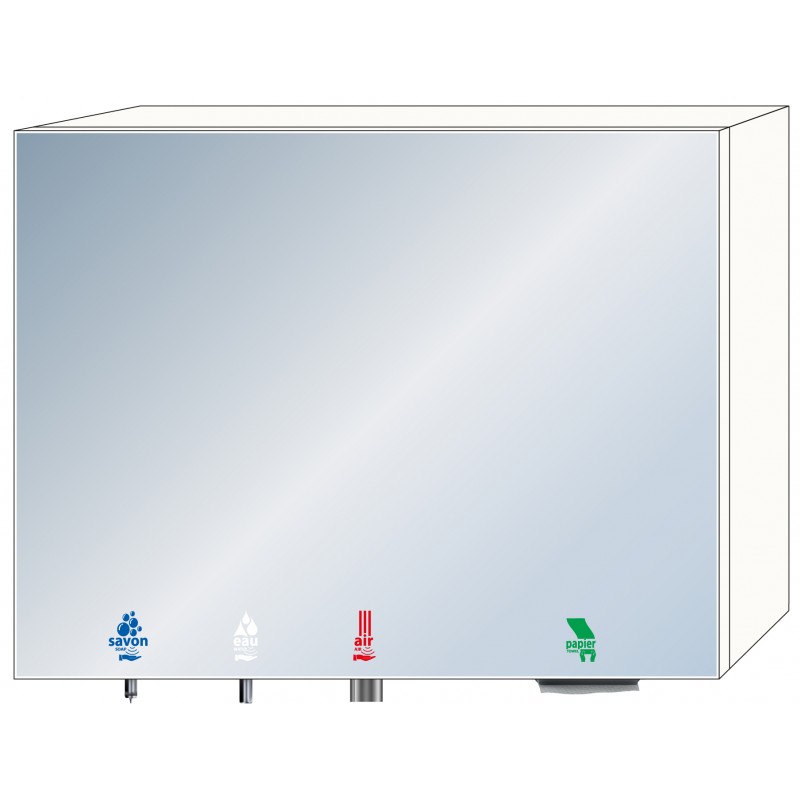

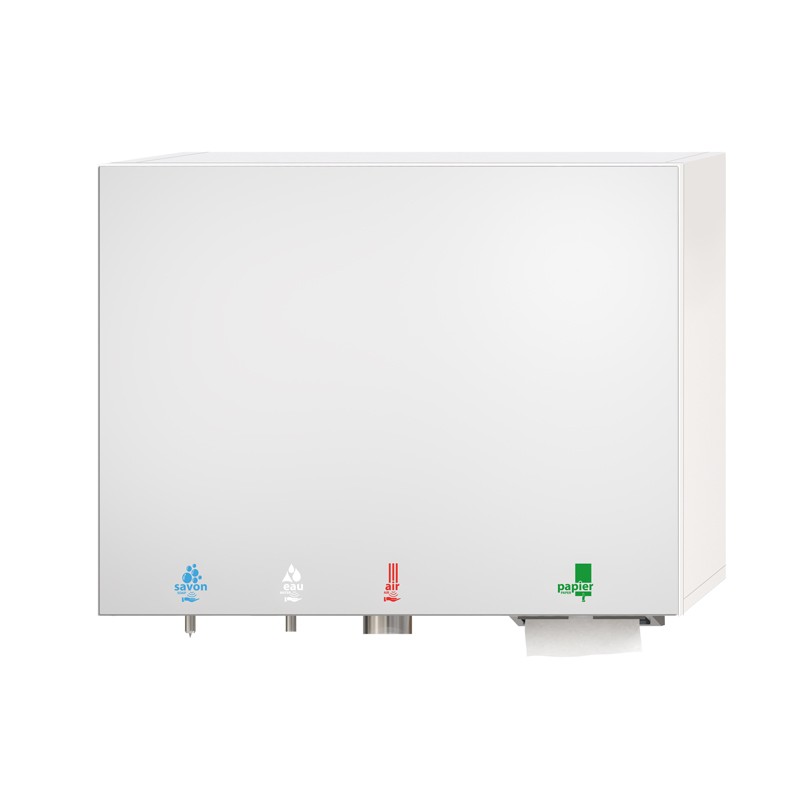

Mirror cabinet wash station 4 in 1 "soap-water-air-paper "

Mirror cabinet wash station to integrate above a sink including an automatic soap dispenser, liquid or foam, electronic water tap with a thermostatic pre-mixer, the high speed hand dryer and a hand paper towel sheet by sheet dispenser, to be installed above a sink in sanitary spaces.

Hand paper towels or hand dryer by pulsed air depending on the users preference or needs, to offer a premium service.

By its simple shape in the current interior design tenancy and its concealed equipment behind the mirror, the 4 in 1 cabinet limits space and is integrated perfectly by minimizing visual impact.

Hygiene: the functions are automatically activated when the users hands are placed in the detection area and stop once the hands are removed. Complete hand washing cycle without needing to move, this contributes to clean sanitary spaces (avoids dirty taps; soap marks, wet floors...).

Easy to install: cabinet to be set-up on a heavy duty stainless steel suspension rail, only one electric plug, the water to be connected to the pre-mixer and everything becomes operational!

7L soap tank: easy to access when needing to be filled (foam or liquid soap).

Easy soap service: - without any lid to unscrew, simple flap - without any pipes, avoids soap from leaking - large bottle neck, filled without a funnel - grand capacity 7L, reduces interventions

Components assembled on a heavy duty stainless steel rugged plate 1,5 mm thickness.

STAINLESS STEEL TECHNICAL PLATE 15/10 A - Water supply on thermostatic pre-mixer B - Water temperature settings C - Electrical supply D - IP68 230/12V transformer E - Switch F - 7L tank G - Automatic liquid or foam dispenser H - Electronic tap I - Electric hand dryer J - Paper dispenser K - Lock

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access for a quick and easy service.

LED icons (colours of choice between blue, white, red or green), vertical spouts and stainless steel nozzle on show to indicate where to place your hands.

Lock and key (automatic locking)

CHARACTERISTICS

• Unit made out of white hydro melamine board 19mm, white PVC sides of 1mm and Komacel white door of 19 mm with mirror,
  swing up flap arms with braking effect and invisible hinges.
• Clear mirror 6 mm thickness, the back has a safety film, polished edges.
• Soap dispenser powered by a peristaltic pump for an exact soap dose. Automatic shut-off without drippping.
• Thermostatic mixing tap F3/8'' for warm water at a consistent temperature and an anti-scald security.
• Vertical tap with infrared sensor auto-adjustable flow 6 LPM (optional 1,9 LPM).
• Security off after 90 seconds of non-stop running water.
• Water pressure: 0.5-8 bars.
• High speed hand dryer nominal output 1000W (low electric consumption).
• Cold air / warm air switch. Air flow settings and sound volume.
• 3 year warranty, soap dispenser 2 years. CE.
• Unit dimensions standard W900 x D250 x H700 mm. Serial installation for collective wash basins.

Mirror unit customizable in dimensions and in the number of integrated parts, contact us.

New or renovated installation

OPTIONS:

• Water flow limited 1,9 LPM.
• Remote control RES-30 for water tap and soap dispenser settings
• Paper towel dispenser
• Choose your modules
• Mirror box H300 mm for a total unit height of 1000 mm, (ref. MH)
• Finished unit colours
• LED banner included in the unit above and/or underneath
• Only white LEDS
