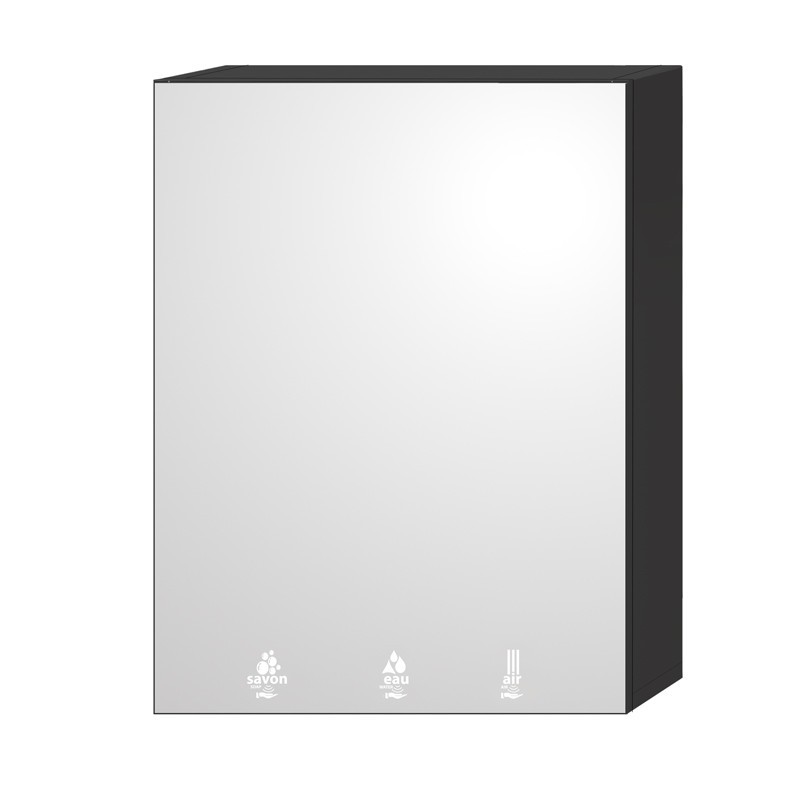

FLO 4in1 "mirror-soap-water-air" cabinet
FLO wall mounted 4-function mirror cabinet with integrated touch-free soap dispenser, automatic faucet and hand dryer
RES-351-N
€1,825.00
Tax Excl.

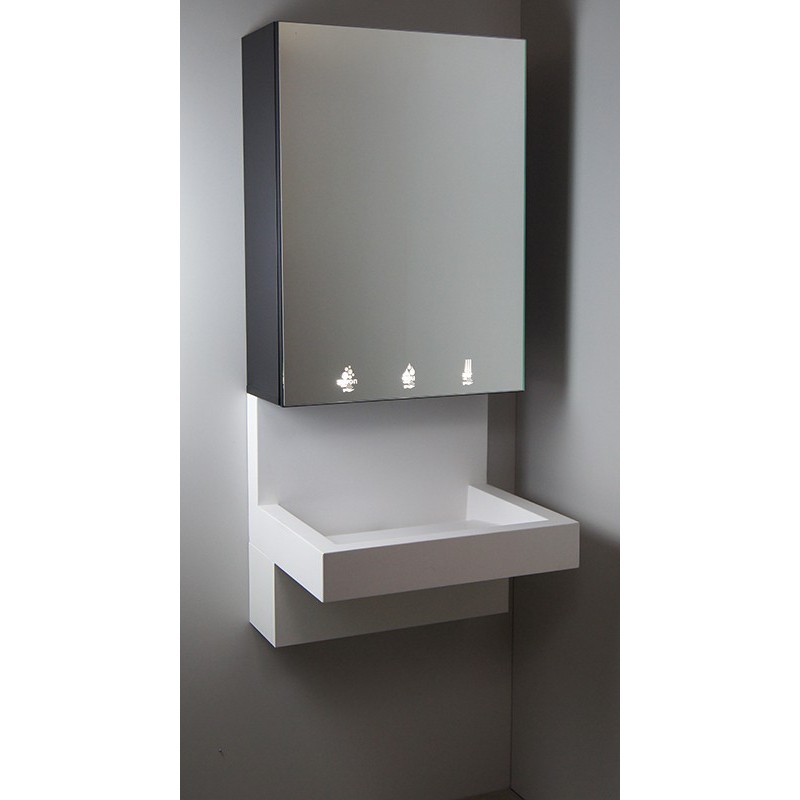

FLO mirror cabinet featuring an automatic soap dispenser, an electronic water faucet, and a high-speed hand dryer.
The 4in1 FLO mirror unit integrates mirror, water, soap, and air into a ready-to-install, well-designed, and fully functional set.
Unit to be wall-mounted on a stainless steel suspension rail, a sole power supply line, the water to connect, and your setup is fully operational!
Thanks to the integration of all the functions, which are touch-free activated, it ensures perfect hand hygiene and contributes to the cleanliness of sanitary facilities: no visible faucets, users don't have to move around with wet hands and any water that drips during drying is collected directly above the sink... Integrated LED pictograms on the mirror inform and guide the user.

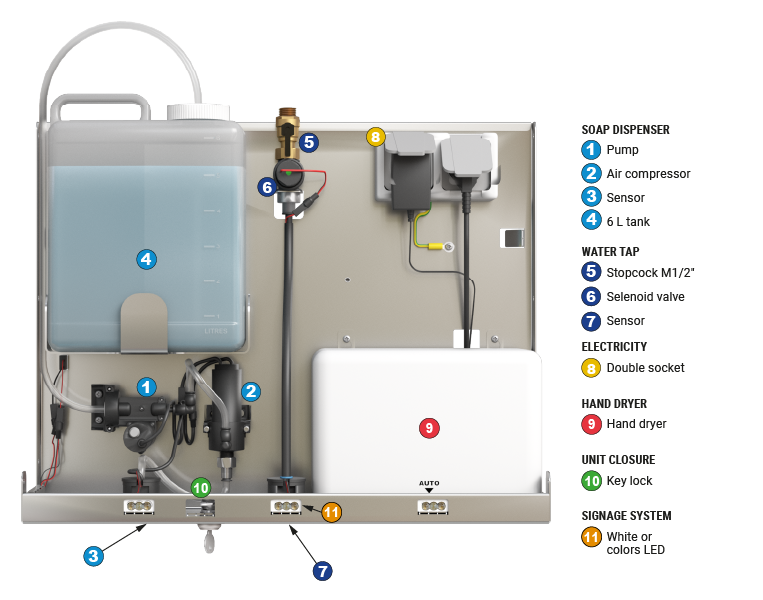

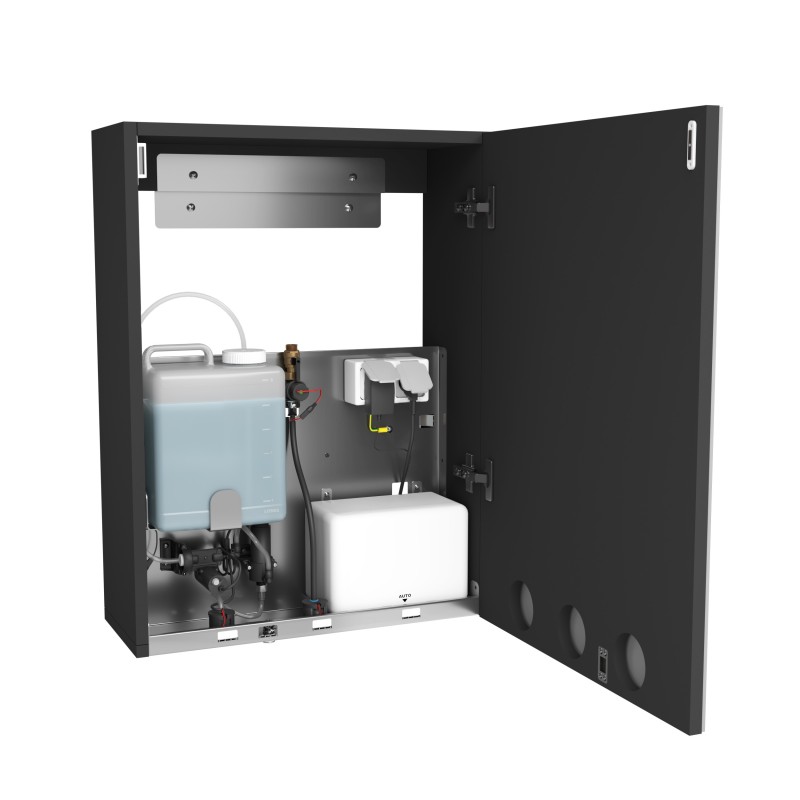

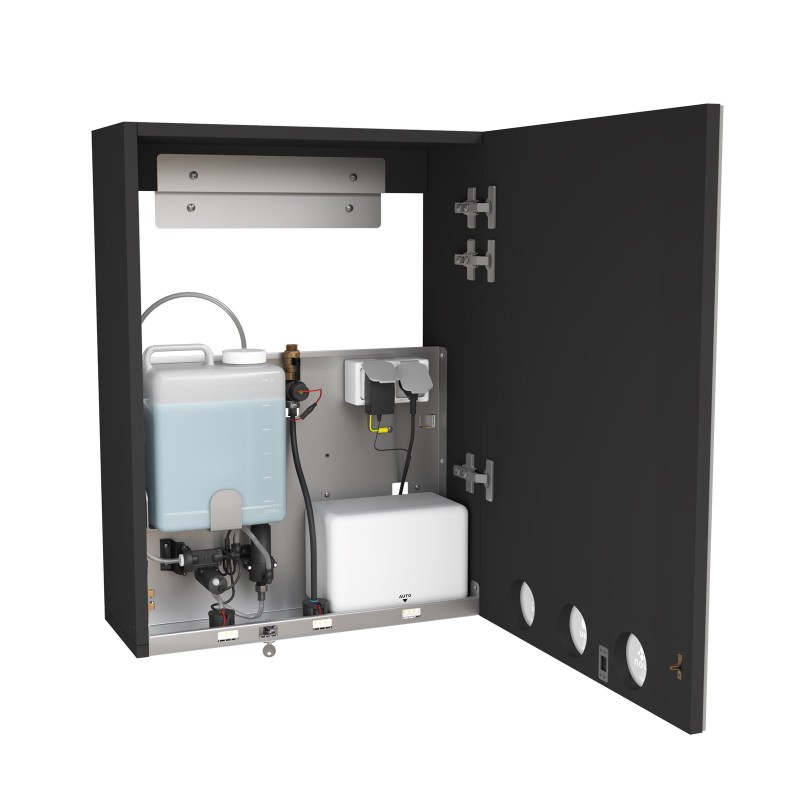

Robust technical plate in AISI 304 stainless steel, 1.2mm thick, on the back and underside the mirror unit, with all integrated equipment.
STAINLESS STEEL TECHNICAL PLATE
CHARACTERISTICS
- Cabinet made out of 19mm thick white hydro melamine panel, with 1mm white edging.
- Cabinet base and door in rot-proof 19 mm white Komacel, made of high resistant PVC material. Both rot-proof and fire-resistant (classified), it ensures perfect stability, even with repeated water contact or in highly humid environment.
- 6 mm thick mirror with shatterproof film backing.

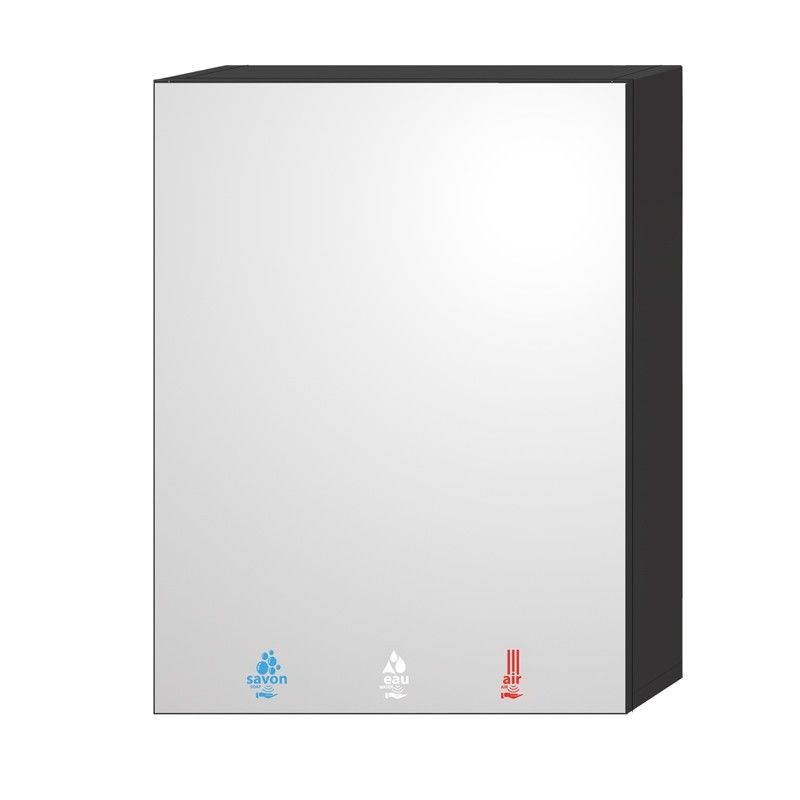

LED pictograms (colours of choice between blue, white, red or green). - Swinging door with adjustable invisible hinges.
Lock with automatic closing, cylinder protected by a stainless steel cover against moisture and dirt. - 1,5 mm stainless steel rail for robust mounting.
Easy to level; facilitates cabinet mounting, width adjustment and securing through threaded inserts. - Self-adjusting infrared sensor faucet, 5 L/min flow rate (1.9 L/min option). Anti-legionella periodical rinsing.
Security stop after 90 seconds of uninterrupted use.
Water outlet 200 mm from the wall. - 6L soap tank with large bottleneck.
Peristaltic pump, provides an exact dose of soap, no dripping.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - High-speed hand dryer, nominal power 920 W (min. setting 350 W). White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard).
Adjustable air flow and sound level (67.4–71.2 dB at 1 m). Hot/ambiant air switch. - Quick and easy access, dismantling and reassembly of components for maintenance.
Stainless steel plate designed to facilitate cleaning, with an open bottom and drainage holes for soap drips during refilling. - Double backing cabinet (convenient during renovation to pass water and power lines behind the unit).
- Suitable for PRM.
- Dimensions: W600 x D256 x H800.
- To be installed in a continuous row for communal sinks.
OPTIONS:
- Limited 1.9 L/min water flow
- RES-30 water and soap remote control
- White LEDs only or other colours
- Thermostatic pre-mixer F3/8'' for tempered water
- Hand dryer with HEPA filter and brushless motor
- Visual indicator for low soap level
- Integrated LED strip in the cabinet, above and/or below, with or without motion sensor
- Paper towel dispenser
- Adapter cap kit for non-proprietary soap tank
- Unit components
- Unit finish with color or design of choice
- Hygienic rinse anti-legionella
- After 24 H of non-use
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Single supply: cold water or pre-mixed water (mixed upstream)
- Water inlet
- M 1/2''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H800 x D256 mm
- Warranty
- 3 years
FLO mirror cabinet featuring an automatic soap dispenser, an electronic water faucet, and a high-speed hand dryer.
The 4in1 FLO mirror unit integrates mirror, water, soap, and air into a ready-to-install, well-designed, and fully functional set.
Unit to be wall-mounted on a stainless steel suspension rail, a sole power supply line, the water to connect, and your setup is fully operational!
Thanks to the integration of all the functions, which are touch-free activated, it ensures perfect hand hygiene and contributes to the cleanliness of sanitary facilities: no visible faucets, users don't have to move around with wet hands and any water that drips during drying is collected directly above the sink... Integrated LED pictograms on the mirror inform and guide the user.
Robust technical plate in AISI 304 stainless steel, 1.2mm thick, on the back and underside the mirror unit, with all integrated equipment.
STAINLESS STEEL TECHNICAL PLATE
CHARACTERISTICS
- Cabinet made out of 19mm thick white hydro melamine panel, with 1mm white edging.
- Cabinet base and door in rot-proof 19 mm white Komacel, made of high resistant PVC material. Both rot-proof and fire-resistant (classified), it ensures perfect stability, even with repeated water contact or in highly humid environment.
- 6 mm thick mirror with shatterproof film backing.
LED pictograms (colours of choice between blue, white, red or green). - Swinging door with adjustable invisible hinges.
Lock with automatic closing, cylinder protected by a stainless steel cover against moisture and dirt. - 1,5 mm stainless steel rail for robust mounting.
Easy to level; facilitates cabinet mounting, width adjustment and securing through threaded inserts. - Self-adjusting infrared sensor faucet, 5 L/min flow rate (1.9 L/min option). Anti-legionella periodical rinsing.
Security stop after 90 seconds of uninterrupted use.
Water outlet 200 mm from the wall. - 6L soap tank with large bottleneck.
Peristaltic pump, provides an exact dose of soap, no dripping.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5. - High-speed hand dryer, nominal power 920 W (min. setting 350 W). White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard).
Adjustable air flow and sound level (67.4–71.2 dB at 1 m). Hot/ambiant air switch. - Quick and easy access, dismantling and reassembly of components for maintenance.
Stainless steel plate designed to facilitate cleaning, with an open bottom and drainage holes for soap drips during refilling. - Double backing cabinet (convenient during renovation to pass water and power lines behind the unit).
- Suitable for PRM.
- Dimensions: W600 x D256 x H800.
- To be installed in a continuous row for communal sinks.
OPTIONS:
- Limited 1.9 L/min water flow
- RES-30 water and soap remote control
- White LEDs only or other colours
- Thermostatic pre-mixer F3/8'' for tempered water
- Hand dryer with HEPA filter and brushless motor
- Visual indicator for low soap level
- Integrated LED strip in the cabinet, above and/or below, with or without motion sensor
- Paper towel dispenser
- Adapter cap kit for non-proprietary soap tank
- Unit components
- Unit finish with color or design of choice
- Hygienic rinse anti-legionella
- After 24 H of non-use
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Single supply: cold water or pre-mixed water (mixed upstream)
- Water inlet
- M 1/2''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H800 x D256 mm
- Warranty
- 3 years
