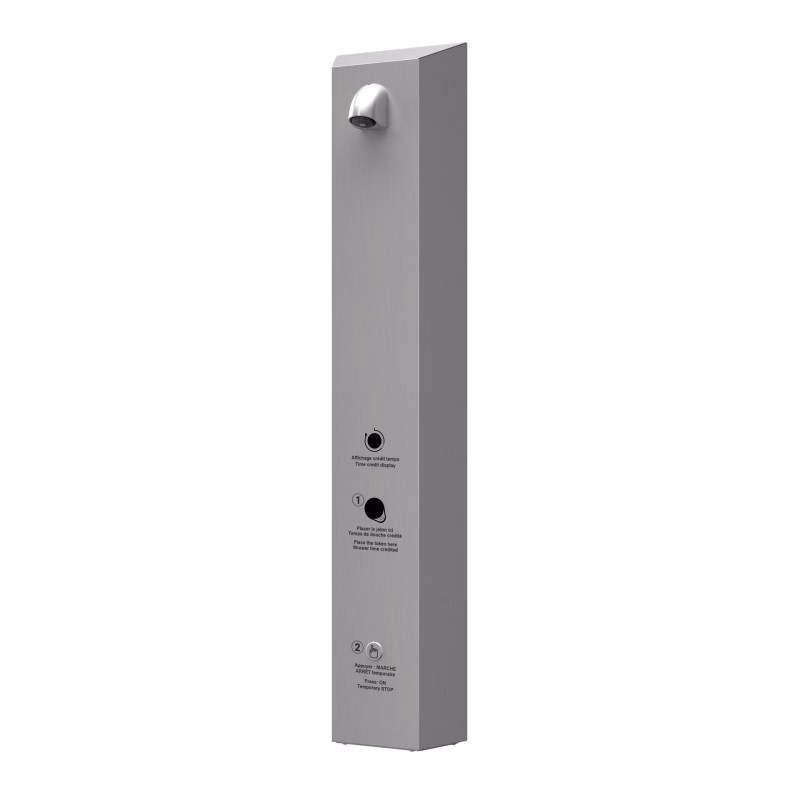

Stainless steel shower panel with integrated RFID token timer and engraved signage

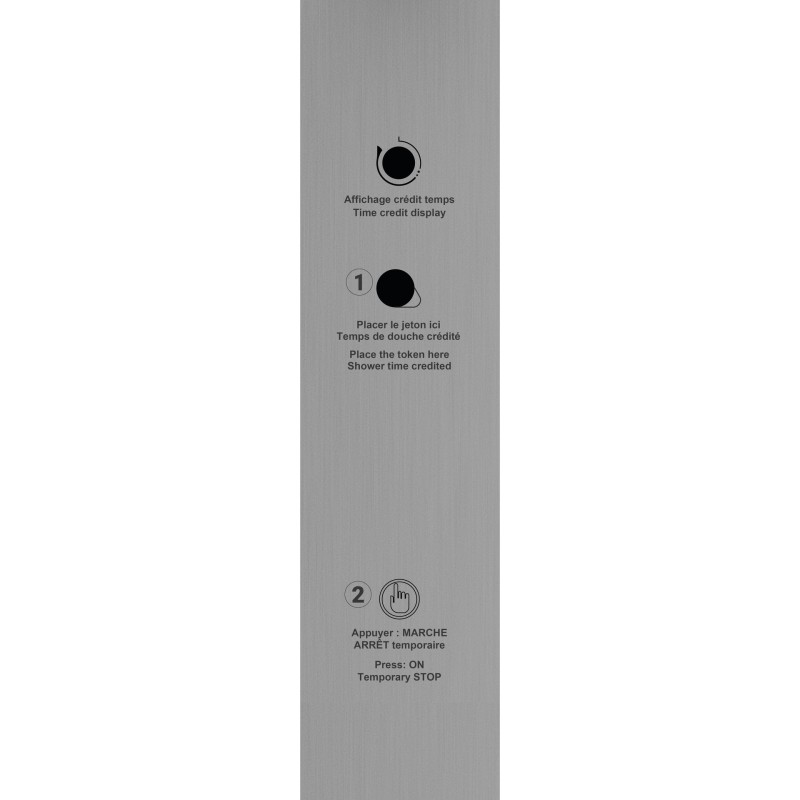

Engraved signage for user guidance

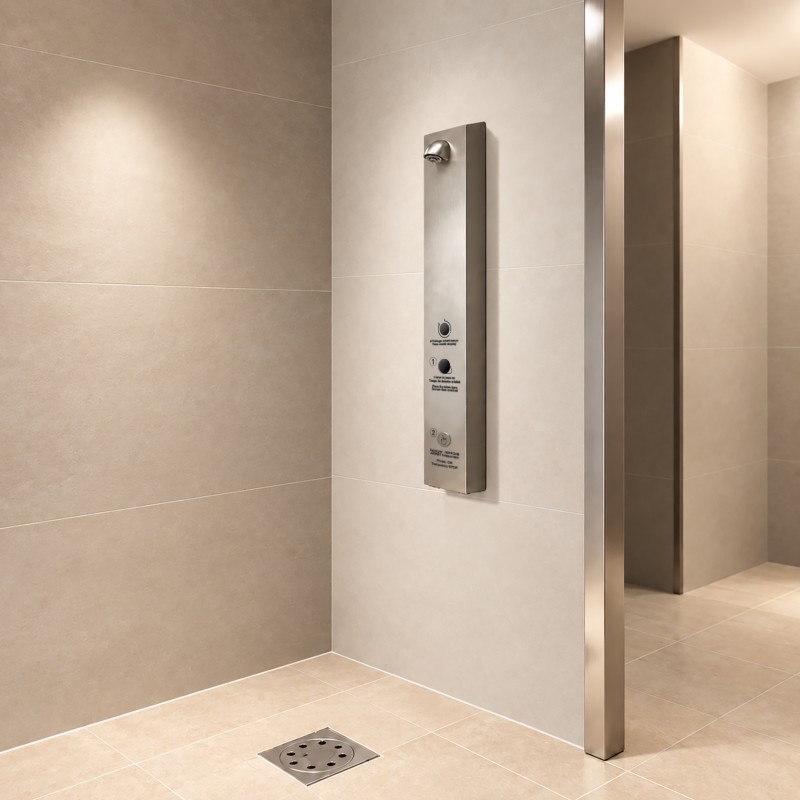

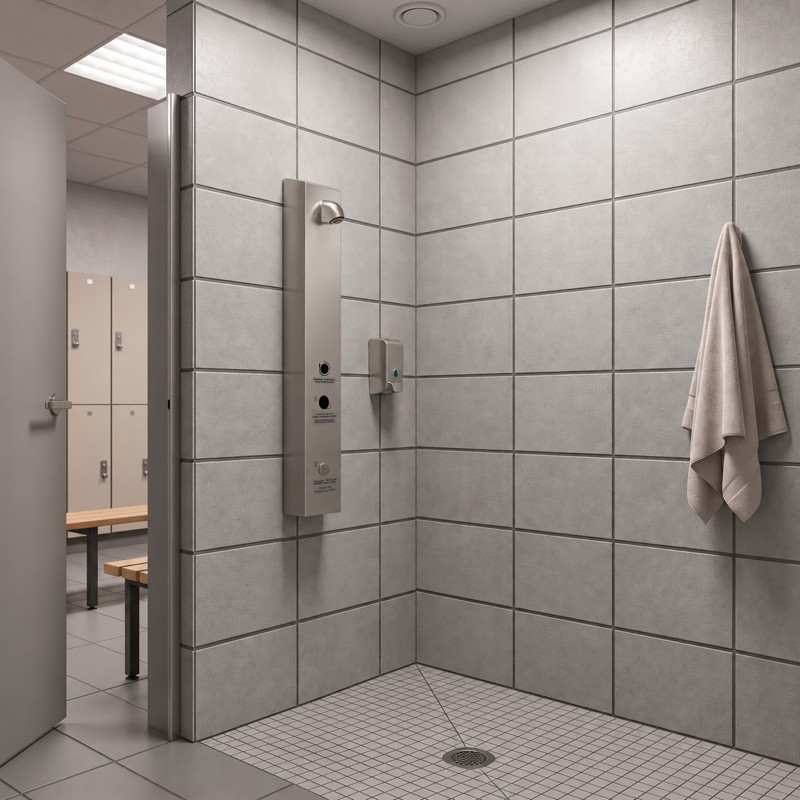

Wall-mounted stainless steel shower panel with RFID token activation for cold or pre-mixed water.
When the RFID token is placed on the reader (1) to load the time credit, the red light flashes.
The shower starts as soon as the user presses the piezo touch button (2), with initially 10 red lights illuminated on the indicator and gradually switching off according to shower time.
The user can start and stop the water directly in the shower using the touch button.
30% of the time before the shower stops, the user is warned by a brief interruption of water flow.
- Bacteriostatic 304 stainless steel material with brushed finish.
- Stainless steel piezo activation button.
- Vandal-resistant shower head, adjustable angle of 20°.
- Factory settings for tokens =(shower duration, on/off, periodic rinsing).
- Shower duration: 5 minutes / Maximum usage time:
- 10 minutes with shower interruptions
- 20 minutes waiting time before next activation (the same user cannot use the token twice consecutively)
- Without periodic anti-legionella rinsing. - Power supply via external transformer 230/24V.
- Consumption 7 W.
- M1/2'' threaded water inlet (top water inlet available as an option).
- Angle stop valves with filter.
- Flow rate 12 LPM (6 LPM and 18.5 LPM aerators included).
- Recommended pressure 1- 6 bars.
- CE manufactured.

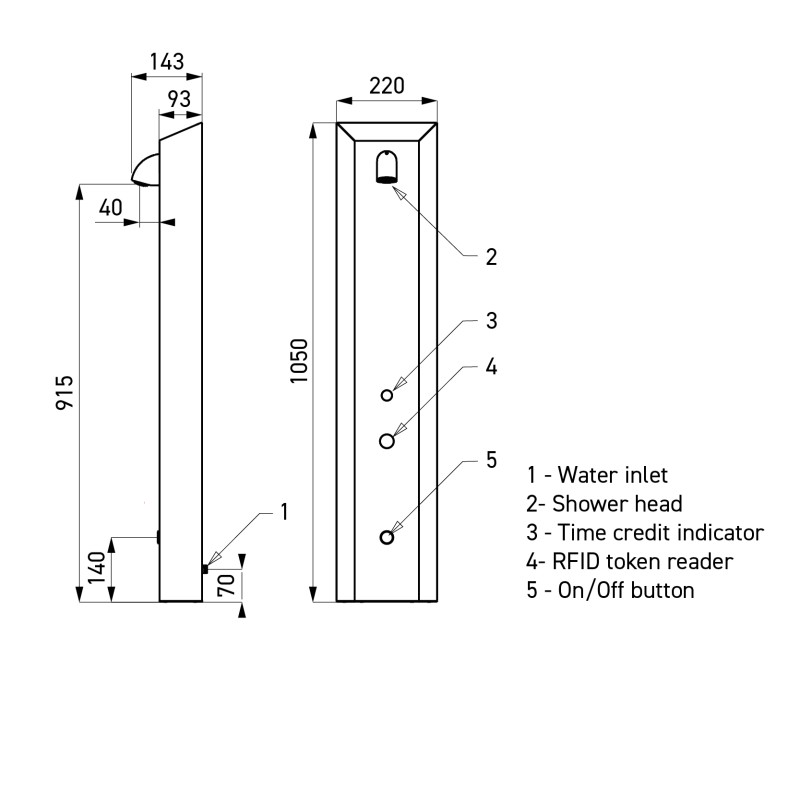

- Dimensions: W220 x D93 (143 with shower head) x H1050 mm.
Electronics guaranteed for 5 years.
- Power supply
- External 230/24V transformer
- Material
- AISI 304 stainless steel
- Finish
- Brushed
- Water inlet
- 1/2"
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- Durée de la douche : 5 minutes / Temps d’utilisation maximal : 10 minutes avec interruptions de douche 20 minutes d’attente avant la prochaine activation (un même utilisateur ne peut pas utiliser le jeton deux fois consécutivement)
- Operation settings
- Paramétrage d’usine des jetons : (durée douche, marche/arrêt, rinçage périodique).
- Dimensions
- L220 x P93 (143 avec pomme de douche) x H1050 mm
- Warranty
- Electronics 5 years
- Water supply details
- For cold or pre-mixed water / Cold and hot water
