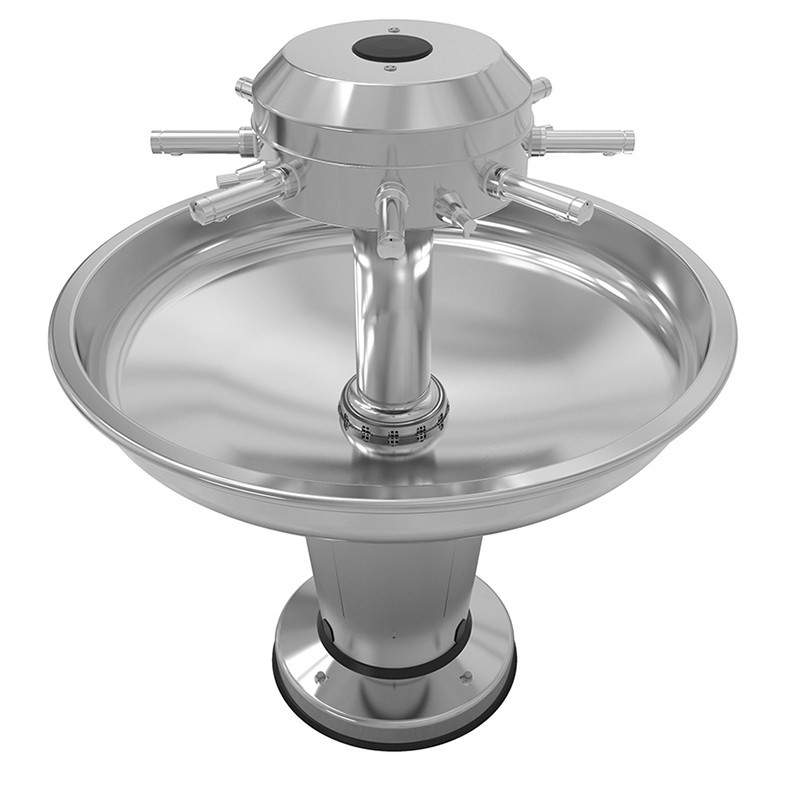

  • Miniature-1 LAGOON central stainless steel communal sink for 8 soft-touch timed faucets and 4 soap dispensers option LC-04

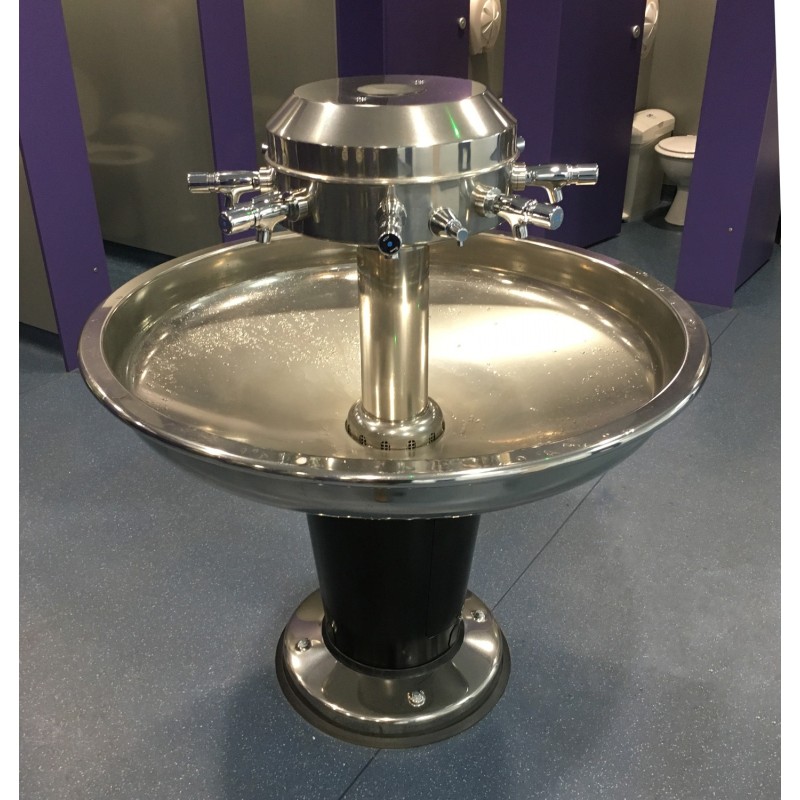

  • Miniature-2 Circular washbasin on a central stand for communal sanitary facilities LC-04

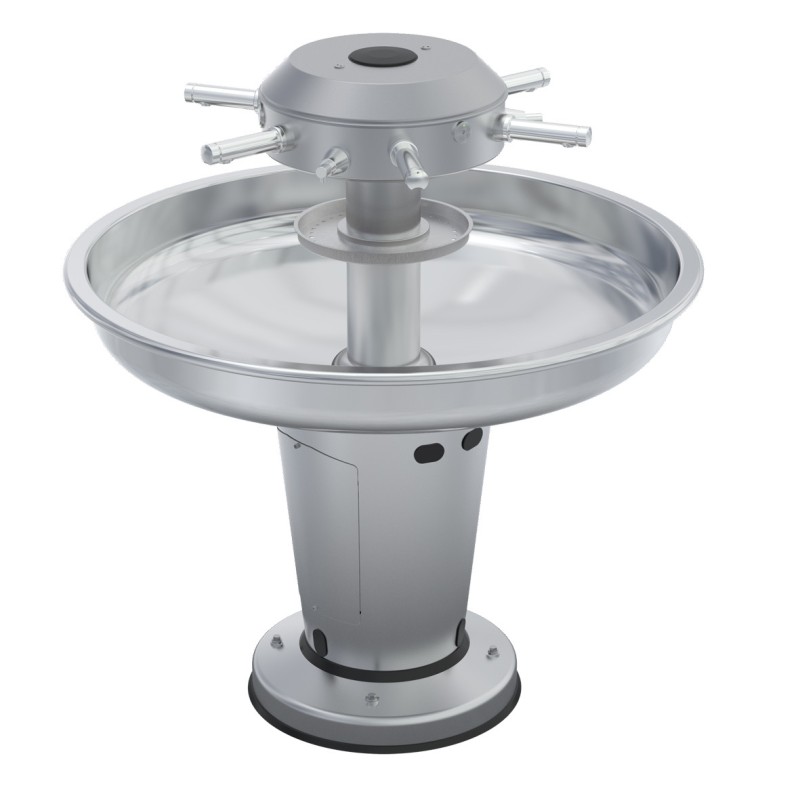

  • Miniature-3 LAGOON circular stainless steel pedestal fountain sink with a soap reservoir in the base and a brush holder tray LC-04

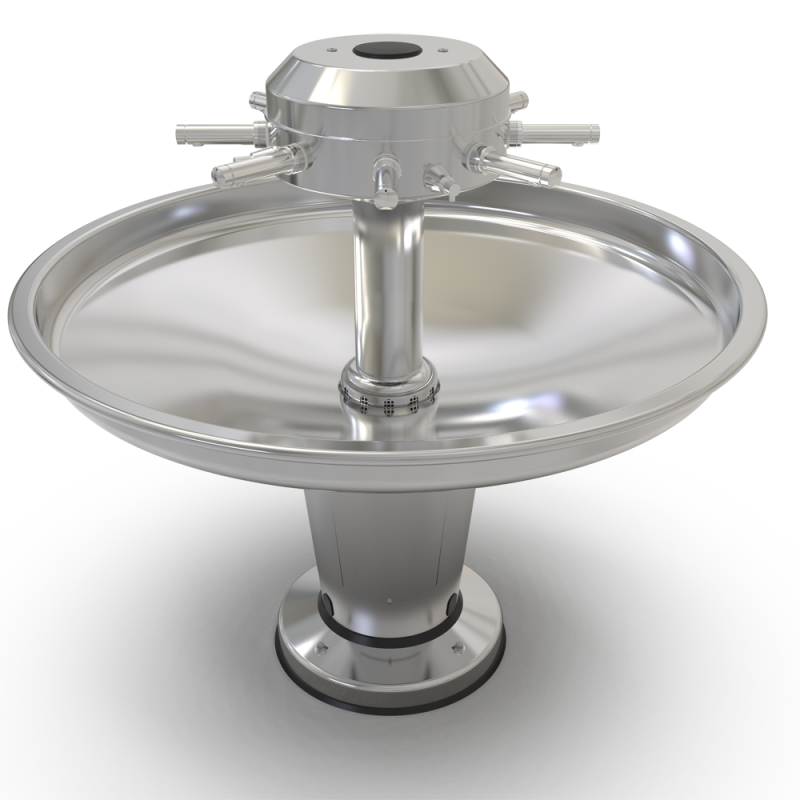

  • Miniature-4 8-faucet pedestal sink with Temposoft option and soap dispensers LC-04

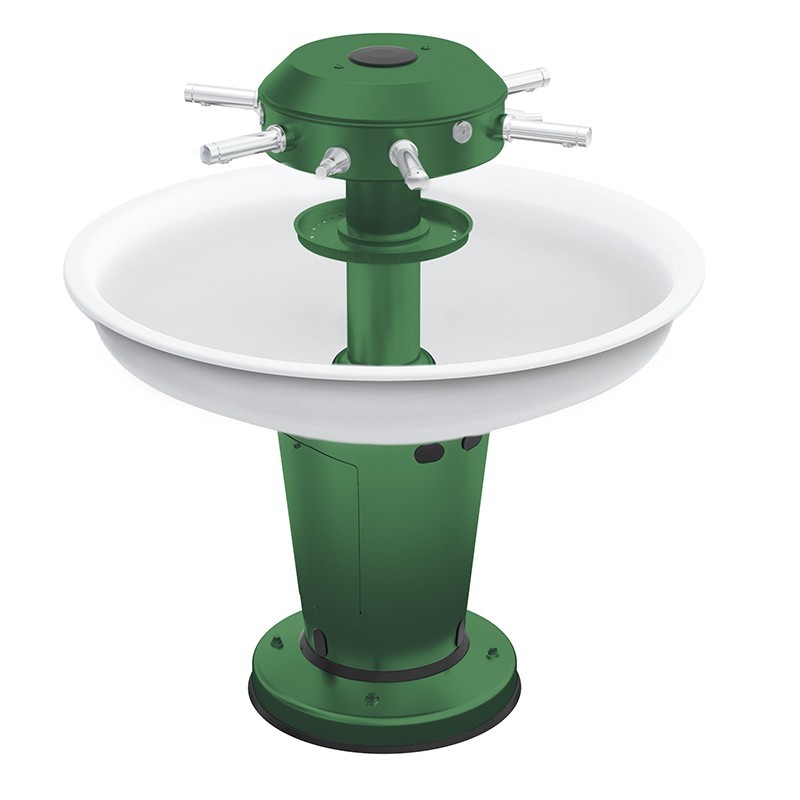

  • Miniature-5 LAGOON fountain washbasin with options for soap dispensers, a white synthetic marble basin, and color choices LC-04

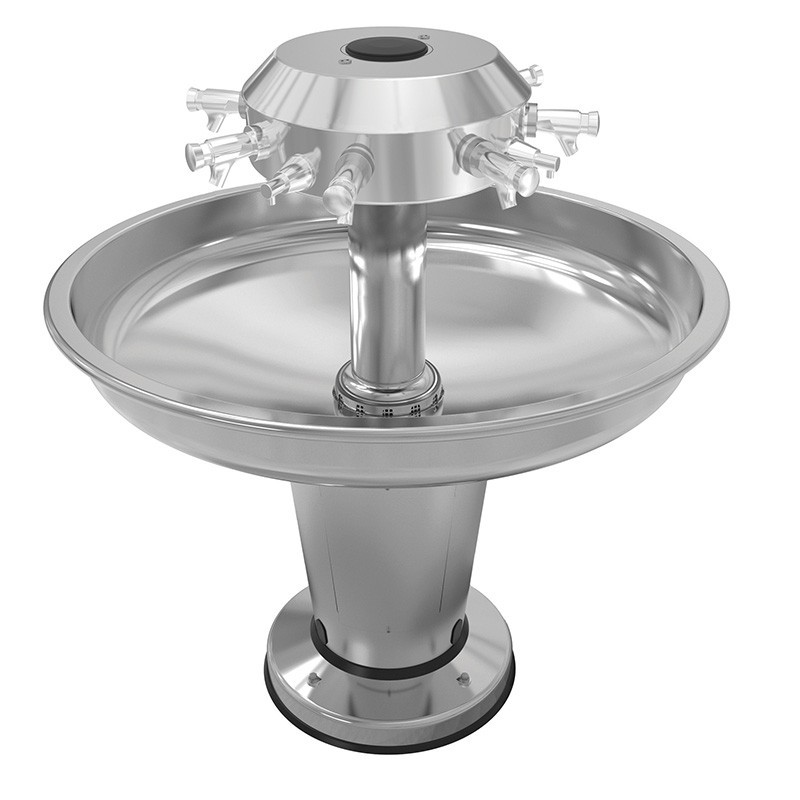

  • Miniature-6 Stainless steel fountain washbasin on a pedestal with a Ø 1370 mm basin, featuring 8 Temposoft faucets and soap dispensers LC-04
  • Miniature-7  LC-04

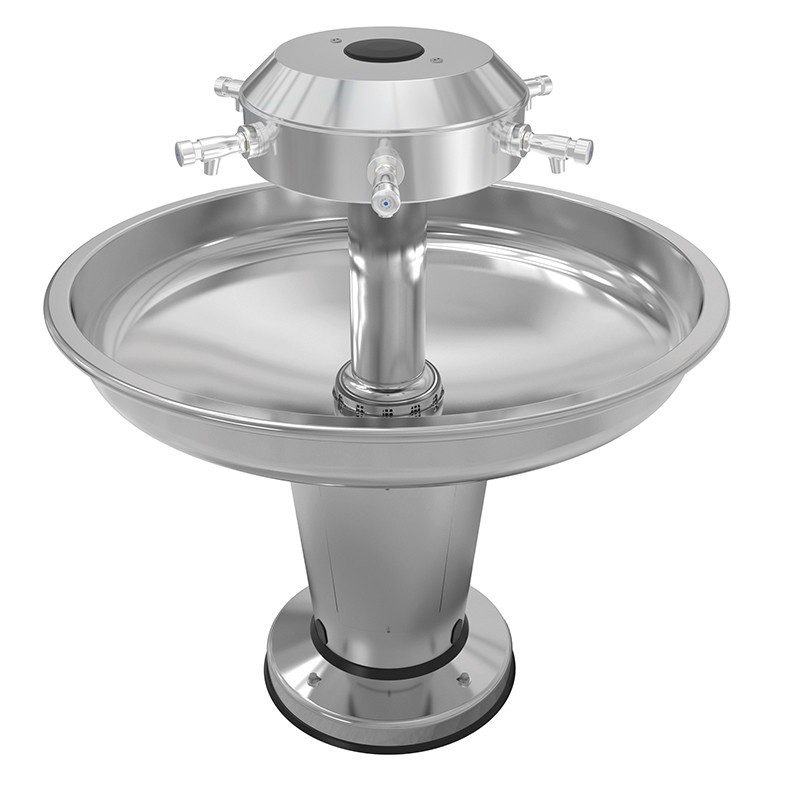

LAGOON free-standing stainless steel circular fountain washbasin with timed faucets

Functional communal handwashing station, space-saving and extremely durable.

LC-04

€6,120.00 Net Price

Tax excluded
Choose a model
Quantity

Free-standing circular stainless steel communal sink with 4, 6, or 8 integrated timed faucets for cold or pre-mixed water.

Time-saving: allows multiple people to wash their hands simultaneously, reducing wait times in efficiency-focused work environments.

- Made from stainless steel for increased strength and durability. Designed for heavy use, it withstands the demands of industrial or high-traffic  environments. Stainless steel is easy to clean and resistant to corrosion, ensuring optimal hygiene.
- The 2 mm thick, one-piece parabolic stainless steel basin provides robustness, optimal drainage, and minimizes splashing. Each faucet is    positioned at ergonomic height and distance for comfortable access. Timed faucets reduce the risk of overflow and conserve water.
- Optional integrated soap dispensers (6L refillable reservoir or, upon request, 800 ml cartridges easily accessible in the head).


   Up to 8 faucets on a single unit:

   - Space-saving and easy circulation
   - Hygienic and stylish
   - Durable for heavy use
   - Easy installation with a single water supply and drain connection



- Timed faucets and pre-mounted pipes with tested sealing.
Faucet maintenance is facilitated with front-mounted stainless steel F1/2” connectors.
Flow duration is 15 seconds (± 5 seconds depending on pressure), with a flow rate of 3 LPM (adjustable in 4 positions without public access).

- Stainless steel pedestal with access panel for water supply and drainage connections.

- Zinc-plated anchor screws. Three sealing gaskets: with the floor, between the pedestal, base, and basin.

- Water supply with M1/2’’ shut-off valve and drainage with 2’’ (Ø 50 mm) trap.

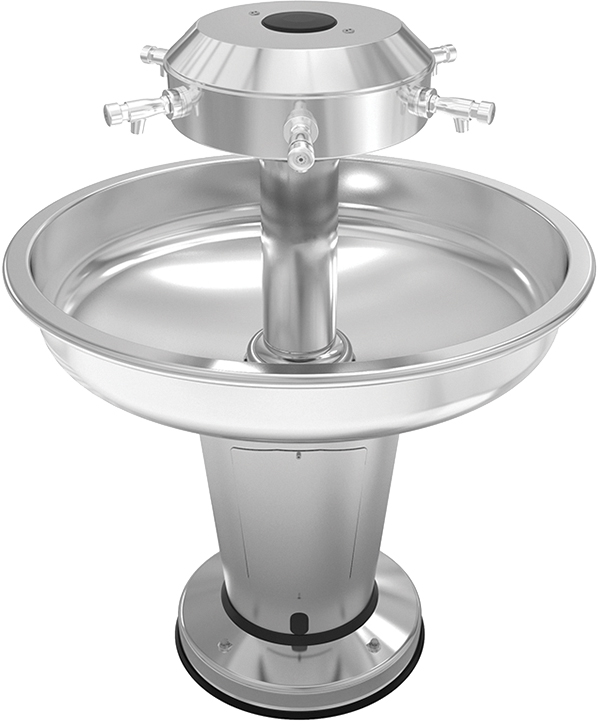

Lavabo fontaine circulaire inox 6 robinets poussoirs vasque Ø 995 mm         Lavabo collectif inox et couleur bleue circulaire

OPTIONS :

  • Integrated push-button soap dispensers with a 6L reservoir, ref. ...-S
  • High basin version 950 mm - Children's height versions: 500 / 600 / 650 mm
  • Integrated thermostatic pre-mixer, ref. ...-TH
  • White synthetic marble basin
  • Stainless steel tube for hiding water supply from above (water inlet through the ceiling), ref. INT-CA2
  • Colored base and/or top
  • Other faucet options: touch-free, manual, mixers, etc.
  • Stainless steel basin Ø 995 mm for 6 faucets or Ø 1370 mm for 8 faucets (depending on spout length)

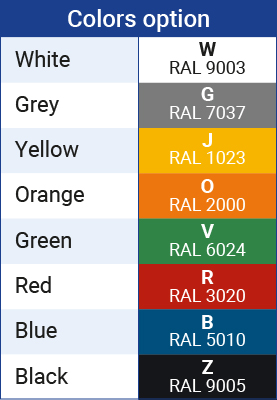

Option couleurs

  • The various faucet options available upon request:
Robinet temporisé Robinet temporisé souple Robinet simple 1/2 tour Robinet levier coude Mitigeur duocommande Mitigeur monocommande Robinet électronique Robinet automatique maternelle

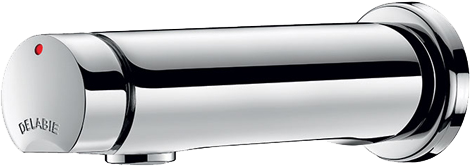

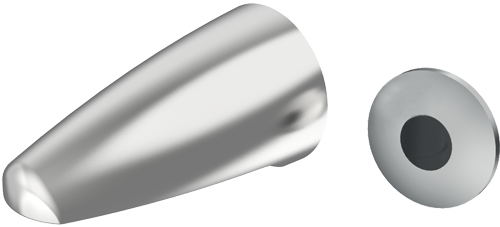

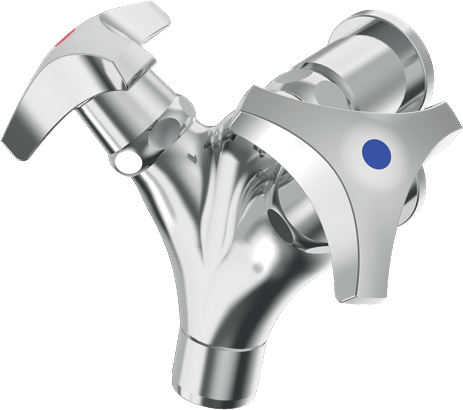

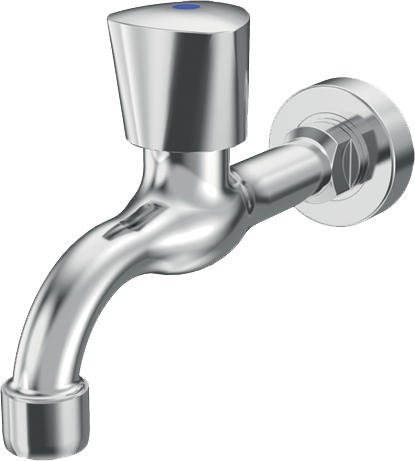

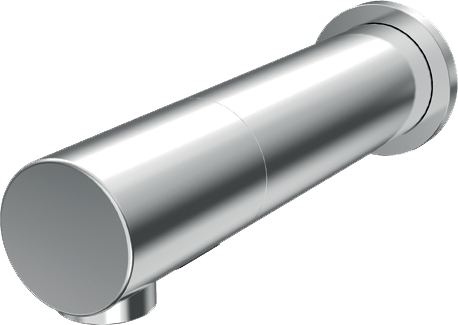

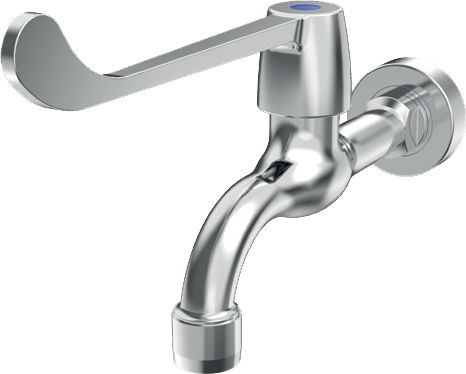

Push-button faucet with front-mounted disassembly M3P (included) Soft push-button faucet M3DS Simple ceramic faucet, 1/2 turn M2 Simple extended lever faucet M4 Dual-control mixer M5 Single-control mixer M6D Touch-free electronic faucet M9 Touch-free electronic faucet M13

  • Soap dispensers available upon request (2 to 4 dispensers) :
Distributeur de savon monocommane sans indicateur de niveau Distributeur de savon monocommande avec poche à savon intégrée Distributeur de savon liquide
Push-button soap dispensers with a 6L tank, ref. INT-SMR Push-button soap dispensers with 800ml soap cartridges integrated into the sink head,
ref. INT-SM.
Liquid soap dispenser to be mounted above the LAGOON sink head, even for later installation, ref. INT-SP.

Soap filling system: For ref. INT-SMR, a chrome cap is integrated into the sink head for top filling of the 6L soap tank.


  • Optional stainless steel tray for soap or nail brushes, mounted on the column below the sink head, ref. INT-ST.
Porte-savon et brosse
  • for ref. INT-SM and INT-SP :
    Soap cartridges ref. INT-AL-HL: Box of 12 x 800ml liquid soap pouches. Universal, mild, and nourishing soap for the skin. Leak-proof connection to ensure 100% use of the contents. Good viscosity: prevents clogging of the soap system. Suitable for public restrooms, schools, sports and leisure facilities, light industry, etc.
    Powerful soap cartridges ref. INT-AL-HDL: Box of 12 x 800ml liquid soap pouches. Mild on the skin and deep cleaning. Suitable for heavy industry, garages, workshops, etc. Refreshing fragrance.
Poche à savon

  • Ref. INT-DS42 : Support for 3 hand towel dispensers on the sink head (mirror optional).
    Incompatible with soap dispensing systems that have 800ml cartridges integrated into the sink head (ref. INT-SM).
Support 3 distributeurs de papier
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
Basin 2 mm / feet 2,5 mm
Finish
Polished / satin
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Fixation
Floor mounted
Dimensions
Ø 995 mm x H1250 mm (basin height 850 mm)
Ø 1130 mm x H1250 mm (tank height 850 mm)

3d_rotation LC-08 (dwg)
