Touchless behind-mirror soap dispenser

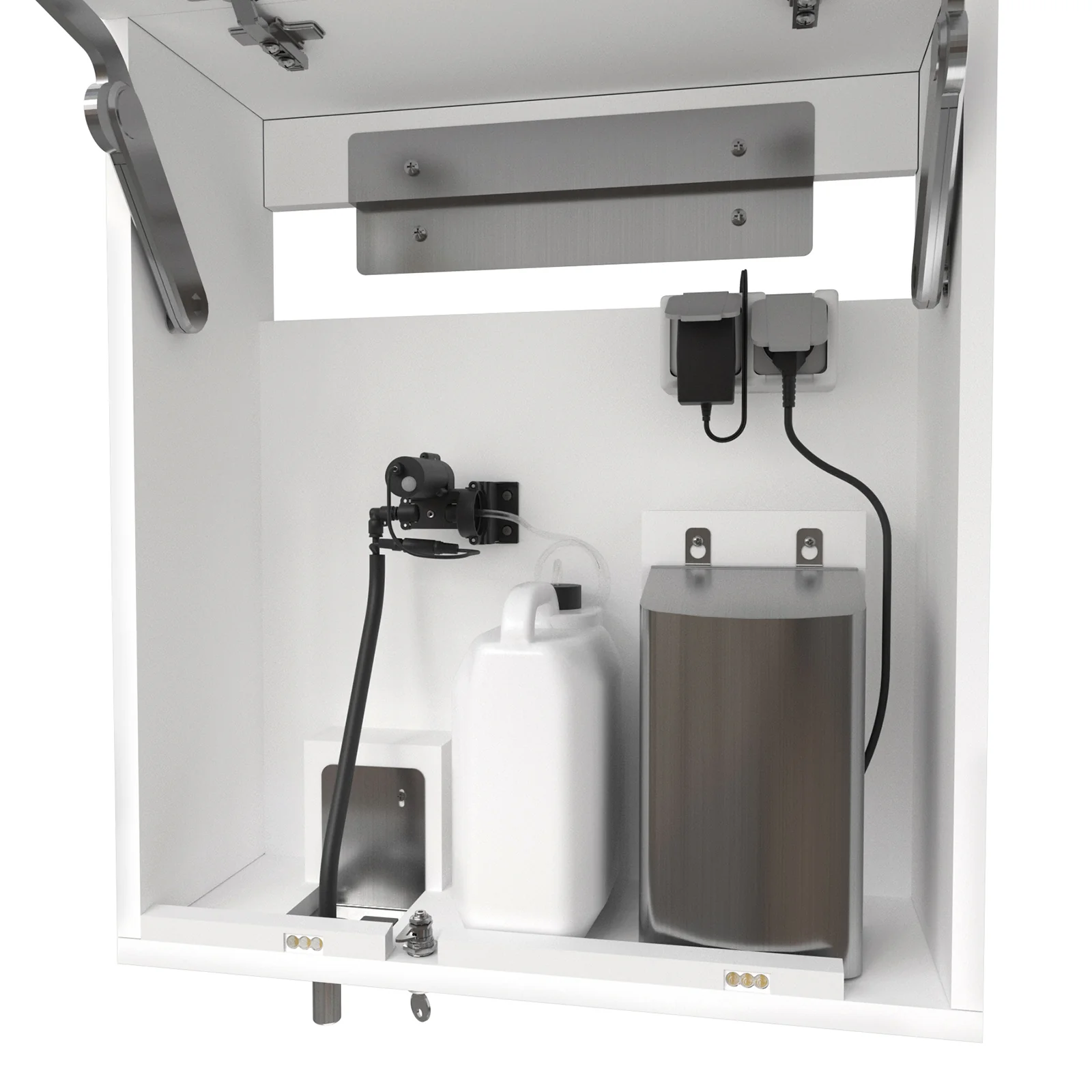

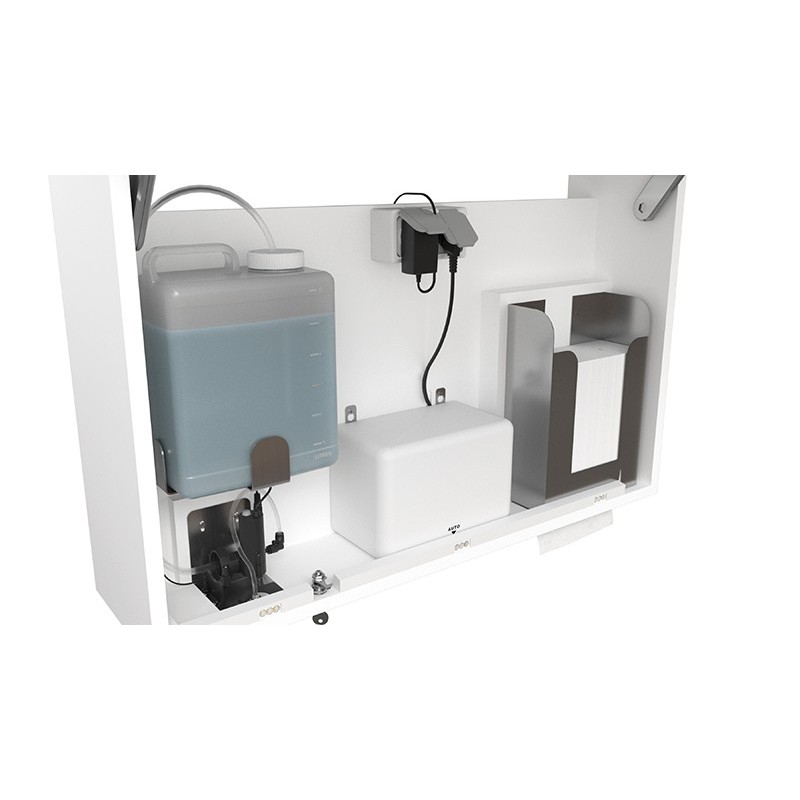

Easy to use, can be combined with a paper towel dispenser or an integrated hand dryer above the washbasin.

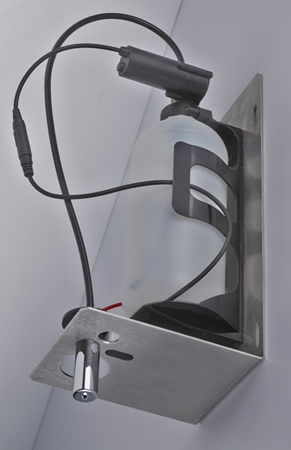

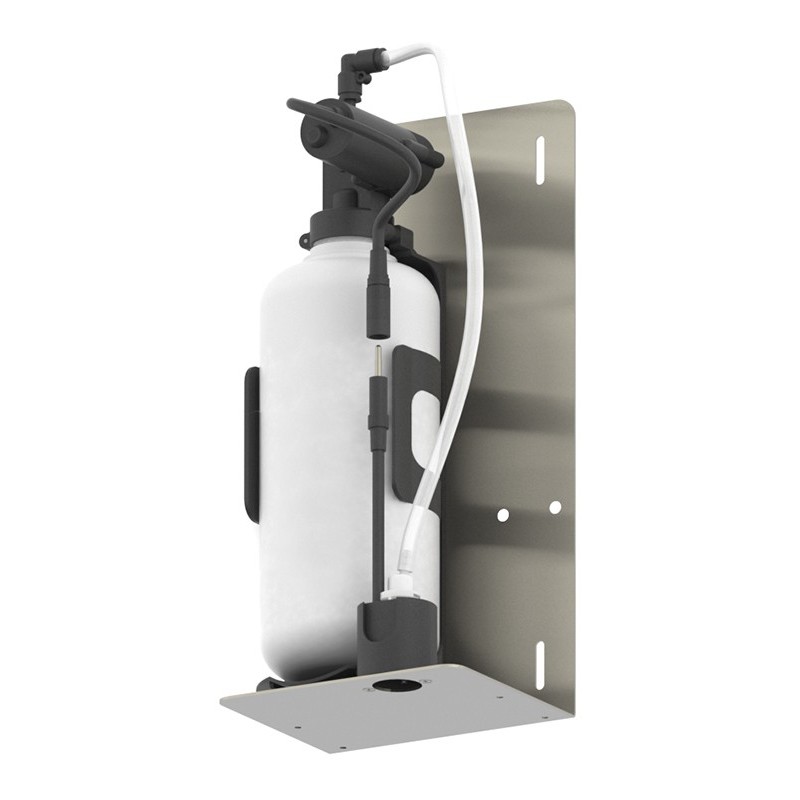

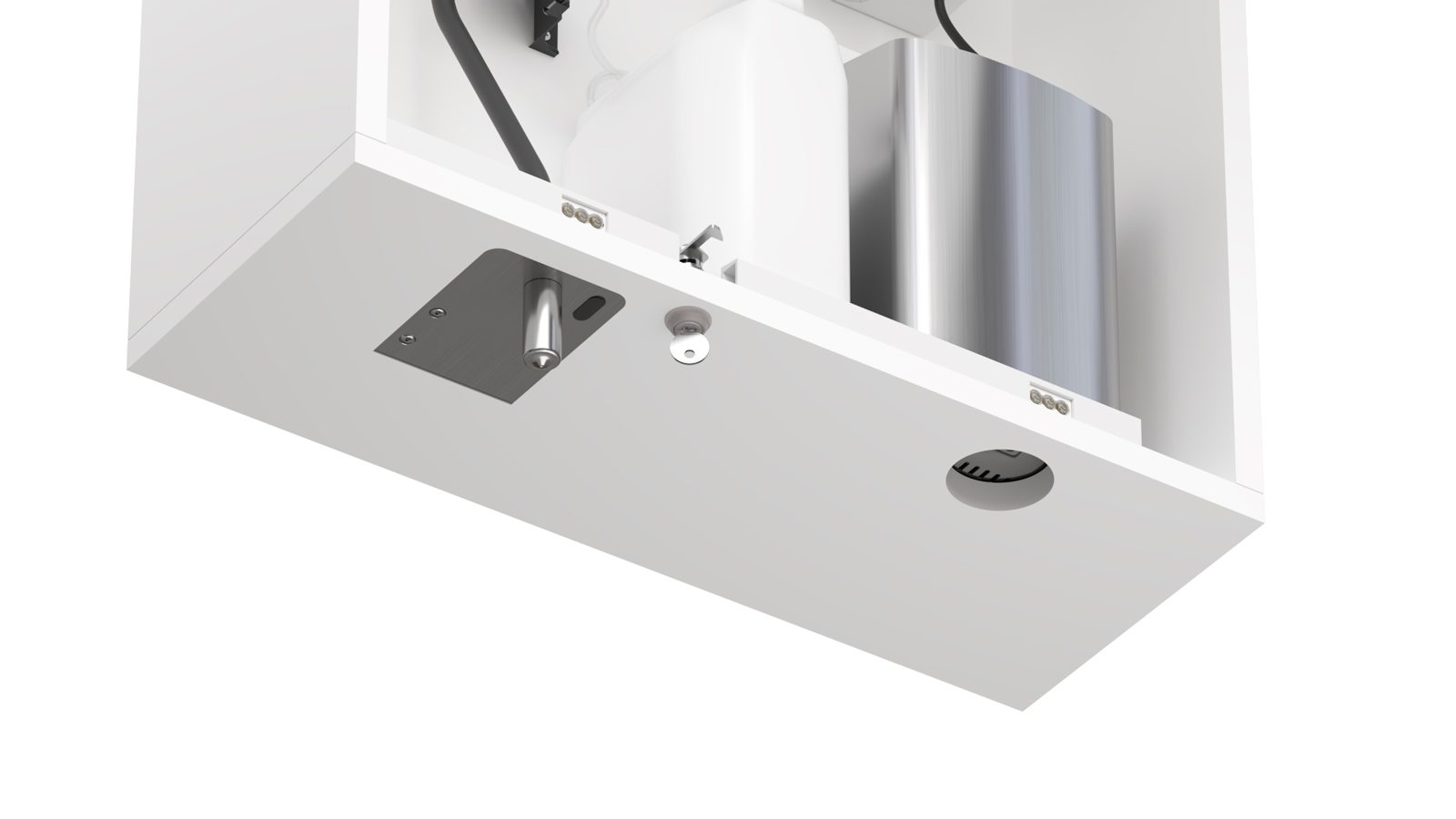

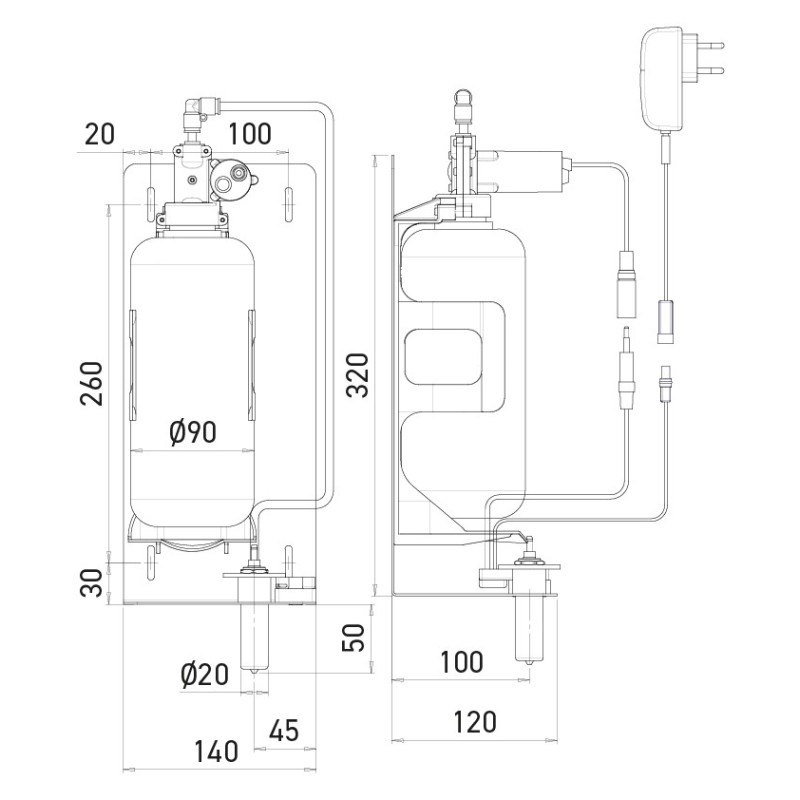

Automatic soap dispenser with infrared detection, designed for discreet integration behind a mirror.

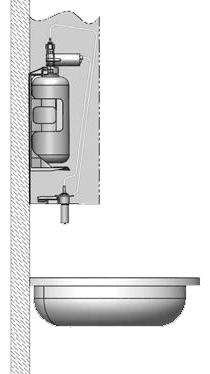

Both functional and aesthetic, it is installed above the washbasin to provide a clean, tidy, and hygienic handwashing area.
The soap is dispensed touch-free: simply bring your hand close to receive the dose, reducing contact and the spread of germs.
Advantages
-
Creates a hygienic, automated environment
-
Dispenses a precise dose of soap
-
Automatic stop: no dripping after dispensing
-
Vertical chrome-plated brass spout to guide hand positioning
-

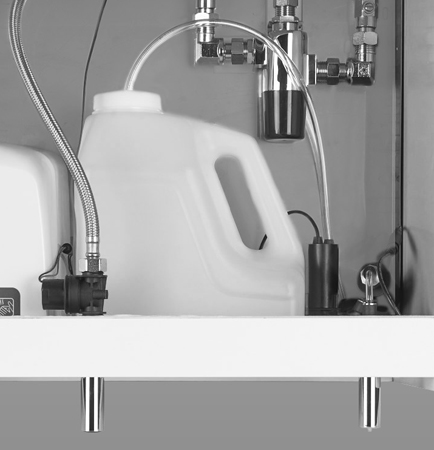

Easy-refill 1 L plastic reservoir (optional 6 L reservoir, or direct connection to a standard 5 L commercial container)
-
Peristaltic pump: compatible with any liquid soap, detergent, lotion, or antibacterial gel
-
Cost-effective solution, ideal for high-traffic washrooms
-

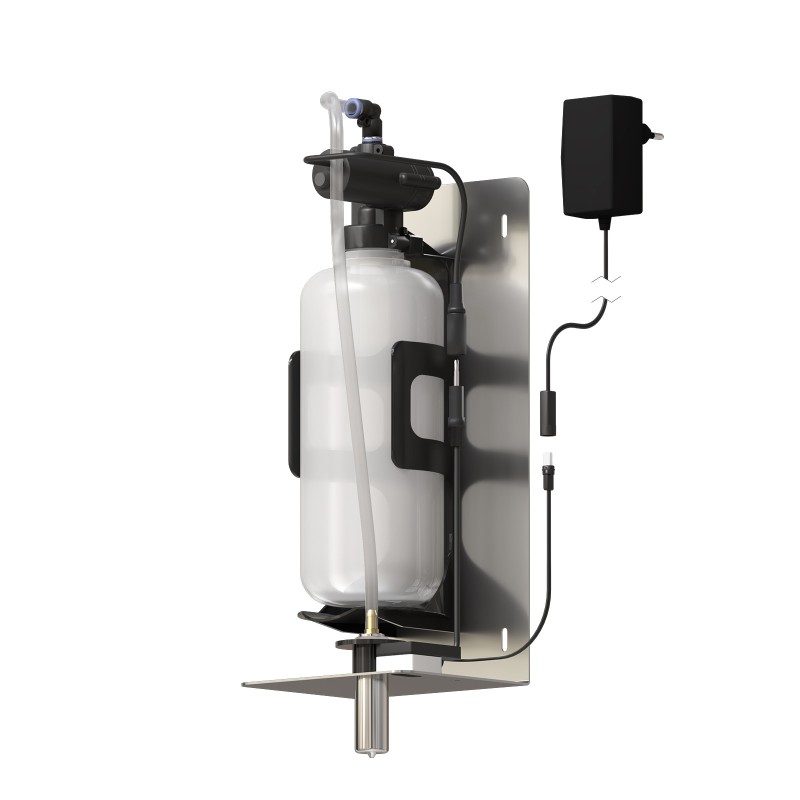

Powered by a 230/12 V transformer or 6 LR20 (D-cell) batteries (not included)
-
Optional remote control to adjust the dispensed dose
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 1 L tank (6 L option)
- Soap type
- Liquid
- Dosage
- 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Brass
- Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Warranty
- 3 years
- Soap details
- Liquid soap (viscosity 100 -3800 cPs)
- Tank capacity
- 1 to 1.5 L
Automatic soap dispenser with infrared detection, designed for discreet integration behind a mirror.
Both functional and aesthetic, it is installed above the washbasin to provide a clean, tidy, and hygienic handwashing area.
The soap is dispensed touch-free: simply bring your hand close to receive the dose, reducing contact and the spread of germs.
Advantages
-
Creates a hygienic, automated environment
-
Dispenses a precise dose of soap
-
Automatic stop: no dripping after dispensing
-
Vertical chrome-plated brass spout to guide hand positioning
-
Easy-refill 1 L plastic reservoir (optional 6 L reservoir, or direct connection to a standard 5 L commercial container)
-
Peristaltic pump: compatible with any liquid soap, detergent, lotion, or antibacterial gel
-
Cost-effective solution, ideal for high-traffic washrooms
-
Powered by a 230/12 V transformer or 6 LR20 (D-cell) batteries (not included)
-
Optional remote control to adjust the dispensed dose
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 1 L tank (6 L option)
- Soap type
- Liquid
- Dosage
- 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Brass
- Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Warranty
- 3 years
- Soap details
- Liquid soap (viscosity 100 -3800 cPs)
- Tank capacity
- 1 to 1.5 L
