Photo Circular communal pedestal sink with 6 touch-free faucets, Ø 1130 mm, offering space-saving design and smooth circulation. LC-04-E
  • Miniature-0 Circular communal pedestal sink with 6 touch-free faucets, Ø 1130 mm, offering space-saving design and smooth circulation. LC-04-E

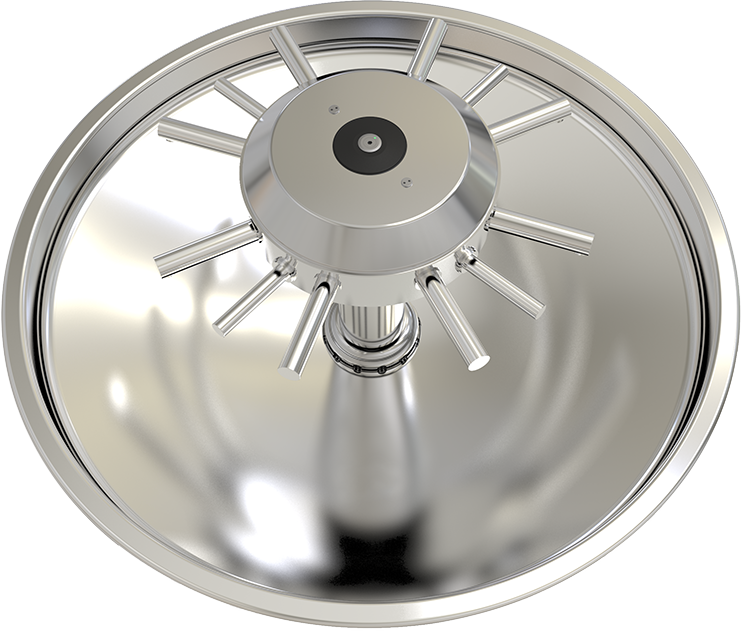

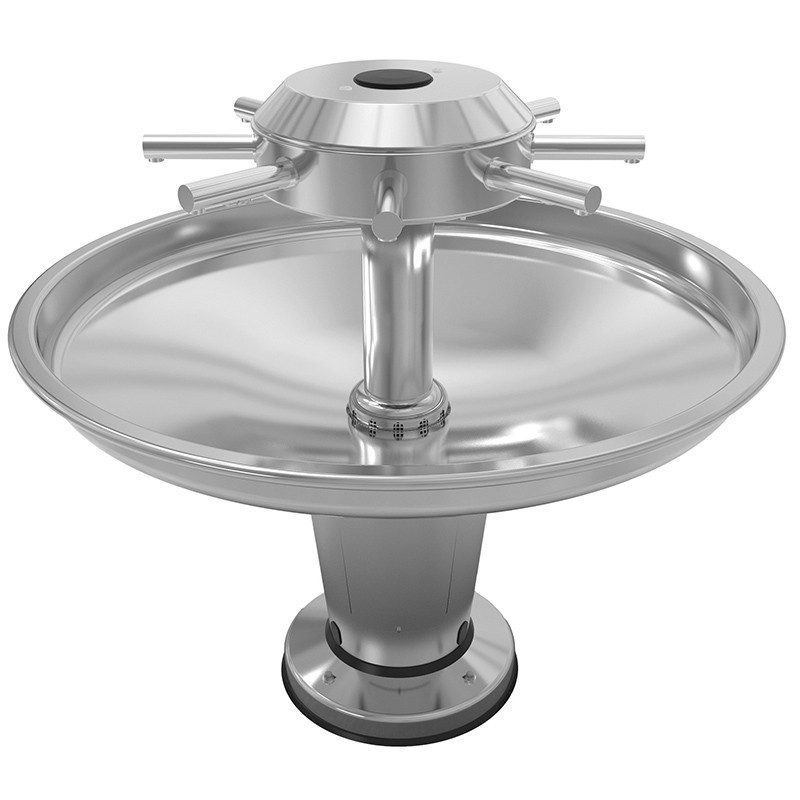

  • Miniature-1 LAGOON circular automatic stainless steel communal sink on a pedestal, 8 stations, Ø 1370 mm LC-04-E

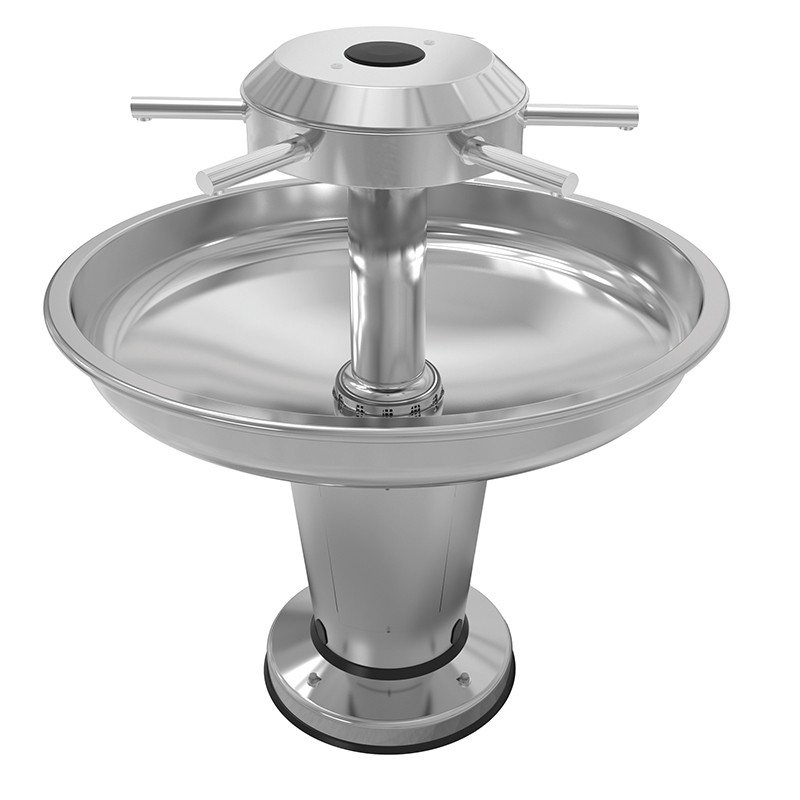

LAGOON free-standing stainless steel circular fountain washbasin with touch-free faucets

Space-saving solution with automatic faucets for optimal hygiene.

LC-04-E

€7,611.00 Net Price

Tax excluded
Choose a model
Electrical supply
Quantity

Free-standing circular AISI 304 stainless steel communal sink with 4, 6, or 8 touch-free faucets for cold or pre-mixed water.

Optimizes available space, allowing smooth circulation around the sink and saving time by reducing wait times.

Automatic faucets control water usage, preventing waste and reducing the risk of cross-contamination.

The polished stainless steel circular basin, 2 mm thick, pressed in one parabolic piece, ensures optimized water flow and minimizes splashing. Stainless steel is highly durable, resistant to impacts and wear.

  • Infrared detection faucets and pre-connected pipes with tested sealing.
    Powered by transformer or batteries.
    Security stop after 90 seconds without interruption.
    Flow rate of 6LPM (available upon request: 3LPM, 1.9LPM).
    Periodic anti-legionella rinsing.

  • Optional integrated soap dispensers: touch-free sensor version (transformer-powered) version and push-button version for battery-operated faucets.
    6L tank with easy top filling with a chrome cap.
    Transformer-powered version includes a color-coded soap level indicator: Green - Orange - Red.

  • Stainless steel pedestal with access panel for water supply and drainage connections.

  • Zinc-plated anchor screws. Three seals: with the floor, between the leg, base, and basin.

  • Water supply via M1/2’’ shut-off valve and drainage through 2’’ (Ø 50 mm) trap.


   Up to 8 faucets on a single unit:

   - Space-saving and easy circulation
   - Hygienic and stylish
   - Durable for heavy use
   - Easy installation with a single water supply and drain connection

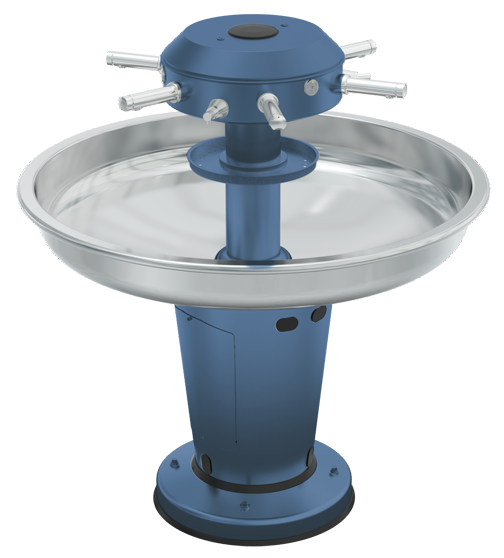

Lavabo collectivites inox LAGOON avec eau et savon sans contact         Lavabo collectif inox et couleur bleue circulaire



OPTIONS :

  • Integrated soap dispensers with 6L reservoir and low soap level indicator LED (transformer powered) ref. ...-S
    Push-button soap dispensers for battery-operated faucets
  • Remote control for faucet sensor settings ref. RES-31
  • Basin heights: raised 950 mm / children 500, 600, or 650 mm
  • Integrated thermostatic pre-mixer ref. ...-TH
  • Basin in white synthetic marble
  • Stainless steel basin Ø 995 mm for 6 faucets 1370 mm for 8 faucets (depending on spout length)
  • Colored base and/or top (RAL shades available upon request)
  • Stainless steel tube concealing top feed (water supply from ceiling) ref. INT-CA2
  • Other faucets: touch-free, manual, mixers...
Option couleurs

  • The various faucet options available upon request:
Robinet temporisé Robinet temporisé souple Robinet simple 1/2 tour Robinet levier coude Mitigeur duocommande Mitigeur monocommande Robinet électronique Robinet automatique maternelle

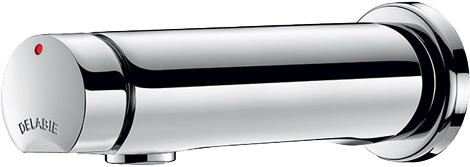

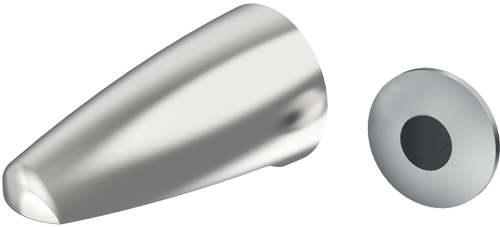

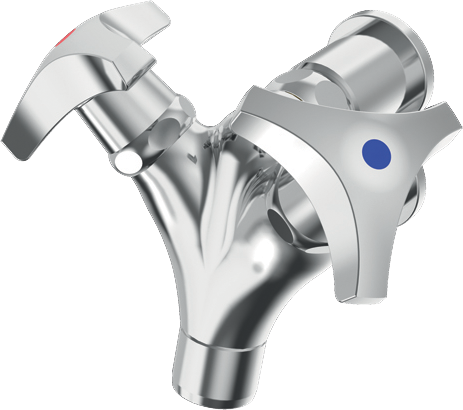

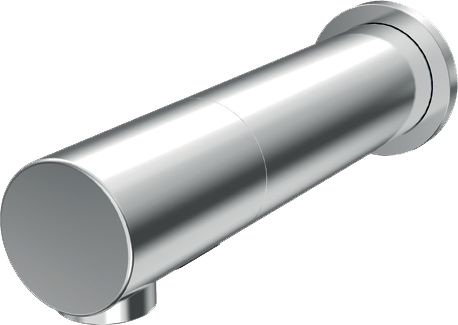

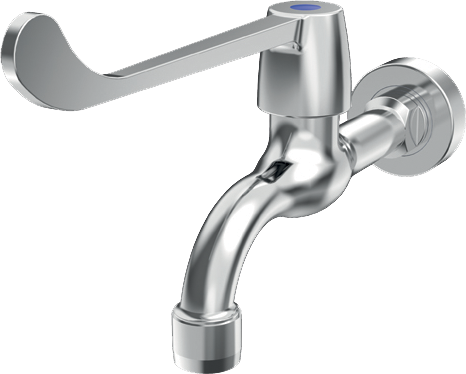

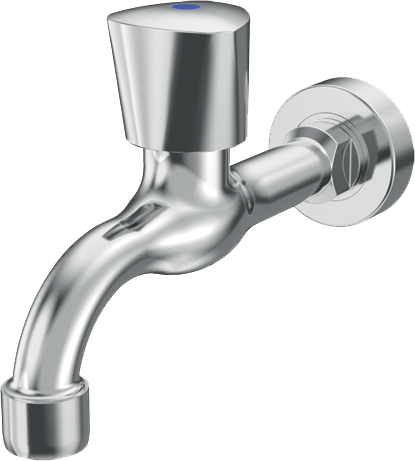

Push-button faucet with front-mounted disassembly M3P (included) Soft push-button faucet M3DS Simple ceramic faucet, 1/2 turn M2 Simple extended lever faucet M4 Dual-control mixer M5 Single-control mixer M6D Touch-free electronic faucet M9 Touch-free electronic faucet M13

  • Soap dispensers available upon request (2 to 4 dispensers) :
Distributeur savon électronique avec indicateur de niveau Distributeur de savon bouton poussoir Distributeur de savon monocommane sans indicateur de niveau Distributeur de savon monocommande avec poche à savon intégrée Distributeur de savon liquide

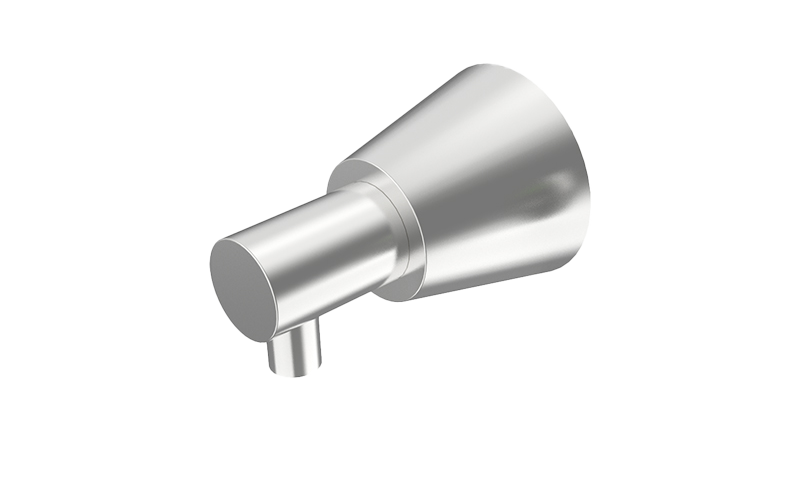

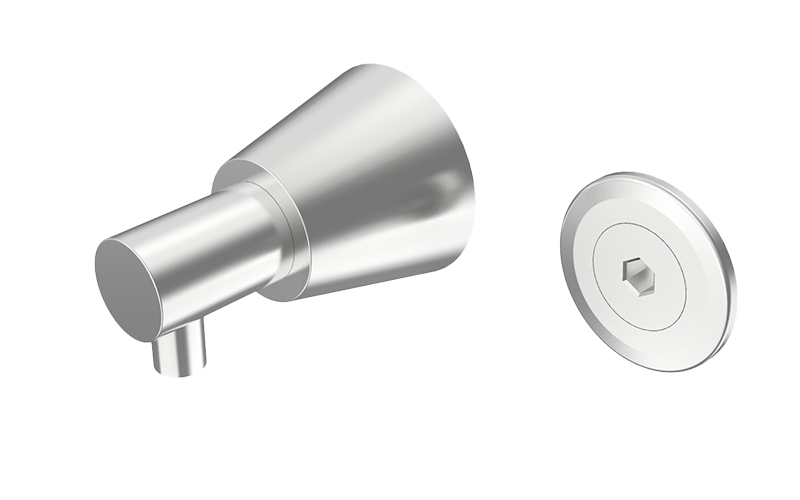

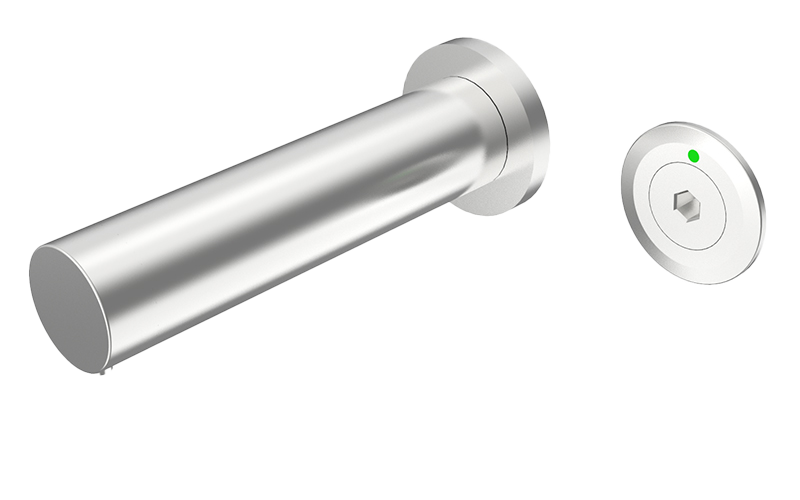

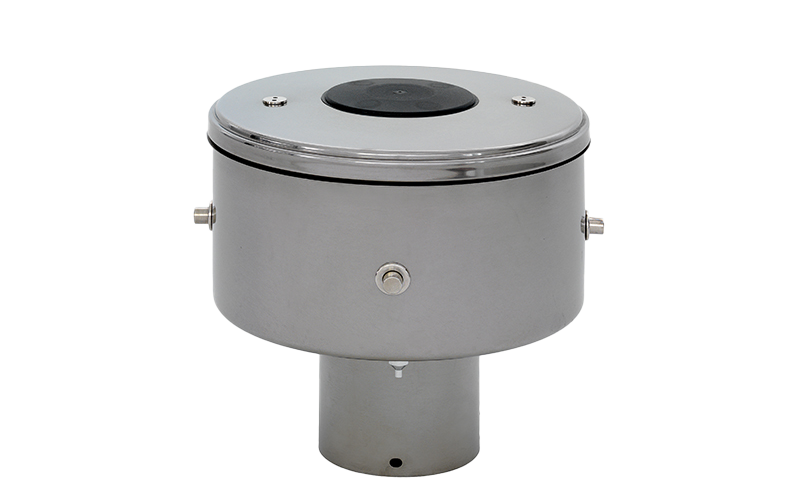

Touch-free soap dispensers with a 6L tank and integrated level indicator in the sink head, ref. INT-SERE Push-button soap dispensers with a 6L tank and integrated level indicator in the sink head, ref. INT-SMRE (transformer-powered version only) Push-button soap dispensers with a 6L tank without soap level indicator ref. INT-SMR Push-button soap dispensers with 800ml soap cartridges integrated into the sink head, ref. INT-SM Liquid soap dispenser to be mounted above the LAGOON sink head, even for later installation, ref. INT-SP

Soap Filling System: For ref. INT-SERE, INT-SMRE, and INT-SMR, a chrome cap is integrated into the sink head for top filling of the 6L soap tank. The soap level can be easily checked with the optional level indicator (green/orange/red LED) on the cap, integrated on the side of the sink head.

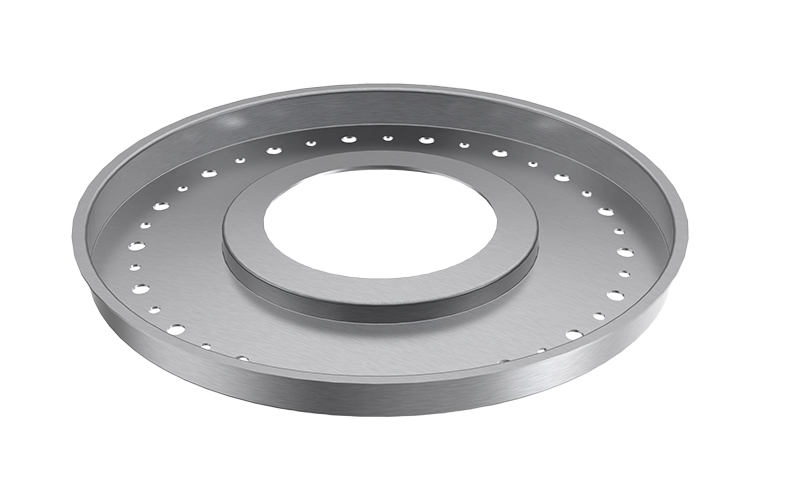

  • Optional stainless steel tray for soap or nail brushes, mounted on the column below the sink head, ref. INT-ST.
Porte-savon et brosse
  • for ref. INT-SM and INT-SP :

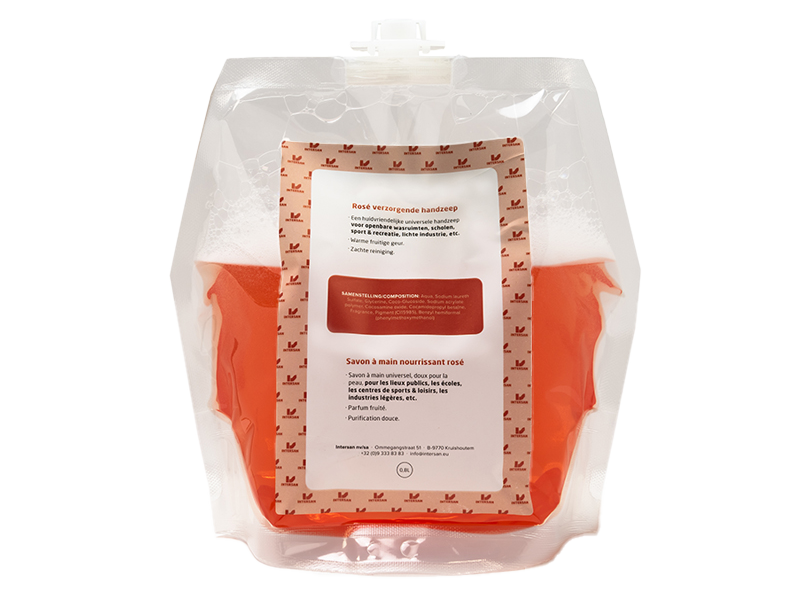

    Soap cartridges ref. INT-AL-HL: Box of 12 x 800ml liquid soap pouches. Universal, mild, and nourishing soap for the skin. Leak-proof connection to ensure 100% use of the contents. Good viscosity: prevents clogging of the soap system. Suitable for public restrooms, schools, sports and leisure facilities, light industry, etc.
    Powerful soap cartridges ref. INT-AL-HDL: Box of 12 x 800ml liquid soap pouches. Mild on the skin and deep cleaning. Suitable for heavy industry, garages, workshops, etc. Refreshing fragrance.
Poche à savon

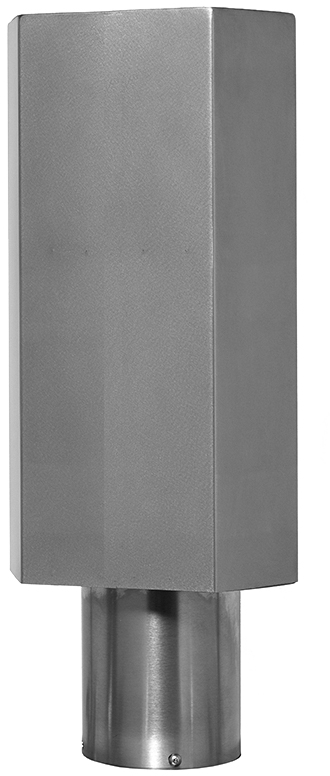

  • Ref. INT-DS42 : Support for 3 hand towel dispensers on the sink head (mirror optional).
    Incompatible with soap dispensing systems that have 800ml cartridges integrated into the sink head (ref. INT-SM).
Support 3 distributeurs de papier
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
Basin 2 mm / feet 2,5 mm
Finish
Polished / satin
Tap sensor
Infrared autoadjustable
Electrical supply
9V alkaline batteries or 230/9V transformer
Security off
After 90 seconds without interruption (adjustable)
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
0.3 - 8 bars
Max. temperature eligible
70°C
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Fixation
Floor mounted
Dimensions
Ø 995 mm x H1250 mm (basin height 850 mm)
Ø 1130 mm x H1250 mm (basin height 850 mm)
Ø 1370 mm x H1250 mm (basin height 850 mm)
