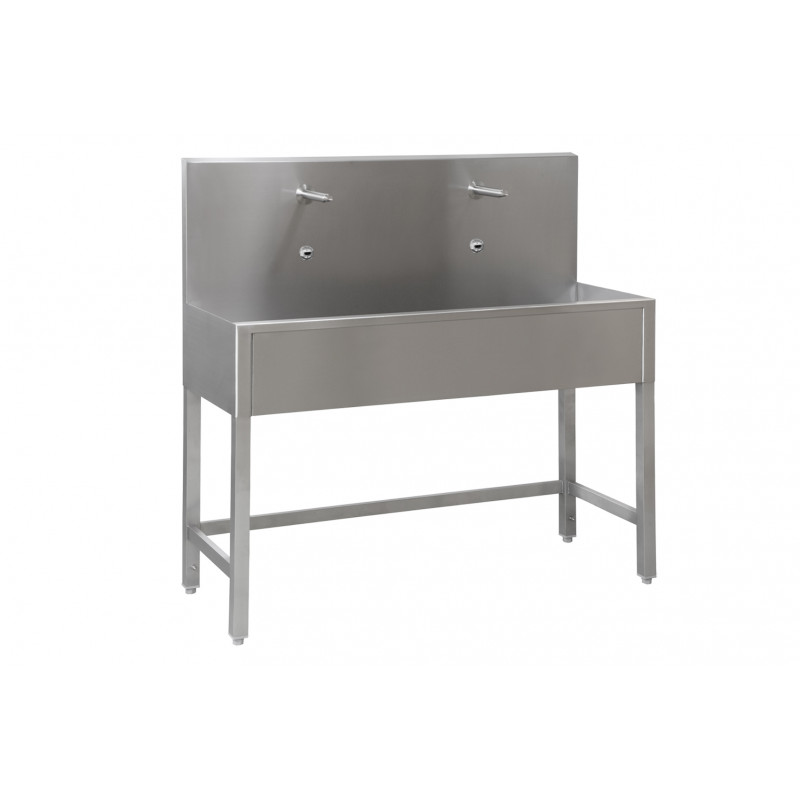

Collective wash basin on foot with electronic faucets integrated
Installation without wall fixation
Technical sheet & documents
No technical sheet available for this reference. Request the sheet

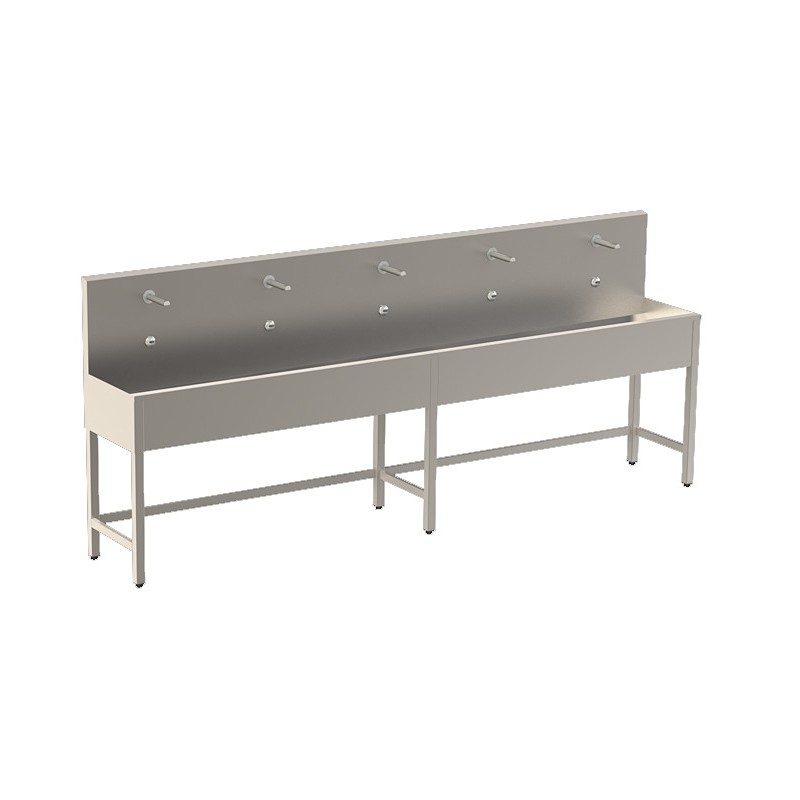

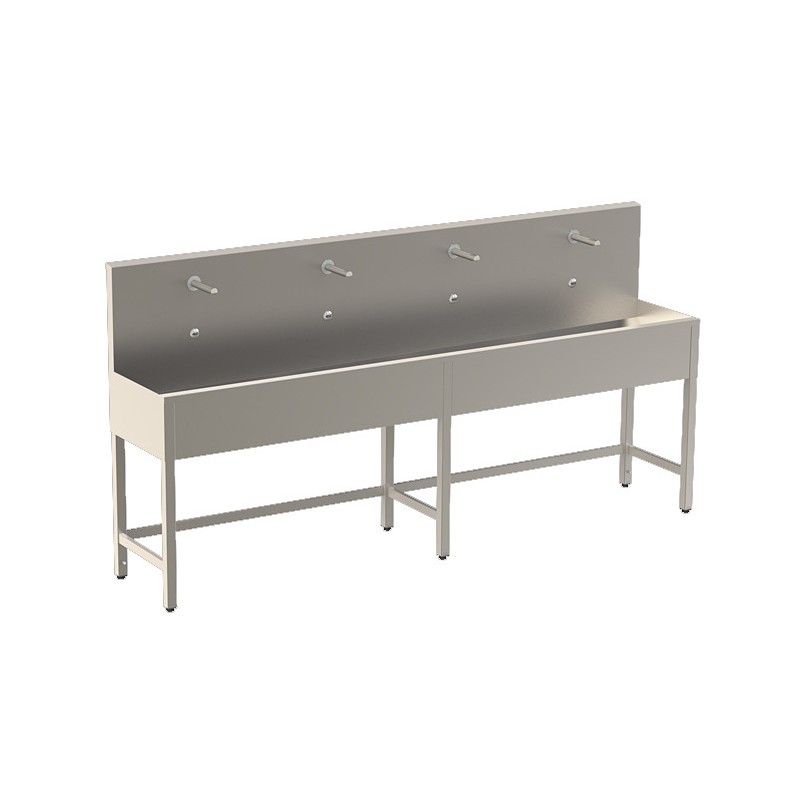

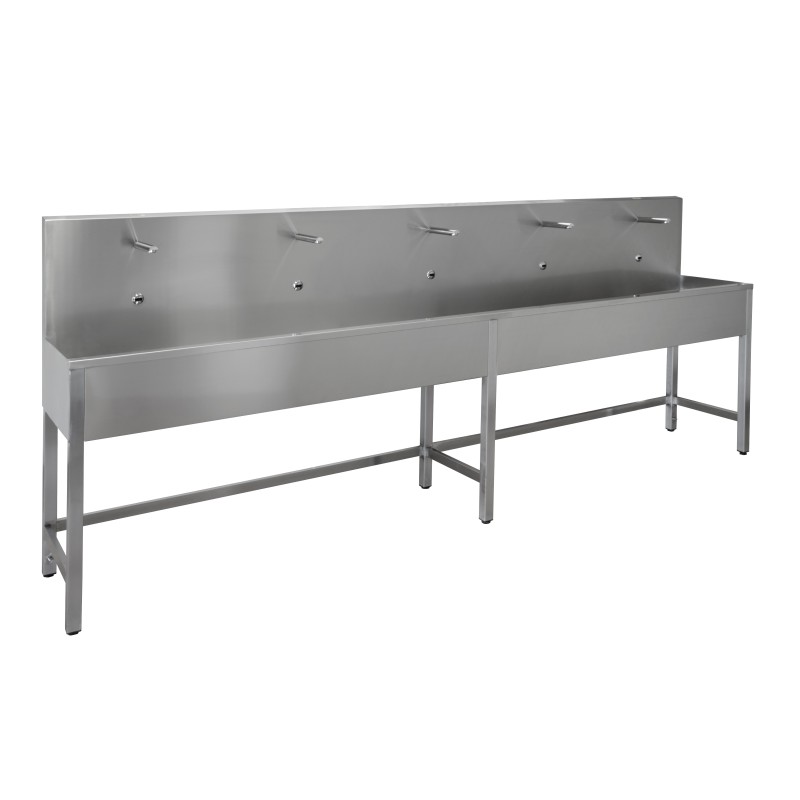

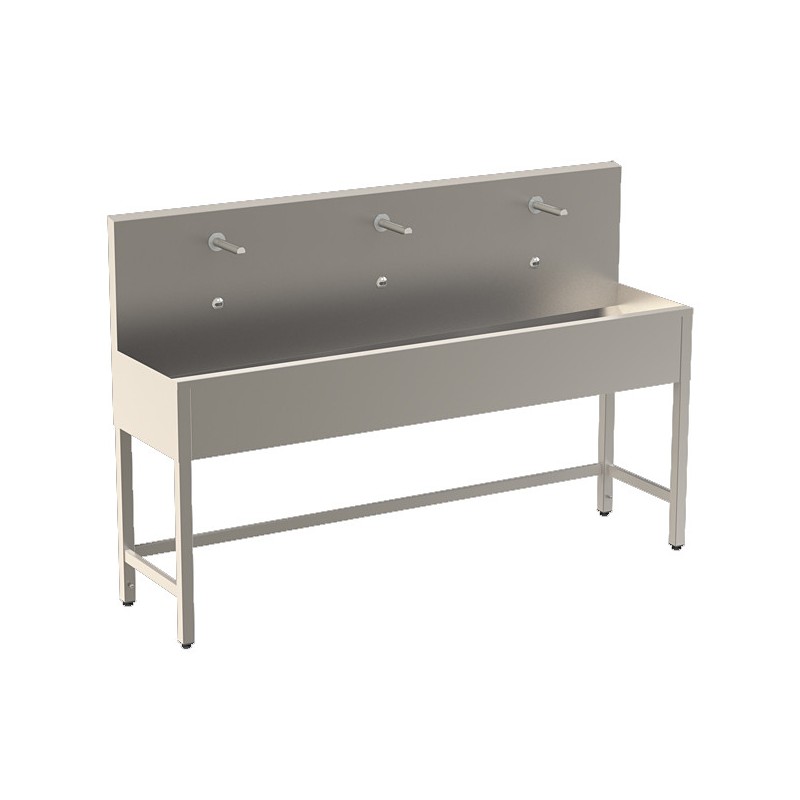

COLLECTIVE WASH BASIN ON FOOT IN STAINLESS STEEL FROM 2 TO 5 PLACES, WITH ELECTRONIC TAPS INTEGRATED
Solution in case of impossibility to fix to the wall.
Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP = the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.
- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes,
- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.
- External transformer 230/24V in sus.
- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Floor mounted
- Mounting details
- On feet
- Dimensions
- W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)
COLLECTIVE WASH BASIN ON FOOT IN STAINLESS STEEL FROM 2 TO 5 PLACES, WITH ELECTRONIC TAPS INTEGRATED
Solution in case of impossibility to fix to the wall.
Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP = the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.
- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes,
- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.
- External transformer 230/24V in sus.
- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Floor mounted
- Mounting details
- On feet
- Dimensions
- W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)
