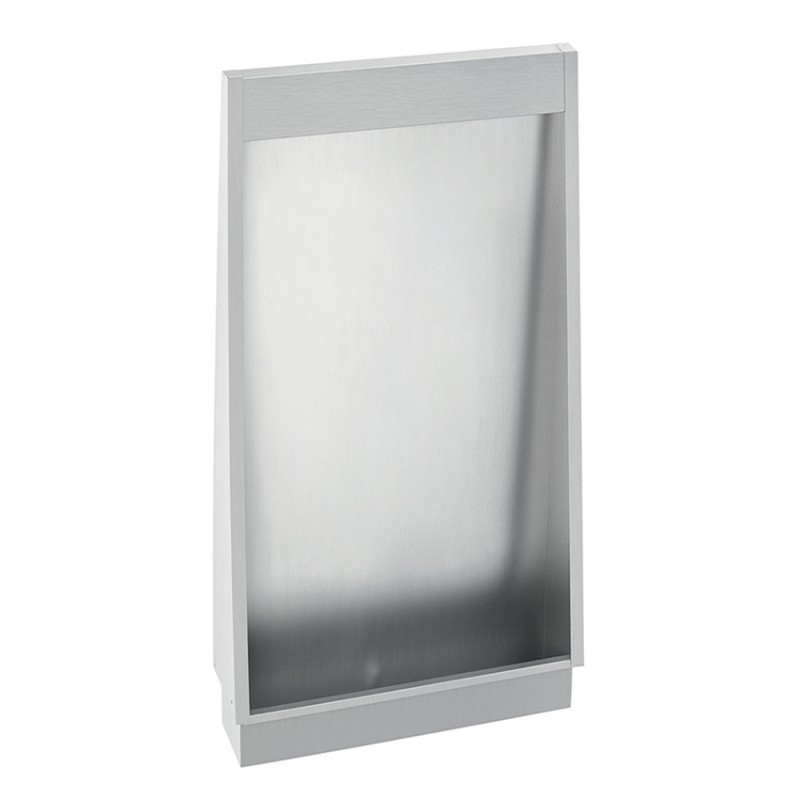

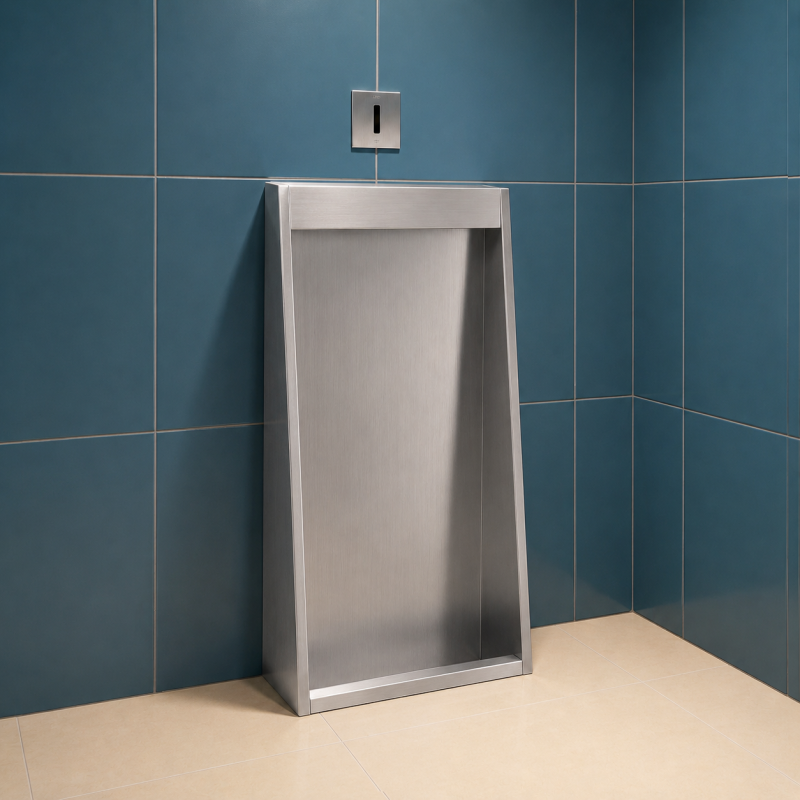

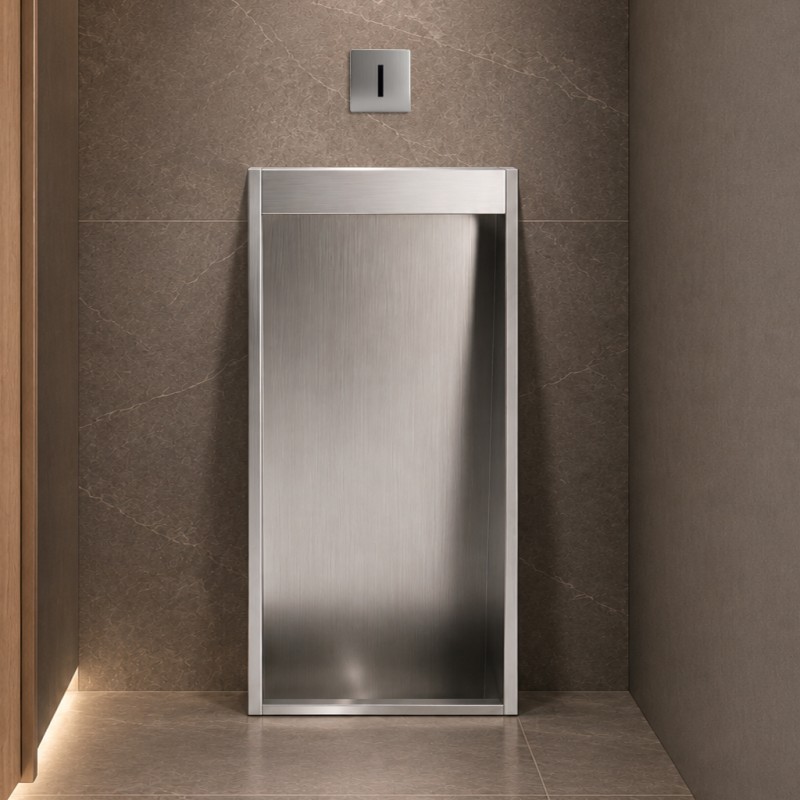

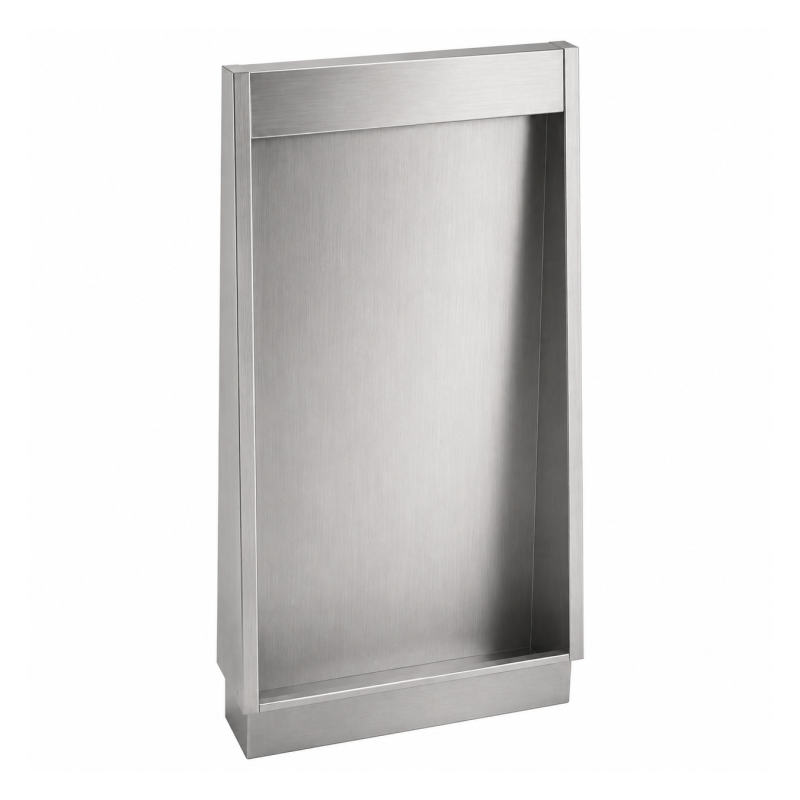

Recessed s. steel through urinal, in L, in U, custom made
with a complete rinse on the side by ramp in stainless steel dismoutable
Technical sheet & documents
No technical sheet available for this reference. Request the sheet
Recessed through urinal in stainless steel modular for serial installation, in L, in U, custom made...
- Specially made for a simplified maintenance, with a large modularity depending on a desired configuration.
- Complete rinse by ramp perforated stainless steel, water wall effect = plumbing connexions accessible and removable rinse ramp.
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Fixing
- Wall mounted

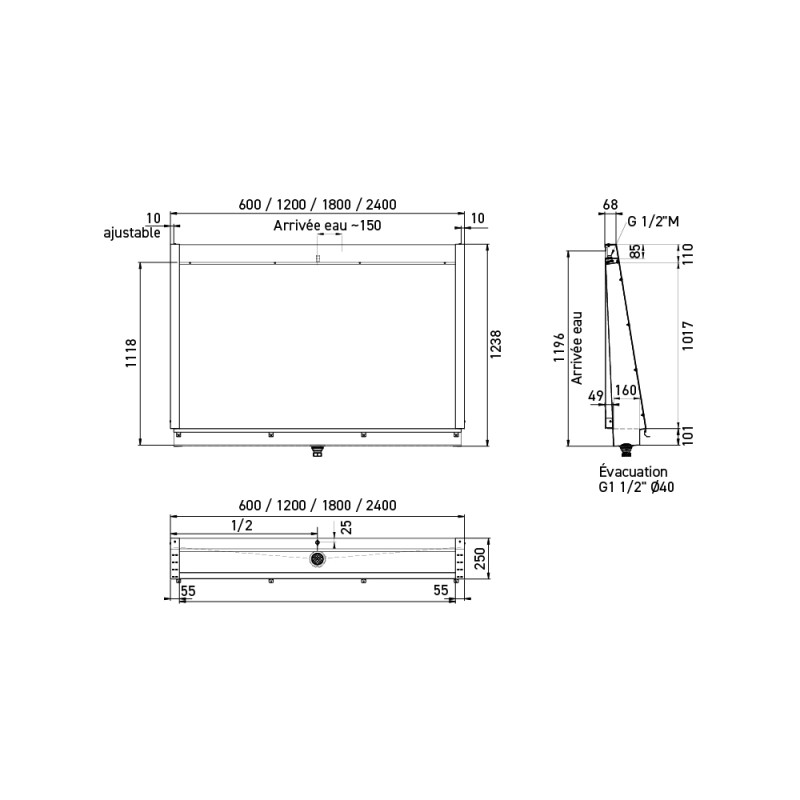

Floor mounted - Dimensions
- W600 x D240 x H1222 mm
W1200 x D240 x H1222 mm
W1800 x D240 x H1222 mm
W2400 x D240 x H1222 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
Recessed through urinal in stainless steel modular for serial installation, in L, in U, custom made...
- Specially made for a simplified maintenance, with a large modularity depending on a desired configuration.
- Complete rinse by ramp perforated stainless steel, water wall effect = plumbing connexions accessible and removable rinse ramp.
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Fixing
- Wall mounted
Floor mounted - Dimensions
- W600 x D240 x H1222 mm
W1200 x D240 x H1222 mm
W1800 x D240 x H1222 mm
W2400 x D240 x H1222 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
