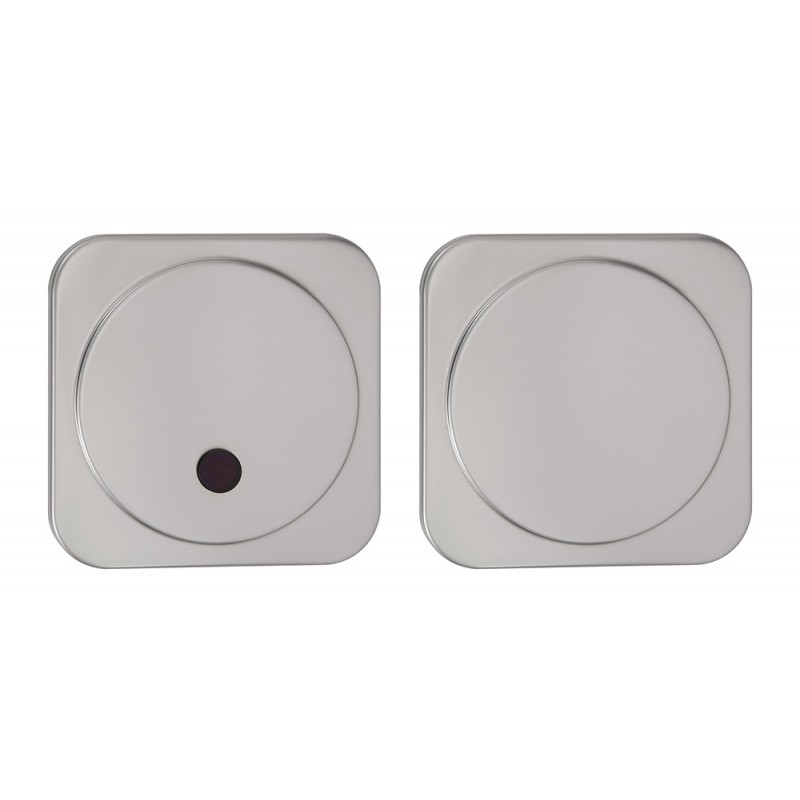

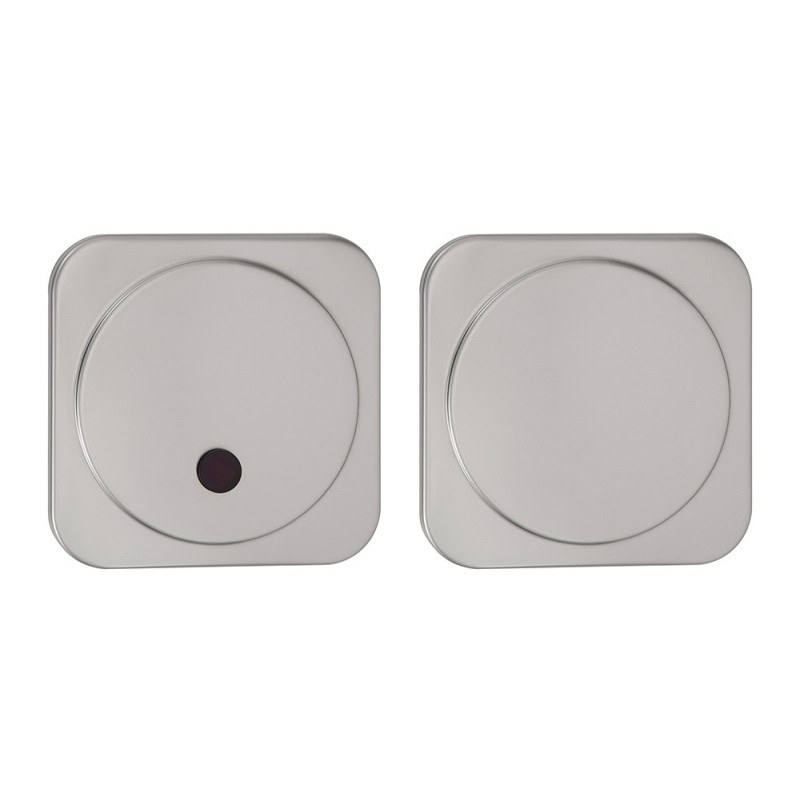

Electronic multi-urinal faucet with infrared beam
for a simultaneous trigger of several urinals or just the one...
Electronic infrared flush for battery urinals or urinal through
Presence detection by infrared beam and automatic urinal flushing, for a set run time, without hand contact.
Hygienic and economical.
Features:
- Simultaneous flush of individual urinals or collective urinal through

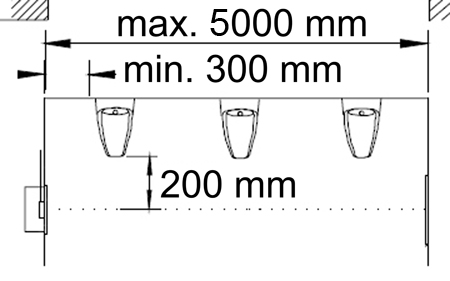

- Distance between the electronic unit and the reflector max. 5 m
- Simultaneous urinal flush after all the users have departed
- Adjustable flush duration from 0,5 to 15,5 sec.
- ON/OFF function
- Hygienic anti legionella periodical rinse after 24H
- Adjustable settings by remote control Ref. SLD03
- Sensor
- Infrared
- Power supply
- Embedded 230V transformer
- Consumption
- 5 W
- Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 304 stainless steel
- Finish
- Brushed
- Water inlet
- 1"
- Water inlet thread
- Male
- Water outlet
- M1'' threaded
- Pressure
- 1-6 bars
- Flush time
- 0.5 to 15.5 sec. adjustable
- Flow rate
- Operation settings
- Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...
- Dimensions
- Warranty
- Electronics 5 years
Electronic infrared flush for battery urinals or urinal through
Presence detection by infrared beam and automatic urinal flushing, for a set run time, without hand contact.
Hygienic and economical.
Features:
- Simultaneous flush of individual urinals or collective urinal through
- Distance between the electronic unit and the reflector max. 5 m
- Simultaneous urinal flush after all the users have departed
- Adjustable flush duration from 0,5 to 15,5 sec.
- ON/OFF function
- Hygienic anti legionella periodical rinse after 24H
- Adjustable settings by remote control Ref. SLD03
- Sensor
- Infrared
- Power supply
- Embedded 230V transformer
- Consumption
- 5 W
- Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 304 stainless steel
- Finish
- Brushed
- Water inlet
- 1"
- Water inlet thread
- Male
- Water outlet
- M1'' threaded
- Pressure
- 1-6 bars
- Flush time
- 0.5 to 15.5 sec. adjustable
- Flow rate
- Operation settings
- Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...
- Dimensions
- Warranty
- Electronics 5 years
