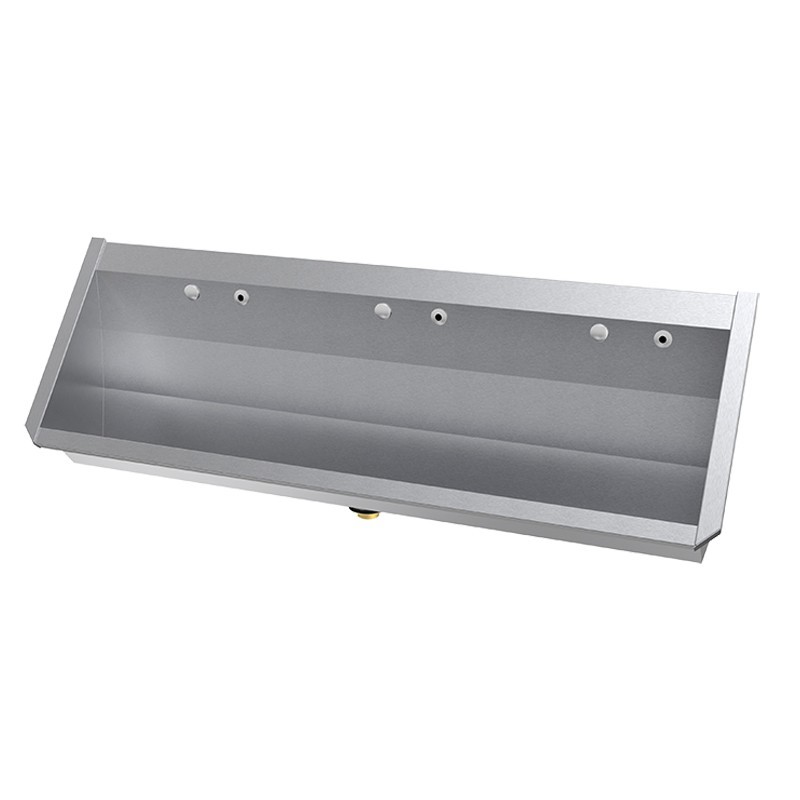

Wall-mounted stainless steel communal urinal with integrated electronic fittings

URCO-1 wall-mounted communal stainless steel urinal with integrated touch-free electronic flush valves, designed for 2 to 5 users, combining hygiene, safety, and full functionality.

Available in custom sizes and perfectly suited for serial installations.

Vandal-proof.

Welded inside, without grooves to avoid rusting or dirt accumulation.
Inner angles greater than 90° along the length of the urinal to facilitate cleaning and prevent stagnant liquid inside or outside the urinal.

Infrared sensor powered by 9V battery or 230/9V transformer.

Settings adjustable with remote control (detection range, pre-flush user presence time, flush time, periodic flush, temporary stop...).

Low battery indicator light for replacement.

Periodic flush.

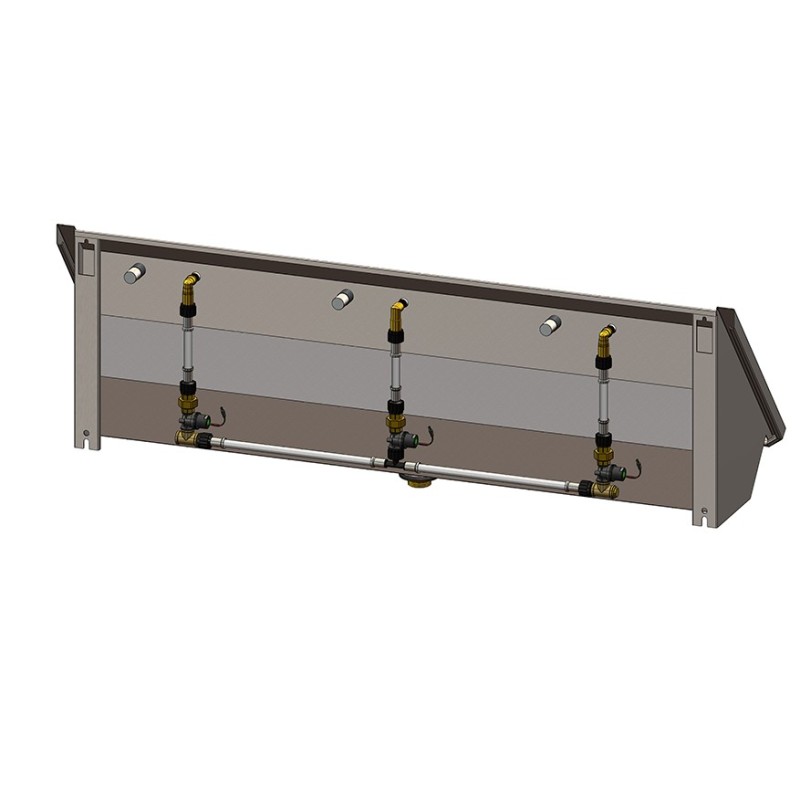

Plug & Play: built-in piping (multilayer pipe) and pre-connected within the urinal for quick and easy installation.

Threaded water inlet F1/2’’ on T-connector.
Closed pipe on the left side as standard with M½’’ plug; removing the plug allows serial connection of urinals.

Perforated embossed bottom drainage, 1 ½’’ drain provided.

Easy and quick installation with 4 fixing points.

Dim.: W1200 to 3000 x D325 x H485 mm
