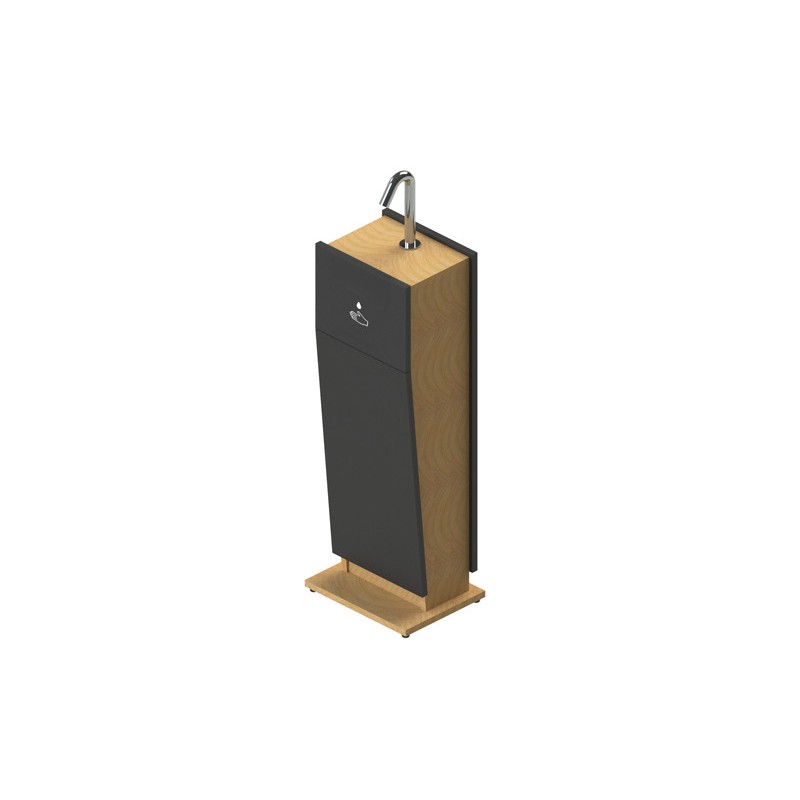

ONE floor-standing touch-free hand sanitiser dispenser
Sensor concealed in the tip of the spout
Technical sheet & documents
No technical sheet available for this reference. Request the sheet

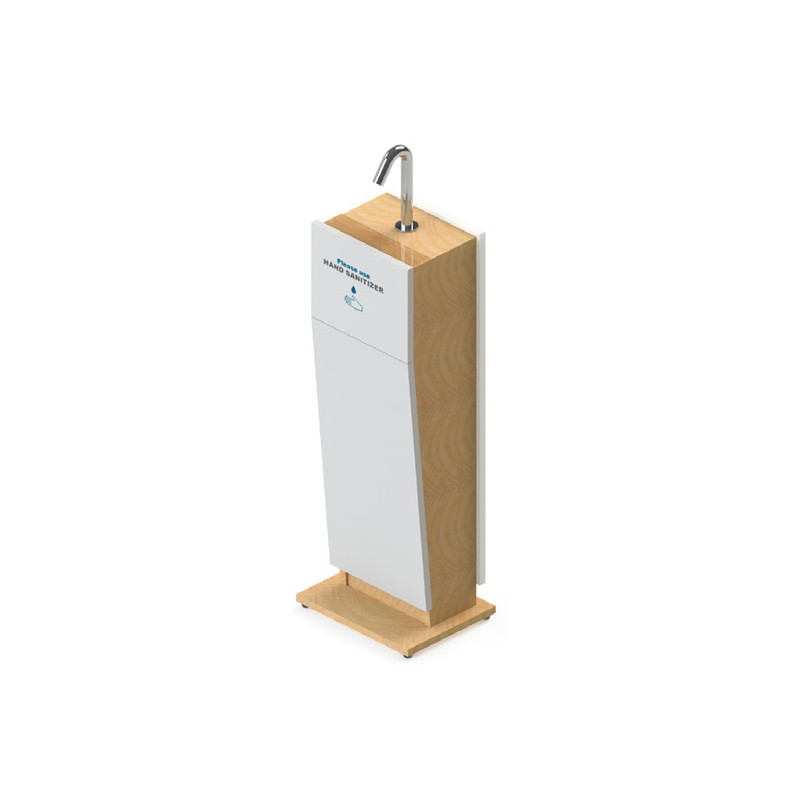

Automatic touch-free hand sanitiser station

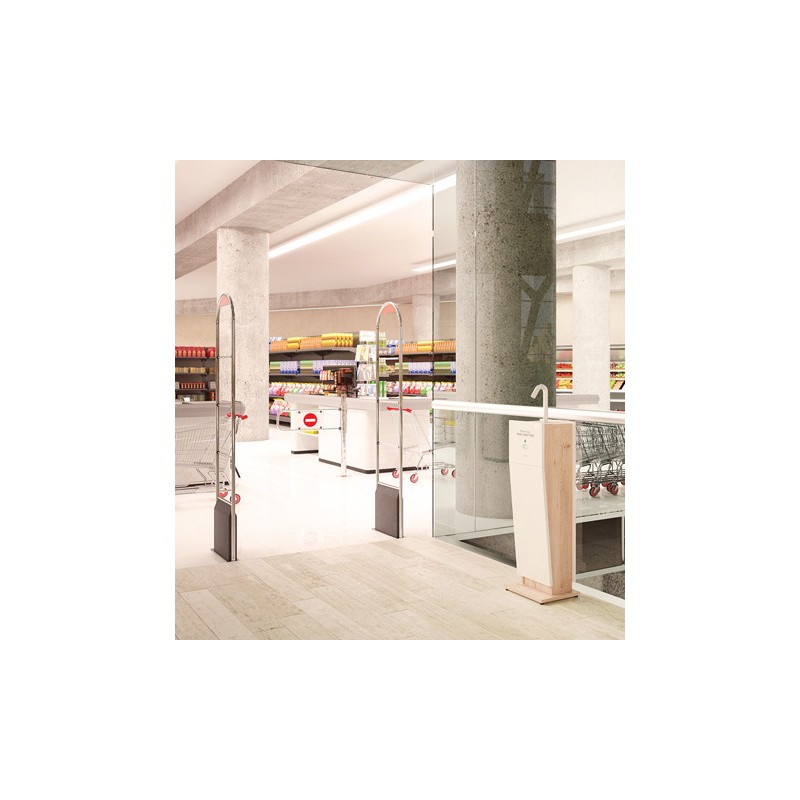

Hand sanitiser station with an electronic touch-free dispenser for hand sanitiser gel, to be placed at entrances and along busy walkways in public areas such as supermarkets, banks, offices, airports...
Can be used with any hand disinfectant of suitable viscosity.
Compatible with ethanol, isopropyl alcohol (IPA, up to 80%) and hand sanitiser gel.
∙ The dispenser automatically delivers a preset amount of disinfectant when
users place a hand within range of the infrared sensor.
∙ 9 V battery power (6 LR20 batteries, not supplied) or 230/12 V transformer.
∙ 6-litre tank.
∙ Peristaltic pump for any disinfectant with a viscosity of 100 to 3,800 cP.
∙ No drips.
∙ Easy priming of the disinfectant when refilling, using the remote control or a manual button.
∙ Optional remote control to set the dose of disinfectant dispensed.
∙ Elegant station in laminated plywood (dimensions W 330 x H 1124 x D 260 mm).
∙ Front door for easy refilling with disinfectant.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Tank capacity
- More than 1.5 L
- Capacity details
- 6 L
- Consumables
- Hand sanitizer gel (viscosity 2000-5000 cps)
- Dosage
- 0.7 to 0.9 cm³ depending on gel viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Wood
Brass - Detailed composition
- Layered plywood
- Fixing
- Floor mounted
- Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Dimensions
- W330 x D260 x H1124 mm
- Warranty
- 2 years
Automatic touch-free hand sanitiser station
Hand sanitiser station with an electronic touch-free dispenser for hand sanitiser gel, to be placed at entrances and along busy walkways in public areas such as supermarkets, banks, offices, airports...
Can be used with any hand disinfectant of suitable viscosity.
Compatible with ethanol, isopropyl alcohol (IPA, up to 80%) and hand sanitiser gel.
∙ The dispenser automatically delivers a preset amount of disinfectant when
users place a hand within range of the infrared sensor.
∙ 9 V battery power (6 LR20 batteries, not supplied) or 230/12 V transformer.
∙ 6-litre tank.
∙ Peristaltic pump for any disinfectant with a viscosity of 100 to 3,800 cP.
∙ No drips.
∙ Easy priming of the disinfectant when refilling, using the remote control or a manual button.
∙ Optional remote control to set the dose of disinfectant dispensed.
∙ Elegant station in laminated plywood (dimensions W 330 x H 1124 x D 260 mm).
∙ Front door for easy refilling with disinfectant.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Tank capacity
- More than 1.5 L
- Capacity details
- 6 L
- Consumables
- Hand sanitizer gel (viscosity 2000-5000 cps)
- Dosage
- 0.7 to 0.9 cm³ depending on gel viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Wood
Brass - Detailed composition
- Layered plywood
- Fixing
- Floor mounted
- Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Dimensions
- W330 x D260 x H1124 mm
- Warranty
- 2 years
